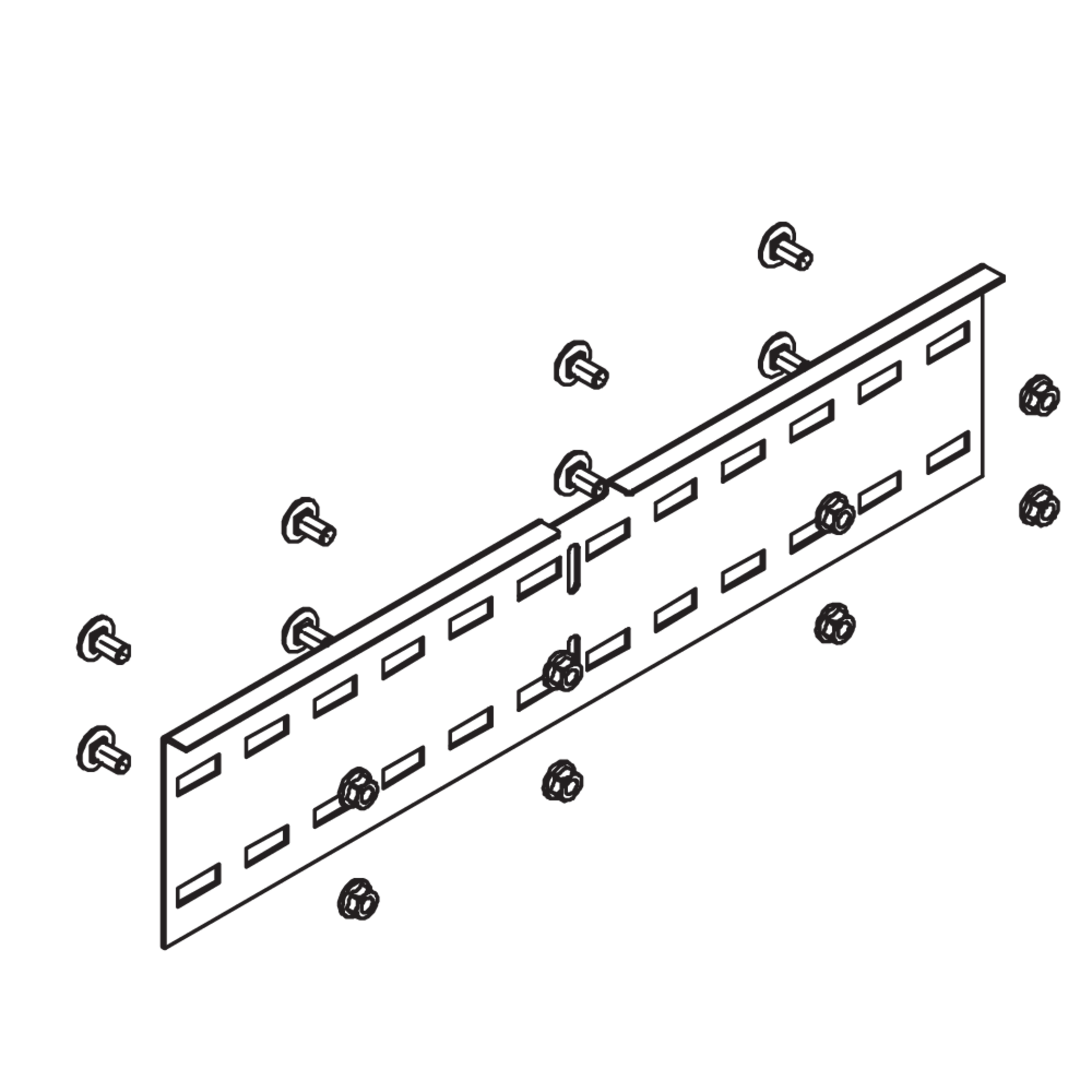

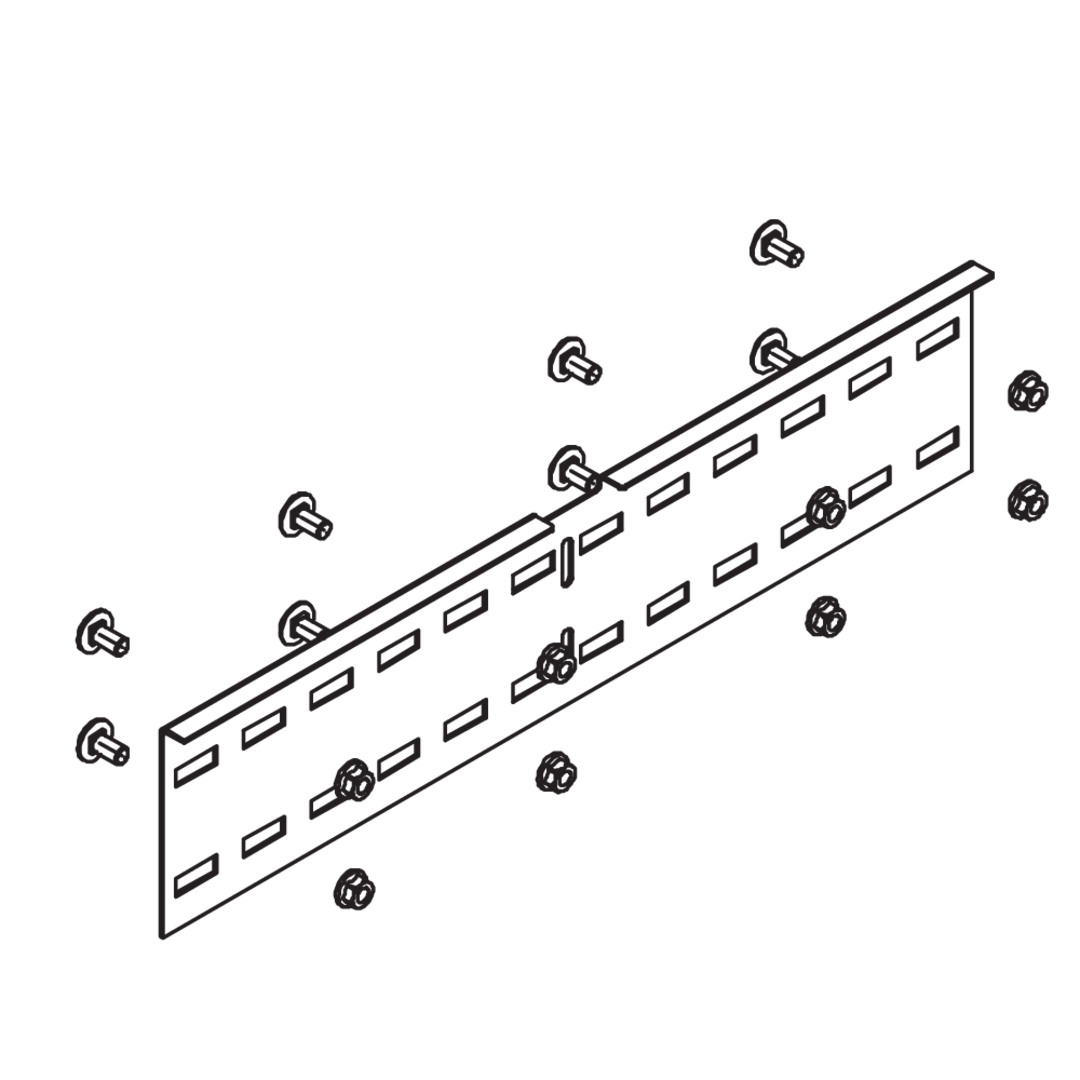

WPVH 150

Wide-span cable tray connector, horizontal, height = 135 mm

WPVH 150 wide-span connectors can be used to connect wide-span cable trays or ladders together and to create horizontal changes in direction. If the direction changes by > 30°, the cable trays must first be cut to size according to the installation instructions. In either case, the side connectors are bent to the required angle as desired. They are 145 mm high corresponding to the height of the cable tray rail. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touch Download datasheet

Variants

steel, continously hot galvanized/Sendzimir process

Article

H

height

L

length

G

Weight per storage unit
  • WPVH 150S
    Wide-span coupler, horizontal WPVH 150S
    135 mm
    600 mm
    1.516 kg
    Included accessories
    More information

steel, batch/hot-dip galvanized

Article

H

height

L

length

G

Weight per storage unit
  • WPVH 150F
    Wide-span coupler, horizontal
    135 mm
    600 mm
    1.628 kg
    Included accessories
    More information

Stainless steel, according to ASTM 304 / BS 304 S 3

Article

H

height

L

length

G

Weight per storage unit
  • WPVH 150E
    Wide-span coupler, horizontal WPVH 150E
    135 mm
    600 mm
    1.548 kg
    Included accessories
    More information

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

Article

H

height

L

length

G

Weight per storage unit
  • WPVH 150E4
    Wide-span coupler, horizontal WPVH 150E4
    135 mm
    600 mm
    1.564 kg
    Included accessories
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link
