WPREAB 150

Wide-span cable tray attachment corner element

The wide-span cable tray attachment corner piece WPREAB 150 allows the direction of cable routing to be changed horizontally by 90°. It is suitable for wide-span cable trays with rails 150 mm high. As specified in the installation instructions, the WPEA attachment corner element is first mounted on the previously cut cable tray and then the connecting tray is bolted to the corner element piece and corner connector. Finally, a VB-BS connecting plate is added towards the corner. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touch Download datasheet

Variants

steel, batch/hot-dip galvanized

Article

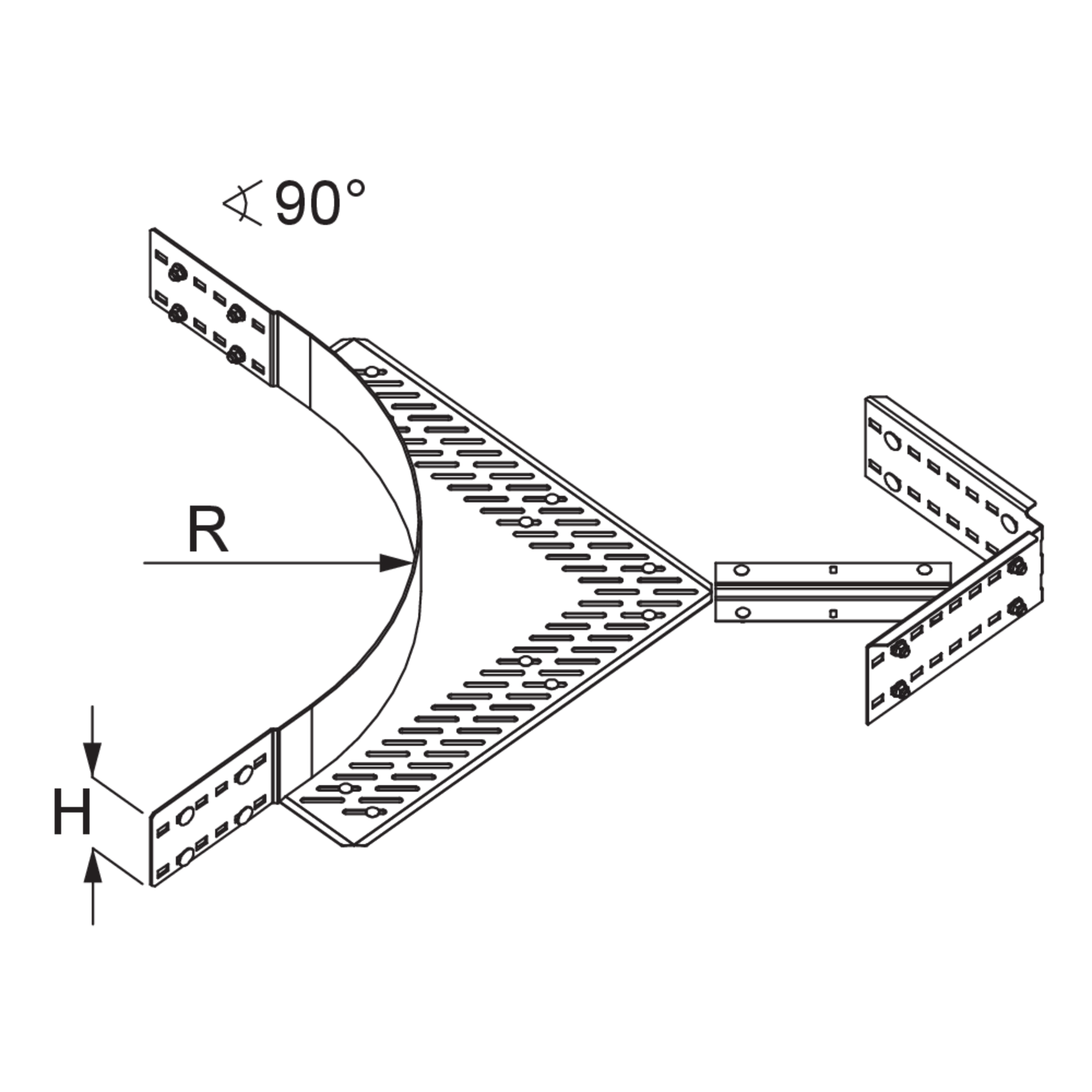

H

height

R

radius

W

Winkel

G

Weight per storage unit
  • WPREAB 150F
    End plate, Wide-span cable tray WPREB
    115 mm
    450 mm
    90°
    8.084 kg
    Included accessories
    More information

Stainless steel, according to ASTM 304 / BS 304 S 3

Article

H

height

R

radius

W

Winkel

G

Weight per storage unit
  • WPREAB 150E
    End plate, Wide-span cable tray WPREB
    115 mm
    450 mm
    90°
    7.569 kg
    Included accessories
    More information

Details

  • Creates horizontal changes of the cable routing direction by 90°.
  • Cable-friendly guide
