WPRAA 150

Wide-span cable tray attachment branch, height = 150 mm

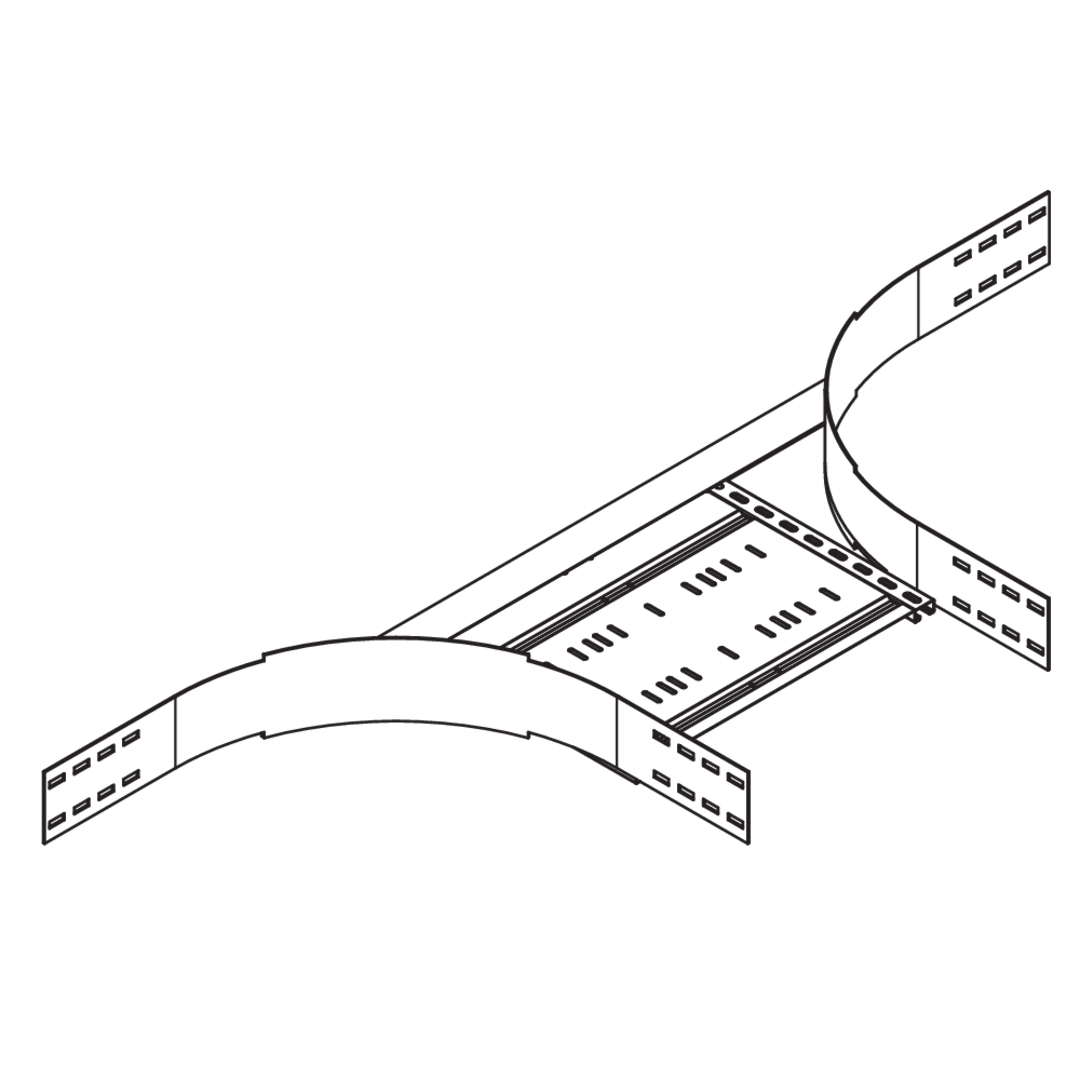

The wide-span cable tray attachment branch WPRAA 150 with integrated side connectors enables the direction of cable routing to be changed in the form of a branch. It is suitable for wide-span cable trays with rails 150 mm high and is 200 to 600 mm side. The side rail of the main tray is cut out at the point where the connecting tray will branch off. The WPRAA attachment branch is positioned and bolted in place at this point. The connection tray can then be pushed in with a VB floor connector. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touch Download datasheet

Variants

steel, batch/hot-dip galvanized

Article

HH

Height

B

width

L

length

R

radius

G

Weight per storage unit
  • WPRAA 150-20F
    Wide-span cable tray attachment
    150 mm
    200 mm
    1635 mm
    450 mm
    11.980 kg
    Included accessories
    More information
  • WPRAA 150-30F
    Wide-span cable tray attachment
    150 mm
    300 mm
    1735 mm
    450 mm
    12.530 kg
    Included accessories
    More information
  • WPRAA 150-40F
    Wide-span cable tray attachment
    150 mm
    400 mm
    1835 mm
    450 mm
    13.070 kg
    Included accessories
    More information
  • WPRAA 150-50F
    Wide-span cable tray attachment
    150 mm
    500 mm
    1935 mm
    450 mm
    13.610 kg
    Included accessories
    More information
  • WPRAA 150-60F
    Wide-span cable tray attachment
    150 mm
    600 mm
    2035 mm
    450 mm
    14.150 kg
    Included accessories
    More information

Stainless steel, according to ASTM 304 / BS 304 S 3

Article

HH

Height

B

width

L

length

R

radius

G

Weight per storage unit
  • WPRAA 150-20E
    Wide-span cable tray attachment branch
    150 mm
    200 mm
    1635 mm
    450 mm
    11.298 kg
    Included accessories
    More information
  • WPRAA 150-30E
    Wide-span cable tray attachment branch
    150 mm
    300 mm
    1735 mm
    450 mm
    11.818 kg
    Included accessories
    More information
  • WPRAA 150-40E
    Wide-span cable tray attachment branch
    150 mm
    400 mm
    1835 mm
    450 mm
    12.318 kg
    Included accessories
    More information
  • WPRAA 150-50E
    Wide-span cable tray attachment branch
    150 mm
    500 mm
    1935 mm
    450 mm
    12.828 kg
    Included accessories
    More information
  • WPRAA 150-60E
    Wide-span cable tray attachment branch
    150 mm
    600 mm
    2035 mm
    450 mm
    13.348 kg
    Included accessories
    More information

Details

  • Creates horizontal changes of the cable routing direction in the form of a branch
  • Cable-friendly guide
