WPEA 150

Wide-span add-on corner

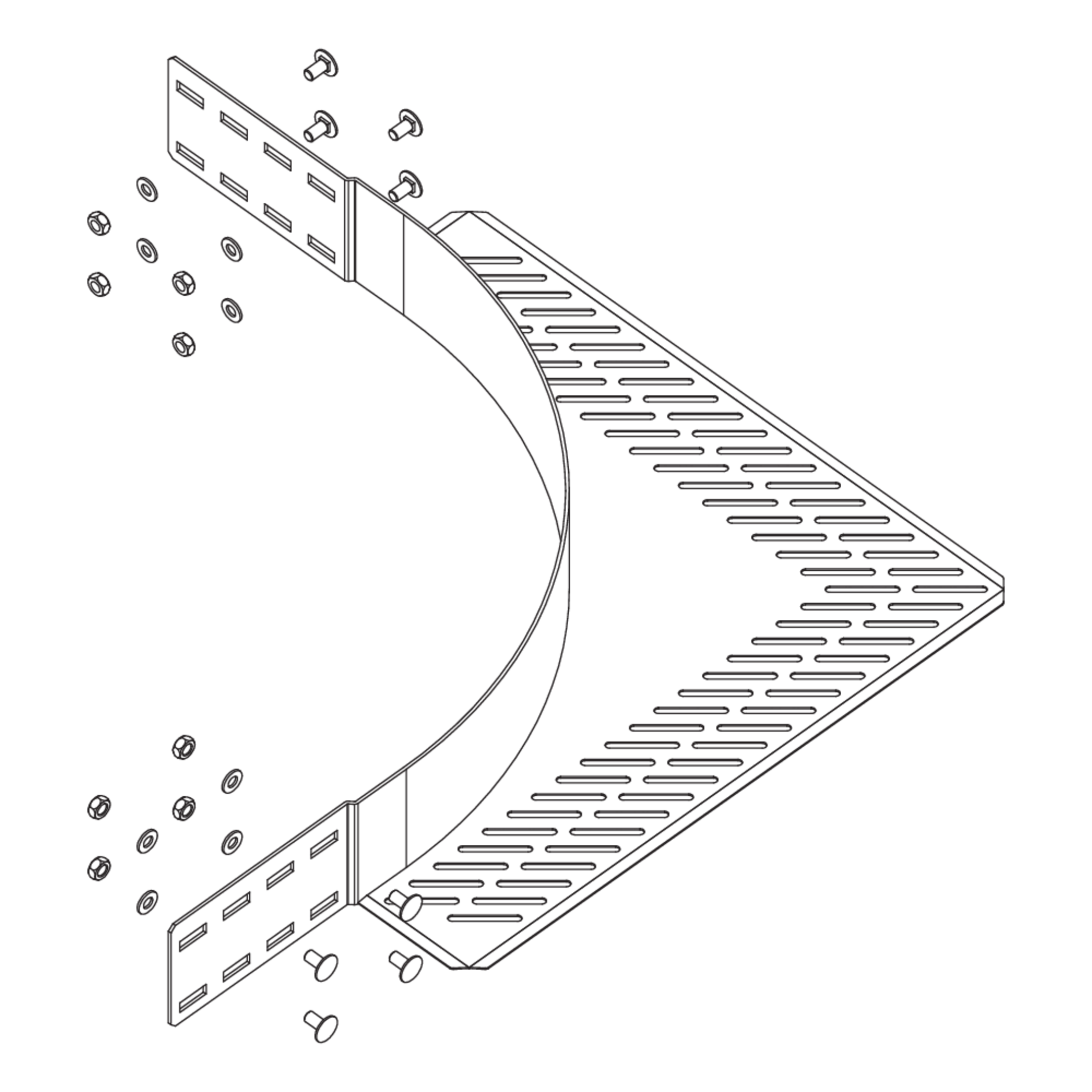

The wide-span attachment corner WPEA 150 allows the direction of cable routing to be changed horizontally by 90° and is suitable for wide-span cable trays with side rails 150 mm high. It is combined with the wide-span cable tray corner extension WPLEAB or wide-span cable tray attachment corner WPREAB. It can also be used to create T branches. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

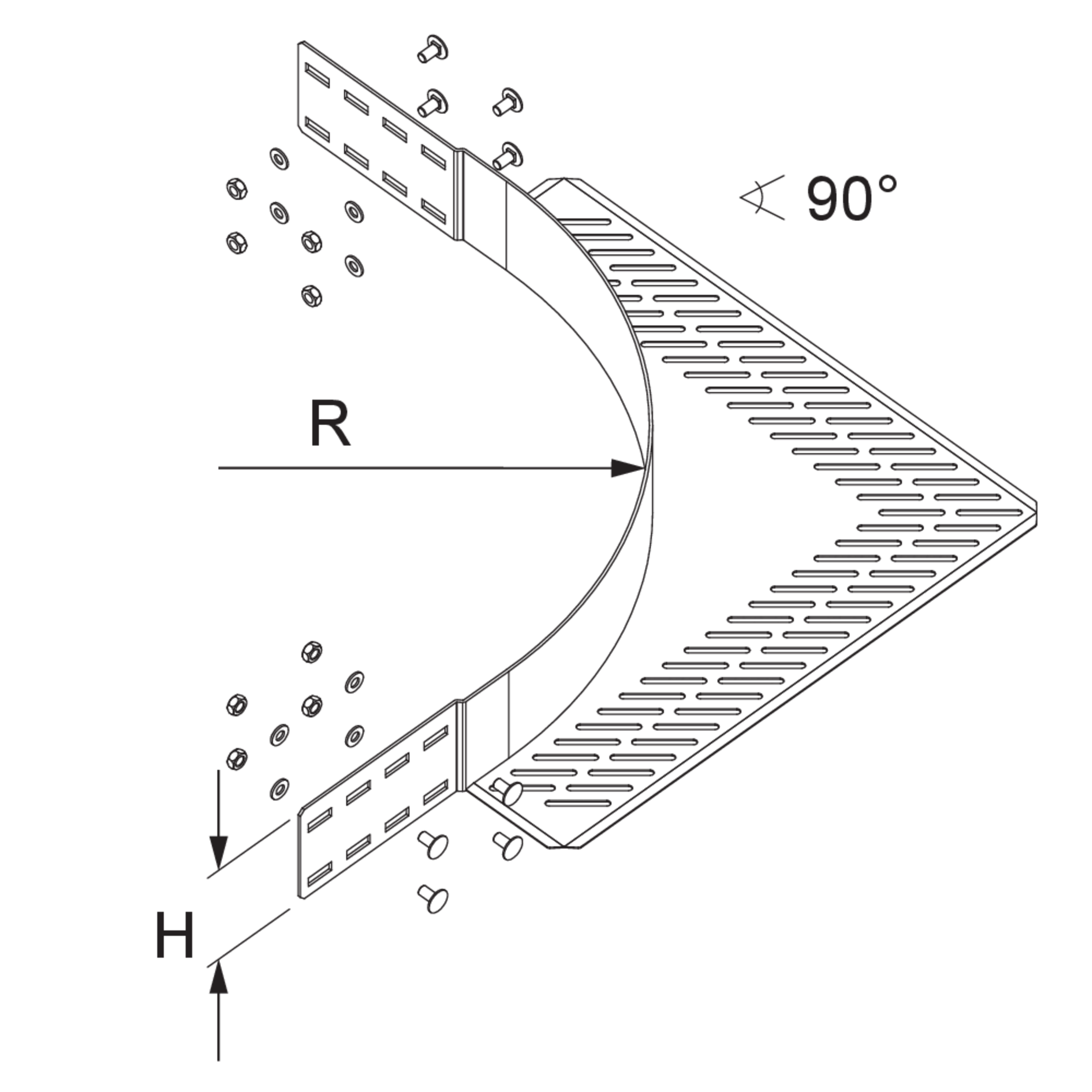

Article

H

height

R

radius

W

Angle

G

Weight per storage unit

  • WPEA 150F
    End plate, Wide-span cable tray WPREB
    height
    115 mm
    radius
    450 mm
    Angle
    90°
    Weight per storage unit
    5.692 kg
    Included accessories
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

R

radius

W

Angle

G

Weight per storage unit

  • WPEA 150E
    End plate, Wide-span cable tray WPREB
    height
    115 mm
    radius
    450 mm
    Angle
    90°
    Weight per storage unit
    5.354 kg
    Included accessories
    More information

Details

  • Creates horizontal changes of the cable routing direction by 90°.
  • Cable-friendly guide

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link
