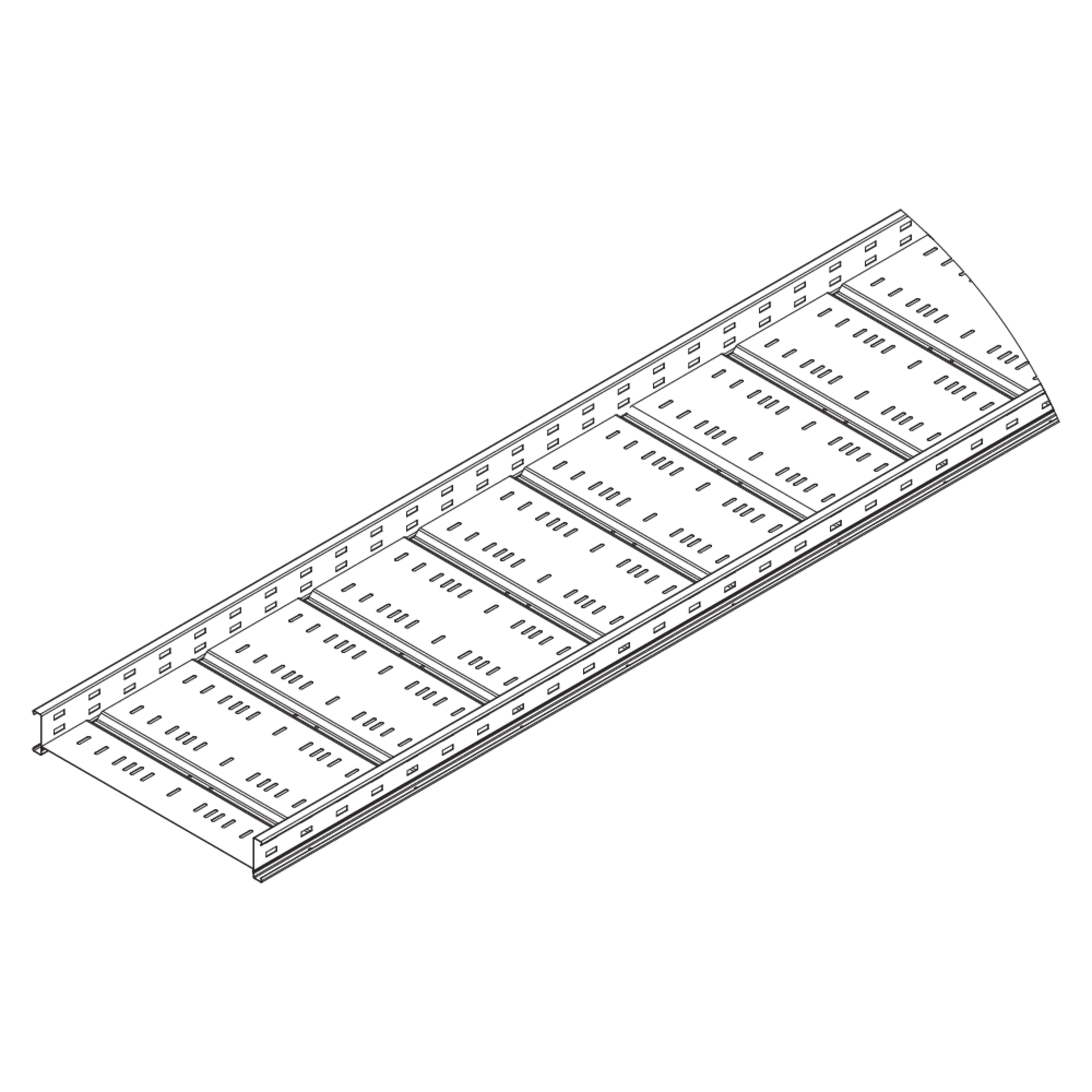

WPR 100

Wide-span cable tray, height = 100 mm

The wide-span cable trays WPR 100 have rails 100 mm high and are available in widths of 200 to 600 mm. The standard length is 6000 mm. The maximum load capacities can only be achieved by using the rail supports. The wide-span spar supports are to be used for fastening to the substructure. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

No stepping
Get in touch Download datasheet

Variants

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit
  • WPR 100-20E
    Wide-span cable ladder WPL 150-20E
    height
    100 mm
    width
    200 mm
    length
    6000 mm
    material thickness
    1.50 mm
    distributed load control cable
    0.23 kN/m
    cross section area
    156 cm2
    Weight per storage unit
    36.240 kg
    More information
  • WPR 100-30E
    Wide-span cable ladder WPL 150-20E
    height
    100 mm
    width
    300 mm
    length
    6000 mm
    material thickness
    1.50 mm
    distributed load control cable
    0.35 kN/m
    cross section area
    234 cm2
    Weight per storage unit
    43.120 kg
    More information
  • WPR 100-40E
    Wide-span cable ladder WPL 150-20E
    height
    100 mm
    width
    400 mm
    length
    6000 mm
    material thickness
    1.50 mm
    distributed load control cable
    0.47 kN/m
    cross section area
    312 cm2
    Weight per storage unit
    50.240 kg
    More information
  • WPR 100-50E
    Wide-span cable ladder WPL 150-20E
    height
    100 mm
    width
    500 mm
    length
    6000 mm
    material thickness
    1.50 mm
    distributed load control cable
    0.59 kN/m
    cross section area
    390 cm2
    Weight per storage unit
    57.360 kg
    More information
  • WPR 100-60E
    Wide-span cable ladder WPL 150-20E
    height
    100 mm
    width
    600 mm
    length
    6000 mm
    material thickness
    1.50 mm
    distributed load control cable
    0.7 kN/m
    cross section area
    468 cm2
    Weight per storage unit
    64.460 kg
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit
  • WPR 100-20E4
    Wide-span cable ladder WPL 150-20E
    height
    100 mm
    width
    200 mm
    length
    6000 mm
    material thickness
    1.50 mm
    distributed load control cable
    0.23 kN/m
    cross section area
    156 cm2
    Weight per storage unit
    36.240 kg
    More information
  • WPR 100-30E4
    Wide-span cable ladder WPL 150-20E
    height
    100 mm
    width
    300 mm
    length
    6000 mm
    material thickness
    1.50 mm
    distributed load control cable
    0.35 kN/m
    cross section area
    234 cm2
    Weight per storage unit
    43.700 kg
    More information
  • WPR 100-40E4
    Wide-span cable ladder WPL 150-20E
    height
    100 mm
    width
    400 mm
    length
    6000 mm
    material thickness
    1.50 mm
    distributed load control cable
    0.47 kN/m
    cross section area
    312 cm2
    Weight per storage unit
    50.900 kg
    More information
  • WPR 100-50E4
    Wide-span cable ladder WPL 150-20E
    height
    100 mm
    width
    500 mm
    length
    6000 mm
    material thickness
    1.50 mm
    distributed load control cable
    0.59 kN/m
    cross section area
    390 cm2
    Weight per storage unit
    58.100 kg
    More information
  • WPR 100-60E4
    wide-span cable ladder
    height
    100 mm
    width
    600 mm
    length
    6000 mm
    material thickness
    1.50 mm
    distributed load control cable
    0.70 kN/m
    cross section area
    468 cm2
    Weight per storage unit
    65.300 kg
    More information

Details

  • No stepping

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Accessories

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Cable trays - Complete catalogue

    Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders and more.

    PDF, 29 MB

    de
    Download

  • Wide-Span Cable Tray WPR, Installation Guide

    Montageanleitung

    PDF, 2 MB

    de
    Download

  • Wide-Span Systems, Technical Information

    Technische Information

    PDF, 4 MB

    de en

  • Wide-Span Cable Tray WPR 100, 120, 150

    Kompaktübersicht

    PDF, 1 MB

    de
    Download

  • Electrical conductivity (WP/WPL 100)

    Certificate, tested according to DIN EN 61537 Pt. 11.1

    PDF, 263 KB

    de en

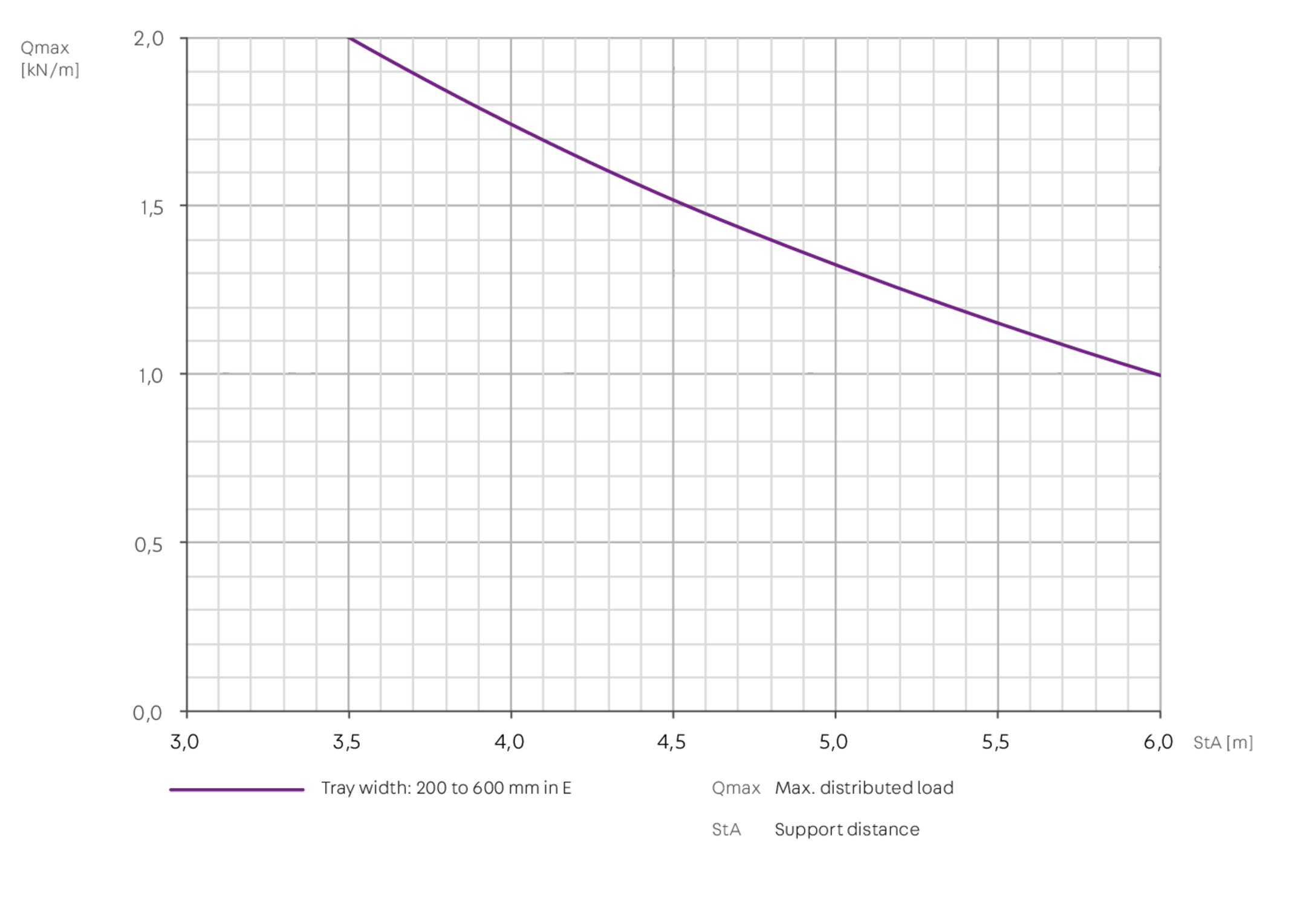

Load diagram
