WPREAB 100

Wide-span cable tray attachment corner element

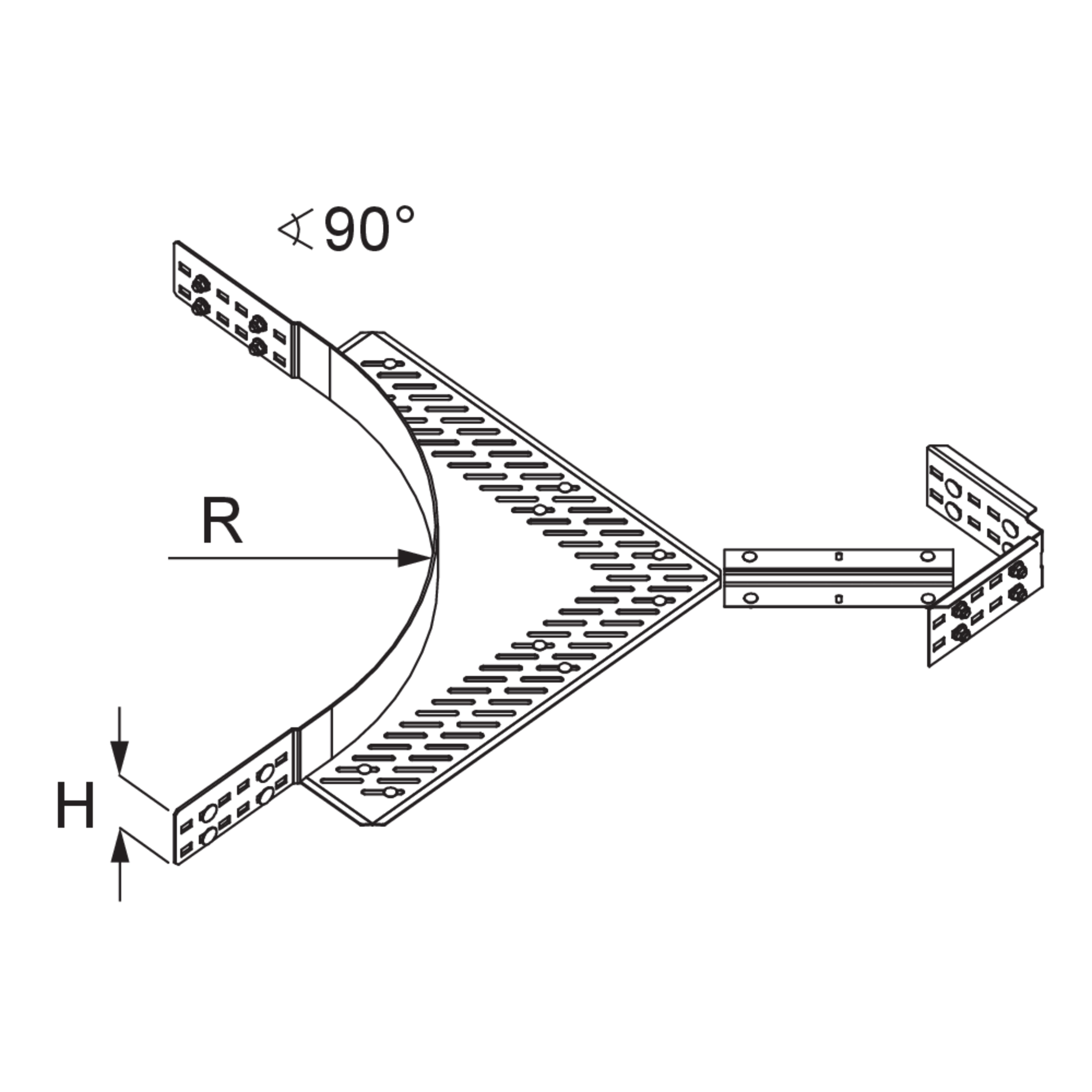

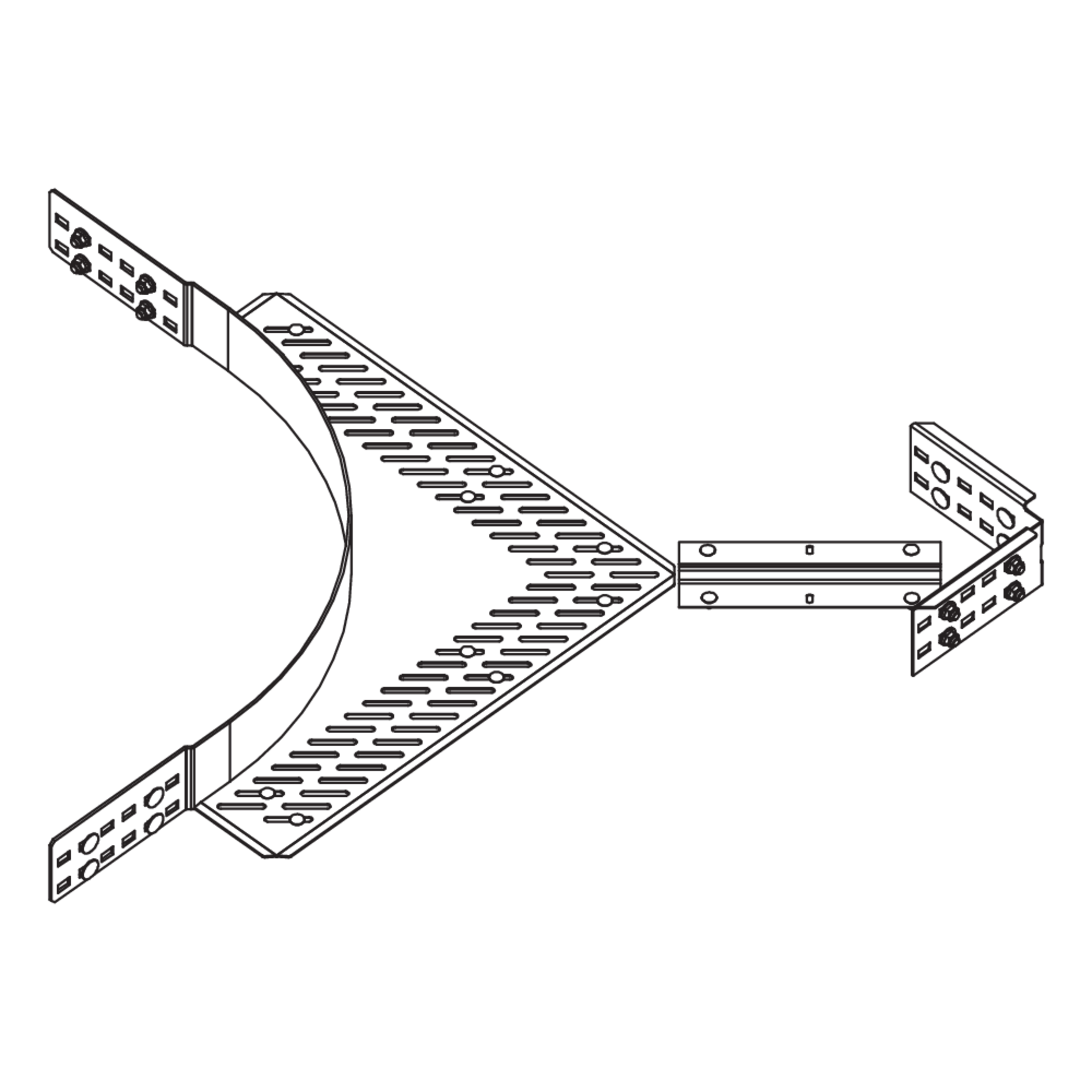

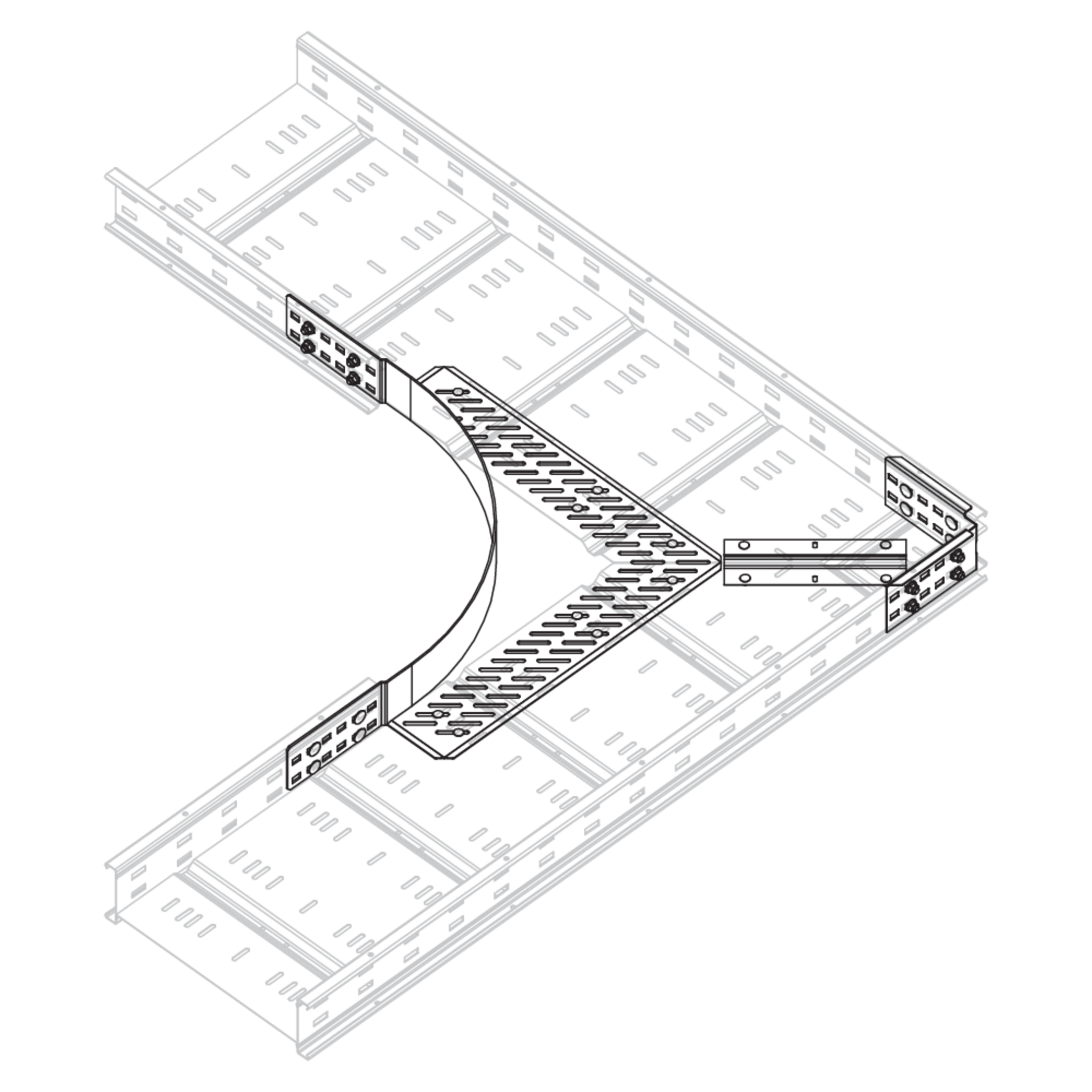

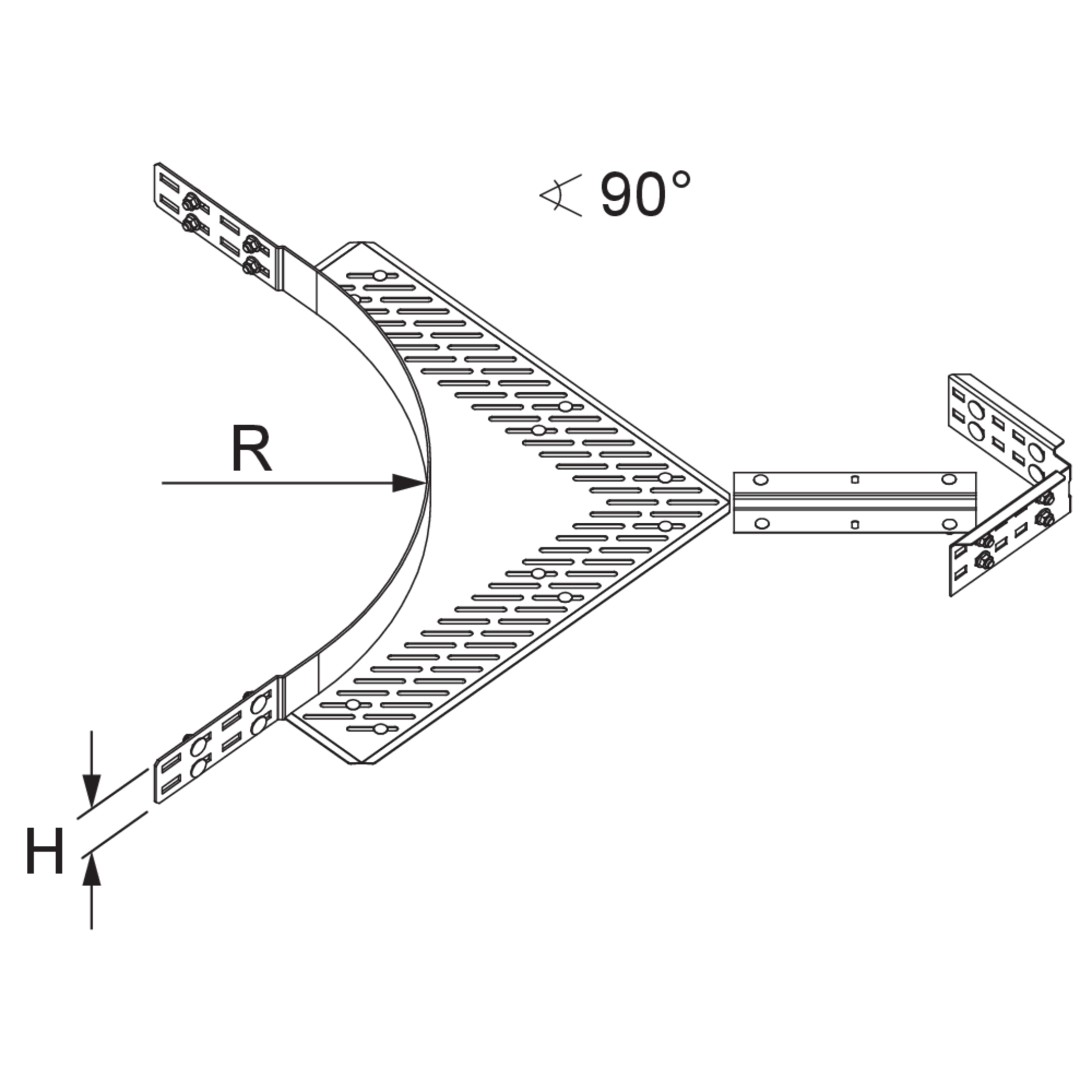

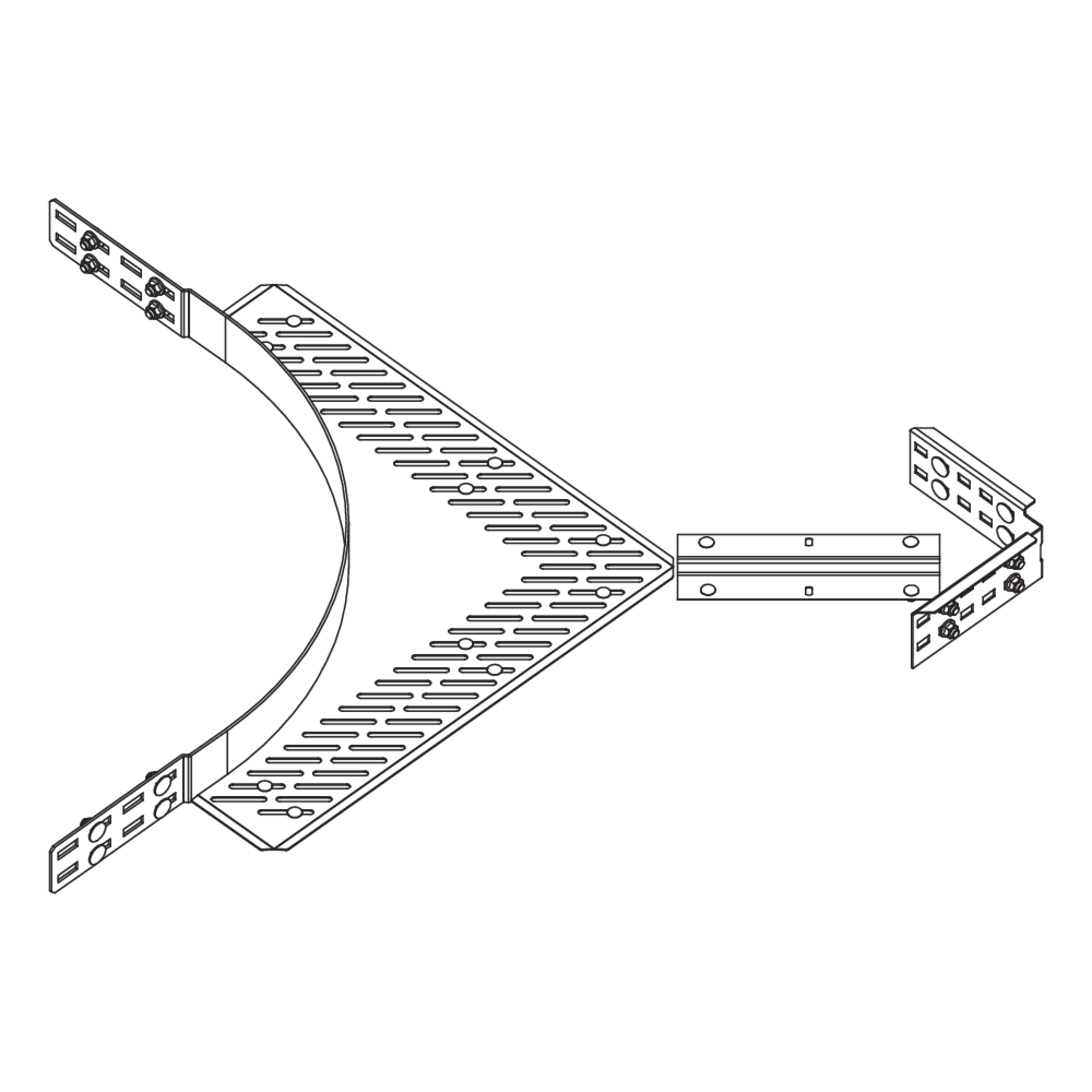

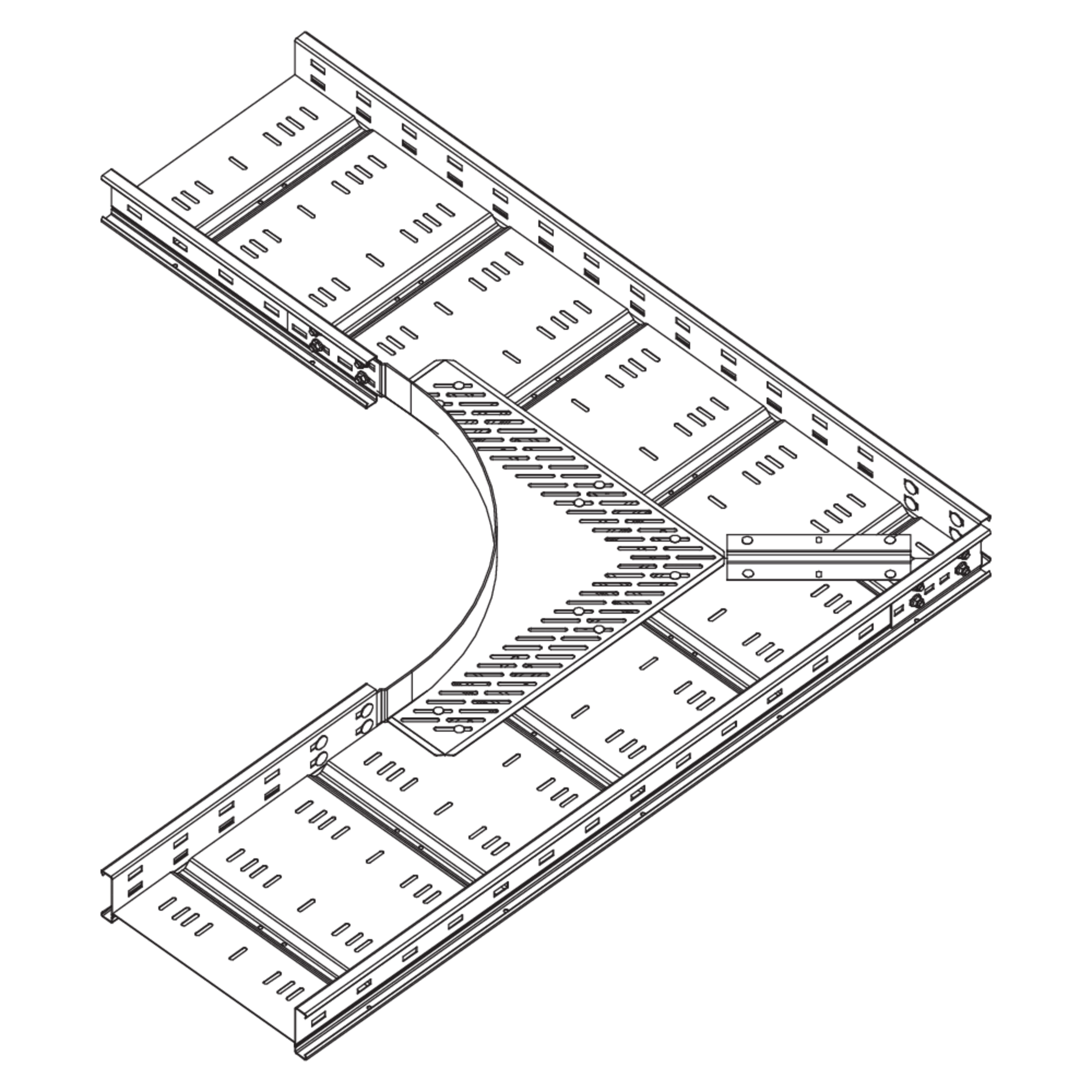

The wide-span cable tray attachment corner piece WPREAB 100 allows the direction of cable routing to be changed horizontally by 90°. It is suitable for wide-span cable trays with rails 100 mm high. As specified in the installation instructions, the WPEA attachment corner element is first mounted on the previously cut cable tray and then the connecting tray is bolted to the corner element piece and corner connector. Finally, a VB-BS connecting plate is added towards the corner. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touch Download datasheet

Variants

Stainless steel, according to ASTM 304 / BS 304 S 3

Article

H

height

R

radius

W

Winkel

G

Weight per storage unit
  • WPREAB 100E
    End plate, Wide-span cable tray WPREB
    70 mm
    450 mm
    90°
    5.661 kg
    Included accessories
    More information

Details

  • Creates horizontal changes of the cable routing direction by 90°.
  • Cable-friendly guide

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link
