WPRK 100

Wide-span cable tray crossing, height = 100 mm

slide 1 of 2

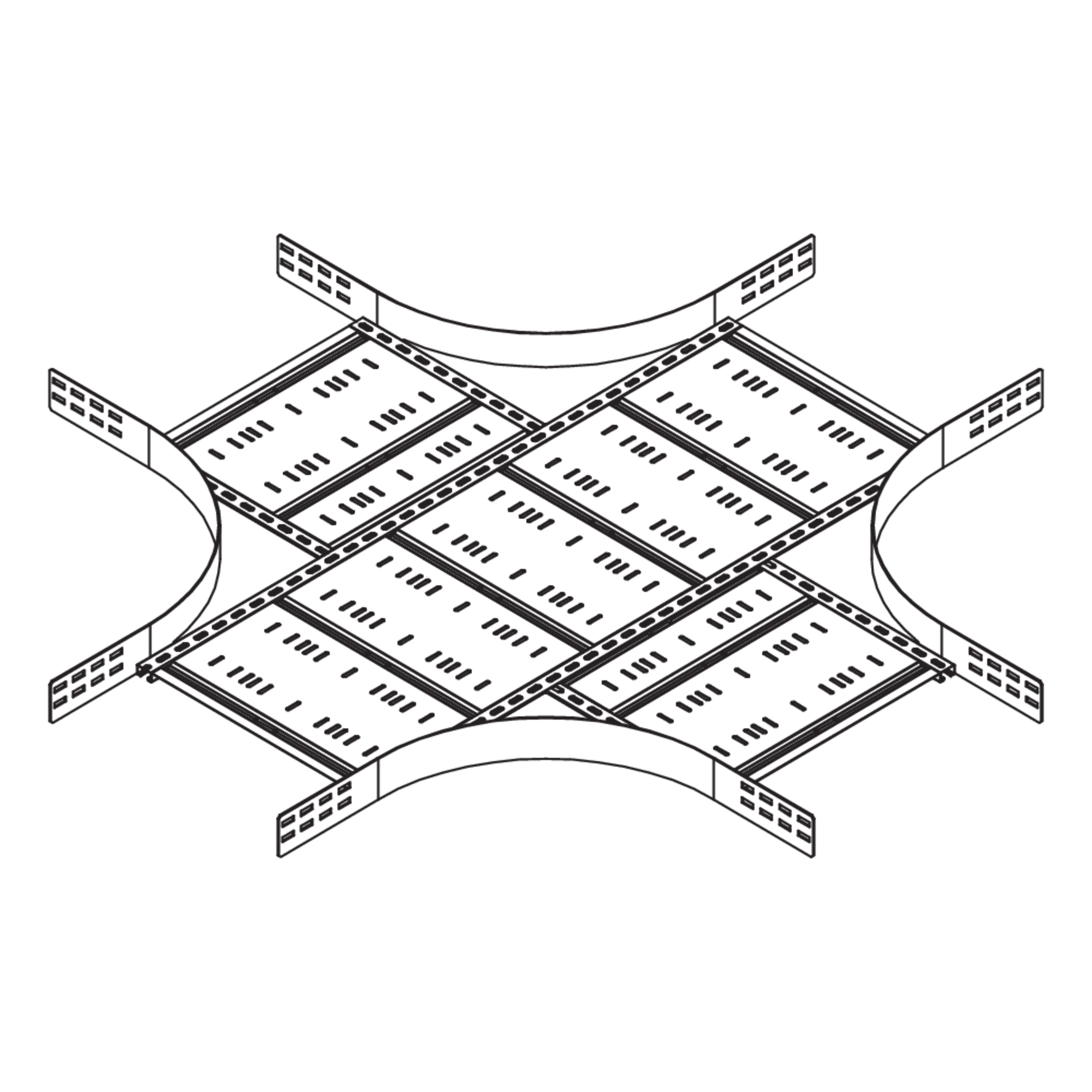

The wide-span cable tray crossing WPRK 100 with integrated connectors serves as a formed part for horizontally intersecting wide-span cable trays. It is suitable for trays with rails 100 mm high and is 200 to 600 mm wide. The connection trays can be pushed in with a VB floor connector. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touch Download datasheet

Variants

Edelstahl, Werkstoff Nr. 1.4301 (V2A)

Article

H

HH

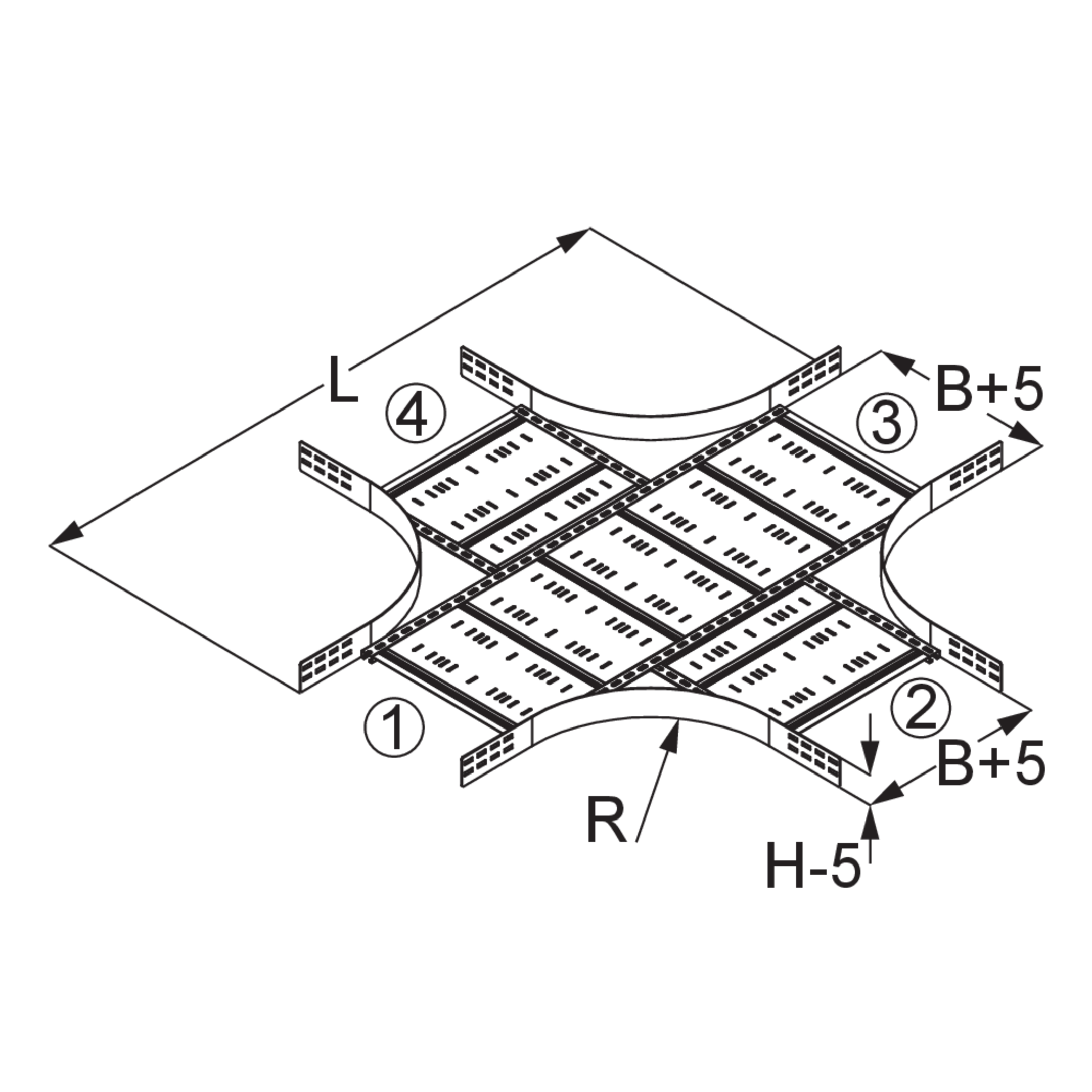

B

L

R

G

Included accessories

  • WPRK 100-20E
    Weitspannkabelrinnen-Kreuzung
    100 mm
    100 mm
    200 mm
    1635 mm
    450 mm
    20.276 kg
    Included accessories
    More information
  • WPRK 100-30E
    Weitspannkabelrinnen-Kreuzung
    100 mm
    100 mm
    300 mm
    1735 mm
    450 mm
    22.586 kg
    Included accessories
    More information
  • WPRK 100-40E
    Weitspannkabelrinnen-Kreuzung
    100 mm
    100 mm
    400 mm
    1835 mm
    450 mm
    25.006 kg
    Included accessories
    More information
  • WPRK 100-50E
    Weitspannkabelrinnen-Kreuzung
    100 mm
    100 mm
    500 mm
    1935 mm
    450 mm
    27.626 kg
    Included accessories
    More information
  • WPRK 100-60E
    Weitspannkabelrinnen-Kreuzung
    100 mm
    100 mm
    600 mm
    2035 mm
    450 mm
    30.346 kg
    Included accessories
    More information

Details

  • Creates horizontal change of cable routing in four directions
  • Cable-friendly guide
