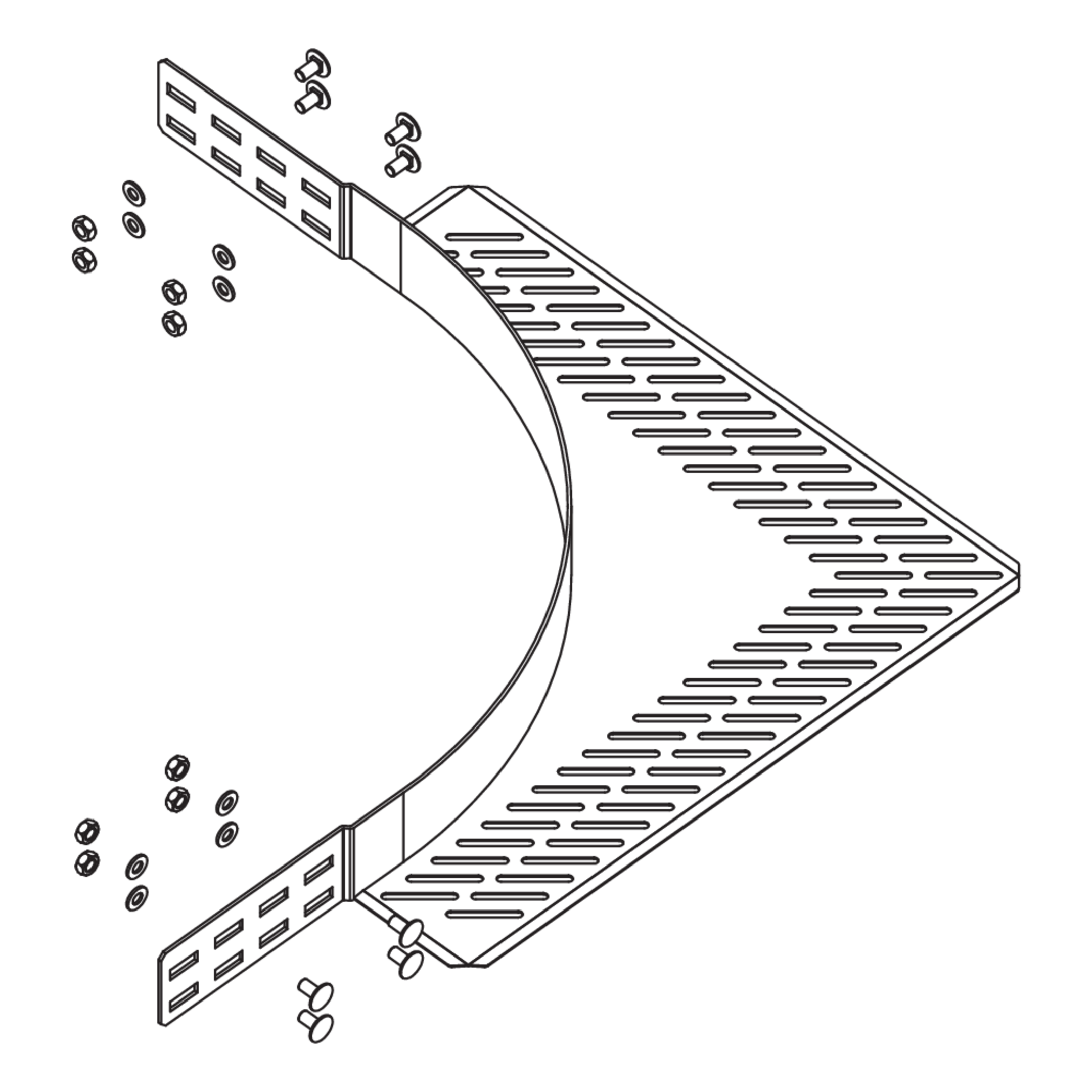

WPEA 100

Wide-span attachment corner element

The wide-span attachment corner WPEA 100 allows the direction of cable routing to be changed horizontally by 90° and is suitable for wide-span cable trays with side rails 100 mm high. It is combined with the wide-span cable tray corner extension WPLEAB or wide-span cable tray attachment corner WPREAB. It can also be used to create T branches. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touch Download datasheet

Variants

Stainless steel, according to ASTM 304 / BS 304 S 3

Article

H

height

R

radius

W

Winkel

G

Weight per storage unit
  • WPEA 100E
    End plate, Wide-span cable tray WPREB
    70 mm
    450 mm
    90°
    4.182 kg
    Included accessories
    More information

Details

  • Creates horizontal changes of the cable routing direction by 90°.
  • Cable-friendly guide

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link
