WPV 100

Wide-span cable tray connector, height = 95 mm

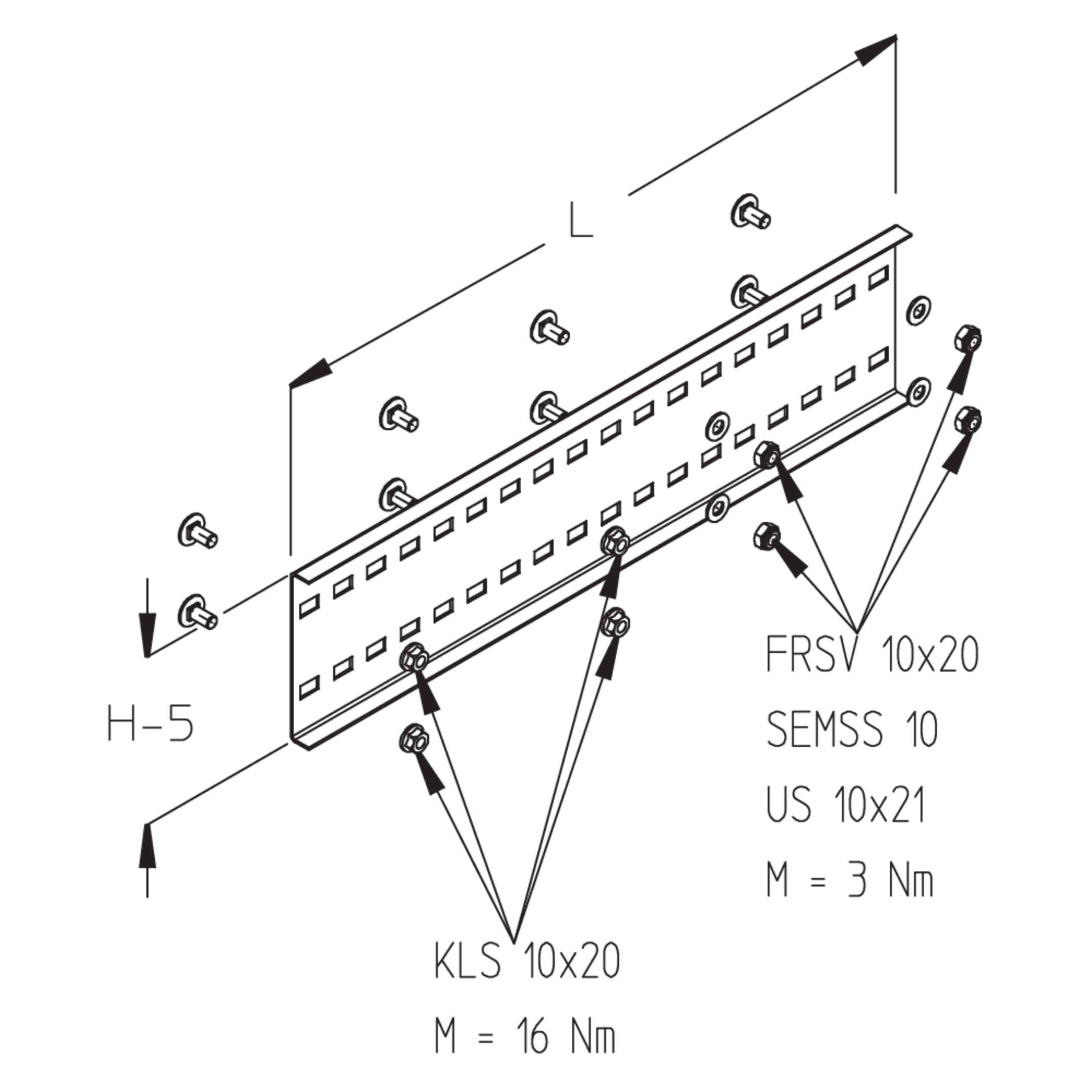

WPV 100 wide-span connectors can be used to connect wide-span cable trays or ladders together. They are 95 mm high corresponding to the height of the cable tray rail. One side of the connector is mounted as a floating bearing to allow for thermal expansion. The specified torques must be taken into observed. The other side of the connector is formed as a fixed bearing. A minimum distance of 4 mm must be maintained between the cable trays. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touch Download datasheet

Variants

Stainless steel, according to ASTM 304 / BS 304 S 3

Article

H

L

W

Included accessories

  • WPV 100E
    Wide-span coupler WPV 100E
    95 mm
    400 mm
    0.964 kg
    Included accessories
    More information

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

Article

H

L

W

Included accessories

  • WPV 100E4
    Wide-span coupler WPV 100E4
    95 mm
    400 mm
    0.977 kg
    Included accessories
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link
