RGS 110

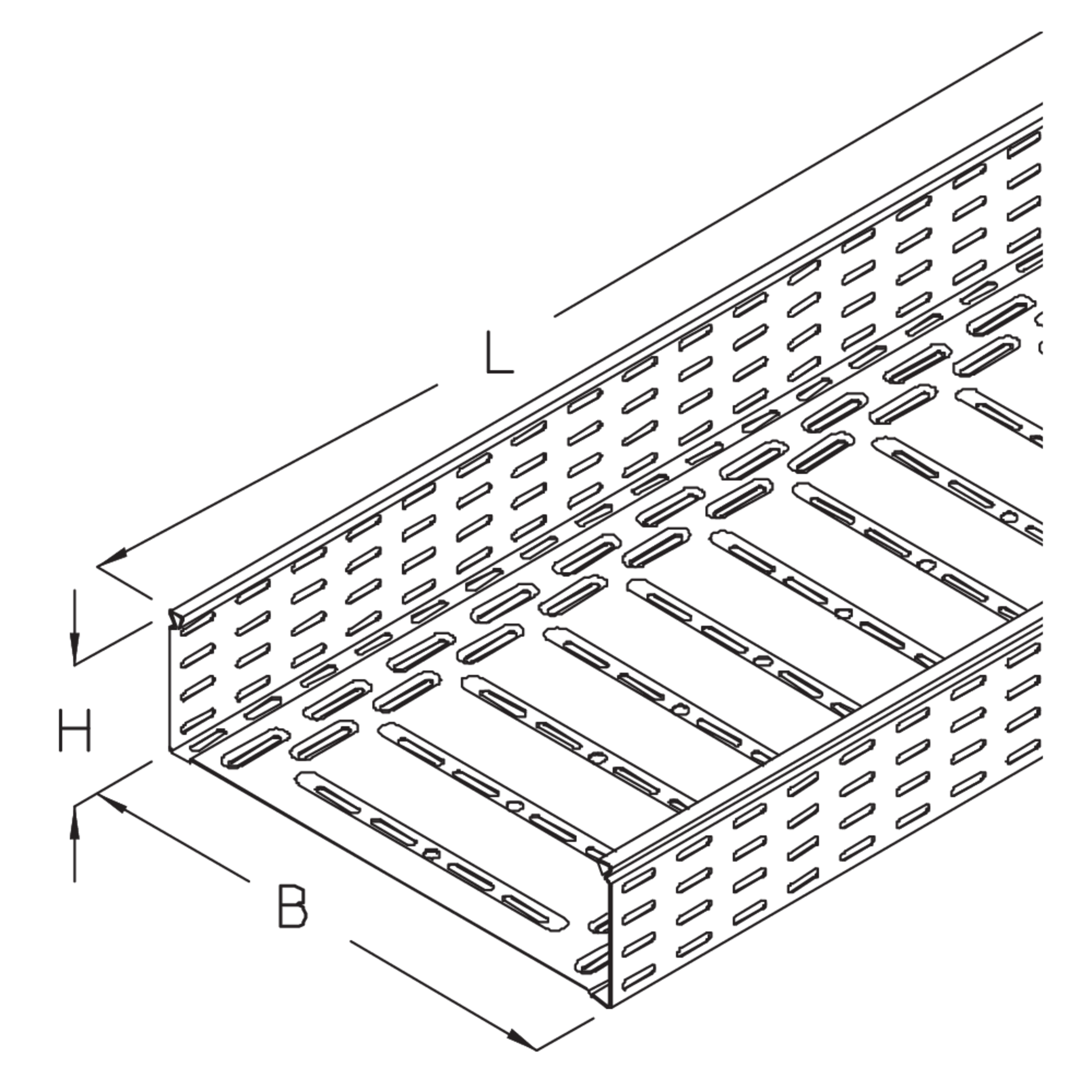

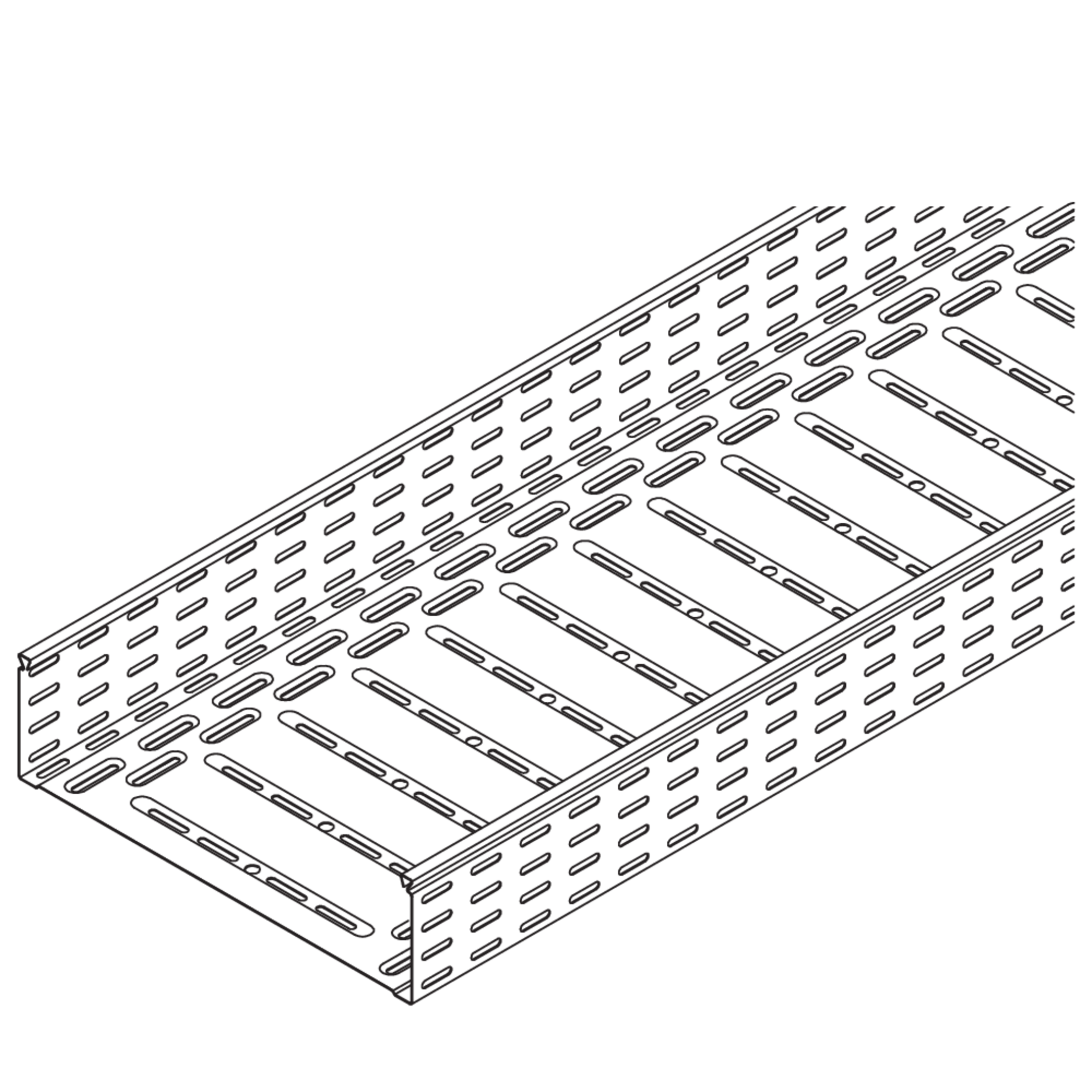

Cable tray, perforated, heavy, height = 110 mm

The RGS 110 perforated cable trays have sides 110 mm high and are available in widths from 100 to 600 mm. The standard length is 3000 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Betreten verboten
Get in touch Download datasheet

Variants

steel, continously hot galvanized/Sendzimir process

Article

H

B

L

t

QSK

A

W

  • RGS 110-10S
    Cable tray, heavy RGS 110-10S
    110 mm
    100 mm
    3000 mm
    1.50 mm
    0.16 kN/m
    107 cm2
    11.500 kg
    More information
  • RGS 110-20S
    Cable tray, heavy RGS 110-20S
    110 mm
    200 mm
    3000 mm
    1.50 mm
    0.33 kN/m
    217 cm2
    13.950 kg
    More information
  • RGS 110-30S
    Cable tray, heavy RGS 110-30S
    110 mm
    300 mm
    3000 mm
    1.50 mm
    0.49 kN/m
    327 cm2
    17.500 kg
    More information
  • RGS 110-40S
    Cable tray, heavy RGS 110-40S
    110 mm
    400 mm
    3000 mm
    1.50 mm
    0.66 kN/m
    437 cm2
    20.500 kg
    More information
  • RGS 110-50S
    Cable tray, heavy RGS 110-50S
    110 mm
    500 mm
    3000 mm
    1.50 mm
    0.82 kN/m
    547 cm2
    24.000 kg
    More information
  • RGS 110-60S
    Cable tray, heavy RGS 110-60S
    110 mm
    600 mm
    3000 mm
    1.50 mm
    0.99 kN/m
    657 cm2
    27.350 kg
    More information

steel, batch/hot-dip galvanized

Article

H

B

L

t

QSK

A

W

  • RGS 110-10F
    Cable tray, heavy RGS 110-10F
    110 mm
    100 mm
    3000 mm
    1.50 mm
    0.16 kN/m
    107 cm2
    12.113 kg
    More information
  • RGS 110-20F
    Cable tray, heavy RGS 110-20F
    110 mm
    200 mm
    3000 mm
    1.50 mm
    0.33 kN/m
    217 cm2
    14.290 kg
    More information
  • RGS 110-30F
    Cable tray, heavy RGS 110-30F
    110 mm
    300 mm
    3000 mm
    1.50 mm
    0.49 kN/m
    327 cm2
    18.823 kg
    More information
  • RGS 110-40F
    Cable tray, heavy RGS 110-40F
    110 mm
    400 mm
    3000 mm
    1.50 mm
    0.66 kN/m
    437 cm2
    22.352 kg
    More information
  • RGS 110-50F
    Cable tray, heavy RGS 110-50F
    110 mm
    500 mm
    3000 mm
    1.50 mm
    0.82 kN/m
    547 cm2
    24.930 kg
    More information
  • RGS 110-60F
    Cable tray, heavy RGS 110-60F
    110 mm
    600 mm
    3000 mm
    1.50 mm
    0.99 kN/m
    657 cm2
    29.409 kg
    More information

Details

  • Betreten verboten

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Accessories

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Cable trays - Technical information

    Technische Information

    PDF, 3 MB

    de en

  • Rote Mappe - Funktionserhalt Tragkonstruktion DIN 4102-12

    Gesamtkatalog

    PDF, 29 MB

    de
    Download

  • Cable ladders - Technical information

    Montageanleitung

    PDF, 3 MB

    de en

  • Weitspannkabelleiter WL 200

    Kompaktübersicht

    PDF, 1 MB

    de
    Download

  • Electrical conductivity (RG 35/60 and RI 60)

    Certificate, tested according to DIN EN 61537 Pt. 11.1

    PDF, 275 KB

    de en

  • Safe working load (RGS 110)

    <div>Certificate, tested in accordance to DIN EN 61537</div>

    PDF, 437 KB

    de en

BIM- and CAD-Data

  • BIM for cable trays

    BIM for cable trays

    Bim data

    ZIP, 10 MB

    de en

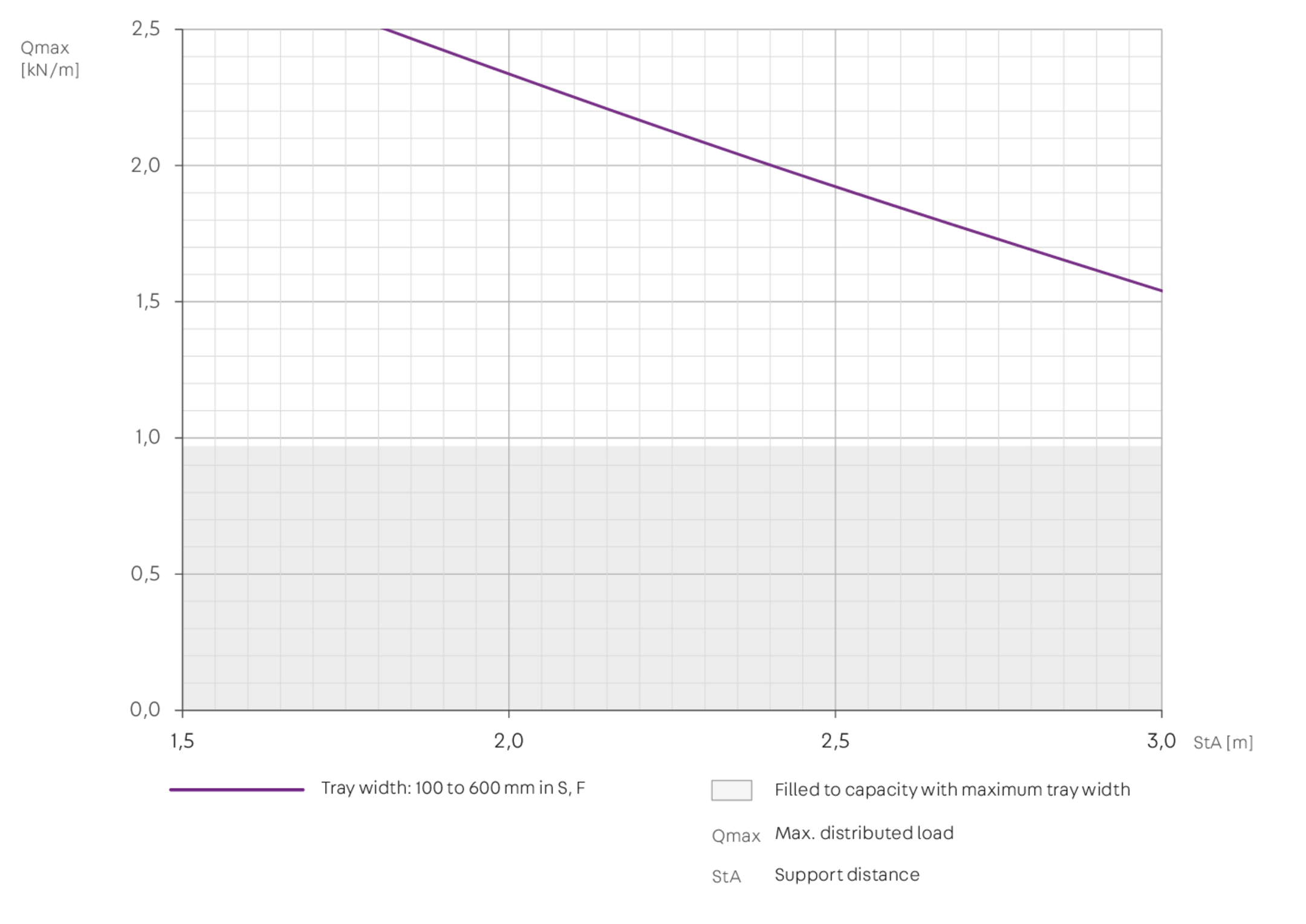

Load diagram

Included accessories
