RR 110

Cable tray reducer, height = 110 mm

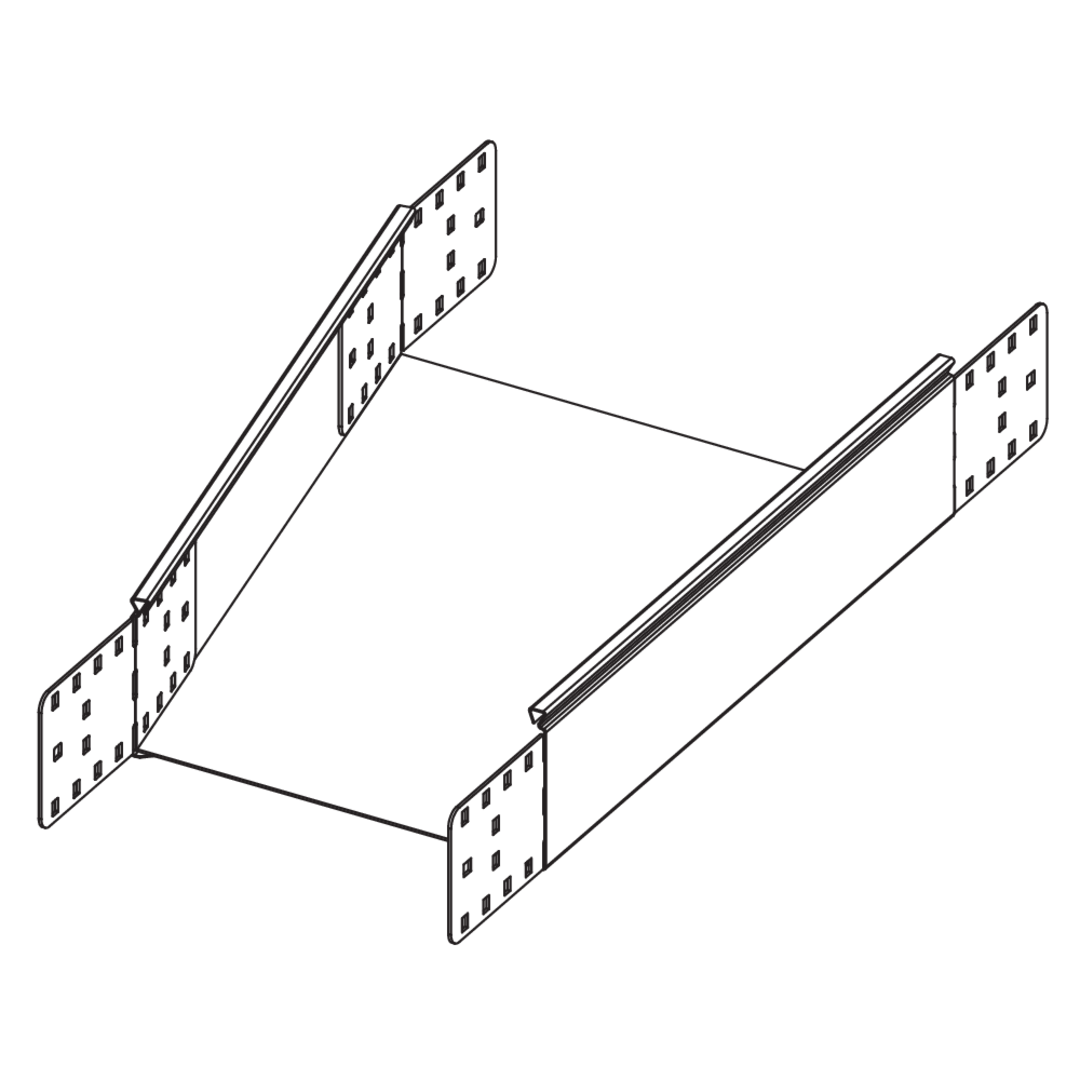

The cable tray reducer RR 110 with integrated side connectors enables the width of the cable tray to be reduced. It is available in three different designs: It can narrow towards the centre or on the left or right side. Specify the desired design (left, centre, right) and width when ordering. The entrance width is always reduced by 100 mm. The cable tray reducer has a standard length of 500 mm and is suitable for cable trays with sides 110 mm high. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touch Download datasheet

Variants

Stahl, band-/sendzimirverzinkt

Article

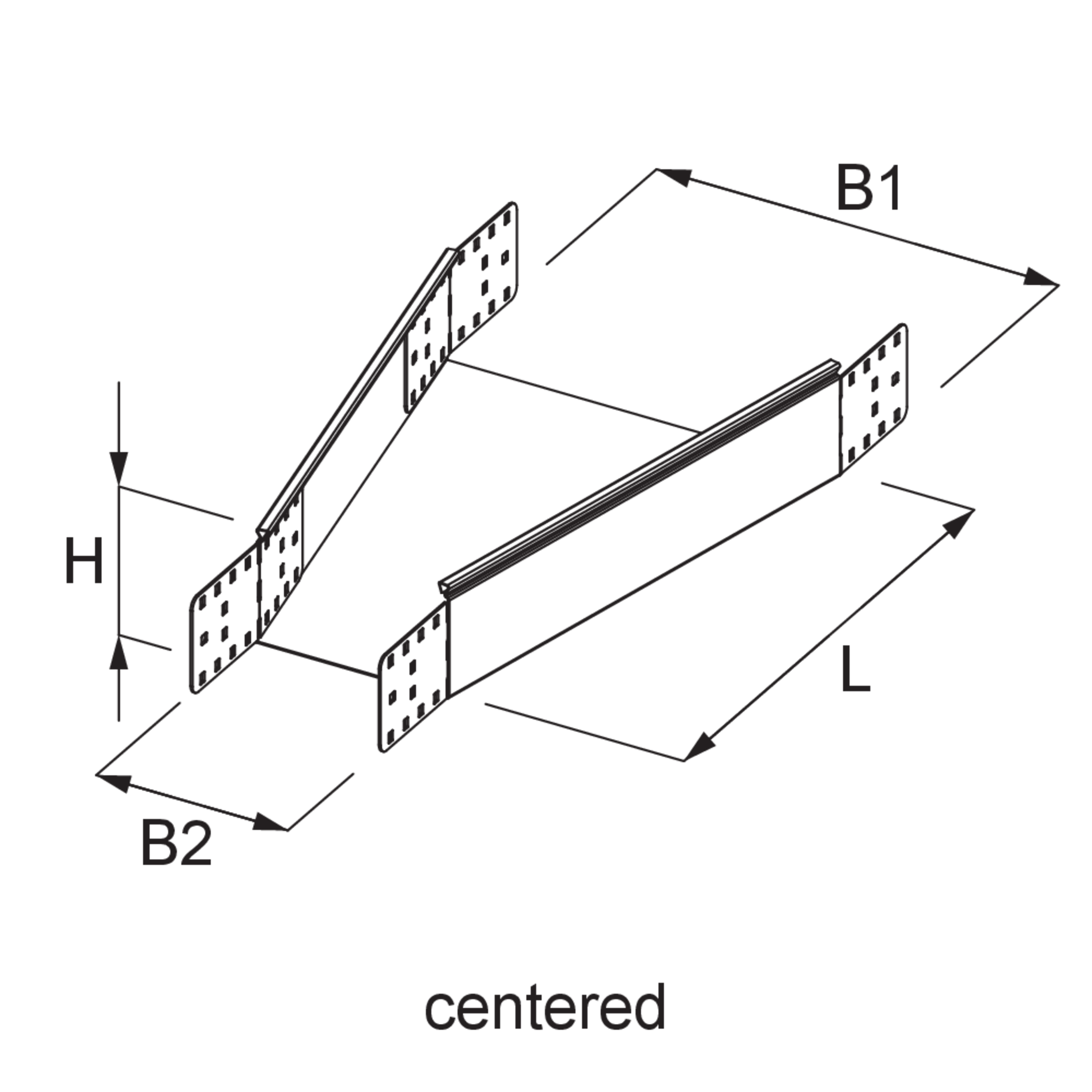

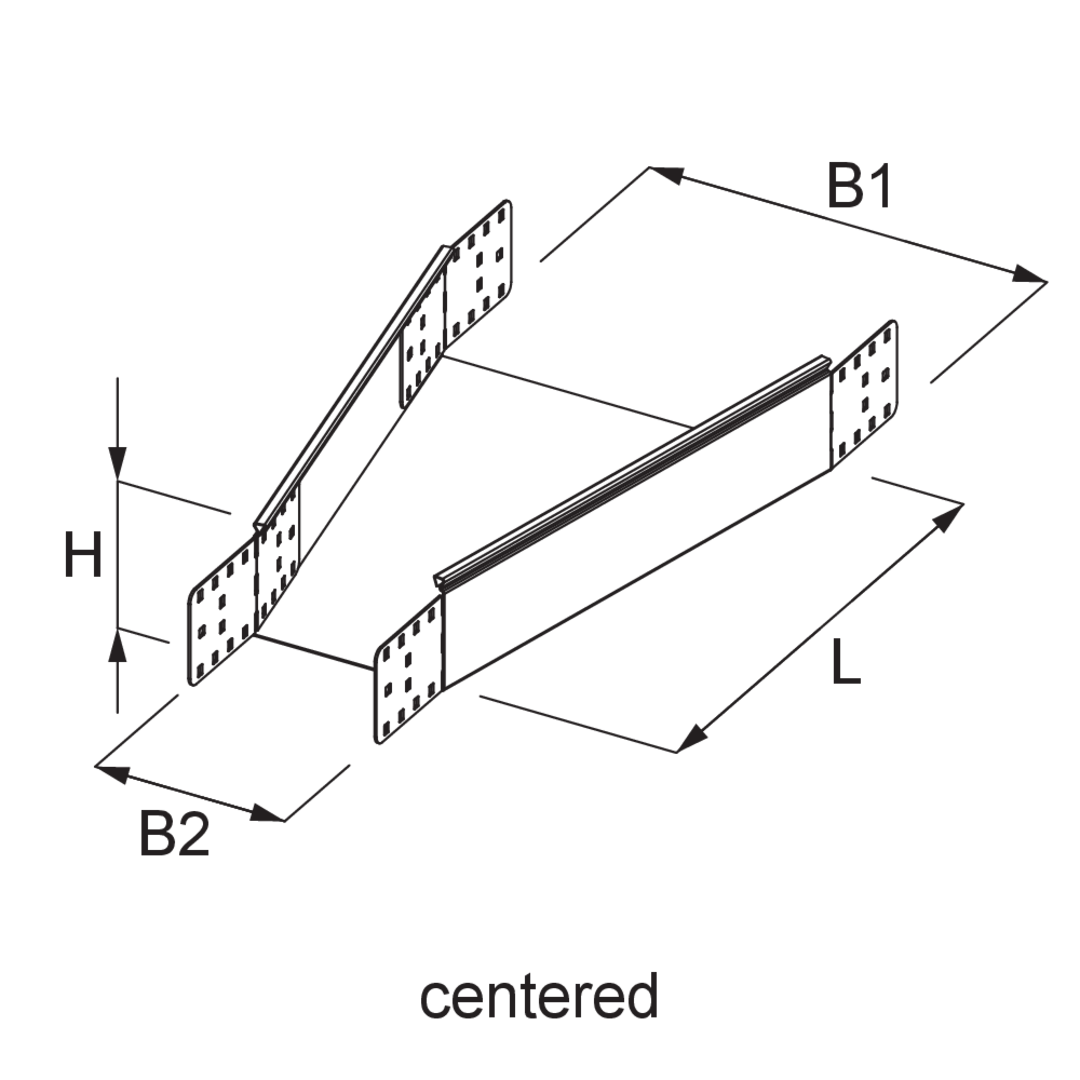

H

Höhe

B1

Breite 1

B2

Breite 2

L

Länge

G

Gewicht je Lagermengeneinheit
  • RR 110-20S
    Kabelrinnen-Reduzierung
    Höhe
    110 mm
    Breite 1
    200 mm
    Breite 2
    100 mm
    Länge
    500 mm
    Gewicht je Lagermengeneinheit
    2.006 kg
    Included accessories
    More information
  • RR 110-30S
    Kabelrinnen-Reduzierung
    Höhe
    110 mm
    Breite 1
    300 mm
    Breite 2
    200 mm
    Länge
    500 mm
    Gewicht je Lagermengeneinheit
    2.506 kg
    Included accessories
    More information
  • RR 110-40S
    Kabelrinnen-Reduzierung
    Höhe
    110 mm
    Breite 1
    400 mm
    Breite 2
    300 mm
    Länge
    500 mm
    Gewicht je Lagermengeneinheit
    2.996 kg
    Included accessories
    More information
  • RR 110-50S
    Kabelrinnen-Reduzierung
    Höhe
    110 mm
    Breite 1
    500 mm
    Breite 2
    400 mm
    Länge
    500 mm
    Gewicht je Lagermengeneinheit
    3.486 kg
    Included accessories
    More information
  • RR 110-60S
    Kabelrinnen-Reduzierung
    Höhe
    110 mm
    Breite 1
    600 mm
    Breite 2
    500 mm
    Länge
    500 mm
    Gewicht je Lagermengeneinheit
    3.976 kg
    Included accessories
    More information

Stahl, stück-/tauchfeuerverzinkt

Article

H

Höhe

B1

Breite 1

B2

Breite 2

L

Länge

G

Gewicht je Lagermengeneinheit
  • RR 110-20F
    Kabelrinnen-Reduzierung
    Höhe
    110 mm
    Breite 1
    200 mm
    Breite 2
    100 mm
    Länge
    500 mm
    Gewicht je Lagermengeneinheit
    2.214 kg
    Included accessories
    More information
  • RR 110-30F
    Kabelrinnen-Reduzierung
    Höhe
    110 mm
    Breite 1
    300 mm
    Breite 2
    200 mm
    Länge
    500 mm
    Gewicht je Lagermengeneinheit
    2.754 kg
    Included accessories
    More information
  • RR 110-40F
    Kabelrinnen-Reduzierung
    Höhe
    110 mm
    Breite 1
    400 mm
    Breite 2
    300 mm
    Länge
    500 mm
    Gewicht je Lagermengeneinheit
    3.294 kg
    Included accessories
    More information
  • RR 110-50F
    Kabelrinnen-Reduzierung
    Höhe
    110 mm
    Breite 1
    500 mm
    Breite 2
    400 mm
    Länge
    500 mm
    Gewicht je Lagermengeneinheit
    3.834 kg
    Included accessories
    More information
  • RR 110-60F
    Kabelrinnen-Reduzierung
    Höhe
    110 mm
    Breite 1
    600 mm
    Breite 2
    500 mm
    Länge
    500 mm
    Gewicht je Lagermengeneinheit
    4.374 kg
    Included accessories
    More information

Edelstahl, Werkstoff Nr. 1.4301 (V2A)

Article

H

Höhe

B1

Breite 1

B2

Breite 2

L

Länge

G

Gewicht je Lagermengeneinheit
  • RR 110-20E
    Kabelrinnen-Reduzierung
    Höhe
    110 mm
    Breite 1
    200 mm
    Breite 2
    100 mm
    Länge
    500 mm
    Gewicht je Lagermengeneinheit
    2.014 kg
    Included accessories
    More information
  • RR 110-30E
    Kabelrinnen-Reduzierung
    Höhe
    110 mm
    Breite 1
    300 mm
    Breite 2
    200 mm
    Länge
    500 mm
    Gewicht je Lagermengeneinheit
    2.514 kg
    Included accessories
    More information
  • RR 110-40E
    Kabelrinnen-Reduzierung
    Höhe
    110 mm
    Breite 1
    400 mm
    Breite 2
    300 mm
    Länge
    500 mm
    Gewicht je Lagermengeneinheit
    3.004 kg
    Included accessories
    More information
  • RR 110-50E
    Kabelrinnen-Reduzierung
    Höhe
    110 mm
    Breite 1
    500 mm
    Breite 2
    400 mm
    Länge
    500 mm
    Gewicht je Lagermengeneinheit
    3.494 kg
    Included accessories
    More information
  • RR 110-60E
    Kabelrinnen-Reduzierung
    Höhe
    110 mm
    Breite 1
    600 mm
    Breite 2
    500 mm
    Länge
    500 mm
    Gewicht je Lagermengeneinheit
    3.984 kg
    Included accessories
    More information

Details

  • Reduces the width of the cable tray
