RGL 60

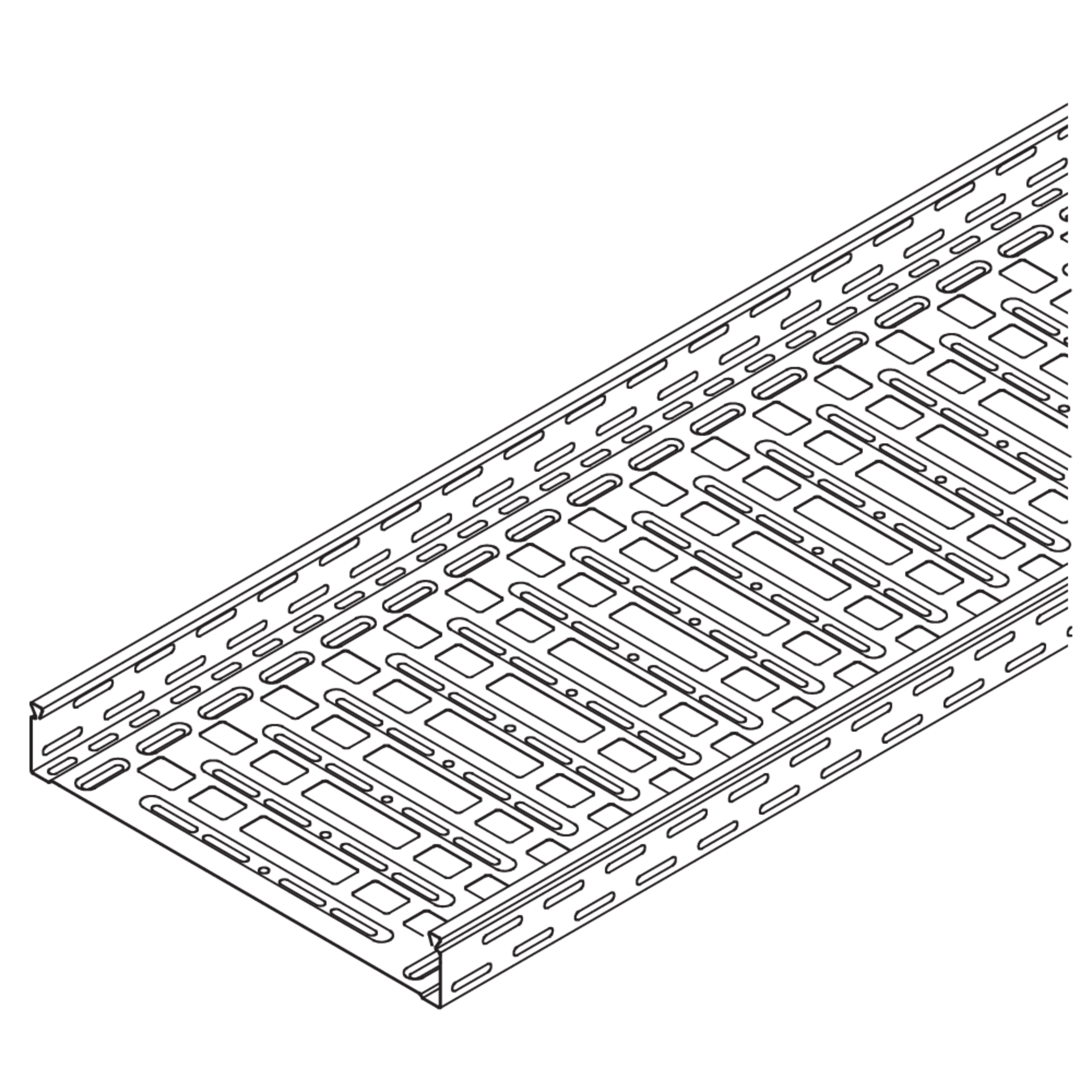

Cable tray, perforated, permeable to extinguishing water, height = 60 mm

The perforated cable trays permeable to extinguishing water RGL 60 have sides 60 mm high and are available in widths from 200 to 600 mm. The standard length is 3000 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Betreten verboten
Get in touch Download datasheet

Variants

steel, continously hot galvanized/Sendzimir process

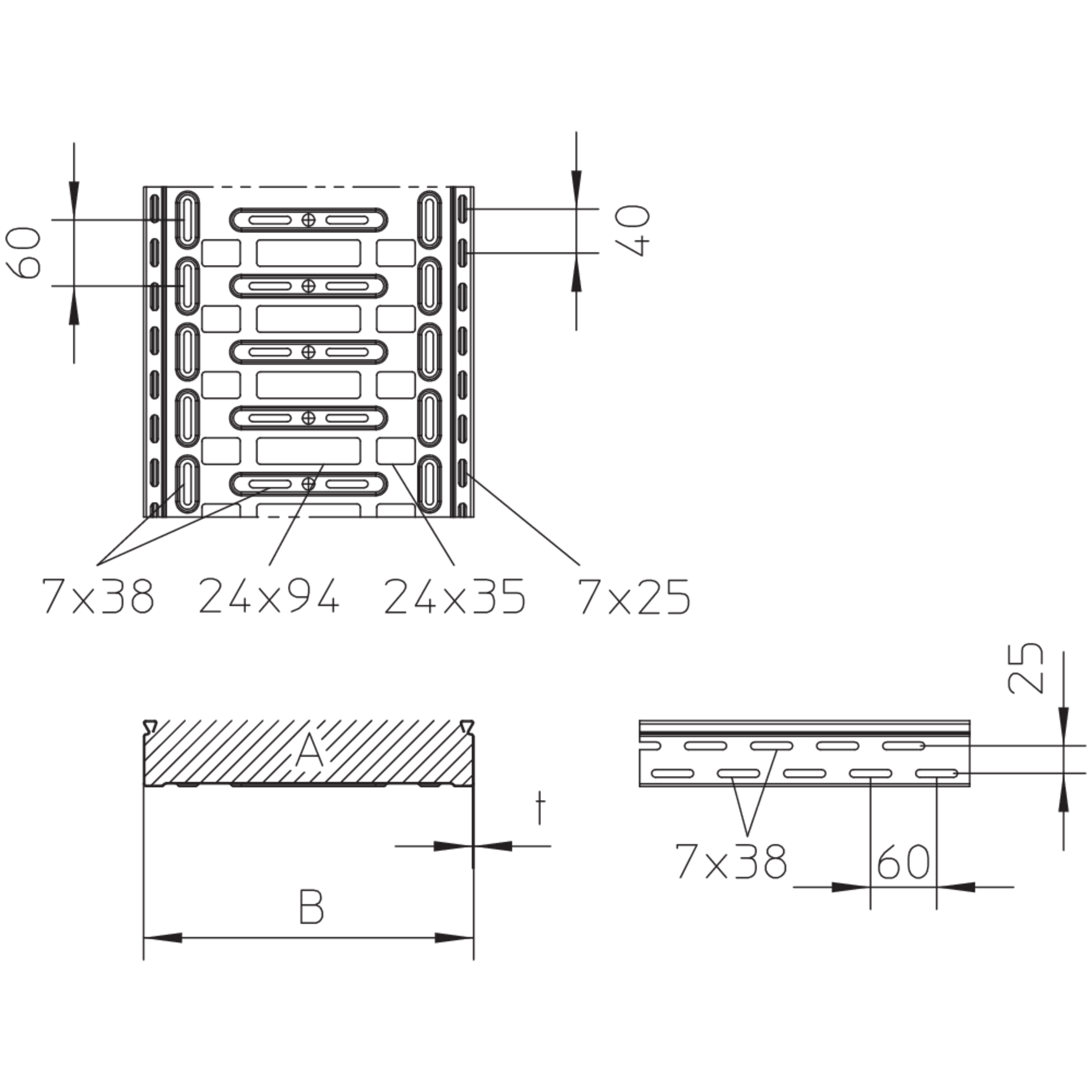

Article

H

B

L

t

QSK

A

W

  • RGL 60-20S
    Cable tray 30% floor perforation
    60 mm
    200 mm
    3000 mm
    0.75 mm
    0.18 kN/m
    117 cm2
    5.118 kg
    More information
  • RGL 60-30S
    Cable tray 30% floor perforation
    60 mm
    300 mm
    3000 mm
    0.75 mm
    0.27 kN/m
    177 cm2
    6.237 kg
    More information
  • RGL 60-40S
    Cable tray 30% floor perforation
    60 mm
    400 mm
    3000 mm
    0.88 mm
    0.36 kN/m
    237 cm2
    8.610 kg
    More information
  • RGL 60-50S
    Cable tray 30% floor perforation
    60 mm
    500 mm
    3000 mm
    1.00 mm
    0.45 kN/m
    297 cm2
    11.253 kg
    More information
  • RGL 60-60S
    Cable tray 30% floor perforation
    60 mm
    600 mm
    3000 mm
    1.00 mm
    0.54 kN/m
    357 cm2
    12.745 kg
    More information

steel, batch/hot-dip galvanized

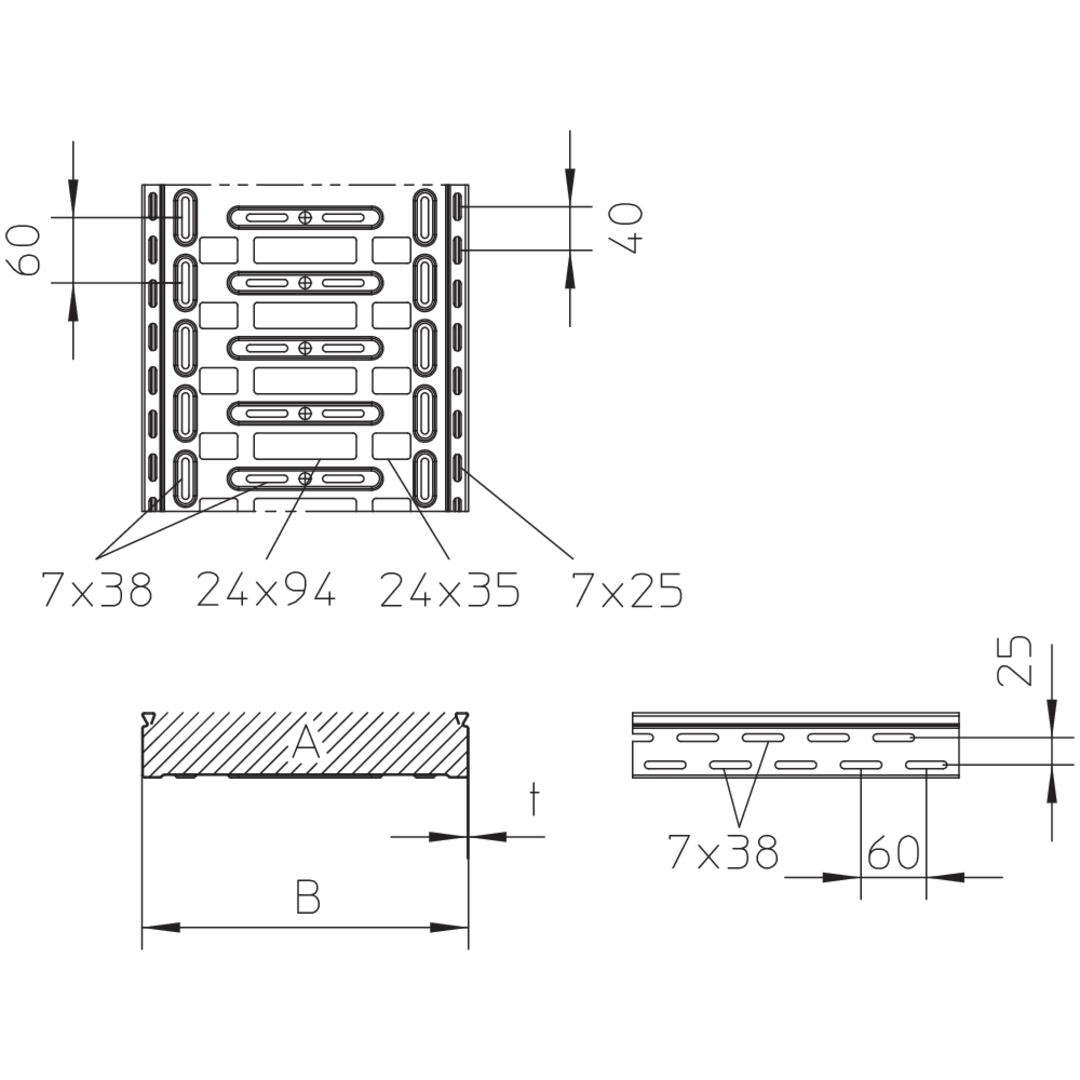

Article

H

B

L

t

QSK

A

W

  • RGL 60-20F
    Cable tray 30% floor perforation
    60 mm
    200 mm
    3000 mm
    0.75 mm
    0.18 kN/m
    117 cm2
    5.738 kg
    More information
  • RGL 60-30F
    Cable tray 30% floor perforation
    60 mm
    300 mm
    3000 mm
    0.75 mm
    0.27 kN/m
    177 cm2
    6.992 kg
    More information
  • RGL 60-40F
    Cable tray 30% floor perforation
    60 mm
    400 mm
    3000 mm
    0.88 mm
    0.36 kN/m
    237 cm2
    9.499 kg
    More information
  • RGL 60-50F
    Cable tray 30% floor perforation
    60 mm
    500 mm
    3000 mm
    1.00 mm
    0.45 kN/m
    297 cm2
    12.378 kg
    More information
  • RGL 60-60F
    Cable tray 30% floor perforation
    60 mm
    600 mm
    3000 mm
    1.00 mm
    0.54 kN/m
    357 cm2
    14.019 kg
    More information

Details

  • Betreten verboten

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Accessories

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Cable trays - Technical information

    Technische Information

    PDF, 3 MB

    de en

  • Rote Mappe - Funktionserhalt Tragkonstruktion DIN 4102-12

    Gesamtkatalog

    PDF, 29 MB

    de
    Download

  • Cable ladders - Technical information

    Montageanleitung

    PDF, 3 MB

    de en

  • Weitspannkabelleiter WL 200

    Kompaktübersicht

    PDF, 1 MB

    de
    Download

  • Safe working load (RGL 60)

    <div>Certificate, tested in accordance to DIN EN 61537</div>

    PDF, 448 KB

    de en

BIM- and CAD-Data

  • BIM for cable trays

    BIM for cable trays

    Bim data

    ZIP, 10 MB

    de en

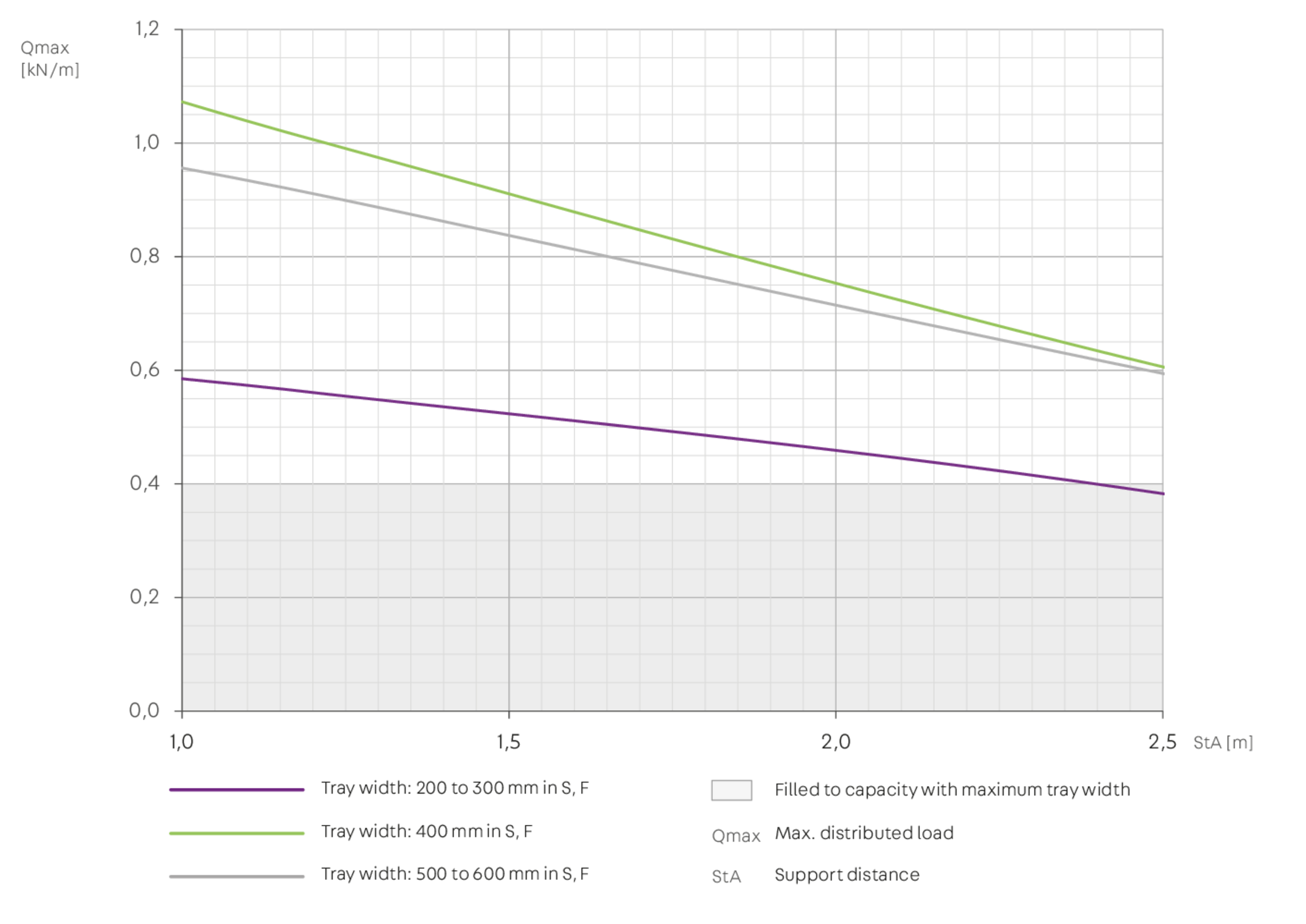

Load diagram

Included accessories
