RB45 60

Cable tray bend, height = 60 mm

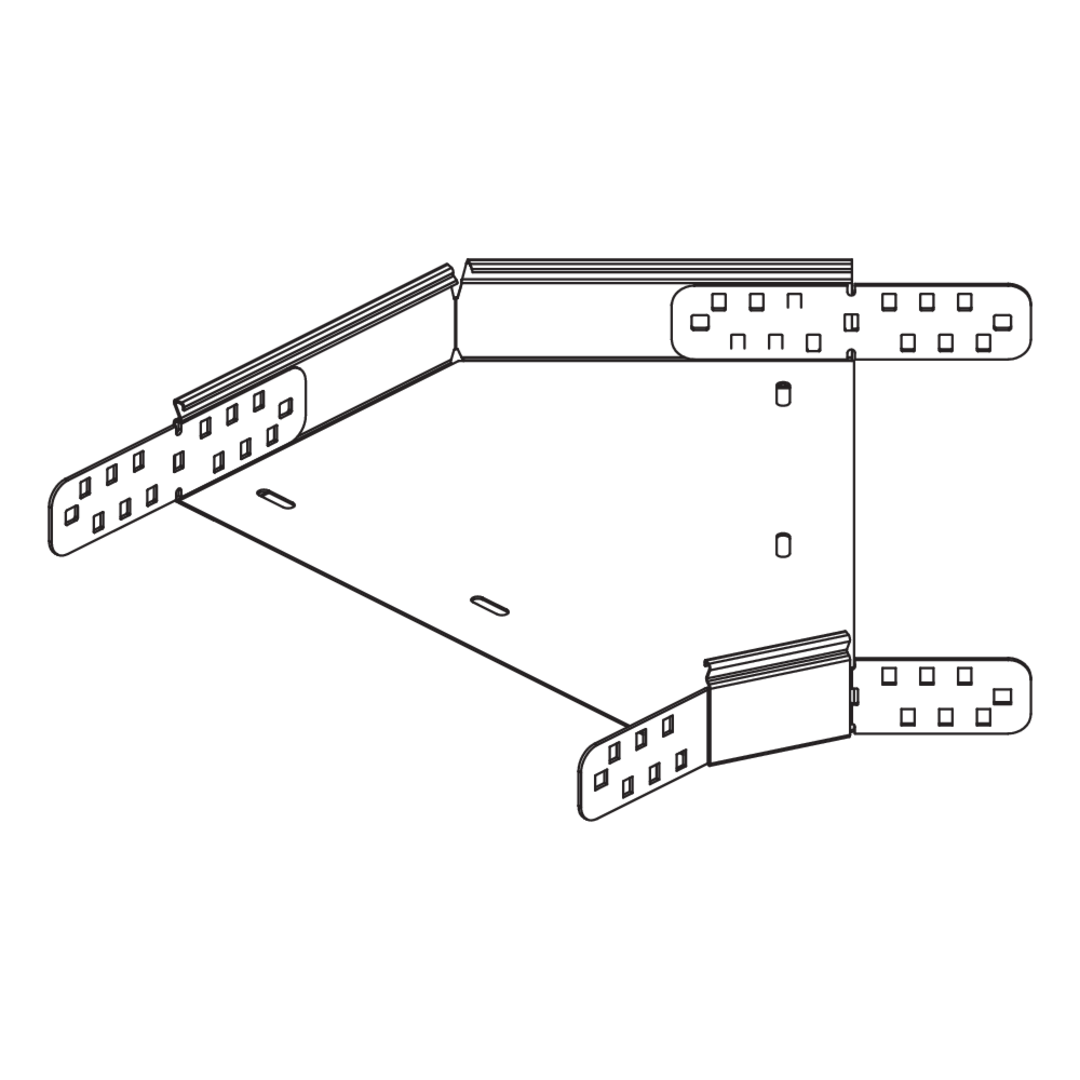

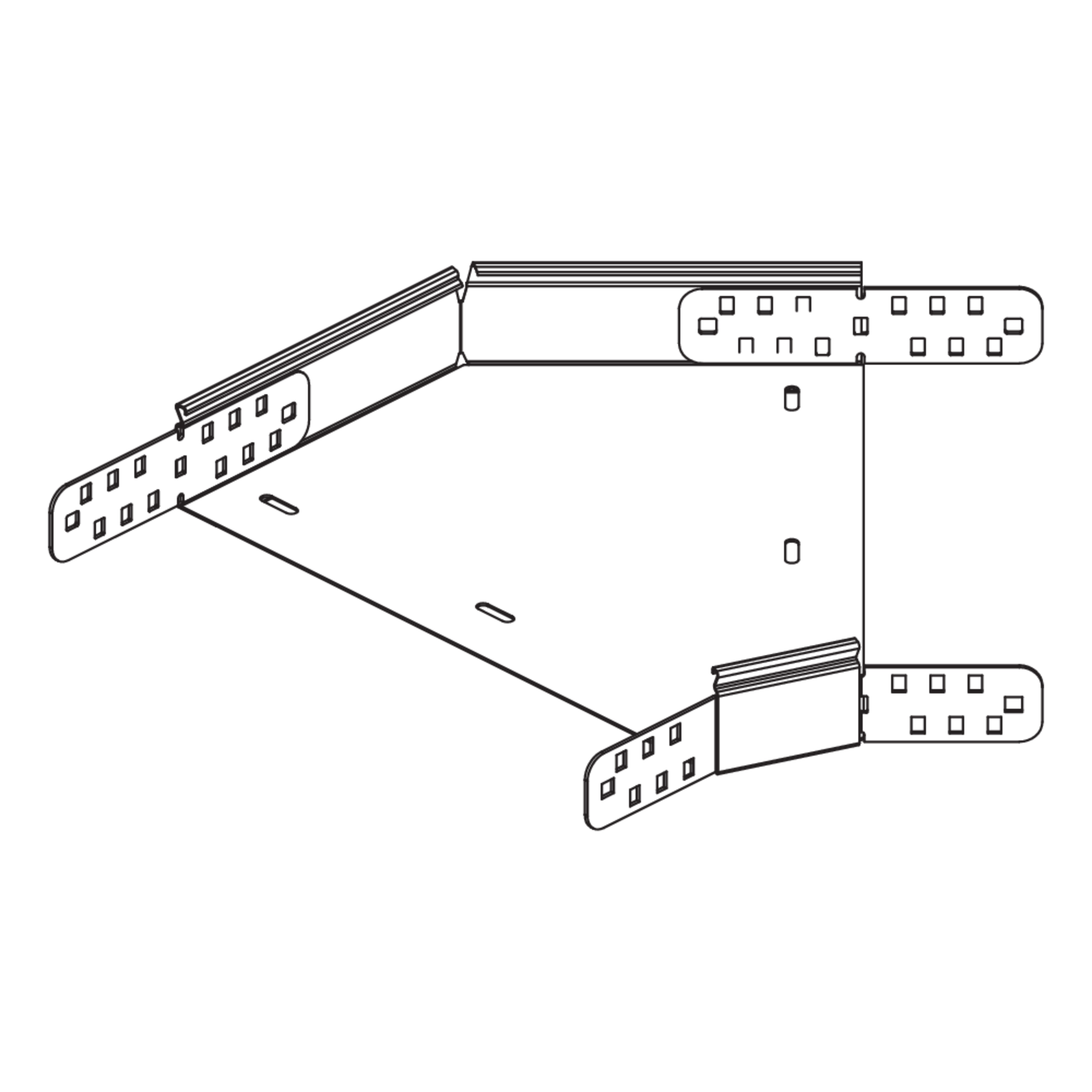

The cable tray bend RB45 60 allows the direction of cable routing to be changed horizontally by 45°. They are suitable for cable trays with sides 60 mm high and have integrated side connectors. The bend is inserted into the cable tray and bolted in place using a VB floor connector. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
