RG 60

Cable tray, perforated, height = 60 mm

The perforated cable trays RG 60 have sides 60 mm high and are available in widths from 50 to 600 mm. The standard length is 3000 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Betreten verboten
Get in touch Download datasheet

Variants

steel, continously hot galvanized/Sendzimir process

Article

H

B

L

t

QSK

A

W

  • RG 60-05S
    Cable tray
    60 mm
    50 mm
    3000 mm
    0.75 mm
    0.04 kN/m
    27 cm2
    3.372 kg
    More information
  • RG 60-10S
    Cable tray
    60 mm
    100 mm
    3000 mm
    0.75 mm
    0.09 kN/m
    57 cm2
    4.300 kg
    More information
  • RG 60-15S
    Cable tray
    60 mm
    150 mm
    3000 mm
    0.75 mm
    0.13 kN/m
    87 cm2
    5.200 kg
    More information
  • RG 60-20S
    Cable tray
    60 mm
    200 mm
    3000 mm
    0.75 mm
    0.18 kN/m
    117 cm2
    5.800 kg
    More information
  • RG 60-30S
    Cable tray
    60 mm
    300 mm
    3000 mm
    0.75 mm
    0.27 kN/m
    177 cm2
    7.400 kg
    More information
  • RG 60-40S
    Cable tray
    60 mm
    400 mm
    3000 mm
    0.88 mm
    0.36 kN/m
    237 cm2
    10.600 kg
    More information
  • RG 60-50S
    Cable tray
    60 mm
    500 mm
    3000 mm
    1.00 mm
    0.45 kN/m
    297 cm2
    14.200 kg
    More information
  • RG 60-60S
    Cable tray
    60 mm
    600 mm
    3000 mm
    1.00 mm
    0.54 kN/m
    357 cm2
    16.400 kg
    More information

steel, batch/hot-dip galvanized

Article

H

B

L

t

QSK

A

W

  • RG 60-05F
    Cable tray
    60 mm
    50 mm
    3000 mm
    0.75 mm
    0.04 kN/m
    27 cm2
    3.780 kg
    More information
  • RG 60-10F
    Cable tray
    60 mm
    100 mm
    3000 mm
    0.75 mm
    0.09 kN/m
    57 cm2
    4.800 kg
    More information
  • RG 60-15F
    Cable tray
    60 mm
    150 mm
    3000 mm
    0.75 mm
    0.13 kN/m
    87 cm2
    5.611 kg
    More information
  • RG 60-20F
    Cable tray
    60 mm
    200 mm
    3000 mm
    0.75 mm
    0.18 kN/m
    117 cm2
    6.500 kg
    More information
  • RG 60-30F
    Cable tray
    60 mm
    300 mm
    3000 mm
    0.75 mm
    0.27 kN/m
    177 cm2
    8.300 kg
    More information
  • RG 60-40F
    Cable tray
    60 mm
    400 mm
    3000 mm
    0.88 mm
    0.36 kN/m
    237 cm2
    11.700 kg
    More information
  • RG 60-50F
    Cable tray
    60 mm
    500 mm
    3000 mm
    1.00 mm
    0.45 kN/m
    297 cm2
    15.700 kg
    More information
  • RG 60-60F
    Cable tray
    60 mm
    600 mm
    3000 mm
    1.00 mm
    0.54 kN/m
    357 cm2
    18.100 kg
    More information

Stainless steel, according to ASTM 304 / BS 304 S 3

Article

H

B

L

t

QSK

A

W

  • RG 60-05E
    Cable tray
    60 mm
    50 mm
    3000 mm
    0.80 mm
    0.04 kN/m
    27 cm2
    3.619 kg
    More information
  • RG 60-10E
    Cable tray
    60 mm
    100 mm
    3000 mm
    0.80 mm
    0.09 kN/m
    57 cm2
    4.600 kg
    More information
  • RG 60-20E
    Cable tray
    60 mm
    200 mm
    3000 mm
    0.80 mm
    0.18 kN/m
    117 cm2
    6.200 kg
    More information
  • RG 60-30E
    Cable tray
    60 mm
    300 mm
    3000 mm
    0.80 mm
    0.27 kN/m
    177 cm2
    8.000 kg
    More information
  • RG 60-40E
    Cable tray
    60 mm
    400 mm
    3000 mm
    0.80 mm
    0.36 kN/m
    237 cm2
    9.900 kg
    More information
  • RG 60-50E
    Cable tray
    60 mm
    500 mm
    3000 mm
    1.00 mm
    0.45 kN/m
    297 cm2
    14.300 kg
    More information
  • RG 60-60E
    Cable tray
    60 mm
    600 mm
    3000 mm
    1.00 mm
    0.54 kN/m
    357 cm2
    16.600 kg
    More information

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

Article

H

B

L

t

QSK

A

W

  • RG 60-10E4
    Cable tray
    60 mm
    100 mm
    3000 mm
    0.80 mm
    0.09 kN/m
    57 cm2
    4.567 kg
    More information
  • RG 60-20E4
    Cable tray
    60 mm
    200 mm
    3000 mm
    0.80 mm
    0.18 kN/m
    117 cm2
    6.400 kg
    More information
  • RG 60-30E4
    Cable tray
    60 mm
    300 mm
    3000 mm
    0.80 mm
    0.27 kN/m
    177 cm2
    7.837 kg
    More information
  • RG 60-40E4
    Cable tray
    60 mm
    400 mm
    3000 mm
    0.80 mm
    0.36 kN/m
    237 cm2
    9.075 kg
    More information
  • RG 60-50E4
    Cable tray
    60 mm
    500 mm
    3000 mm
    1.00 mm
    0.45 kN/m
    297 cm2
    14.800 kg
    More information
  • RG 60-60E4
    Cable tray
    60 mm
    600 mm
    3000 mm
    1.00 mm
    0.54 kN/m
    357 cm2
    16.000 kg
    More information

Details

  • Betreten verboten

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Accessories

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Cable trays - Technical information

    Technische Information

    PDF, 3 MB

    de en

  • Rote Mappe - Funktionserhalt Tragkonstruktion DIN 4102-12

    Gesamtkatalog

    PDF, 29 MB

    de
    Download

  • Cable ladders - Technical information

    Montageanleitung

    PDF, 3 MB

    de en

  • Weitspannkabelleiter WL 200

    Kompaktübersicht

    PDF, 1 MB

    de
    Download

  • Electrical conductivity (RG 35/60 and RI 60)

    Certificate, tested according to DIN EN 61537 Pt. 11.1

    PDF, 275 KB

    de en

  • Safe working load (RG 60)

    <div>Certificate, tested in accordance to DIN EN 61537</div>

    PDF, 512 KB

    de en

BIM- and CAD-Data

  • BIM for cable trays

    BIM for cable trays

    Bim data

    ZIP, 10 MB

    de en

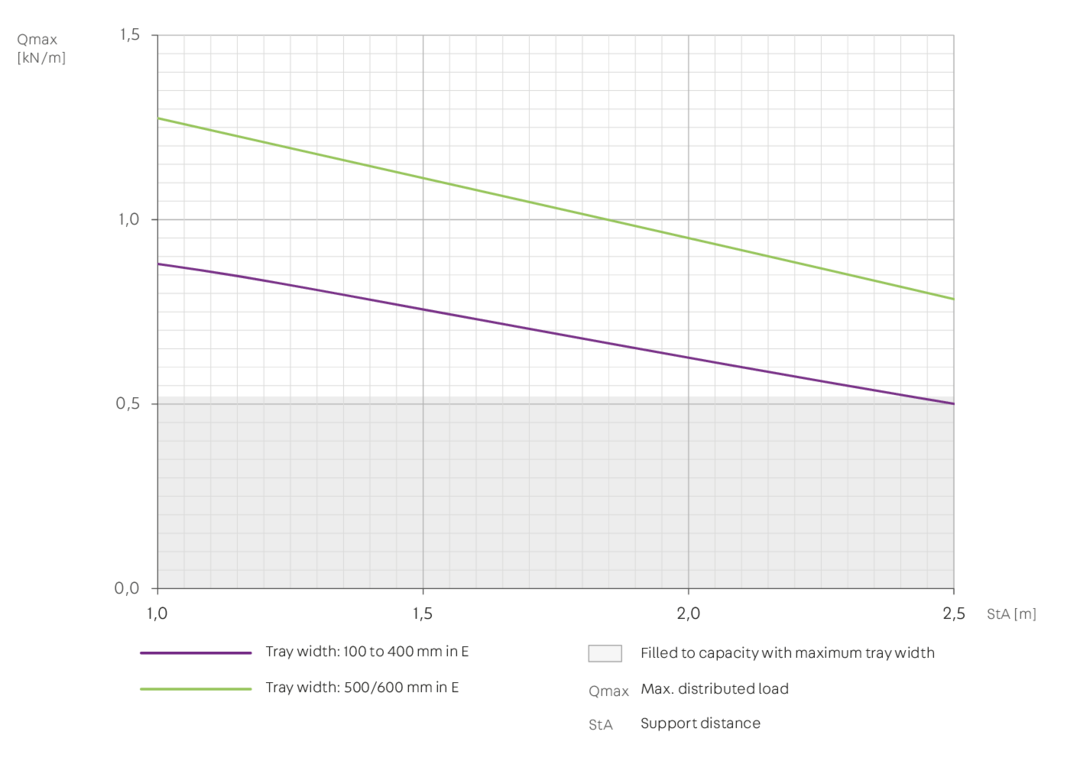

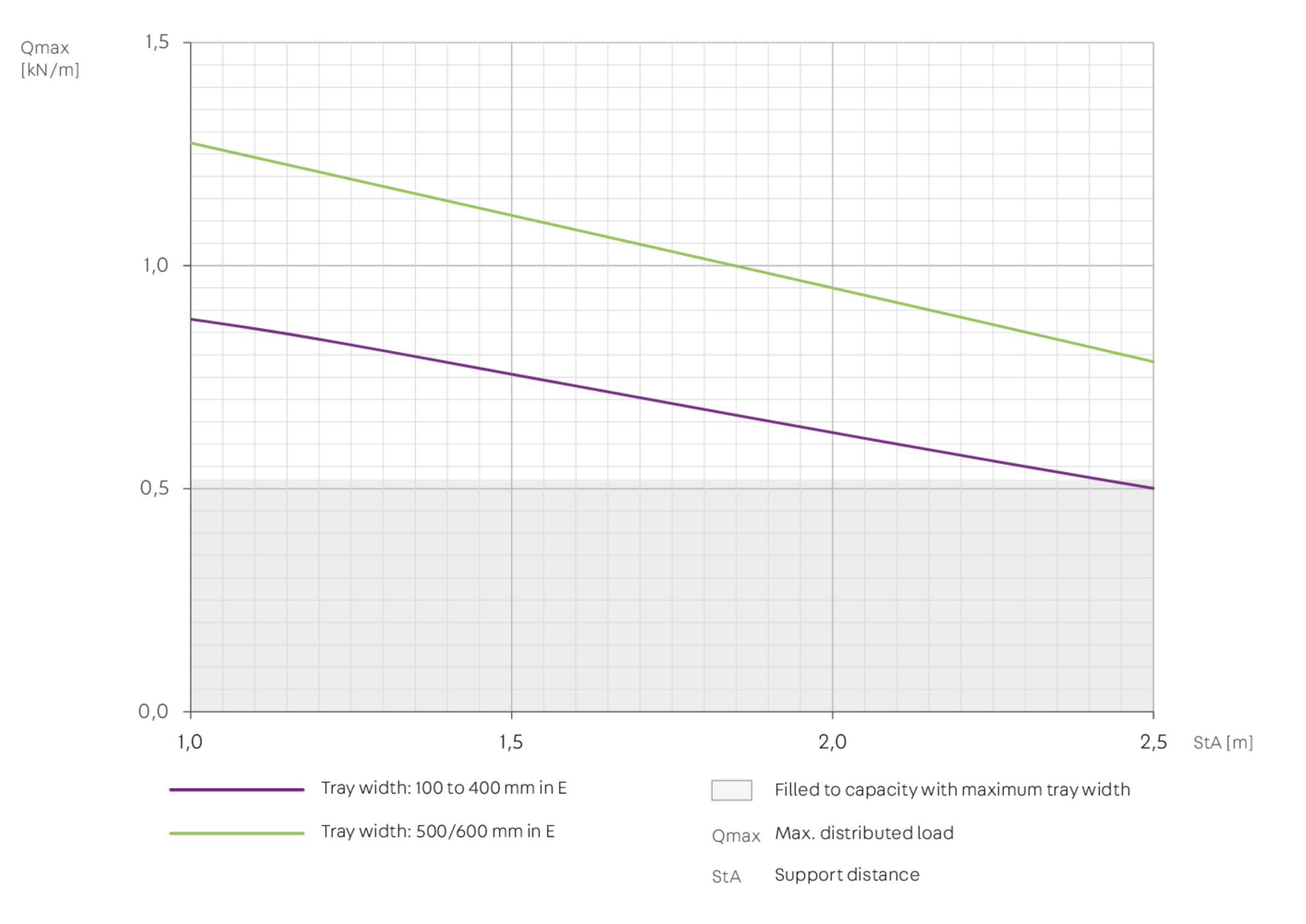

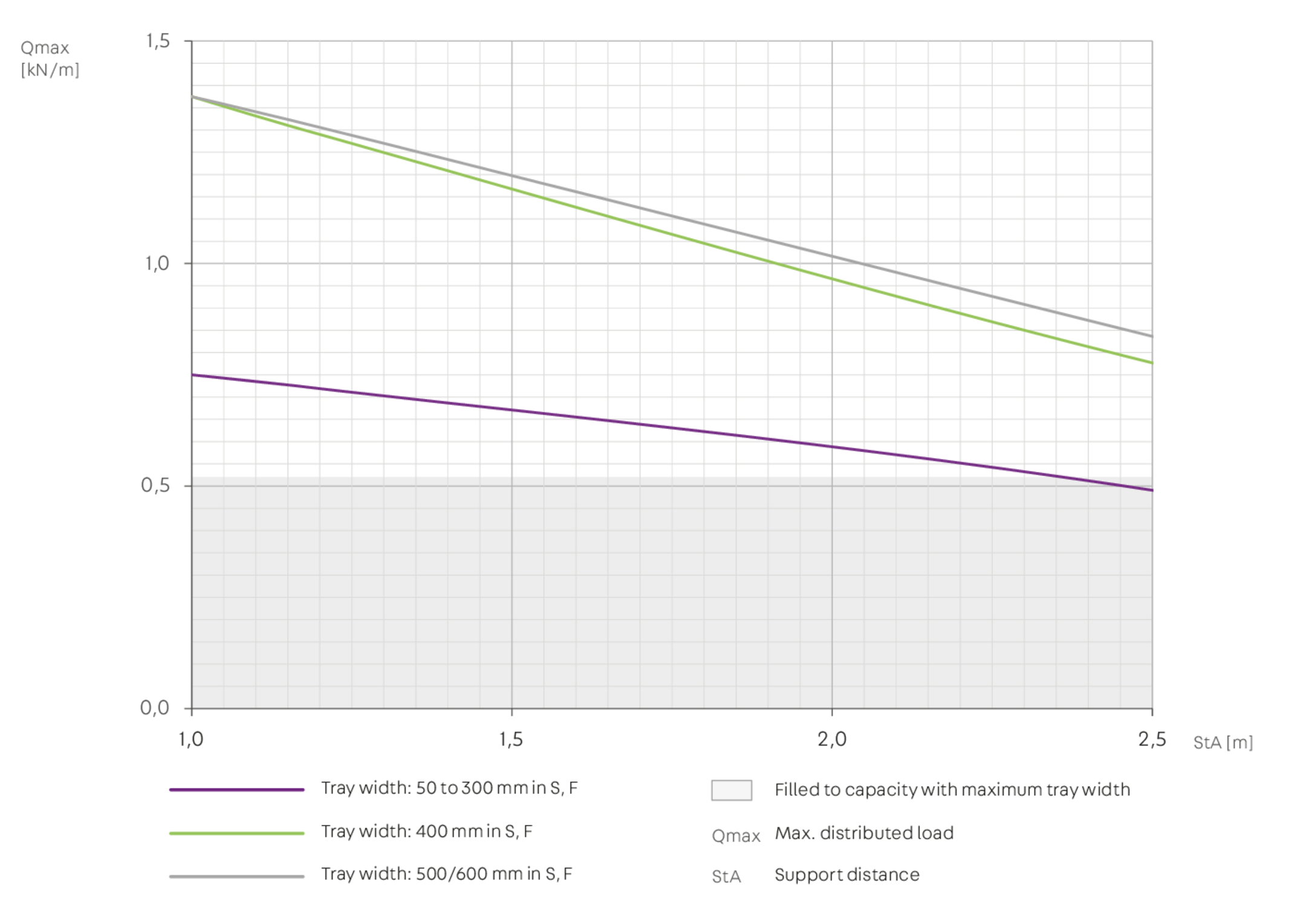

Load diagram

Included accessories
