Art.-Nr. RG 60-20E

Cable tray

Cable tray, perforated, height = 60 mm

The perforated cable trays RG 60 have sides 60 mm high and are available in widths from 50 to 600 mm. The standard length is 3000 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

The magnetic shielding attenuation is 22 dB without the cover and 30 dB with the cover.

Art.-Nr.: RG 60-20E
height: 60 mm
width: 200 mm
length: 3000 mm
material thickness: 0.80 mm
distributed load control cable: 0.17 kN/m
cross section area: 117 cm²
Weight per storage unit: 6.200 kg

No stepping

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

RG 60-05S
Cable tray
height
60 mm
width
50 mm
length
3000 mm
material thickness
0.75 mm
distributed load control cable
0.04 kN/m
cross section area
27 cm²
Weight per storage unit
3.372 kg
More information
RG 60-10S
Cable tray
height
60 mm
width
100 mm
length
3000 mm
material thickness
0.75 mm
distributed load control cable
0.09 kN/m
cross section area
57 cm²
Weight per storage unit
4.300 kg
More information
RG 60-15S
Cable tray
height
60 mm
width
150 mm
length
3000 mm
material thickness
0.75 mm
distributed load control cable
0.13 kN/m
cross section area
87 cm²
Weight per storage unit
5.200 kg
More information
RG 60-20S
Cable tray
height
60 mm
width
200 mm
length
3000 mm
material thickness
0.75 mm
distributed load control cable
0.17 kN/m
cross section area
117 cm²
Weight per storage unit
5.800 kg
More information
RG 60-30S
Cable tray
height
60 mm
width
300 mm
length
3000 mm
material thickness
0.75 mm
distributed load control cable
0.26 kN/m
cross section area
177 cm²
Weight per storage unit
7.400 kg
More information
RG 60-40S
Cable tray
height
60 mm
width
400 mm
length
3000 mm
material thickness
0.88 mm
distributed load control cable
0.34 kN/m
cross section area
237 cm²
Weight per storage unit
10.600 kg
More information
RG 60-50S
Cable tray
height
60 mm
width
500 mm
length
3000 mm
material thickness
1.00 mm
distributed load control cable
0.43 kN/m
cross section area
297 cm²
Weight per storage unit
14.200 kg
More information
RG 60-60S
Cable tray
height
60 mm
width
600 mm
length
3000 mm
material thickness
1.00 mm
distributed load control cable
0.52 kN/m
cross section area
357 cm²
Weight per storage unit
16.400 kg
More information

Steel, hot-dip galvanised

RG 60-05F
Cable tray
height
60 mm
width
50 mm
length
3000 mm
material thickness
0.75 mm
distributed load control cable
0.04 kN/m
cross section area
27 cm²
Weight per storage unit
3.780 kg
More information
RG 60-10F
Cable tray
height
60 mm
width
100 mm
length
3000 mm
material thickness
0.75 mm
distributed load control cable
0.09 kN/m
cross section area
57 cm²
Weight per storage unit
4.800 kg
More information
RG 60-15F
Cable tray
height
60 mm
width
150 mm
length
3000 mm
material thickness
0.75 mm
distributed load control cable
0.13 kN/m
cross section area
87 cm²
Weight per storage unit
5.611 kg
More information
RG 60-20F
Cable tray
height
60 mm
width
200 mm
length
3000 mm
material thickness
0.75 mm
distributed load control cable
0.17 kN/m
cross section area
117 cm²
Weight per storage unit
6.500 kg
More information
RG 60-30F
Cable tray
height
60 mm
width
300 mm
length
3000 mm
material thickness
0.75 mm
distributed load control cable
0.26 kN/m
cross section area
177 cm²
Weight per storage unit
8.300 kg
More information
RG 60-40F
Cable tray
height
60 mm
width
400 mm
length
3000 mm
material thickness
0.88 mm
distributed load control cable
0.34 kN/m
cross section area
237 cm²
Weight per storage unit
11.700 kg
More information
RG 60-50F
Cable tray
height
60 mm
width
500 mm
length
3000 mm
material thickness
1.00 mm
distributed load control cable
0.43 kN/m
cross section area
297 cm²
Weight per storage unit
15.700 kg
More information
RG 60-60F
Cable tray
height
60 mm
width
600 mm
length
3000 mm
material thickness
1.00 mm
distributed load control cable
0.52 kN/m
cross section area
357 cm²
Weight per storage unit
18.100 kg
More information

Stainless steel, acc. to AISI 304 (BS 304S31)

RG 60-05E
Cable tray
height
60 mm
width
50 mm
length
3000 mm
material thickness
0.80 mm
distributed load control cable
0.04 kN/m
cross section area
27 cm²
Weight per storage unit
3.619 kg
More information
RG 60-10E
Cable tray
height
60 mm
width
100 mm
length
3000 mm
material thickness
0.80 mm
distributed load control cable
0.09 kN/m
cross section area
57 cm²
Weight per storage unit
4.600 kg
More information
RG 60-20E
Cable tray
height
60 mm
width
200 mm
length
3000 mm
material thickness
0.80 mm
distributed load control cable
0.17 kN/m
cross section area
117 cm²
Weight per storage unit
6.200 kg
More information
RG 60-30E
Cable tray
height
60 mm
width
300 mm
length
3000 mm
material thickness
0.80 mm
distributed load control cable
0.26 kN/m
cross section area
177 cm²
Weight per storage unit
8.000 kg
More information
RG 60-40E
Cable tray
height
60 mm
width
400 mm
length
3000 mm
material thickness
0.80 mm
distributed load control cable
0.34 kN/m
cross section area
237 cm²
Weight per storage unit
9.900 kg
More information
RG 60-50E
Cable tray
height
60 mm
width
500 mm
length
3000 mm
material thickness
1.00 mm
distributed load control cable
0.43 kN/m
cross section area
297 cm²
Weight per storage unit
14.300 kg
More information
RG 60-60E
Cable tray
height
60 mm
width
600 mm
length
3000 mm
material thickness
1.00 mm
distributed load control cable
0.52 kN/m
cross section area
357 cm²
Weight per storage unit
16.600 kg
More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

RG 60-10E4
Cable tray
height
60 mm
width
100 mm
length
3000 mm
material thickness
0.80 mm
distributed load control cable
0.09 kN/m
cross section area
57 cm²
Weight per storage unit
4.567 kg
More information
RG 60-20E4
Cable tray
height
60 mm
width
200 mm
length
3000 mm
material thickness
0.80 mm
distributed load control cable
0.17 kN/m
cross section area
117 cm²
Weight per storage unit
6.400 kg
More information
RG 60-30E4
Cable tray
height
60 mm
width
300 mm
length
3000 mm
material thickness
0.80 mm
distributed load control cable
0.26 kN/m
cross section area
177 cm²
Weight per storage unit
7.837 kg
More information
RG 60-40E4
Cable tray
height
60 mm
width
400 mm
length
3000 mm
material thickness
0.80 mm
distributed load control cable
0.34 kN/m
cross section area
237 cm²
Weight per storage unit
9.075 kg
More information
RG 60-50E4
Cable tray
height
60 mm
width
500 mm
length
3000 mm
material thickness
1.00 mm
distributed load control cable
0.43 kN/m
cross section area
297 cm²
Weight per storage unit
14.800 kg
More information
RG 60-60E4
Cable tray
height
60 mm
width
600 mm
length
3000 mm
material thickness
1.00 mm
distributed load control cable
0.52 kN/m
cross section area
357 cm²
Weight per storage unit
16.000 kg
More information

Details

No stepping
Electr. conductivity checked according to DIN EN 61537

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link

Heinze.de

Tender texts for this product

Open Link

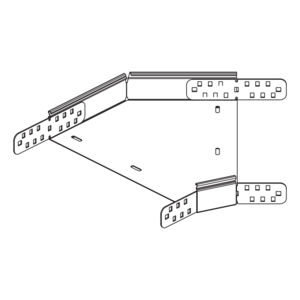

Accessories

Downloads

**Price list 2025 Building extension**
Valid from February 1st, 2025, updated version from 31/03/2025.
de
en

**GA-2025-036 - Mixed cable installation assembly of floor connectors - Expert statement**
DIN 4102-12
Fire resistance duration: F30; F60; F90
Functional integrity classes: E30; E60; F90
Period of validity: 09.05.2030
PDF, 186.69 KB
de
Download

**GA-2017/068 - Expert statement**
DIN 4102-12
Fire protection fastening on load-bearing timber components
Fire resistance duration: F30; F60
Functional maintenance classes: E30; E60
Cable load: ≤ 10 kg/m, ≤ 20 kg/m, ≤ 30 kg/m
Mounting distance: ≤ 1.5 m
Period of validity: 22/08/2027
PDF, 1.49 MB
de
Download

**P-MPA-E-16-007 - KDU60 - Functional maintenance certificate**
DIN 4102-12
Cable manufacturer: Dätwyler
Fire resistance duration: F30; F60; F90
Functional maintenance classes: E30; E60; F90
Cable load: ≤ 30 kg/m
Fastening distance: ≤ 1.5 m
Cable types: (N)HXH, (N)HXCH, JE-H(St)H,
Validity period: 01.02.2027
PDF, 8.13 MB
de
Download

**2104/681/23 - Fire protection assessment**
False ceiling installation, escape route installation, MLAR, LAR
Fire resistance duration: F30
Fire resistance: 30 minutes
Fastening distance: ≤ 1.5 m
Period of validity: 18.12.2028
PDF, 5.17 MB
de
Download

**MPABS-2400990 - Mixes cable installations - Fire protection statement**
DIN 4102-12
Fire resistance duration: F30; F60; F90
Functional integrity classes: E30; E60; F90
Period of validity: 10.06.2029
PDF, 195.29 KB
de
Download

**Safe working load (RG 60)**
Certificate, tested in accordance to DIN EN 61537
de
en

**P-MPA-E-16-013 - KDU57/KDU 60 - Functional maintenance certificate**
General building authority test certificate
DIN 4102-12
Cable manufacturer: Studer Cables AG
Fire resistance duration: F30; F60; F90
Functional maintenance classes: E30; E60; F90
Cable load: 20 kg/m
Fastening distance: ≤ 1.5 m
Cable types: (N)HXH, (N)HXCH, JE-H(St)H,
Period of validity: 30.08.2027
PDF, 7.84 MB
de
Download

**P-MPA-E-14-010 - KDU57/KDU 60 - Functional maintenance certificate**
General building authority test certificate
DIN 4102-12
Cable manufacturer: Kabelwerke Eupen AG
Fire resistance duration: F30; F60; F90
Functional maintenance classes: E30; E60; F90
Cable load: 20 kg/m
Fastening distance: ≤ 1.5 m
Cable types: (N)HXH, (N)HXCH, JE-H(St)H,
Period of validity: 23/07/2029
PDF, 4.94 MB
de
Download

**Electrical conductivity (RG 35/60 and RI 60)**
Certificate, tested according to DIN EN 61537 Pt. 11.1
de
en

**P-MPA-E-15-019 - KDU57 - Functional maintenance certificate**
General building authority test certificate
DIN 4102-12
Cable manufacturers: Dätwyler, Eupen, Leoni Studer, Prysmian, Nexans
Fire resistance duration: F30; F60; F90
Functional maintenance classes: E30; E60; F90
Cable load: ≤ 20 kg/m
Fastening distance: ≤ 1.5 m
Cable types: (N)HXH, (N)HXCH, JE-H(St)H,
Period of validity: 09.10.2026
PDF, 10.27 MB
de
Download

**Cable Tray R 60, RG 60 - Compact overview**
Compact overview of cable trays and accessories: R, RG, RGV, VB, RTR, DB, DKSL, KDU, KHUSS, GBAR, KWF, MA, KWMS, RD, RKAB, RTRV, RBV, RVB, REB
PDF, 1.12 MB
de
Download

**Cable trays - Assembly instructions**
Assembly Instructions
de
en

**Cable support systems - Complete catalogue**
Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.
de
en

**Cable trays - Technical information**
Technical Information
de
en

**VDE Certificate 329860-TL7-1 Cable management systems**
Certificate for Grid track G 50-30, G 50-40; Cable tray RG 60-30, RGS 60-30, R 60-30; Cable ladder LGG 60-30; Wide-span cable trays WPR 120-30; Wide-span cable ladders WLR 200-30, WPL 150-30
de
en

BIM- und CAD-Data

BIM for cable trays

Bim data

Load diagram

Included accessories

Our finishing services

Whether apartment blocks, office complexes or industrial plants: as your reliable partner for numerous applications and construction phases, we support you in every project with expert advice and support services. This allows you to concentrate fully on your core business.

Consulting, planning, design

Installation services

Individualised solutions

Cable tray

Variants

Steel, pre-galvanised/Sendzimir process

Steel, hot-dip galvanised

Stainless steel, acc. to AISI 304 (BS 304S31)

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Details

Tender texts

Accessories

Downloads

Price list 2025 Building extension

GA-2025-036 - Mixed cable installation assembly of floor connectors - Expert statement

GA-2017/068 - Expert statement

P-MPA-E-16-007 - KDU60 - Functional maintenance certificate

2104/681/23 - Fire protection assessment

MPABS-2400990 - Mixes cable installations - Fire protection statement

Safe working load (RG 60)

P-MPA-E-16-013 - KDU57/KDU 60 - Functional maintenance certificate

P-MPA-E-14-010 - KDU57/KDU 60 - Functional maintenance certificate

Electrical conductivity (RG 35/60 and RI 60)

P-MPA-E-15-019 - KDU57 - Functional maintenance certificate

Cable Tray R 60, RG 60 - Compact overview

Cable trays - Assembly instructions

Cable support systems - Complete catalogue

Cable trays - Technical information

VDE Certificate 329860-TL7-1 Cable management systems

BIM- und CAD-Data

BIM for cable trays

Load diagram

Included accessories

Our finishing services
