RG 110

Cable tray, perforated, height = 110 mm

The RG 110 perforated cable trays have sides 110 mm high and are available in widths from 100 to 600 mm. The standard length is 3000 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

No stepping
Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit

  • RG 110-10S
    Cable tray RG 110-10S
    height
    110 mm
    width
    100 mm
    length
    3000 mm
    material thickness
    0.75 mm
    distributed load control cable
    0.16 kN/m
    cross section area
    107 cm2
    Weight per storage unit
    5.820 kg
    More information
  • RG 110-20S
    Cable tray RG 110-20S
    height
    110 mm
    width
    200 mm
    length
    3000 mm
    material thickness
    0.75 mm
    distributed load control cable
    0.33 kN/m
    cross section area
    217 cm2
    Weight per storage unit
    7.700 kg
    More information
  • RG 110-30S
    Cable tray RG 110-30S
    height
    110 mm
    width
    300 mm
    length
    3000 mm
    material thickness
    0.88 mm
    distributed load control cable
    0.49 kN/m
    cross section area
    327 cm2
    Weight per storage unit
    10.440 kg
    More information
  • RG 110-40S
    Cable tray RG 110-40S
    height
    110 mm
    width
    400 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.66 kN/m
    cross section area
    437 cm2
    Weight per storage unit
    13.900 kg
    More information
  • RG 110-50S
    Cable tray RG 110-50S
    height
    110 mm
    width
    500 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.82 kN/m
    cross section area
    547 cm2
    Weight per storage unit
    16.250 kg
    More information
  • RG 110-60S
    Cable tray RG 110-60S
    height
    110 mm
    width
    600 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.99 kN/m
    cross section area
    657 cm2
    Weight per storage unit
    18.450 kg
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit

  • RG 110-10F
    Cable tray RG 110-10F
    height
    110 mm
    width
    100 mm
    length
    3000 mm
    material thickness
    0.75 mm
    distributed load control cable
    0.16 kN/m
    cross section area
    107 cm2
    Weight per storage unit
    6.380 kg
    More information
  • RG 110-20F
    Cable tray RG 110-20F
    height
    110 mm
    width
    200 mm
    length
    3000 mm
    material thickness
    0.75 mm
    distributed load control cable
    0.33 kN/m
    cross section area
    217 cm2
    Weight per storage unit
    8.250 kg
    More information
  • RG 110-30F
    Cable tray RG 110-30F
    height
    110 mm
    width
    300 mm
    length
    3000 mm
    material thickness
    0.88 mm
    distributed load control cable
    0.49 kN/m
    cross section area
    327 cm2
    Weight per storage unit
    11.220 kg
    More information
  • RG 110-40F
    Cable tray RG 110-40F
    height
    110 mm
    width
    400 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.66 kN/m
    cross section area
    437 cm2
    Weight per storage unit
    14.650 kg
    More information
  • RG 110-50F
    Cable tray RG 110-50F
    height
    110 mm
    width
    500 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.82 kN/m
    cross section area
    547 cm2
    Weight per storage unit
    17.100 kg
    More information
  • RG 110-60F
    Cable tray RG 110-60F
    height
    110 mm
    width
    600 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.99 kN/m
    cross section area
    657 cm2
    Weight per storage unit
    19.400 kg
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit

  • RG 110-10E
    Cable tray RG 110-10E
    height
    110 mm
    width
    100 mm
    length
    3000 mm
    material thickness
    0.80 mm
    distributed load control cable
    0.16 kN/m
    cross section area
    107 cm2
    Weight per storage unit
    6.200 kg
    More information
  • RG 110-20E
    Cable tray RG 110-20E
    height
    110 mm
    width
    200 mm
    length
    3000 mm
    material thickness
    0.80 mm
    distributed load control cable
    0.33 kN/m
    cross section area
    217 cm2
    Weight per storage unit
    7.680 kg
    More information
  • RG 110-30E
    Cable tray RG 110-30E
    height
    110 mm
    width
    300 mm
    length
    3000 mm
    material thickness
    0.80 mm
    distributed load control cable
    0.49 kN/m
    cross section area
    327 cm2
    Weight per storage unit
    9.250 kg
    More information
  • RG 110-40E
    Cable tray RG 110-40E
    height
    110 mm
    width
    400 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.66 kN/m
    cross section area
    437 cm2
    Weight per storage unit
    13.600 kg
    More information
  • RG 110-50E
    Cable tray RG 110-50E
    height
    110 mm
    width
    500 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.82 kN/m
    cross section area
    547 cm2
    Weight per storage unit
    16.100 kg
    More information
  • RG 110-60E
    Cable tray RG 110-60E
    height
    110 mm
    width
    600 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.99 kN/m
    cross section area
    657 cm2
    Weight per storage unit
    18.570 kg
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit

  • RG 110-10E4
    Cable tray RG 110-10E
    height
    110 mm
    width
    100 mm
    length
    3000 mm
    material thickness
    0.80 mm
    distributed load control cable
    0.16 kN/m
    cross section area
    107 cm2
    Weight per storage unit
    6.181 kg
    More information
  • RG 110-20E4
    Cable tray
    height
    110 mm
    width
    200 mm
    length
    3000 mm
    material thickness
    0.80 mm
    distributed load control cable
    0.33 kN/m
    cross section area
    217 cm2
    Weight per storage unit
    7.889 kg
    More information
  • RG 110-30E4
    Cable tray
    height
    110 mm
    width
    300 mm
    length
    3000 mm
    material thickness
    0.80 mm
    distributed load control cable
    0.49 kN/m
    cross section area
    327 cm2
    Weight per storage unit
    9.688 kg
    More information
  • RG 110-40E4
    Cable tray RG 110-40E4
    height
    110 mm
    width
    400 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.66 kN/m
    cross section area
    437 cm2
    Weight per storage unit
    14.130 kg
    More information
  • RG 110-50E4
    Cable tray
    height
    110 mm
    width
    500 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.82 kN/m
    cross section area
    547 cm2
    Weight per storage unit
    16.557 kg
    More information
  • RG 110-60E4
    Cable tray RG 110-60E
    height
    110 mm
    width
    600 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.99 kN/m
    cross section area
    657 cm2
    Weight per storage unit
    18.570 kg
    More information

Details

  • No stepping
  • Electr. conductivity checked according to DIN EN 61537

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Accessories

Downloads

    Price list 2025 Building extension

    Valid from February 1st, 2025, updated version from 31/03/2025.

    • de

    • en

    Cable trays - Technical information

    Technical Information

    • de

    • en

    Cable support systems - Complete catalogue

    Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.

    • de

    • en

    Cable trays - Assembly instructions

    Assembly Instructions

    • de

    • en

    Cable Tray R 60, RG 60 - Compact overview

    Compact overview of cable trays and accessories: R, RG, RGV, VB, RTR, DB, DKSL, KDU, KHUSS, GBAR, KWF, MA, KWMS, RD, RKAB, RTRV, RBV, RVB, REB

    PDF, 1.12 MB

    • de

    Download

    Electrical conductivity (RG 35/60 and RI 60)

    Certificate, tested according to DIN EN 61537 Pt. 11.1

    • de

    • en

    Safe working load (RG 110)

    Certificate, tested in accordance to DIN EN 61537

    • de

    • en

BIM- und CAD-Data

    BIM for cable trays

    Bim data

    • de

    • en

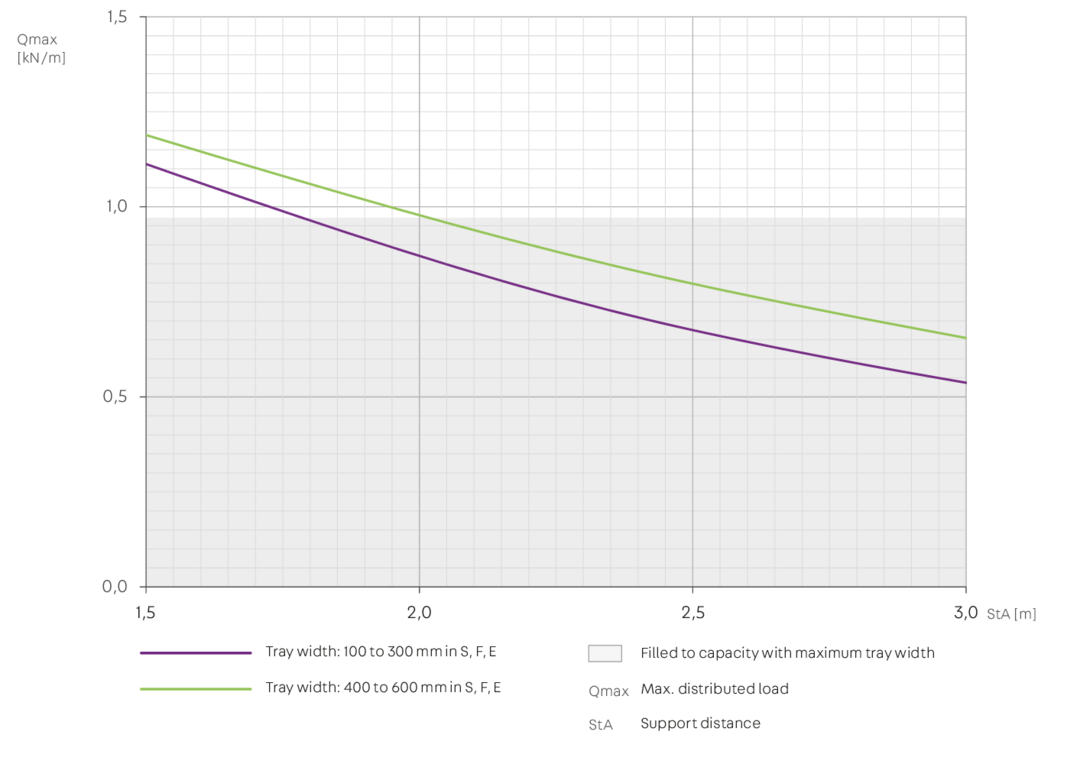

Load diagram
