R 85

Cable tray, unperforated, height = 85 mm

R 85 unperforated cable trays have sides 85 mm high and are available in widths from 100 to 600 mm. The standard length is 3000 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Betreten verboten
Get in touch Download datasheet

Variants

steel, continously hot galvanized/Sendzimir process

Article

H

B

L

t

QSK

A

W

  • R 85-10S
    Cable tray, unperforated R 85-10S
    85 mm
    100 mm
    3000 mm
    0.75 mm
    0.12 kN/m
    82 cm2
    5.471 kg
    More information
  • R 85-20S
    Cable tray, unperforated R 85-20S
    85 mm
    200 mm
    3000 mm
    0.75 mm
    0.25 kN/m
    167 cm2
    7.238 kg
    More information
  • R 85-30S
    Cable tray, unperforated R 85-30S
    85 mm
    300 mm
    3000 mm
    0.88 mm
    0.38 kN/m
    252 cm2
    10.554 kg
    More information
  • R 85-40S
    Cable tray, unperforated R 85-40S
    85 mm
    400 mm
    3000 mm
    0.88 mm
    0.51 kN/m
    337 cm2
    12.616 kg
    More information
  • R 85-50S
    Cable tray, unperforated R 85-50S
    85 mm
    500 mm
    3000 mm
    1.00 mm
    0.63 kN/m
    422 cm2
    16.668 kg
    More information
  • R 85-60S
    Cable tray, unperforated R 85-60S
    85 mm
    600 mm
    3000 mm
    1.00 mm
    0.76 kN/m
    507 cm2
    19.023 kg
    More information

steel, batch/hot-dip galvanized

Article

H

B

L

t

QSK

A

W

  • R 85-10F
    Cable tray, unperforated R 85-10F
    85 mm
    100 mm
    3000 mm
    0.75 mm
    0.12 kN/m
    82 cm2
    6.134 kg
    More information
  • R 85-20F
    Cable tray, unperforated R 85-20F
    85 mm
    200 mm
    3000 mm
    0.75 mm
    0.25 kN/m
    167 cm2
    8.114 kg
    More information
  • R 85-30F
    Cable tray, unperforated R 85-30F
    85 mm
    300 mm
    3000 mm
    0.88 mm
    0.38 kN/m
    252 cm2
    11.636 kg
    More information
  • R 85-40F
    Cable tray, unperforated R 85-40F
    85 mm
    400 mm
    3000 mm
    0.88 mm
    0.51 kN/m
    337 cm2
    13.919 kg
    More information
  • R 85-50F
    Cable tray, unperforated R 85-50F
    85 mm
    500 mm
    3000 mm
    1.00 mm
    0.63 kN/m
    422 cm2
    18.183 kg
    More information
  • R 85-60F
    Cable tray, unperforated R 85-60F
    85 mm
    600 mm
    3000 mm
    1.00 mm
    0.76 kN/m
    507 cm2
    20.751 kg
    More information

Details

  • Betreten verboten

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Accessories

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Cable trays - Technical information

    Technische Information

    PDF, 3 MB

    de en

  • Rote Mappe - Funktionserhalt Tragkonstruktion DIN 4102-12

    Gesamtkatalog

    PDF, 29 MB

    de
    Download

  • Cable ladders - Technical information

    Montageanleitung

    PDF, 3 MB

    de en

  • Weitspannkabelleiter WL 200

    Kompaktübersicht

    PDF, 1 MB

    de
    Download

BIM- and CAD-Data

  • BIM for cable trays

    BIM for cable trays

    Bim data

    ZIP, 10 MB

    de en

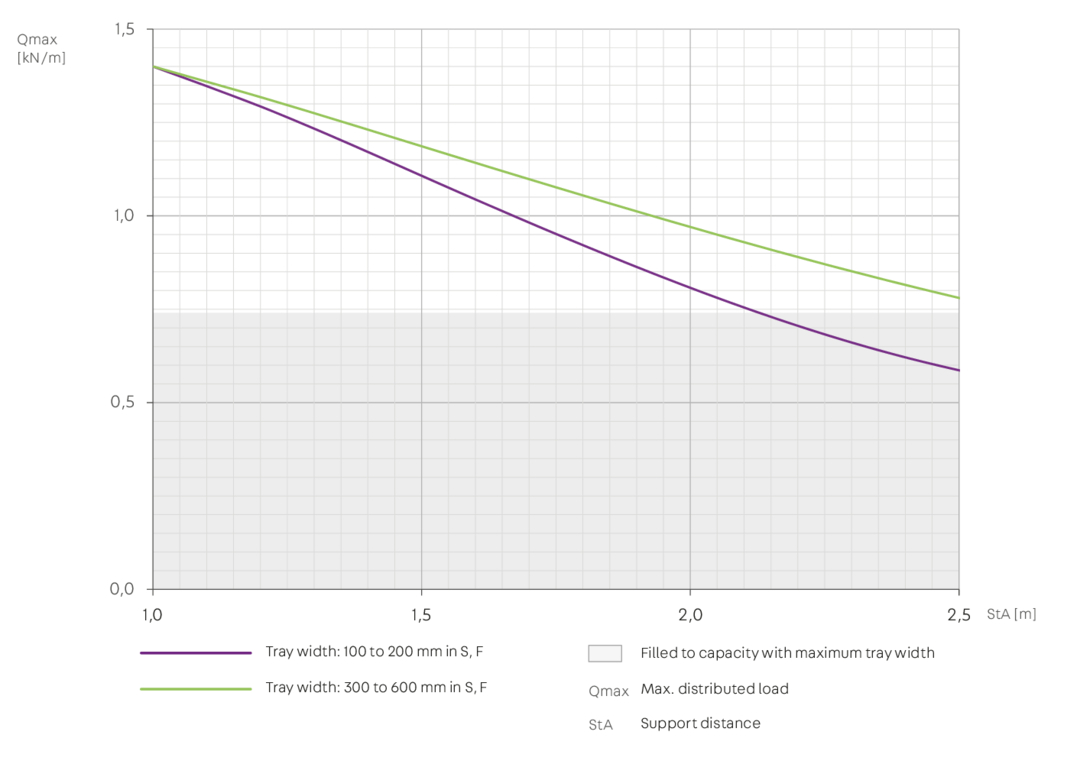

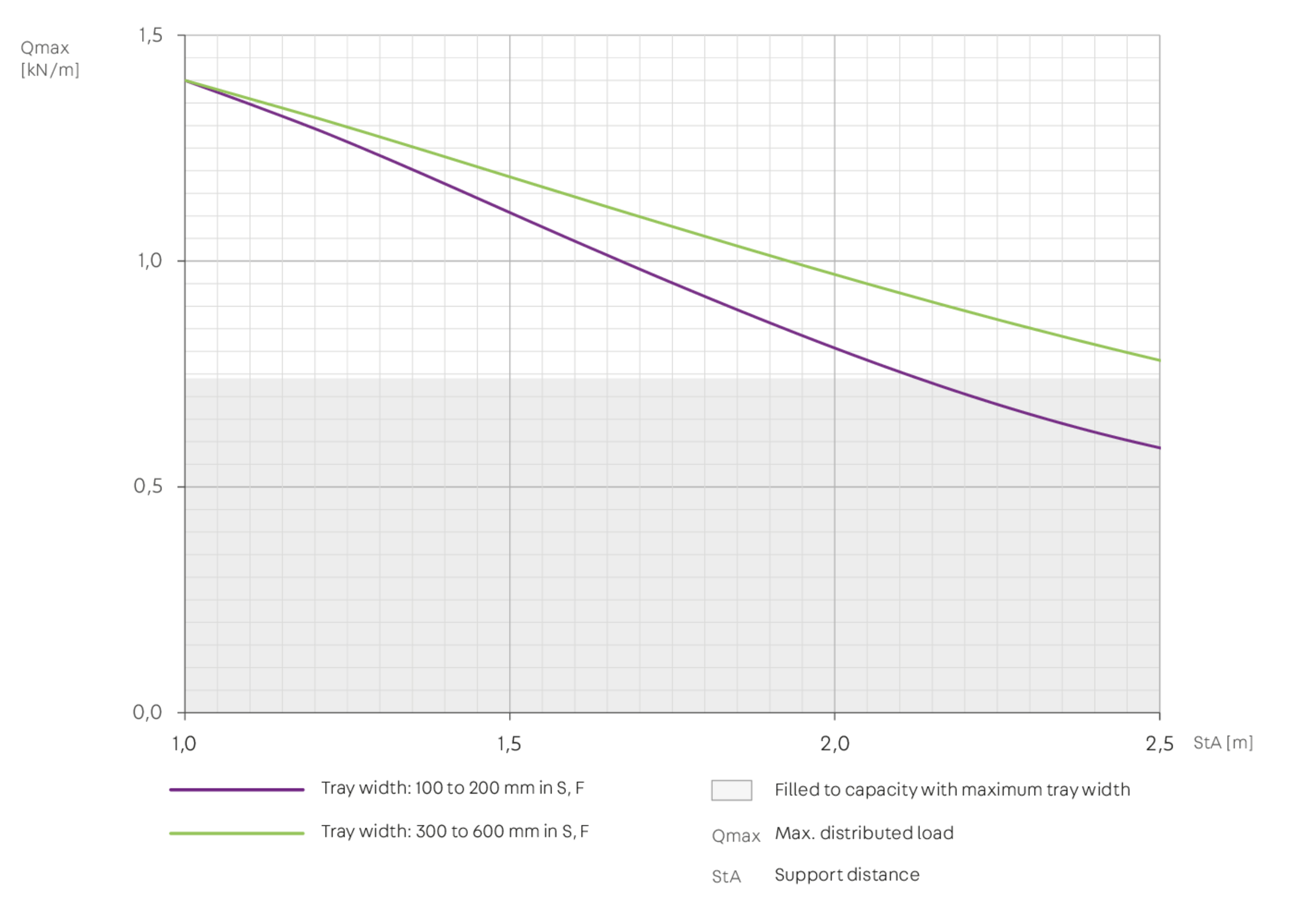

Load diagram
