RR 85

Cable tray reducer, height = 85 mm

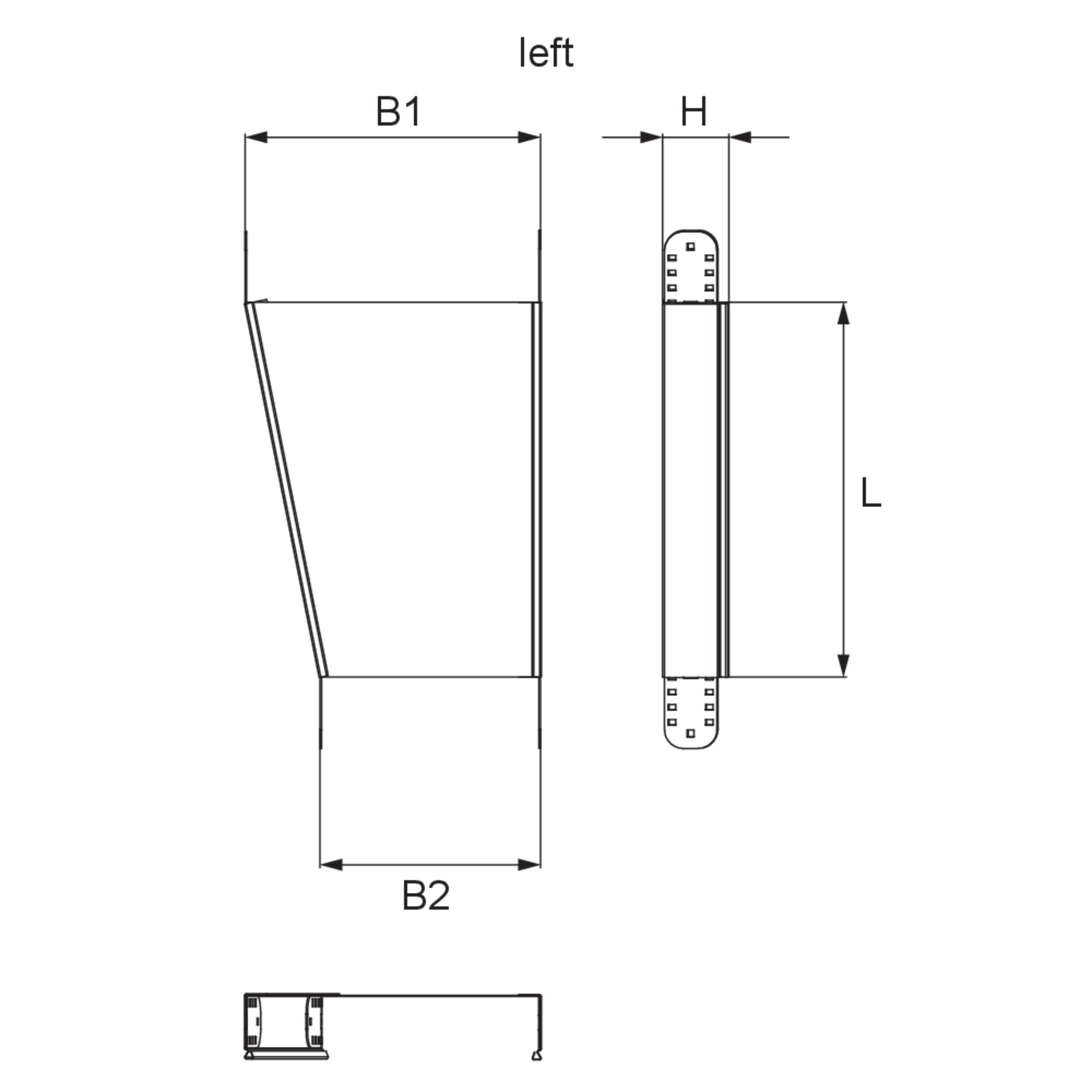

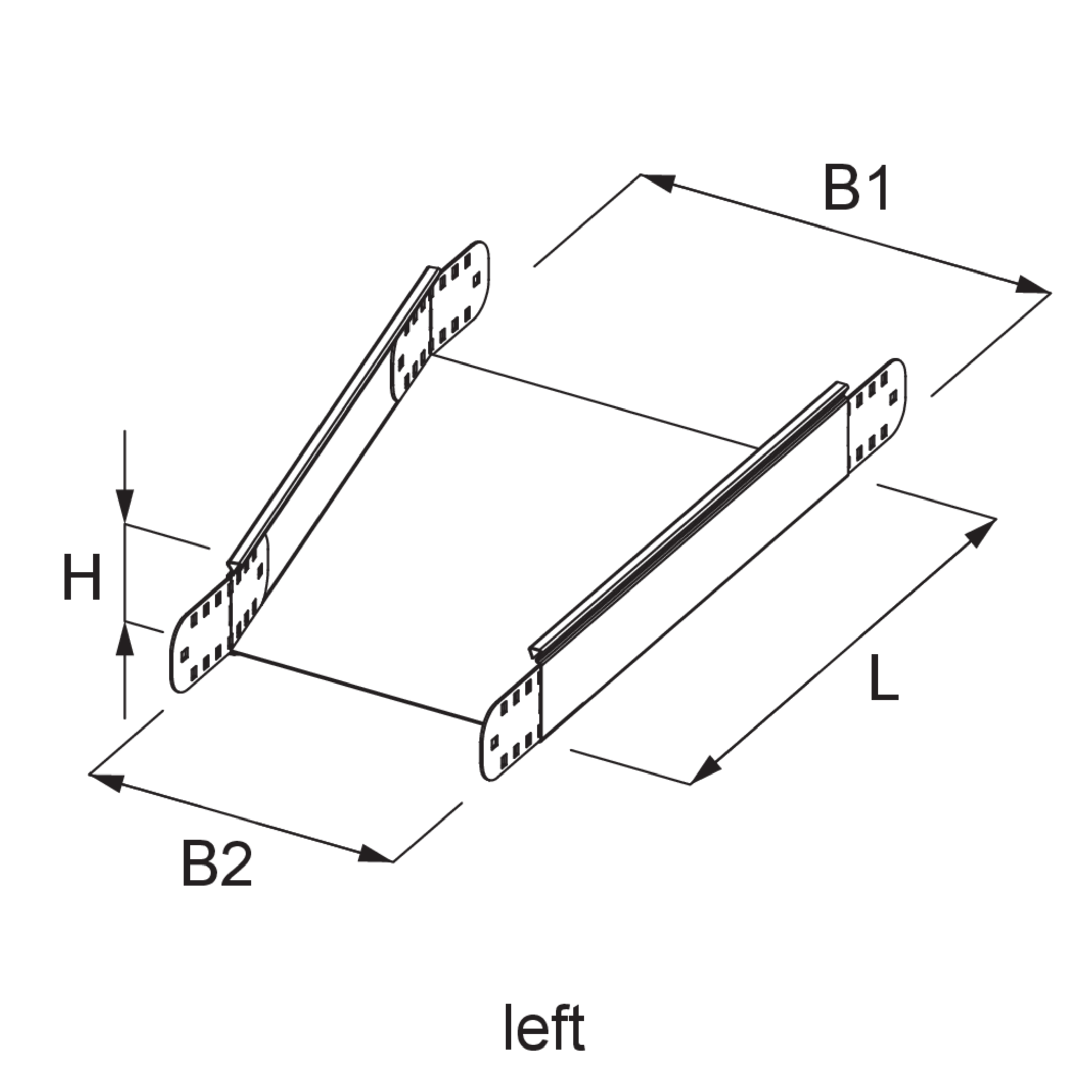

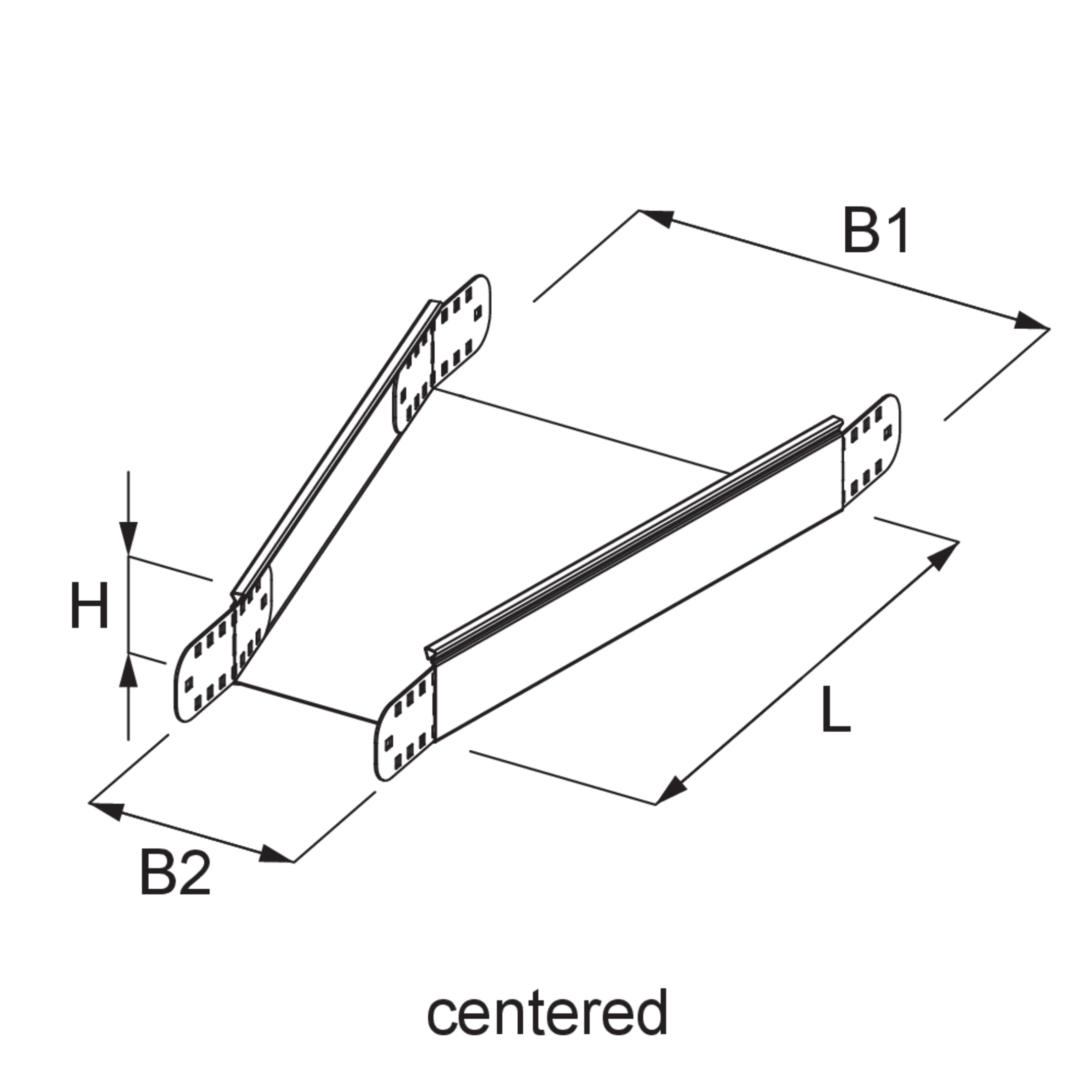

The cable tray reducer RR 85 with integrated side connectors enables the width of the cable tray to be reduced. It is available in three different designs: It can narrow towards the centre or on the left or right side. Specify the desired design (left, centre, right) and width when ordering. The entrance width is always reduced by 100 mm. The cable tray reducer has a standard length of 500 mm and is suitable for cable trays with sides 85 mm high. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touch Download datasheet

Variants

Stahl, band-/sendzimirverzinkt

Article

H

Höhe

B1

Breite 1

B2

Breite 2

L

Länge

G

Gewicht je Lagermengeneinheit
  • RR 85-20S
    Kabelrinnen-Reduzierung
    85 mm
    200 mm
    100 mm
    500 mm
    1.816 kg
    Included accessories
    More information
  • RR 85-30S
    Kabelrinnen-Reduzierung
    85 mm
    300 mm
    200 mm
    500 mm
    2.306 kg
    Included accessories
    More information
  • RR 85-40S
    Kabelrinnen-Reduzierung
    85 mm
    400 mm
    300 mm
    500 mm
    2.796 kg
    Included accessories
    More information
  • RR 85-50S
    Kabelrinnen-Reduzierung
    85 mm
    500 mm
    400 mm
    500 mm
    3.286 kg
    Included accessories
    More information
  • RR 85-60S
    Kabelrinnen-Reduzierung
    85 mm
    600 mm
    500 mm
    500 mm
    3.776 kg
    Included accessories
    More information

Stahl, stück-/tauchfeuerverzinkt

Article

H

Höhe

B1

Breite 1

B2

Breite 2

L

Länge

G

Gewicht je Lagermengeneinheit
  • RR 85-20F
    Kabelrinnen-Reduzierung
    85 mm
    200 mm
    100 mm
    500 mm
    2.004 kg
    Included accessories
    More information
  • RR 85-30F
    Kabelrinnen-Reduzierung
    85 mm
    300 mm
    200 mm
    500 mm
    2.544 kg
    Included accessories
    More information
  • RR 85-40F
    Kabelrinnen-Reduzierung
    85 mm
    400 mm
    300 mm
    500 mm
    3.074 kg
    Included accessories
    More information
  • RR 85-50F
    Kabelrinnen-Reduzierung
    85 mm
    500 mm
    400 mm
    500 mm
    3.614 kg
    Included accessories
    More information
  • RR 85-60F
    Kabelrinnen-Reduzierung
    85 mm
    600 mm
    500 mm
    500 mm
    4.154 kg
    Included accessories
    More information

Details

  • Reduces the width of the cable tray
