RVB 85

Cable tray vertical bend, height = 85 mm

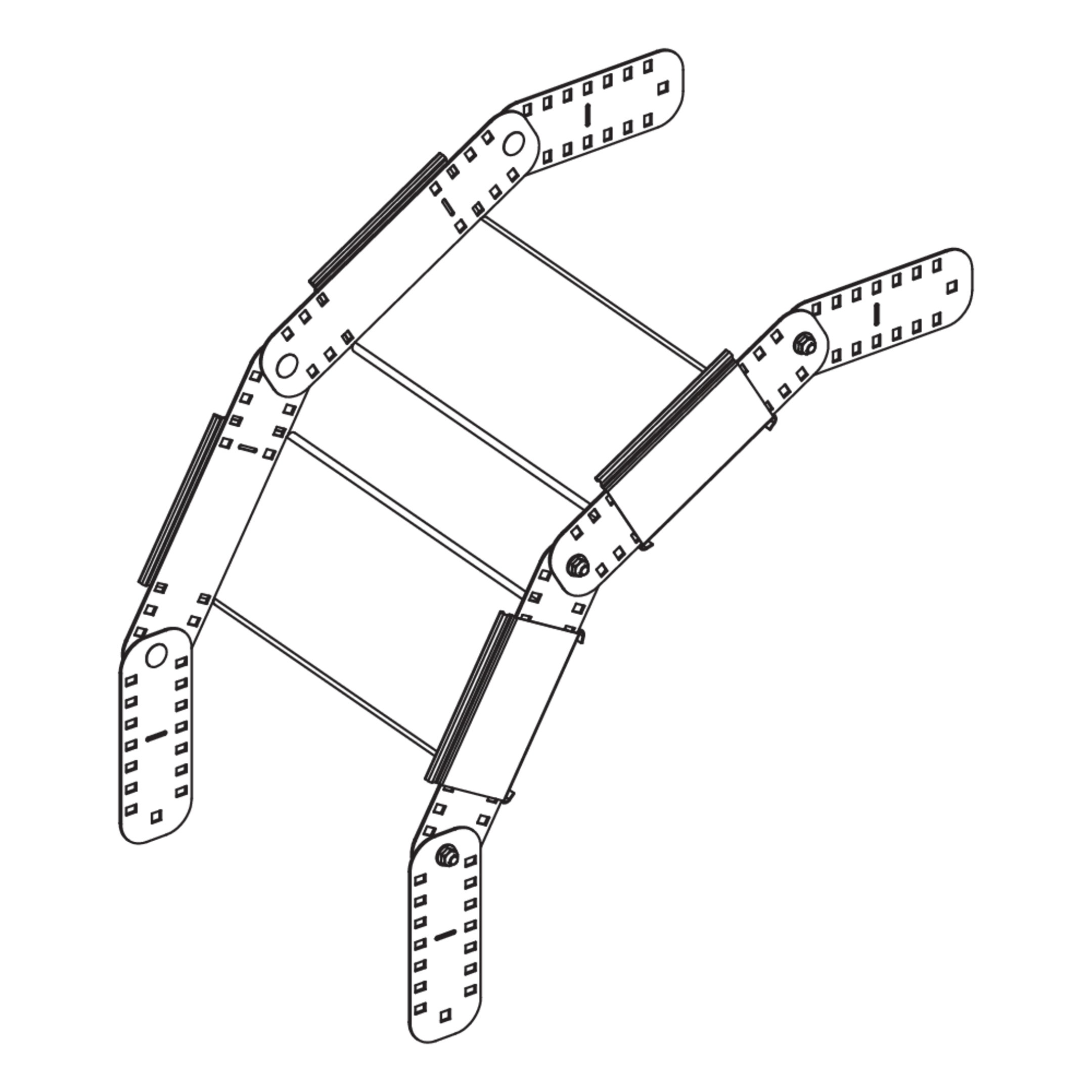

The cable tray vertical bend RVB 85 allows the direction of cable routing to be changed flexibly and vertically. It is inserted into the cable tray along with a REB cable tray end plate and bolted to the bottom and sides. The vertical bend RVB 85 is suitable for cable trays with sides 85 mm high. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touchDownload datasheet

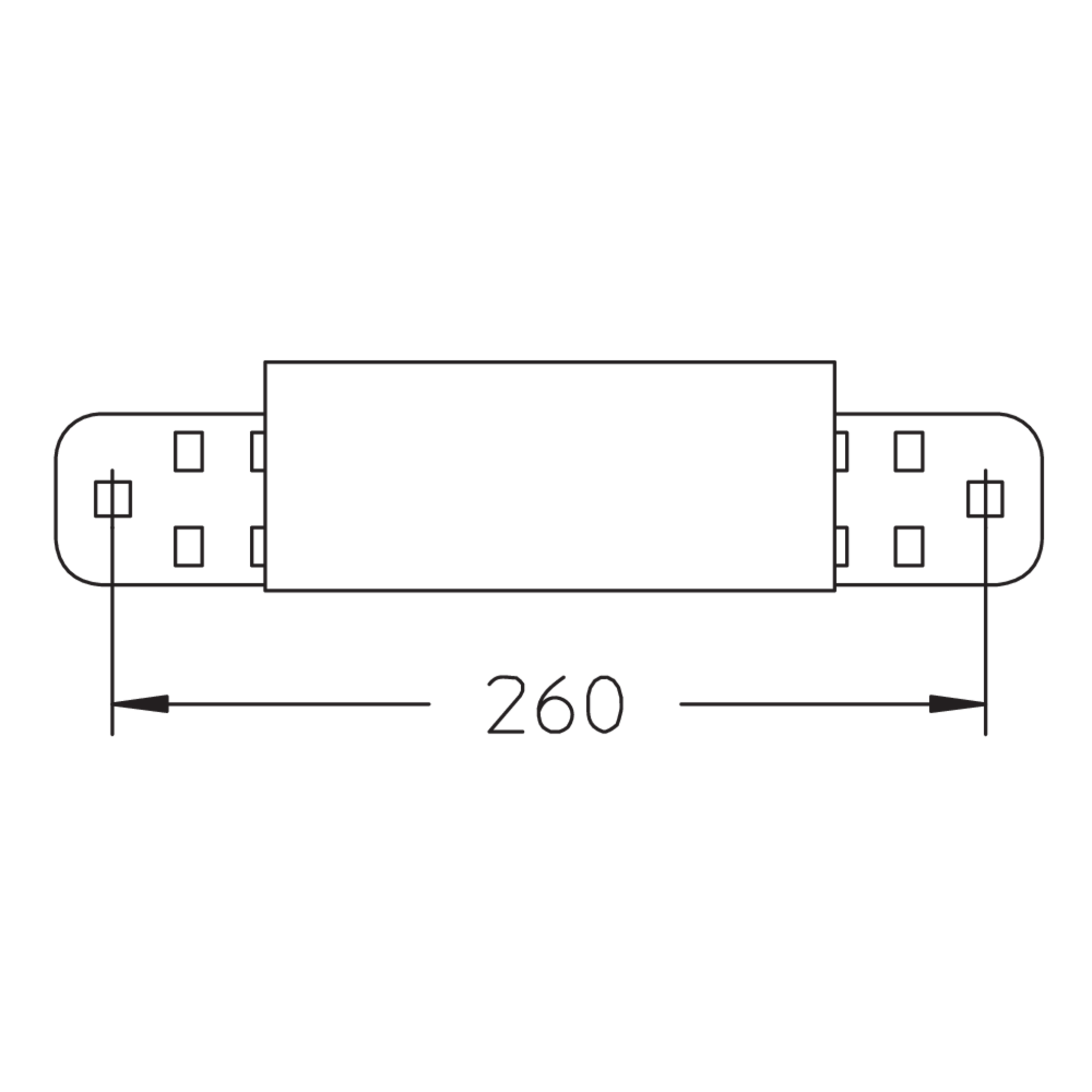

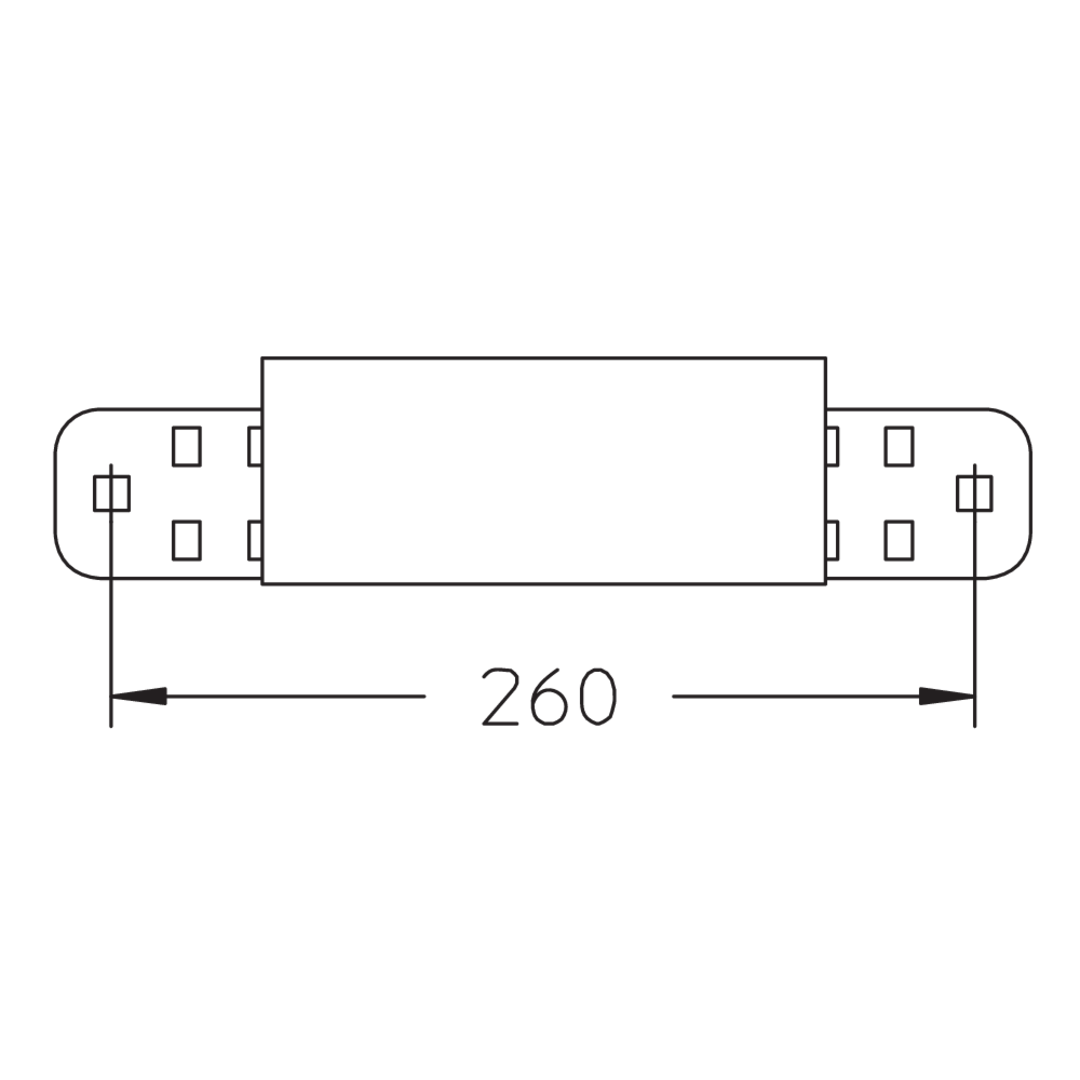

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

B

width

R

radius

direction

Direction change

W

Angle

G

Weight per storage unit

  • RVB 85-10S
    Cable tray vertical bend RVB 85-10S
    height
    85 mm
    width
    100 mm
    radius
    330 mm
    Direction change
    rising/falling
    Angle
    var.
    Weight per storage unit
    3.032 kg
    Included accessories
