JTA K 28/15

Anchor channel, cold-formed, with round or I anchor

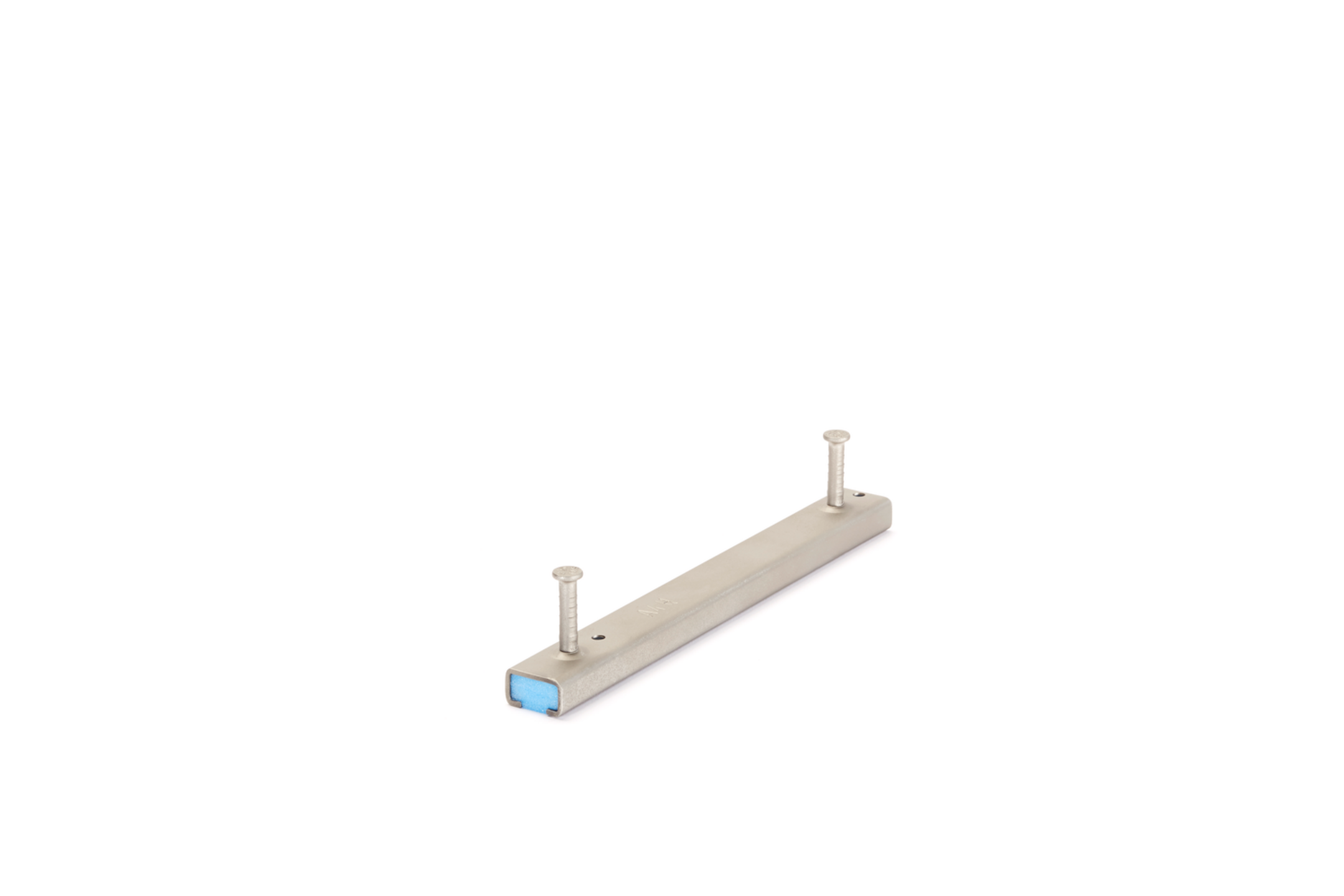

The anchor channel JTA K 28/15 is approved throughout Europe by ETA-09/0338 and almost worldwide by ICC-ES ESR‐2854. It also has environmental product declaration EPD-JDL-20200260-IBB1-DE. It is made of hot-dip galvanised steel (fv) or stainless steel (A4). It can be supplied in any desired length up to a maximum of 6 m and is paired with the bolts JD M6 - JD M12. The profile is 28 mm wide and 15 mm high. The filling is made of polyethylene (PE).

Brandschutz
Umweltproduktdeklaration (EPD): EPD-JDL-20200260-IBB1-DE
Europäische Technische Bewertung: ETA-09/0338
Get in touch Download datasheet

Variants

steel, batch/hot-dip galvanized

Article

H

HP

BP

L

t

Anzahl der Anker

W

  • JTAK2815-0100-FVKCE
    JORDAHL anchor channel K28/15
    50 mm
    15 mm
    28 mm
    100 mm
    2.3 mm
    2 pcs
    0.152 kg
    More information
  • JTAK2815-0150-FVKCE
    JORDAHL anchor channel K28/15
    50 mm
    15 mm
    28 mm
    150 mm
    2.3 mm
    2 pcs
    0.213 kg
    More information
  • JTAK2815-0200-FVKCE
    JORDAHL anchor channel K28/15
    50 mm
    15 mm
    28 mm
    200 mm
    2.3 mm
    2 pcs
    0.274 kg
    More information
  • JTAK2815-0250-FVKCE
    JORDAHL anchor channel K28/15
    50 mm
    15 mm
    28 mm
    250 mm
    2.3 mm
    2 pcs
    0.335 kg
    More information
  • JTAK2815-0300-FVKCE
    JORDAHL anchor channel K28/15
    50 mm
    15 mm
    28 mm
    300 mm
    2.3 mm
    3 pcs
    0.411 kg
    More information
  • JTAK2815-0350-FVKCE
    JORDAHL anchor channel K28/15
    50 mm
    15 mm
    28 mm
    350 mm
    2.3 mm
    3 pcs
    0.472 kg
    More information
  • JTAK2815-0400-FVKCE
    JORDAHL anchor channel K28/15
    50 mm
    15 mm
    28 mm
    400 mm
    2.3 mm
    3 pcs
    0.533 kg
    More information
  • JTAK2815-0550-FVKCE
    JORDAHL anchor channel K28/15
    50 mm
    15 mm
    28 mm
    550 mm
    2.3 mm
    4 pcs
    0.732 kg
    More information
  • JTAK2815-0800-FVKCE
    JORDAHL anchor channel K28/15
    50 mm
    15 mm
    28 mm
    800 mm
    2.3 mm
    5 pcs
    1.052 kg
    More information
  • JTAK2815-1050-FVKCE
    JORDAHL anchor channel K28/15
    50 mm
    15 mm
    28 mm
    1050 mm
    2.3 mm
    6 pcs
    1.373 kg
    More information
  • JTAK2815-3000-FVKCE
    JORDAHL anchor channel K28/15
    50 mm
    15 mm
    28 mm
    3000 mm
    2.3 mm
    16 pcs
    3.907 kg
    More information
  • JTAK2815-6000-FVKCE
    JORDAHL anchor channel K28/15
    50 mm
    15 mm
    28 mm
    6000 mm
    2.3 mm
    31 pcs
    1.300 kg
    More information

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

Article

H

HP

BP

L

t

Anzahl der Anker

W

  • JTAK2815-0100-A4KCE
    JORDAHL anchor channel K28/15
    50 mm
    15 mm
    28 mm
    100 mm
    2.3 mm
    2 pcs
    0.140 kg
    More information
  • JTAK2815-0150-A4KCE
    JORDAHL anchor channel K28/15
    50 mm
    15 mm
    28 mm
    150 mm
    2.3 mm
    2 pcs
    0.197 kg
    More information
  • JTAK2815-0200-A4KCE
    JORDAHL anchor channel K28/15
    50 mm
    15 mm
    28 mm
    200 mm
    2.3 mm
    2 pcs
    0.254 kg
    More information
  • JTAK2815-0250-A4KCE
    JORDAHL anchor channel K28/15
    50 mm
    15 mm
    28 mm
    250 mm
    2.3 mm
    2 pcs
    0.310 kg
    More information
  • JTAK2815-0300-A4KCE
    JORDAHL anchor channel K28/15
    50 mm
    15 mm
    28 mm
    300 mm
    2.3 mm
    3 pcs
    0.381 kg
    More information
  • JTAK2815-0350-A4KCE
    JORDAHL anchor channel K28/15
    50 mm
    15 mm
    28 mm
    350 mm
    2.3 mm
    3 pcs
    0.438 kg
    More information
  • JTAK2815-0400-A4KCE
    JORDAHL anchor channel K28/15
    50 mm
    15 mm
    28 mm
    400 mm
    2.3 mm
    3 pcs
    0.494 kg
    More information
  • JTAK2815-0550-A4KCE
    JORDAHL anchor channel K28/15
    50 mm
    15 mm
    28 mm
    550 mm
    2.3 mm
    4 pcs
    0.678 kg
    More information
  • JTAK2815-0800-A4KCE
    JORDAHL anchor channel K28/15
    50 mm
    15 mm
    28 mm
    800 mm
    2.3 mm
    5 pcs
    0.975 kg
    More information
  • JTAK2815-1050-A4KCE
    JORDAHL anchor channel K28/15
    50 mm
    15 mm
    28 mm
    1050 mm
    2.3 mm
    6 pcs
    1.272 kg
    More information
  • JTAK2815-3000-A4KCE
    JORDAHL anchor channel K28/15
    50 mm
    15 mm
    28 mm
    3000 mm
    2.3 mm
    16 pcs
    3.621 kg
    More information
  • JTAK2815-6000-A4KCE
    JORDAHL anchor channel K28/15
    50 mm
    15 mm
    28 mm
    6000 mm
    2.3 mm
    31 pcs
    1.205 kg
    More information

Details

  • Brandschutz
  • Umweltproduktdeklaration (EPD): EPD-JDL-20200260-IBB1-DE
  • Europäische Technische Bewertung: ETA-09/0338
