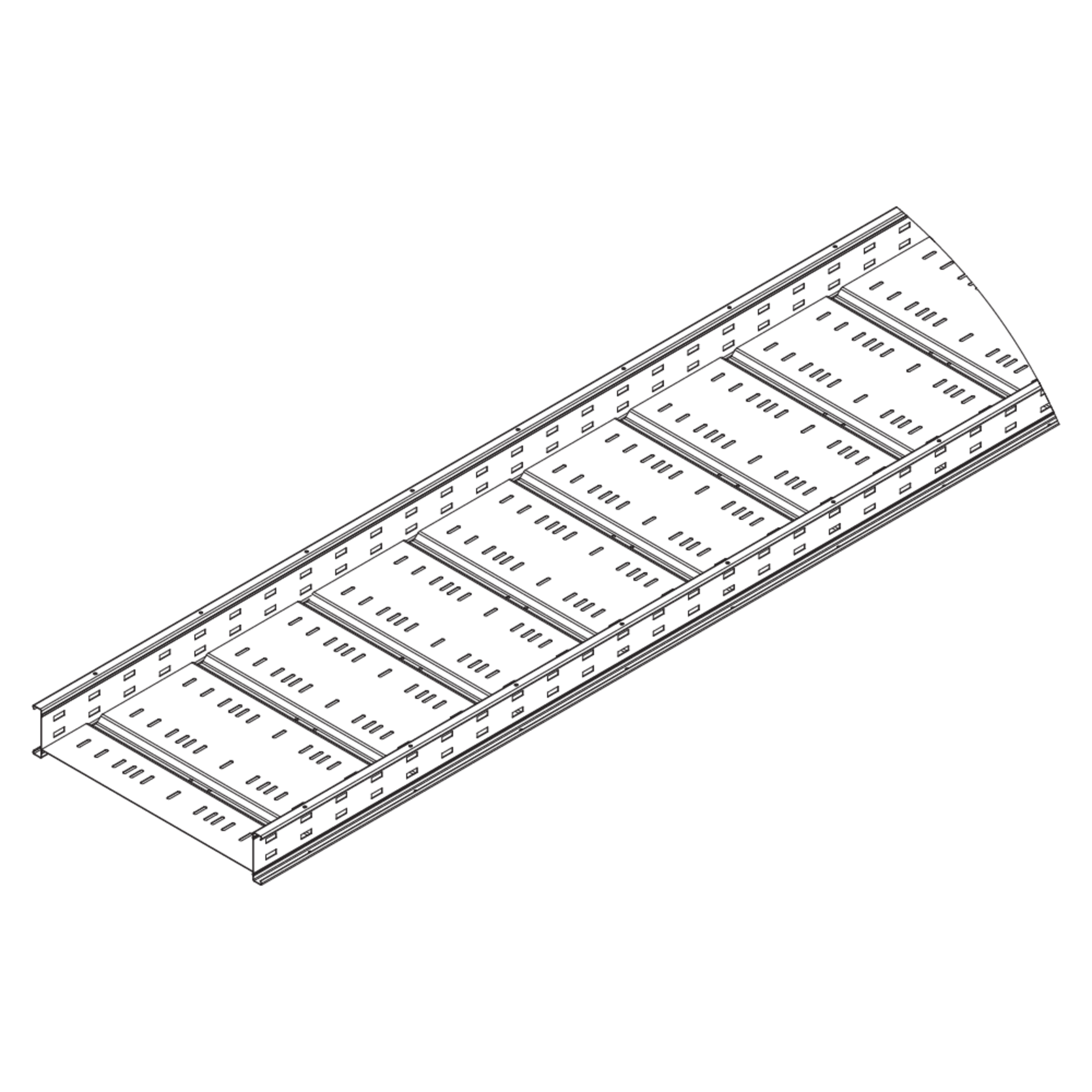

WPR 120

Wide-span cable tray, height = 120 mm

The wide-span cable trays WPR 120 have rails 120 mm high and are available in widths of 200 to 600 mm. The standard length is 6000 mm. The maximum load capacities can only be achieved by using the rail supports. The wide-span spar supports are to be used for fastening to the substructure. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Betreten verboten
Get in touch Download datasheet

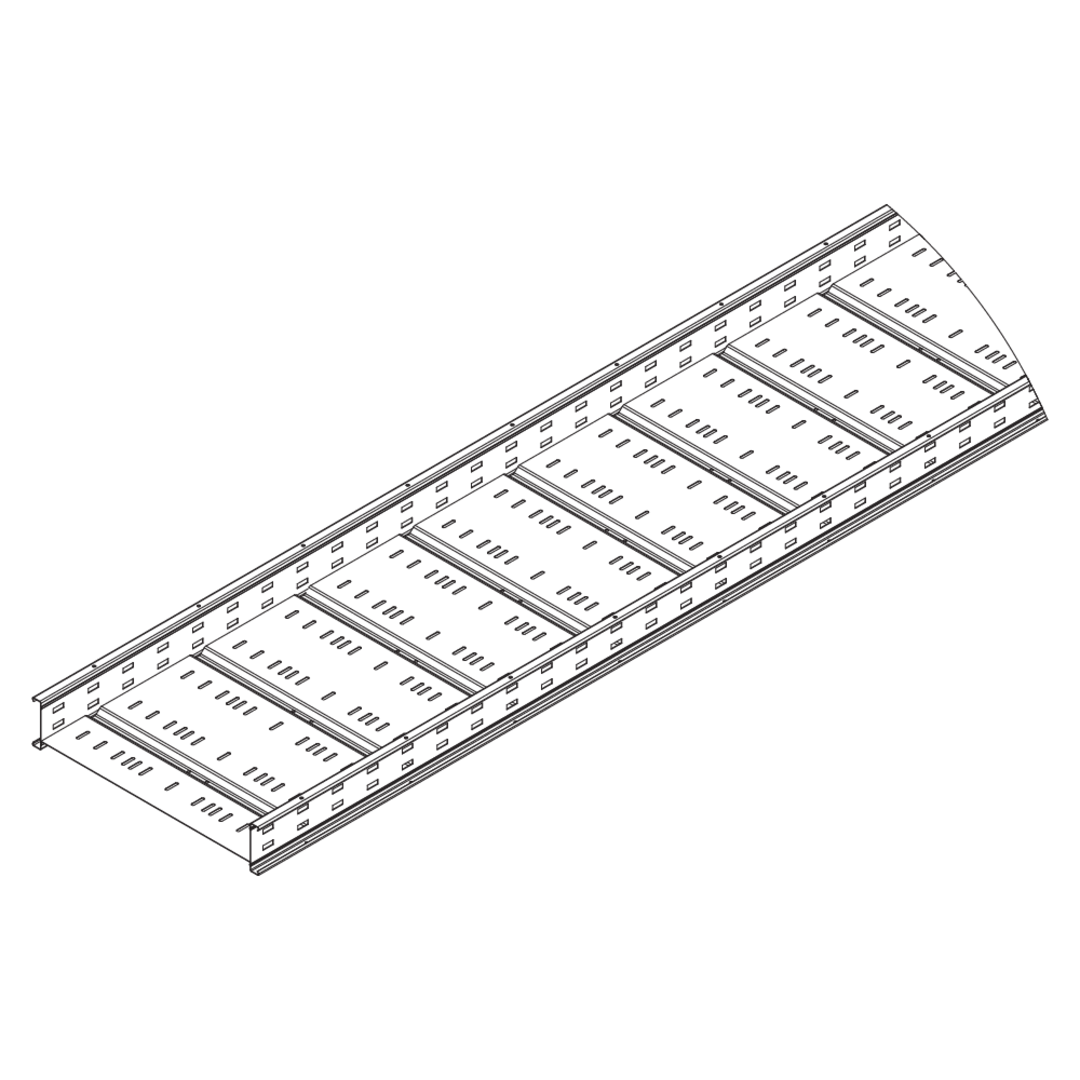

Variants

steel, continously hot galvanized/Sendzimir process

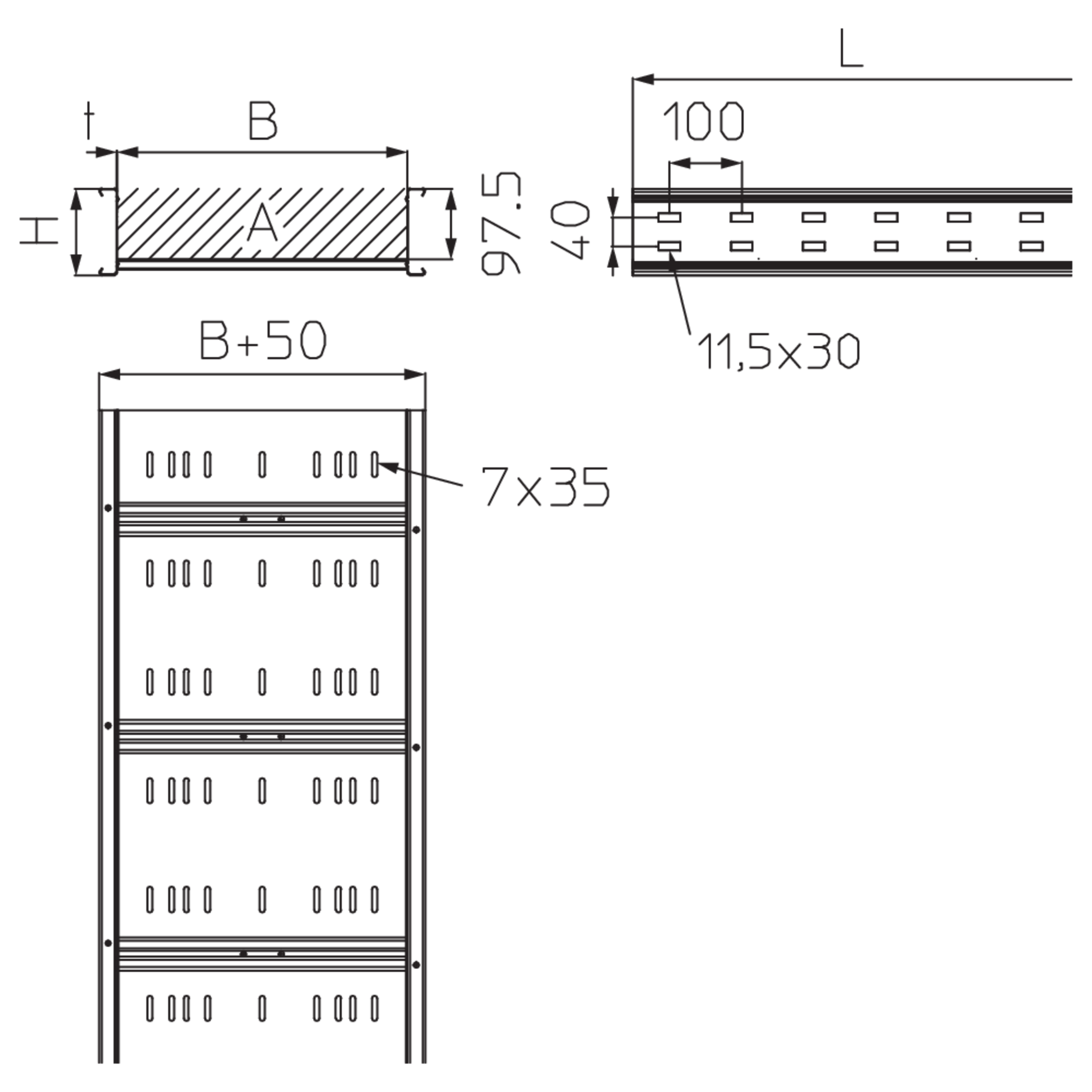

Article

H

HH

B

L

t

QSK

A

W

  • WPR 120-20S
    Wide-span cable tray WPR 120-20S
    120 mm
    120 mm
    200 mm
    6000 mm
    1.50 mm
    0.29 kN/m
    196 cm2
    36.410 kg
    More information
  • WPR 120-30S
    Wide-span cable tray WPR 120-30S
    120 mm
    120 mm
    300 mm
    6000 mm
    1.50 mm
    0.44 kN/m
    294 cm2
    42.100 kg
    More information
  • WPR 120-40S
    Wide-span cable tray WPR 120-40S
    120 mm
    120 mm
    400 mm
    6000 mm
    1.50 mm
    0.59 kN/m
    392 cm2
    47.970 kg
    More information
  • WPR 120-50S
    Wide-span cable tray WPR 120-50S
    120 mm
    120 mm
    500 mm
    6000 mm
    1.50 mm
    0.74 kN/m
    490 cm2
    53.830 kg
    More information
  • WPR 120-60S
    Wide-span cable tray WPR 120-60S
    120 mm
    120 mm
    600 mm
    6000 mm
    1.50 mm
    0.88 kN/m
    588 cm2
    59.700 kg
    More information

steel, batch/hot-dip galvanized

Article

H

HH

B

L

t

QSK

A

W

  • WPR 120-20F
    Wide-span cable tray WPR 120-20F
    120 mm
    120 mm
    200 mm
    6000 mm
    1.50 mm
    0.29 kN/m
    196 cm2
    38.800 kg
    More information
  • WPR 120-30F
    Wide-span cable tray WPR 120-30F
    120 mm
    120 mm
    300 mm
    6000 mm
    1.50 mm
    0.44 kN/m
    294 cm2
    44.880 kg
    More information
  • WPR 120-40F
    Wide-span cable tray WPR 120-40F
    120 mm
    120 mm
    400 mm
    6000 mm
    1.50 mm
    0.59 kN/m
    392 cm2
    51.160 kg
    More information
  • WPR 120-50F
    Wide-span cable tray WPR 120-50F
    120 mm
    120 mm
    500 mm
    6000 mm
    1.50 mm
    0.74 kN/m
    490 cm2
    57.440 kg
    More information
  • WPR 120-60F
    Wide-span cable tray WPR 120-60F
    120 mm
    120 mm
    600 mm
    6000 mm
    1.50 mm
    0.88 kN/m
    588 cm2
    63.720 kg
    More information

Details

  • Betreten verboten

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Accessories

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

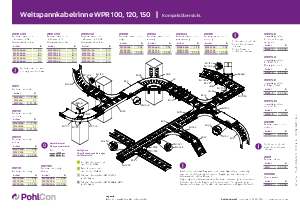

  • Rote Mappe - Funktionserhalt Tragkonstruktion DIN 4102-12

    Gesamtkatalog

    PDF, 29 MB

    de
    Download

  • Technische Information Estrichbündige Kanalsysteme

    Montageanleitung

    PDF, 2 MB

    de
    Download

  • Test Report RAPIDOBAT® Cretcon HD

    Technische Information

    PDF, 4 MB

    de en

  • Montageanleitung Einzelauslass eckig Hohlraumbodendosen

    Kompaktübersicht

    PDF, 1 MB

    de
    Download

  • Electrical conductivity (WP/WPL 100)

    Certificate, tested according to DIN EN 61537 Pt. 11.1

    PDF, 263 KB

    de en

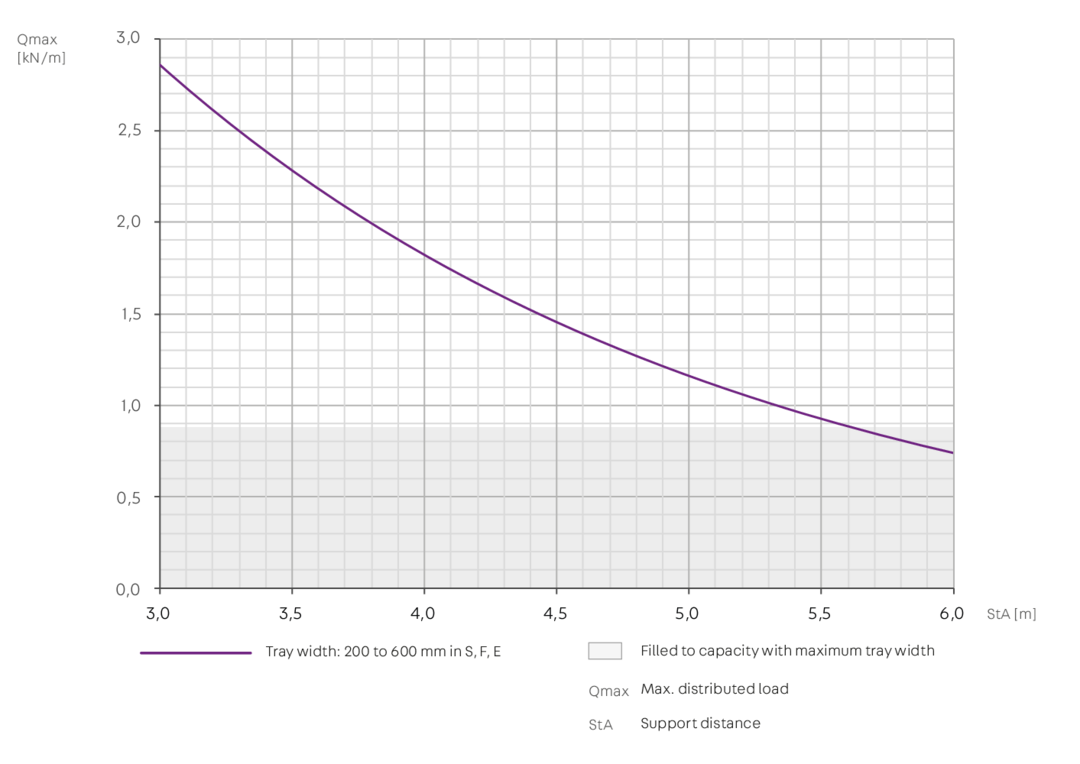

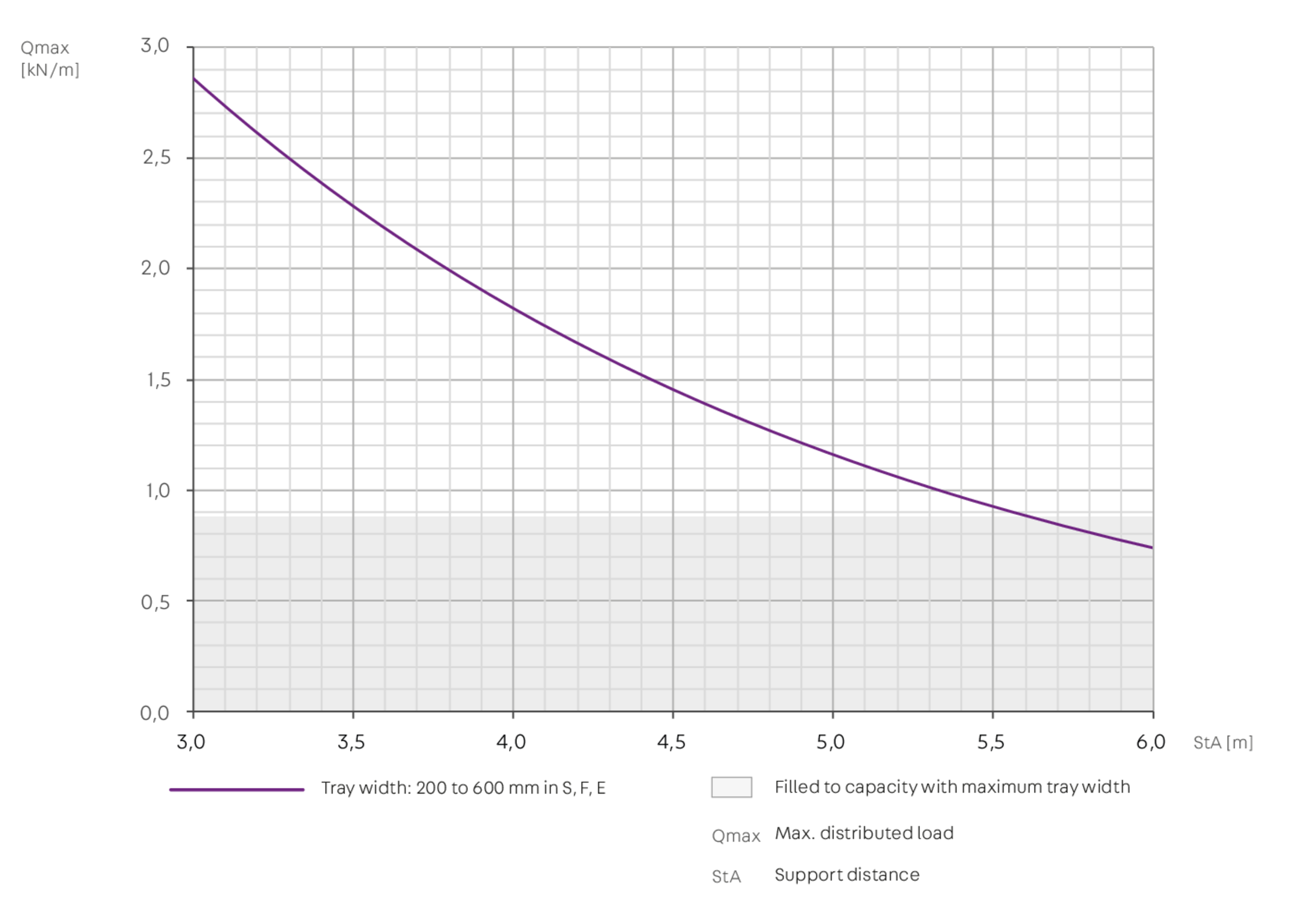

Load diagram

Included accessories
