WPRK 120

Wide-span cable tray crossing, height = 120 mm

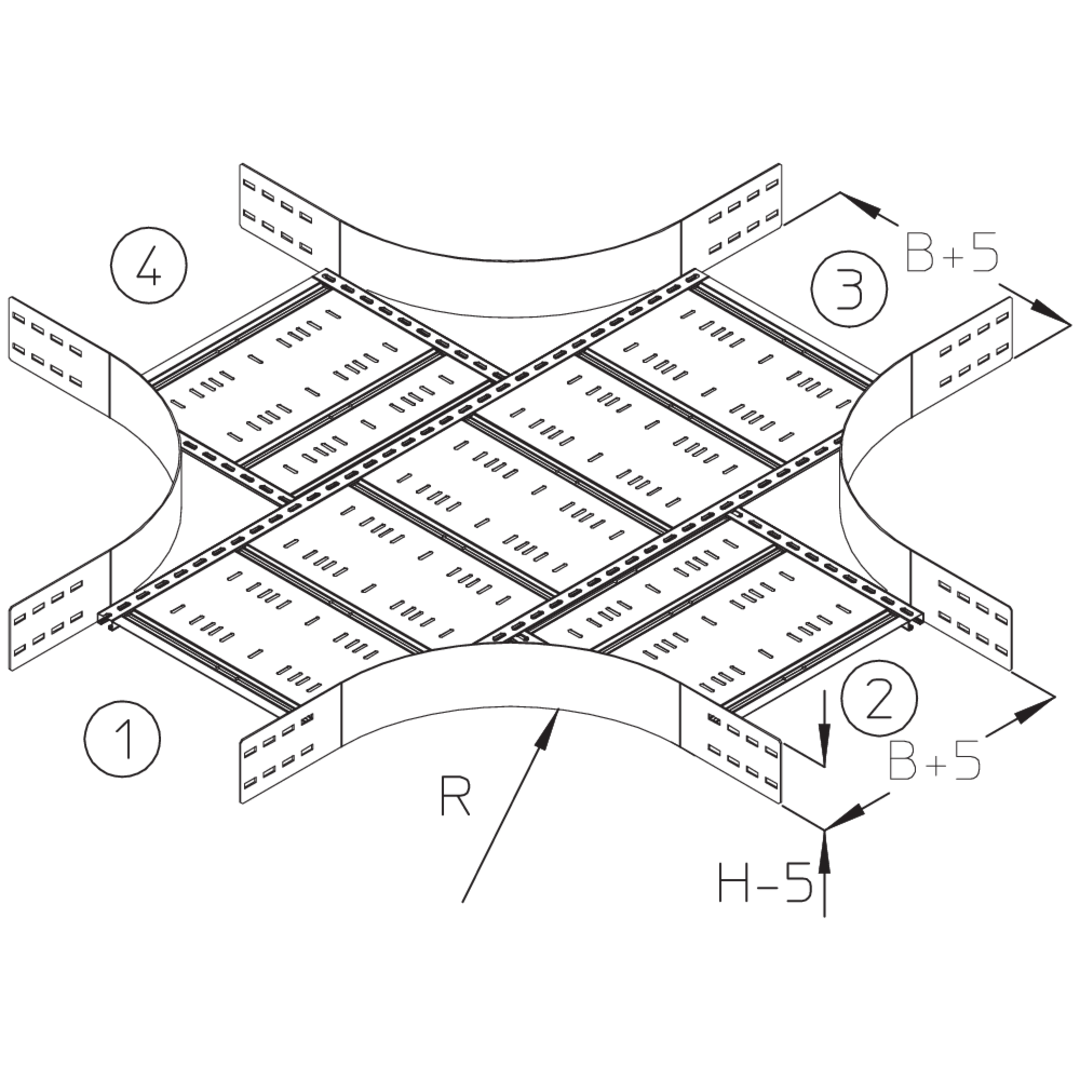

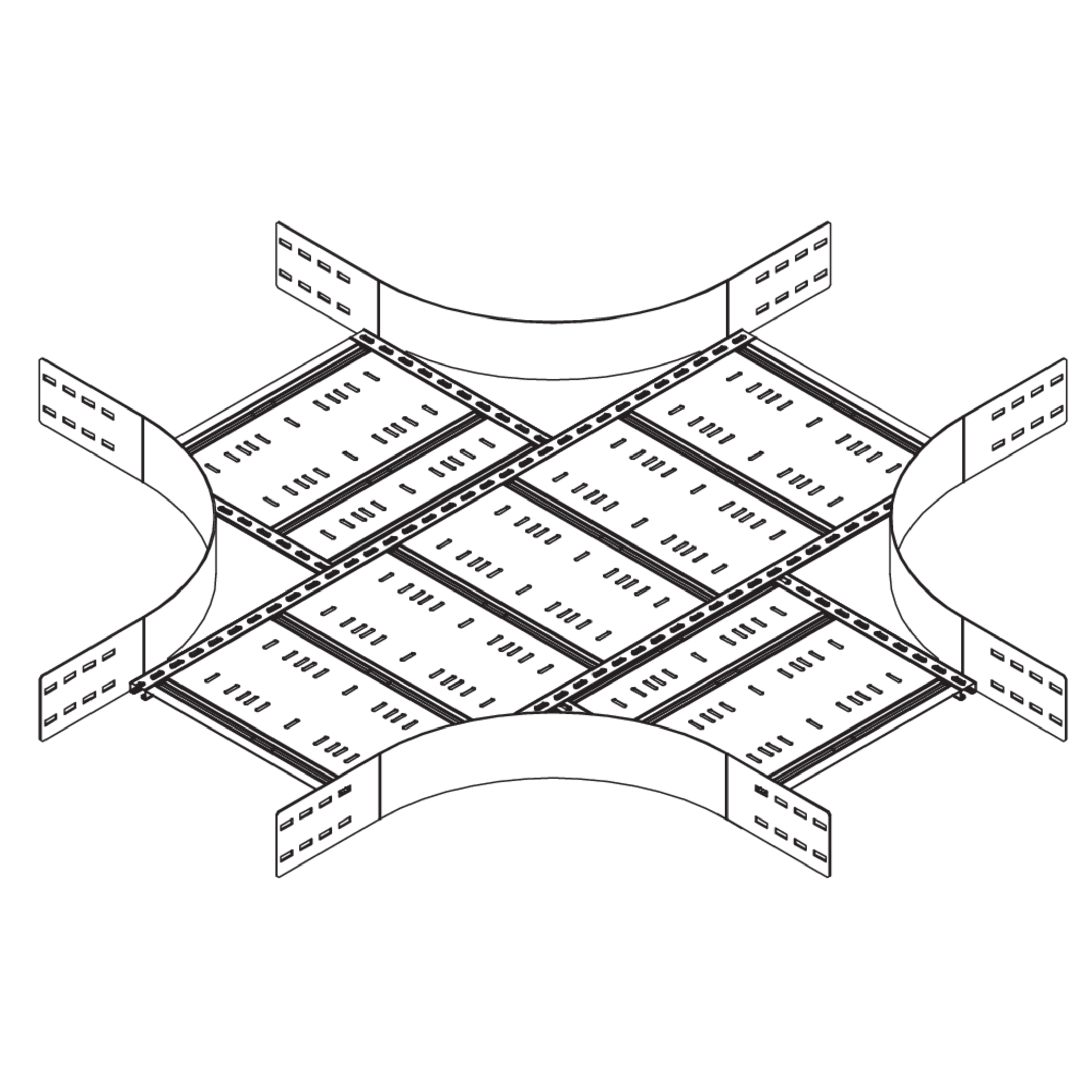

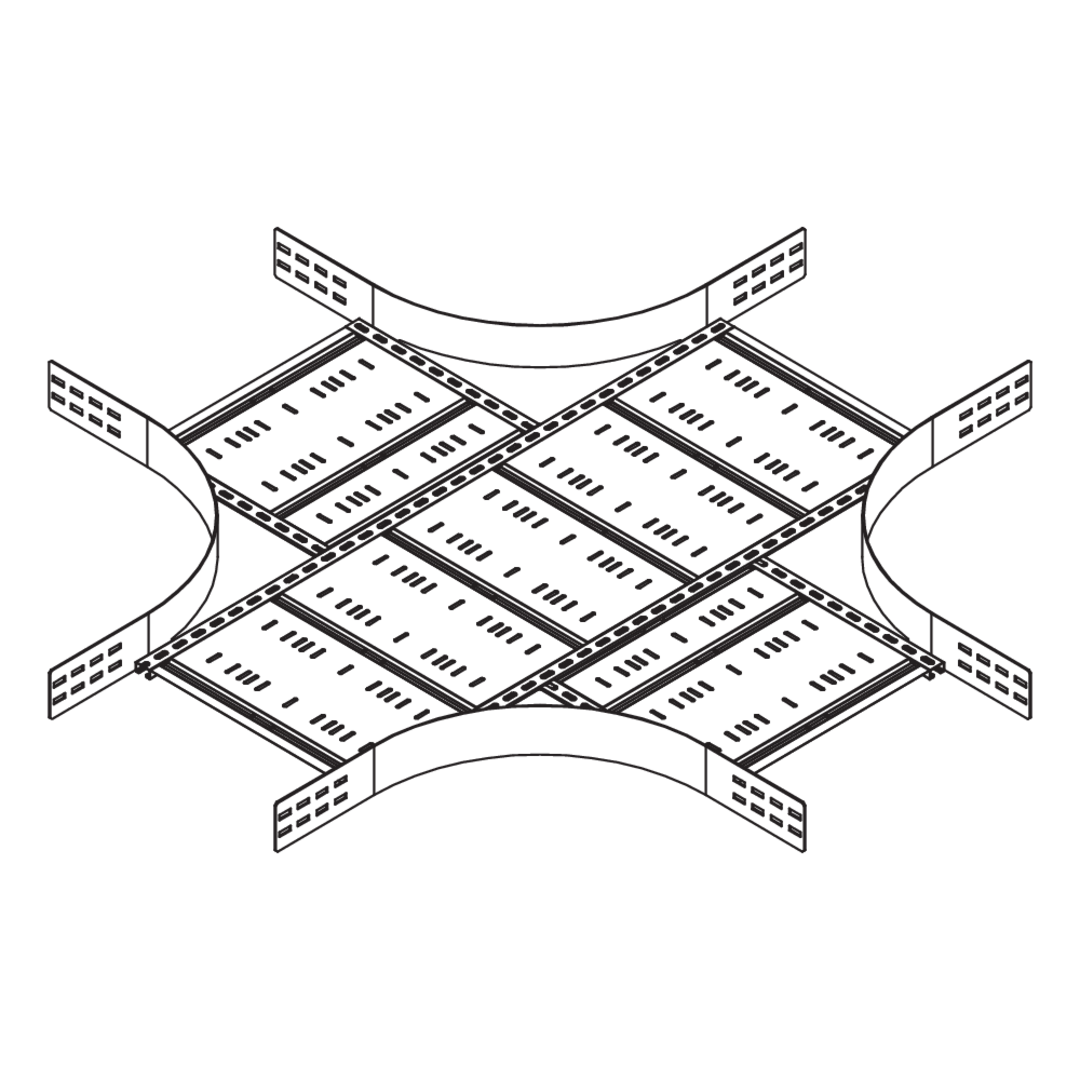

The wide-span cable tray crossing WPRK 120 with integrated connectors serves as a formed part for horizontally intersecting wide-span cable trays. It is suitable for trays with rails 120 mm high and is 200 to 600 mm wide. The connection trays can be pushed in with a VB floor connector. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met. Special designs with different connection widths ①, ②, ③, ④ or different radii R can be requested.

Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

Article

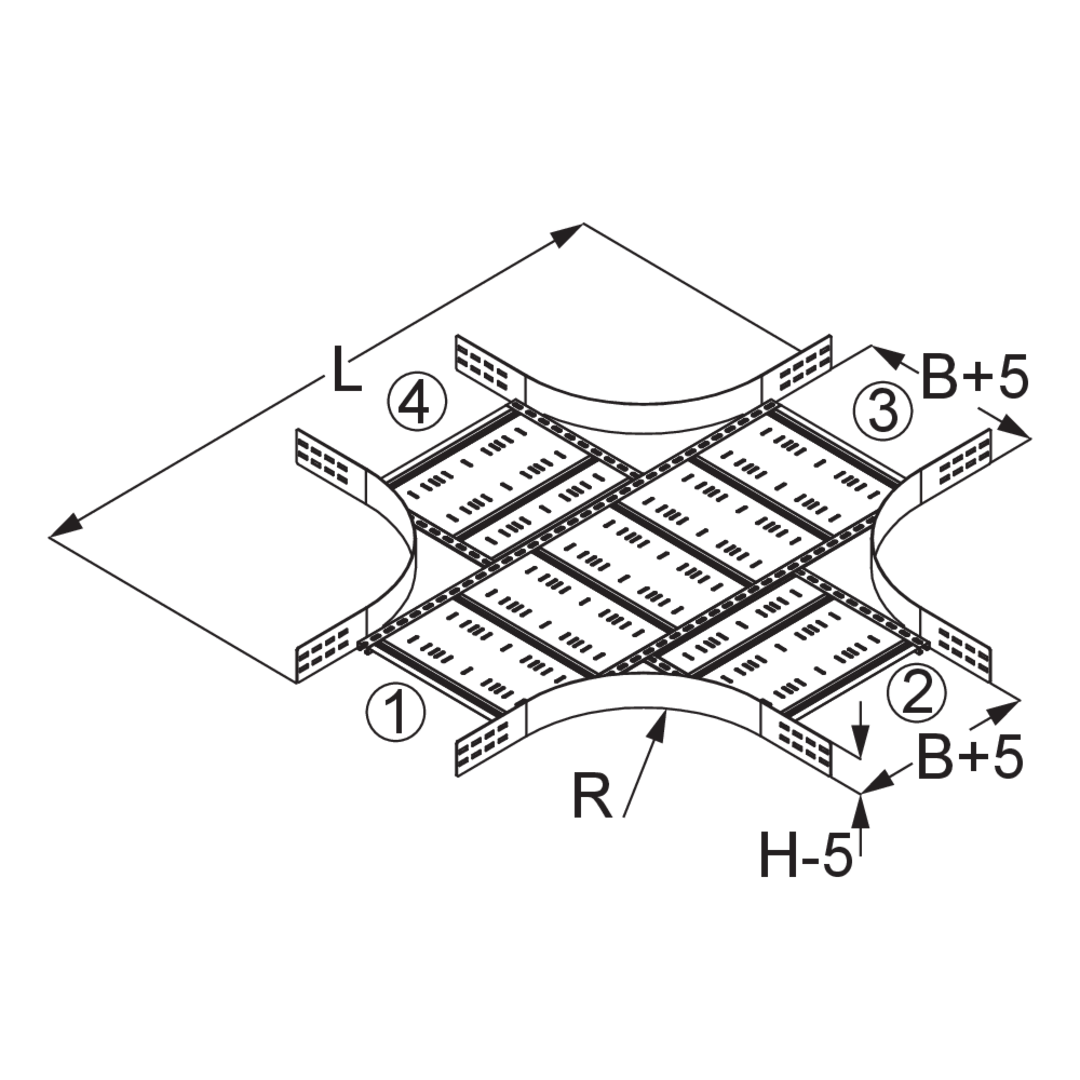

H

height

B

width

L

length

R

radius

G

Weight per storage unit

  • WPRK 120-20F
    Wide-span cable tray cross-piece WPRK
    height
    120 mm
    width
    200 mm
    length
    1635 mm
    radius
    450 mm
    Weight per storage unit
    23.930 kg
    Included accessories
    More information
  • WPRK 120-30F
    Wide-span cable tray cross-piece WPRK
    height
    120 mm
    width
    300 mm
    length
    1735 mm
    radius
    450 mm
    Weight per storage unit
    26.170 kg
    Included accessories
    More information
  • WPRK 120-40F
    Wide-span cable tray cross-piece WPRK
    height
    120 mm
    width
    400 mm
    length
    1835 mm
    radius
    450 mm
    Weight per storage unit
    28.530 kg
    Included accessories
    More information
  • WPRK 120-50F
    Wide-span cable tray cross-piece WPRK
    height
    120 mm
    width
    500 mm
    length
    1935 mm
    radius
    450 mm
    Weight per storage unit
    31.100 kg
    Included accessories
    More information
  • WPRK 120-60F
    Wide-span cable tray cross-piece WPRK
    height
    120 mm
    width
    600 mm
    length
    2035 mm
    radius
    450 mm
    Weight per storage unit
    34.410 kg
    Included accessories
    More information

Details

  • Creates horizontal change of cable routing in four directions
  • Cable-friendly guide

Tender texts

Ausschreiben.de

Tender text for this product
