WPRA 120

Wide-span cable tray branch, height = 120 mm

The T-shaped wide-span cable tray branch WPRA 120 with integrated side connectors allows the direction of cable routing to be changed in the form of a branch. It is suitable for wide-span cable trays with rails 120 mm high and is 200 to 600 mm side. It is used between two wide-span cable trays. The connection tray can then be pushed in with a VB floor connector. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touch Download datasheet

Variants

Stahl, stück-/tauchfeuerverzinkt

Article

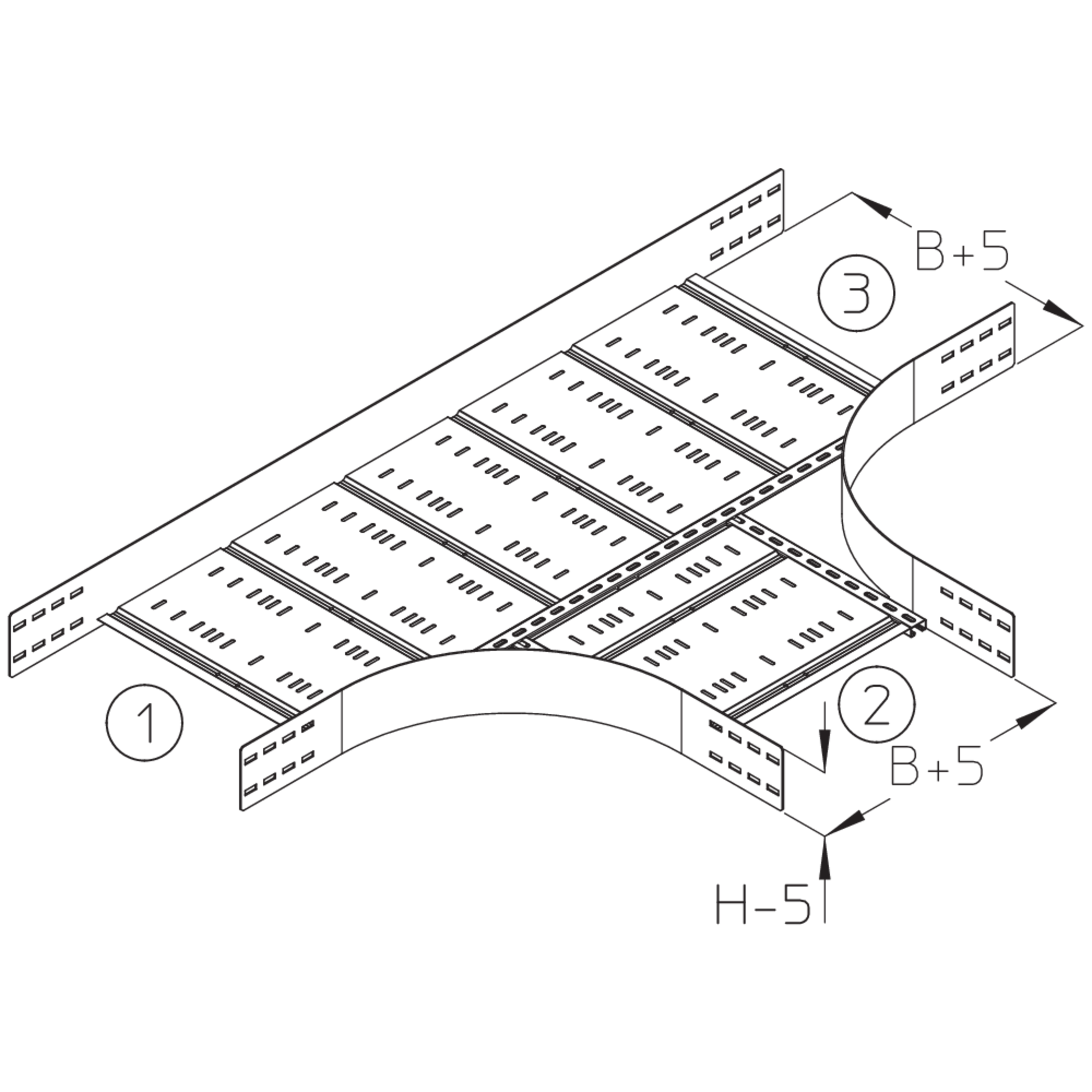

H

Höhe

HH

Holmhöhe

B

Breite

L

Länge

R

Radius

G

Gewicht je Lagermengeneinheit
  • WPRA 120-20F
    Weitspannkabelrinnen-Abzweig
    120 mm
    120 mm
    200 mm
    1635 mm
    450 mm
    19.670 kg
    Included accessories
    More information
  • WPRA 120-30F
    Weitspannkabelrinnen-Abzweig
    120 mm
    120 mm
    300 mm
    1735 mm
    450 mm
    21.430 kg
    Included accessories
    More information
  • WPRA 120-40F
    Weitspannkabelrinnen-Abzweig
    120 mm
    120 mm
    400 mm
    1835 mm
    450 mm
    23.340 kg
    Included accessories
    More information
  • WPRA 120-50F
    Weitspannkabelrinnen-Abzweig
    120 mm
    120 mm
    500 mm
    1935 mm
    450 mm
    25.450 kg
    Included accessories
    More information
  • WPRA 120-60F
    Weitspannkabelrinnen-Abzweig
    120 mm
    120 mm
    600 mm
    2035 mm
    450 mm
    27.720 kg
    Included accessories
    More information

Details

  • Creates horizontal changes of the cable routing direction in the form of a branch
  • Cable-friendly guide

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Wide-Span Cable Tray WPR, Installation Guide

    Montageanleitung

    PDF, 2 MB

    de
    Download

  • Wide-Span Systems, Technical Information

    Technische Information

    PDF, 4 MB

    de en

BIM- and CAD-Data

  • BIM for Wide-span Systems

    BIM for Wide-span Systems

    ZIP, 12 MB

    de
    Download
