WL 200

Wide-span cable ladder, height = 200 mm

The wide-span cable ladders WL 200 have rails 202 mm high and are available in widths of 200 to 600 mm. They are available in a standard length of 6000 mm. The rungs consist of perforated profile rails. The wide-span spar supports are to be used for fastening to the substructure. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

No stepping
Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

B

width

L

length

t

material thickness

QLK

Line load power cable

A

cross section area

G

Weight per storage unit

  • WL 200-20S
    Wide-span cable ladder WL 200-20S
    height
    202 mm
    width
    200 mm
    length
    6000 mm
    material thickness
    2.00 mm
    Line load power cable
    0.8 kN/m
    cross section area
    285 cm2
    Weight per storage unit
    56.480 kg
    More information
  • WL 200-30S
    Wide-span cable ladder WL 200-30S
    height
    202 mm
    width
    300 mm
    length
    6000 mm
    material thickness
    2.00 mm
    Line load power cable
    1.2 kN/m
    cross section area
    430 cm2
    Weight per storage unit
    58.240 kg
    More information
  • WL 200-40S
    Wide-span cable ladder WL 200-40S
    height
    202 mm
    width
    400 mm
    length
    6000 mm
    material thickness
    2.00 mm
    Line load power cable
    1.61 kN/m
    cross section area
    574 cm2
    Weight per storage unit
    60.000 kg
    More information
  • WL 200-50S
    Wide-span cable ladder WL 200-50S
    height
    202 mm
    width
    500 mm
    length
    6000 mm
    material thickness
    2.00 mm
    Line load power cable
    2.01 kN/m
    cross section area
    719 cm2
    Weight per storage unit
    61.770 kg
    More information
  • WL 200-60S
    Wide-span cable ladder WL 200-60S
    height
    202 mm
    width
    600 mm
    length
    6000 mm
    material thickness
    2.00 mm
    Line load power cable
    2.42 kN/m
    cross section area
    863 cm2
    Weight per storage unit
    63.530 kg
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

QLK

Line load power cable

A

cross section area

G

Weight per storage unit

  • WL 200-20F
    Wide-span cable ladder WL 200-20F
    height
    202 mm
    width
    200 mm
    length
    6000 mm
    material thickness
    2.00 mm
    Line load power cable
    0.8 kN/m
    cross section area
    285 cm2
    Weight per storage unit
    60.440 kg
    More information
  • WL 200-30F
    Wide-span cable ladder WL 200-30F
    height
    202 mm
    width
    300 mm
    length
    6000 mm
    material thickness
    2.00 mm
    Line load power cable
    1.2 kN/m
    cross section area
    430 cm2
    Weight per storage unit
    62.320 kg
    More information
  • WL 200-40F
    Wide-span cable ladder WL 200-40F
    height
    202 mm
    width
    400 mm
    length
    6000 mm
    material thickness
    2.00 mm
    Line load power cable
    1.61 kN/m
    cross section area
    574 cm2
    Weight per storage unit
    64.200 kg
    More information
  • WL 200-50F
    Wide-span cable ladder WL 200-50F
    height
    202 mm
    width
    500 mm
    length
    6000 mm
    material thickness
    2.00 mm
    Line load power cable
    2.01 kN/m
    cross section area
    719 cm2
    Weight per storage unit
    66.090 kg
    More information
  • WL 200-60F
    Wide-span cable ladder WL 200-60F
    height
    202 mm
    width
    600 mm
    length
    6000 mm
    material thickness
    2.00 mm
    Line load power cable
    2.42 kN/m
    cross section area
    863 cm2
    Weight per storage unit
    67.970 kg
    More information

Details

  • No stepping

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Accessories

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    deen

  • Cable trays - Complete catalogue

    Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders and more.

    PDF, 138 MB

    deen

  • Wide-Span Systems, Technical Information

    PDF, 4 MB

    deen

  • Wide-Span Cable Ladder WL 200

    PDF, 649 KB

    de
    Download

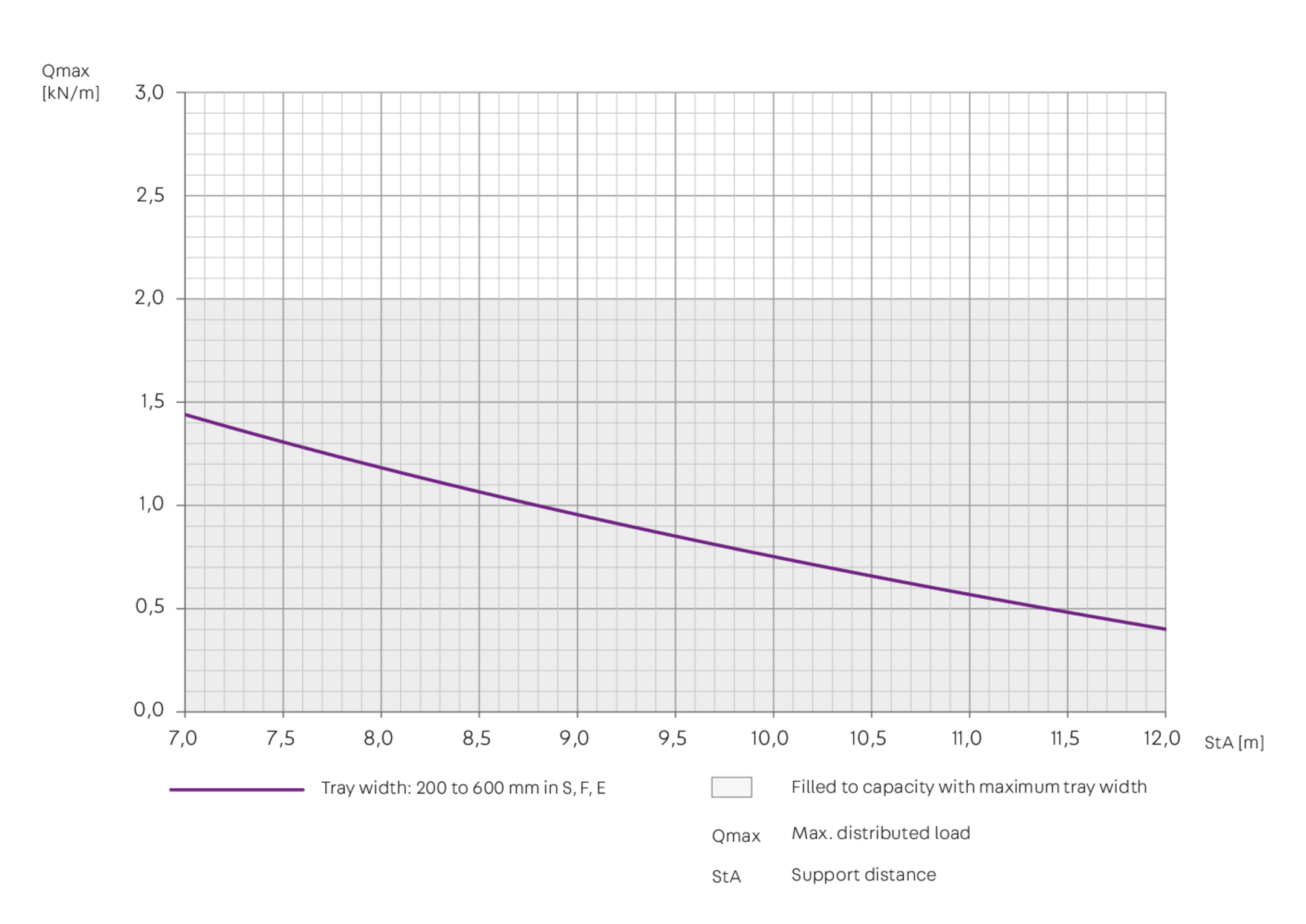

Load diagram
