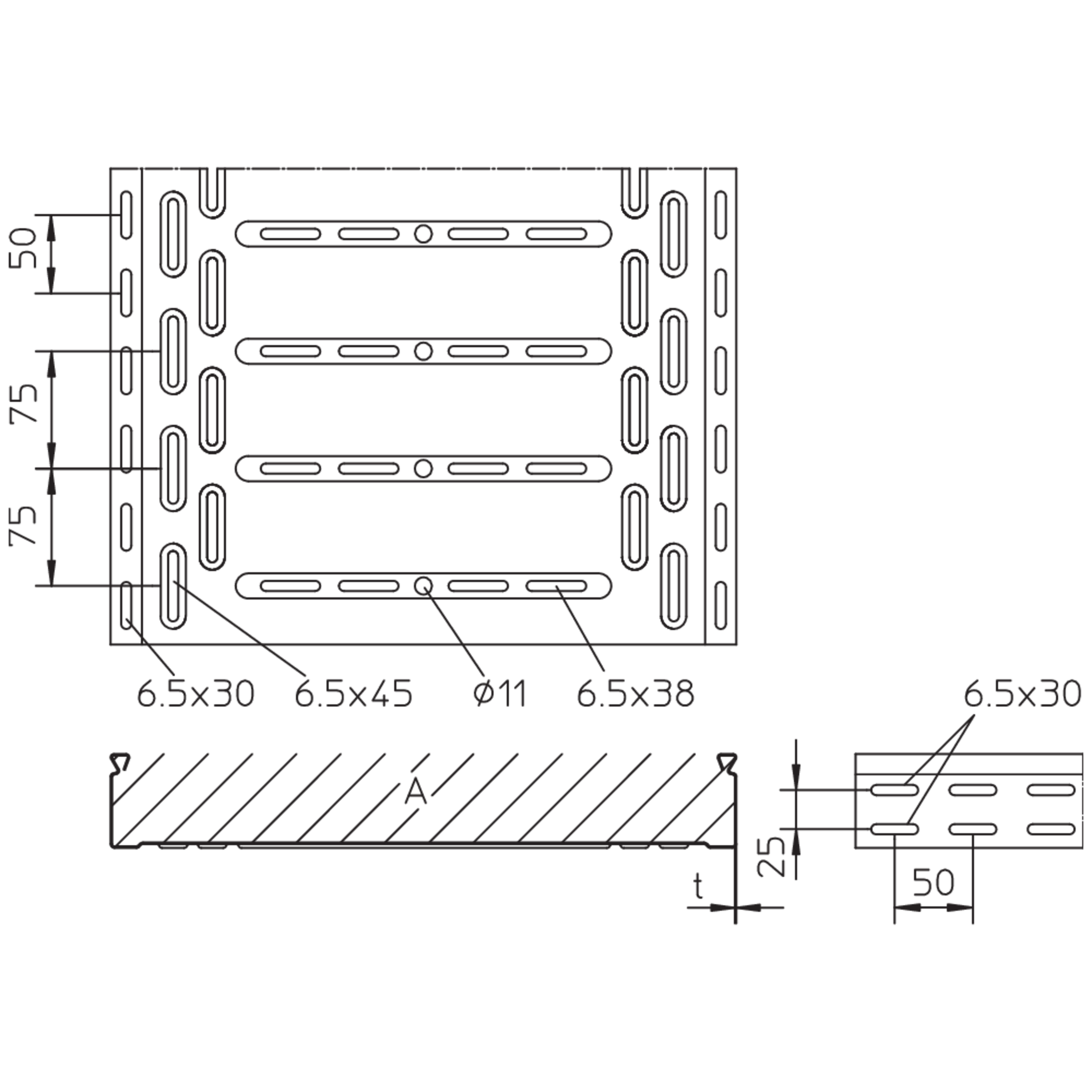

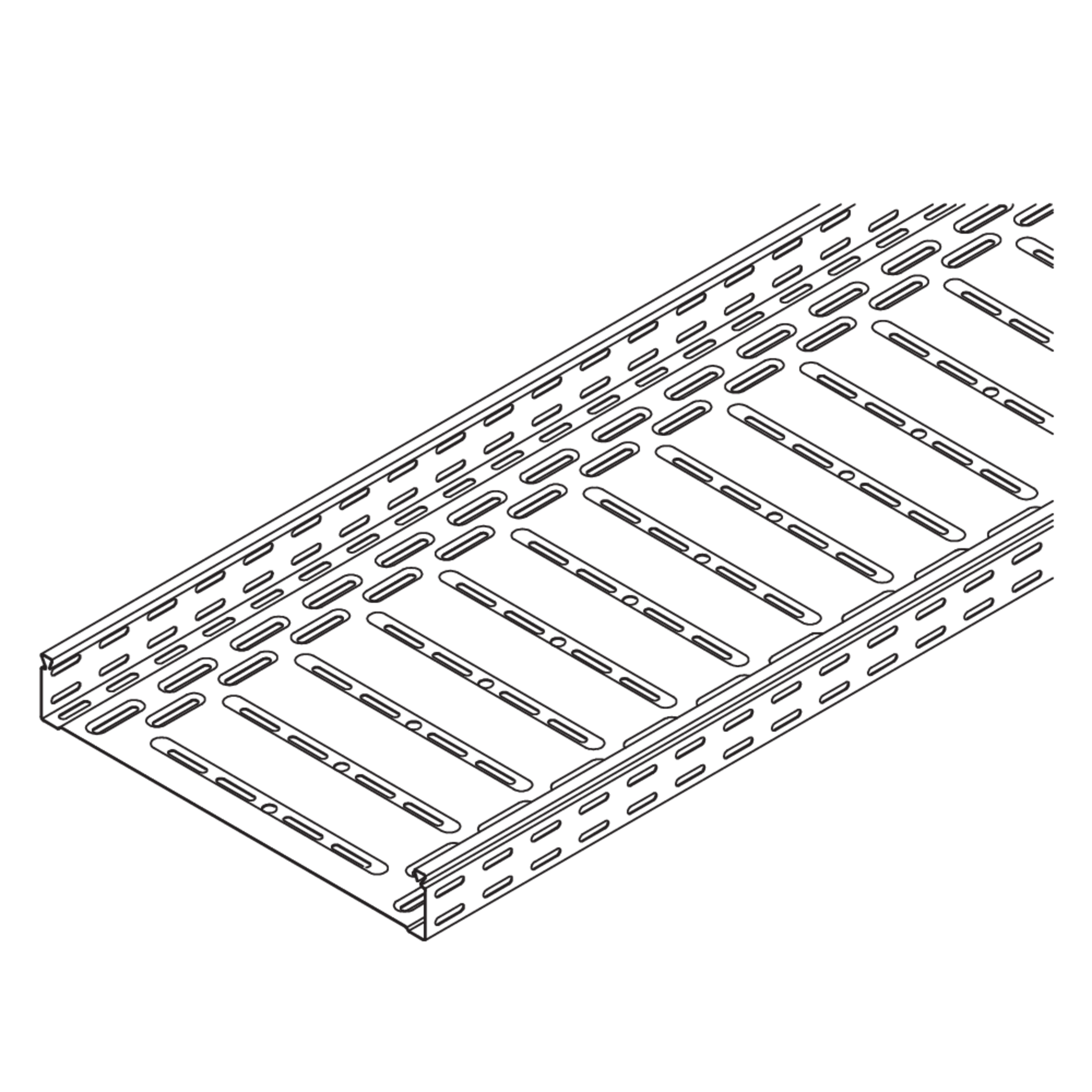

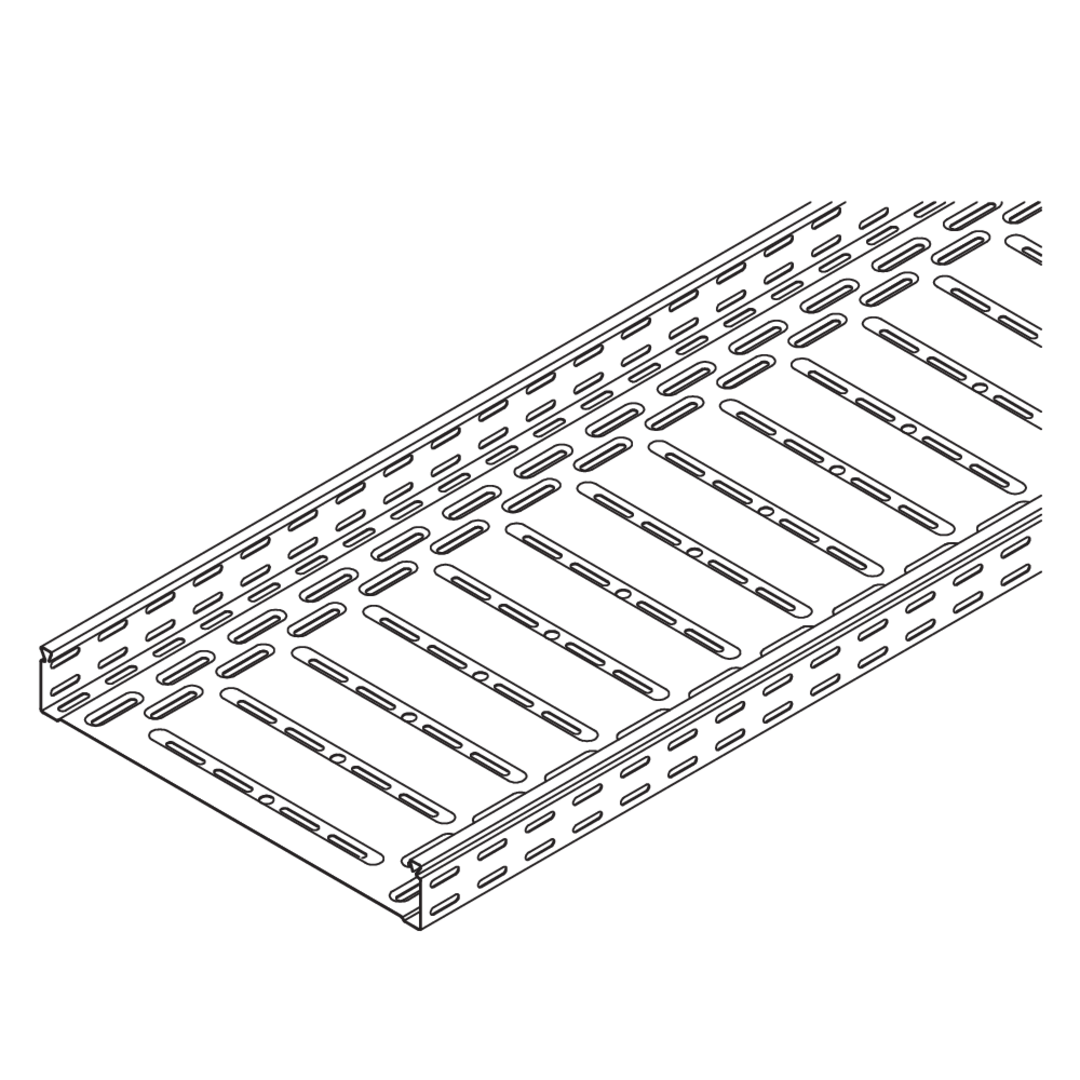

RGS 60

Cable tray, perforated, heavy, height = 60 mm

The RGS 60 perforated cable trays have sides 60 mm high and are available in widths from 100 to 600 mm. The standard length is 3000 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Betreten verboten
Get in touch Download datasheet

Variants

steel, continously hot galvanized/Sendzimir process

Article

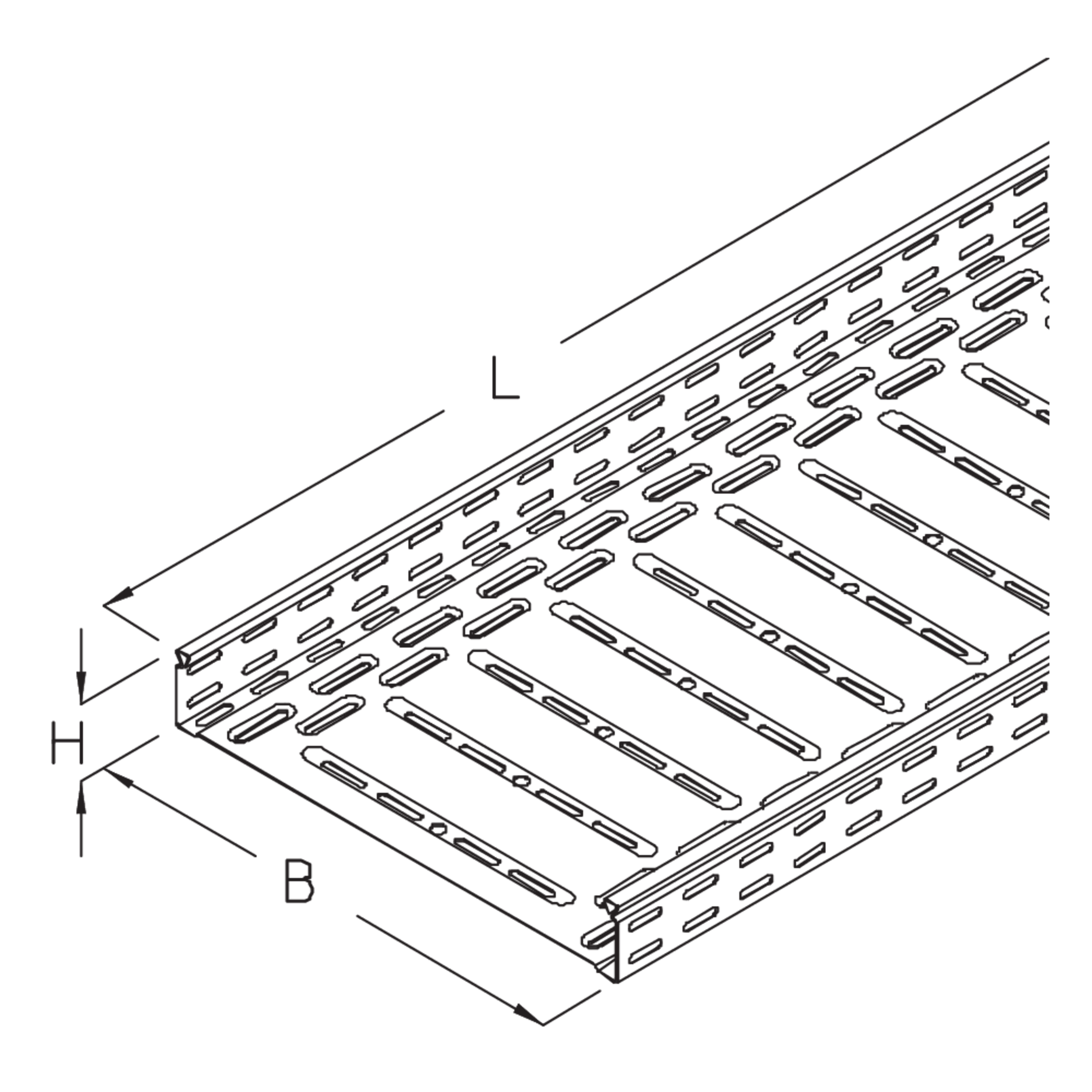

H

B

L

t

QSK

A

W

  • RGS 60-10S
    Cable tray, heavy RGS 60-10S
    60 mm
    100 mm
    3000 mm
    1.50 mm
    0.09 kN/m
    57 cm2
    8.333 kg
    More information
  • RGS 60-20S
    Cable tray, heavy RGS 60-20S
    60 mm
    200 mm
    3000 mm
    1.50 mm
    0.18 kN/m
    117 cm2
    11.332 kg
    More information
  • RGS 60-30S
    Cable tray, heavy RGS 60-30S
    60 mm
    300 mm
    3000 mm
    1.50 mm
    0.27 kN/m
    177 cm2
    14.640 kg
    More information
  • RGS 60-40S
    Cable tray, heavy RGS 60-40S
    60 mm
    400 mm
    3000 mm
    1.50 mm
    0.36 kN/m
    237 cm2
    17.948 kg
    More information
  • RGS 60-50S
    Cable tray, heavy RGS 60-50S
    60 mm
    500 mm
    3000 mm
    1.50 mm
    0.45 kN/m
    297 cm2
    21.257 kg
    More information
  • RGS 60-60S
    Cable tray, heavy RGS 60-60S
    60 mm
    600 mm
    3000 mm
    1.50 mm
    0.54 kN/m
    357 cm2
    24.565 kg
    More information

steel, batch/hot-dip galvanized

Article

H

B

L

t

QSK

A

W

  • RGS 60-10F
    Cable tray, heavy RGS 60-10F
    60 mm
    100 mm
    3000 mm
    1.50 mm
    0.09 kN/m
    57 cm2
    8.888 kg
    More information
  • RGS 60-20F
    Cable tray, heavy RGS 60-20F
    60 mm
    200 mm
    3000 mm
    1.50 mm
    0.18 kN/m
    117 cm2
    12.087 kg
    More information
  • RGS 60-30F
    Cable tray, heavy RGS 60-30F
    60 mm
    300 mm
    3000 mm
    1.50 mm
    0.27 kN/m
    177 cm2
    15.616 kg
    More information
  • RGS 60-40F
    Cable tray, heavy RGS 60-40F
    60 mm
    400 mm
    3000 mm
    1.50 mm
    0.36 kN/m
    237 cm2
    19.144 kg
    More information
  • RGS 60-50F
    Cable tray, heavy RGS 60-50F
    60 mm
    500 mm
    3000 mm
    1.50 mm
    0.45 kN/m
    297 cm2
    22.673 kg
    More information
  • RGS 60-60F
    Cable tray, heavy RGS 60-60F
    60 mm
    600 mm
    3000 mm
    1.50 mm
    0.54 kN/m
    357 cm2
    26.202 kg
    More information

Stainless steel, according to ASTM 304 / BS 304 S 3

Article

H

B

L

t

QSK

A

W

  • RGS 60-10E
    Cable tray
    60 mm
    100 mm
    3000 mm
    1.50 mm
    0.09 kN/m
    57 cm2
    8.386 kg
    More information
  • RGS 60-20E
    Cable tray
    60 mm
    200 mm
    3000 mm
    1.50 mm
    0.18 kN/m
    117 cm2
    11.404 kg
    More information
  • RGS 60-30E
    Cable tray
    60 mm
    300 mm
    3000 mm
    1.50 mm
    0.27 kN/m
    177 cm2
    14.733 kg
    More information
  • RGS 60-40E
    Cable tray
    60 mm
    400 mm
    3000 mm
    1.50 mm
    0.36 kN/m
    237 cm2
    18.063 kg
    More information
  • RGS 60-50E
    Cable tray
    60 mm
    500 mm
    3000 mm
    1.50 mm
    0.45 kN/m
    297 cm2
    21.392 kg
    More information
  • RGS 60-60E
    Cable tray
    60 mm
    600 mm
    3000 mm
    1.50 mm
    0.54 kN/m
    357 cm2
    24.722 kg
    More information

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

Article

H

B

L

t

QSK

A

W

  • RGS 60-10E4
    Cable tray
    60 mm
    100 mm
    3000 mm
    1.50 mm
    0.09 kN/m
    57 cm2
    8.492 kg
    More information
  • RGS 60-20E4
    Cable tray
    60 mm
    200 mm
    3000 mm
    1.50 mm
    0.18 kN/m
    117 cm2
    11.548 kg
    More information
  • RGS 60-30E4
    Cable tray
    60 mm
    300 mm
    3000 mm
    1.50 mm
    0.27 kN/m
    177 cm2
    14.919 kg
    More information
  • RGS 60-40E4
    Cable tray
    60 mm
    400 mm
    3000 mm
    1.50 mm
    0.36 kN/m
    237 cm2
    18.292 kg
    More information
  • RGS 60-50E4
    Cable tray
    60 mm
    500 mm
    3000 mm
    1.50 mm
    0.45 kN/m
    297 cm2
    21.662 kg
    More information
  • RGS 60-60E4
    Cable tray
    60 mm
    600 mm
    3000 mm
    1.50 mm
    0.54 kN/m
    357 cm2
    25.035 kg
    More information

Details

  • Betreten verboten

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Accessories

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Cable trays - Technical information

    Technische Information

    PDF, 3 MB

    de en

  • Rote Mappe - Funktionserhalt Tragkonstruktion DIN 4102-12

    Gesamtkatalog

    PDF, 29 MB

    de
    Download

  • Cable ladders - Technical information

    Montageanleitung

    PDF, 3 MB

    de en

  • Weitspannkabelleiter WL 200

    Kompaktübersicht

    PDF, 1 MB

    de
    Download

  • Electrical conductivity (RG 35/60 and RI 60)

    Certificate, tested according to DIN EN 61537 Pt. 11.1

    PDF, 275 KB

    de en

  • Safe working load (RGS 60)

    <div>Certificate, tested in accordance to DIN EN 61537</div>

    PDF, 438 KB

    de en

BIM- and CAD-Data

  • BIM for cable trays

    BIM for cable trays

    Bim data

    ZIP, 10 MB

    de en

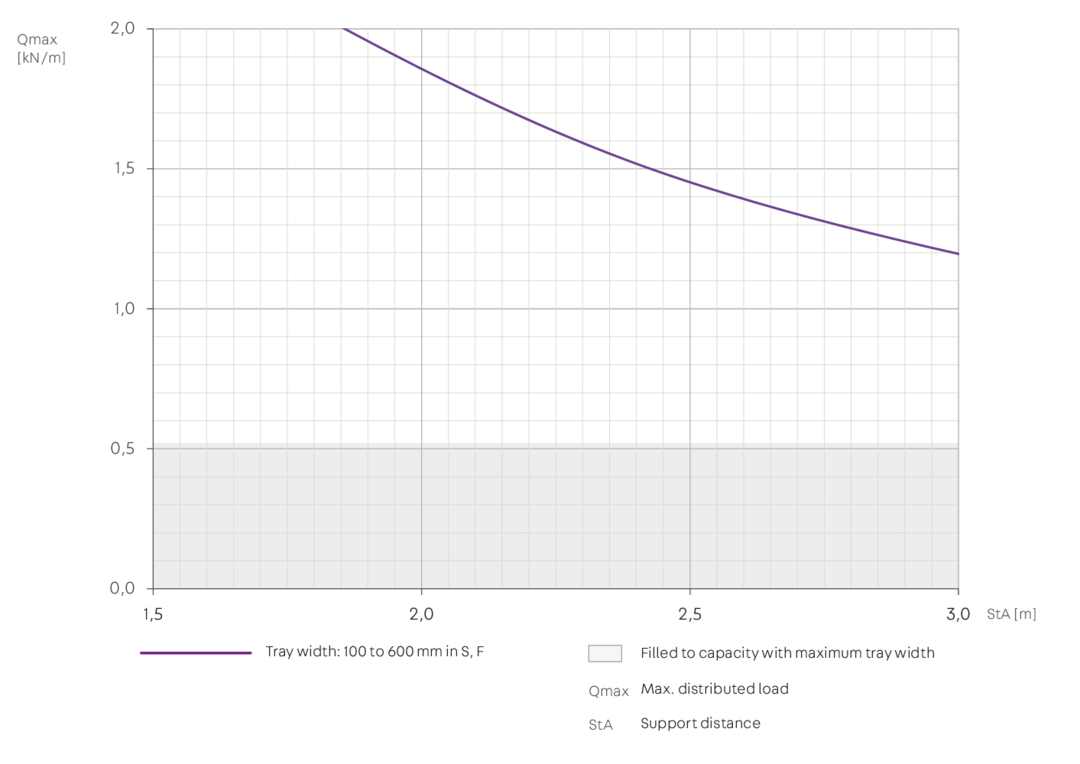

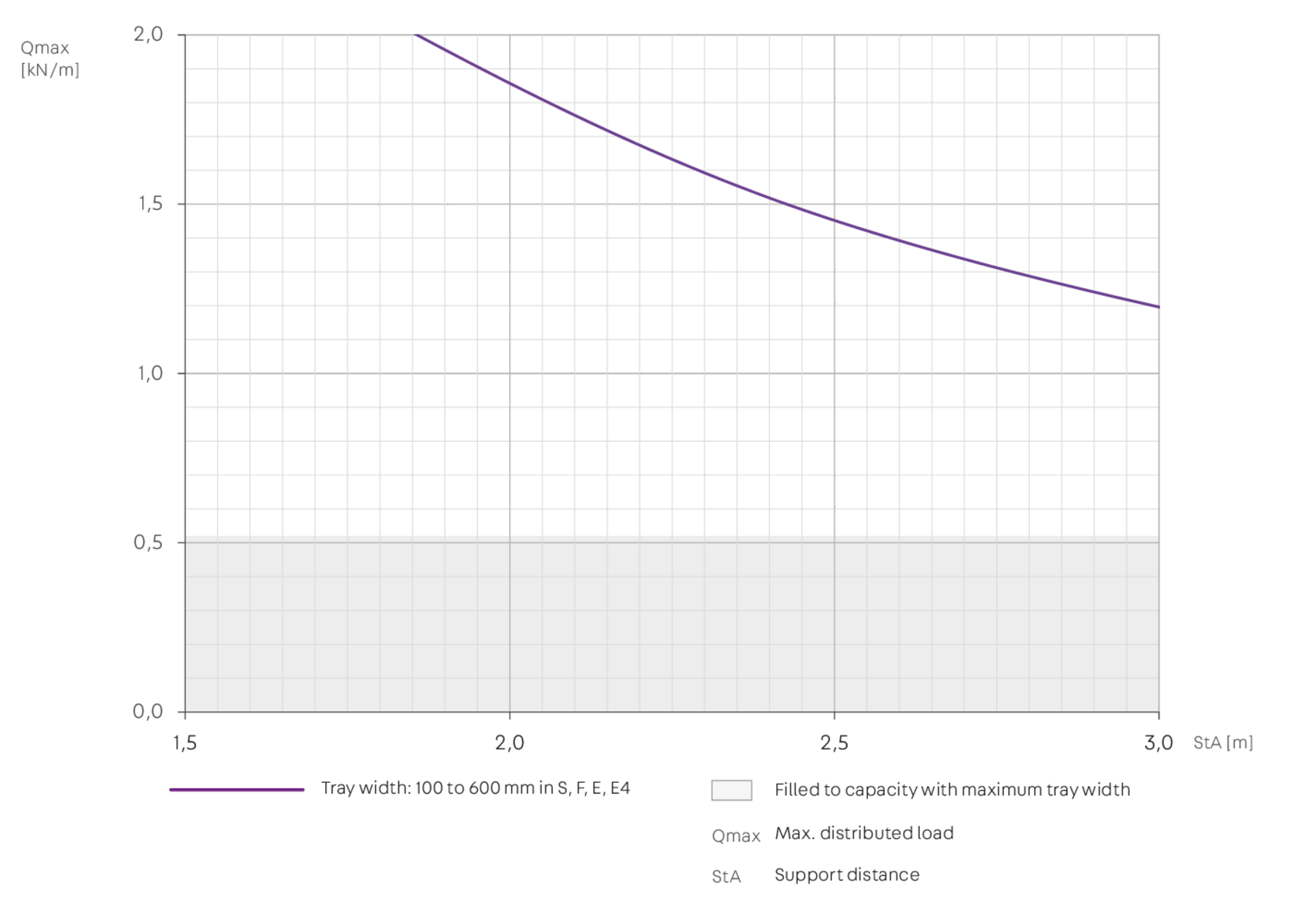

Load diagram

Included accessories
