RG 35

Cable tray, perforated, height = 35 mm

The perforated cable trays RG 35 have sides 35 mm high and are available in widths from 50 to 300 mm. The standard length is 3000 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

No stepping
Get in touchDownload datasheet

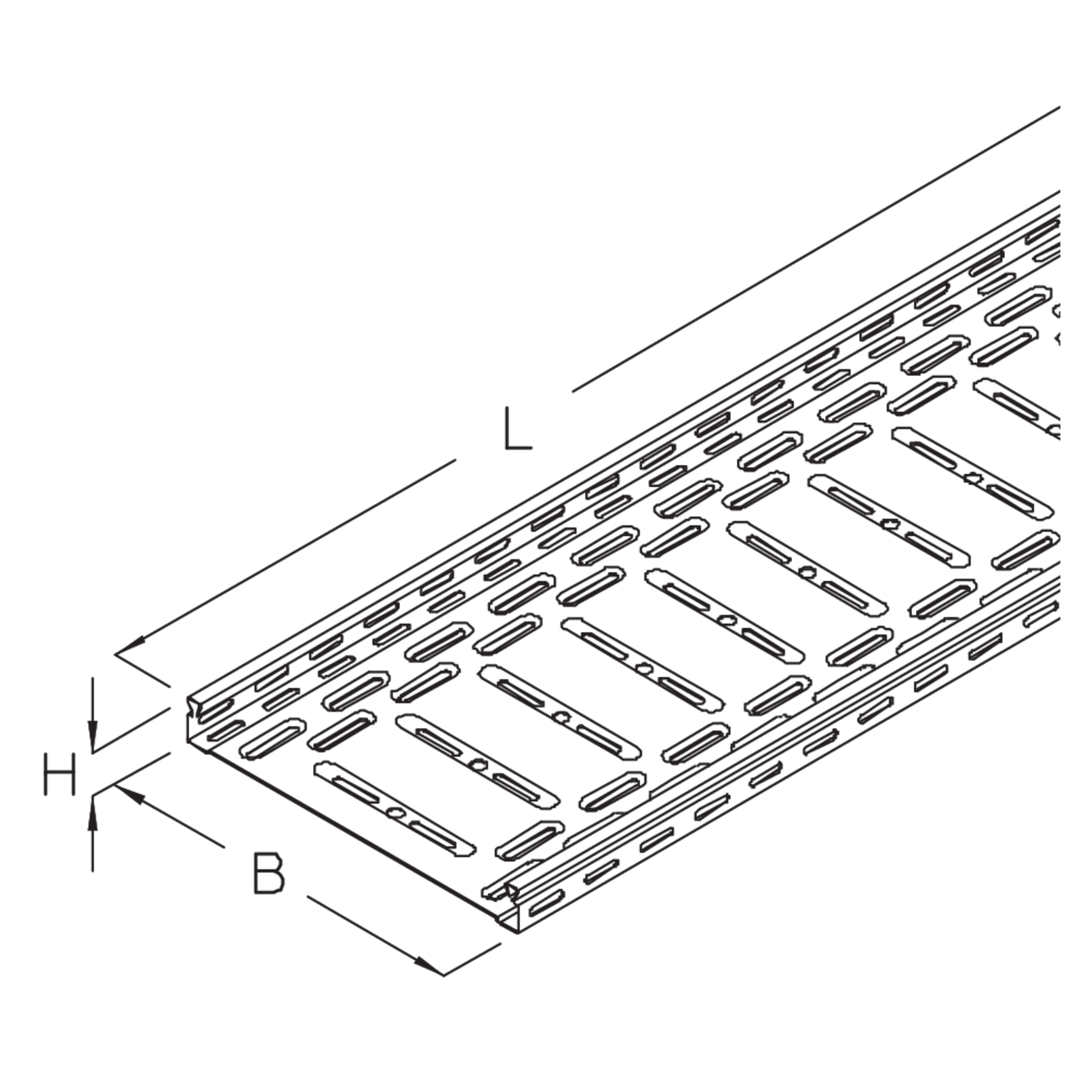

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit

  • RG 35-05S
    Cable tray
    height
    35 mm
    width
    50 mm
    length
    3000 mm
    material thickness
    0.75 mm
    distributed load control cable
    0.02 kN/m
    cross section area
    15 cm2
    Weight per storage unit
    2.620 kg
    More information
  • RG 35-10S
    Cable tray RG 35-10S
    height
    35 mm
    width
    100 mm
    length
    3000 mm
    material thickness
    0.75 mm
    distributed load control cable
    0.05 kN/m
    cross section area
    32 cm2
    Weight per storage unit
    3.500 kg
    More information
  • RG 35-20S
    Cable tray RG 35-20S
    height
    35 mm
    width
    200 mm
    length
    3000 mm
    material thickness
    0.75 mm
    distributed load control cable
    0.1 kN/m
    cross section area
    67 cm2
    Weight per storage unit
    5.200 kg
    More information
  • RG 35-30S
    Cable tray RG 35-30S
    height
    35 mm
    width
    300 mm
    length
    3000 mm
    material thickness
    0.75 mm
    distributed load control cable
    0.15 kN/m
    cross section area
    102 cm2
    Weight per storage unit
    6.000 kg
    More information

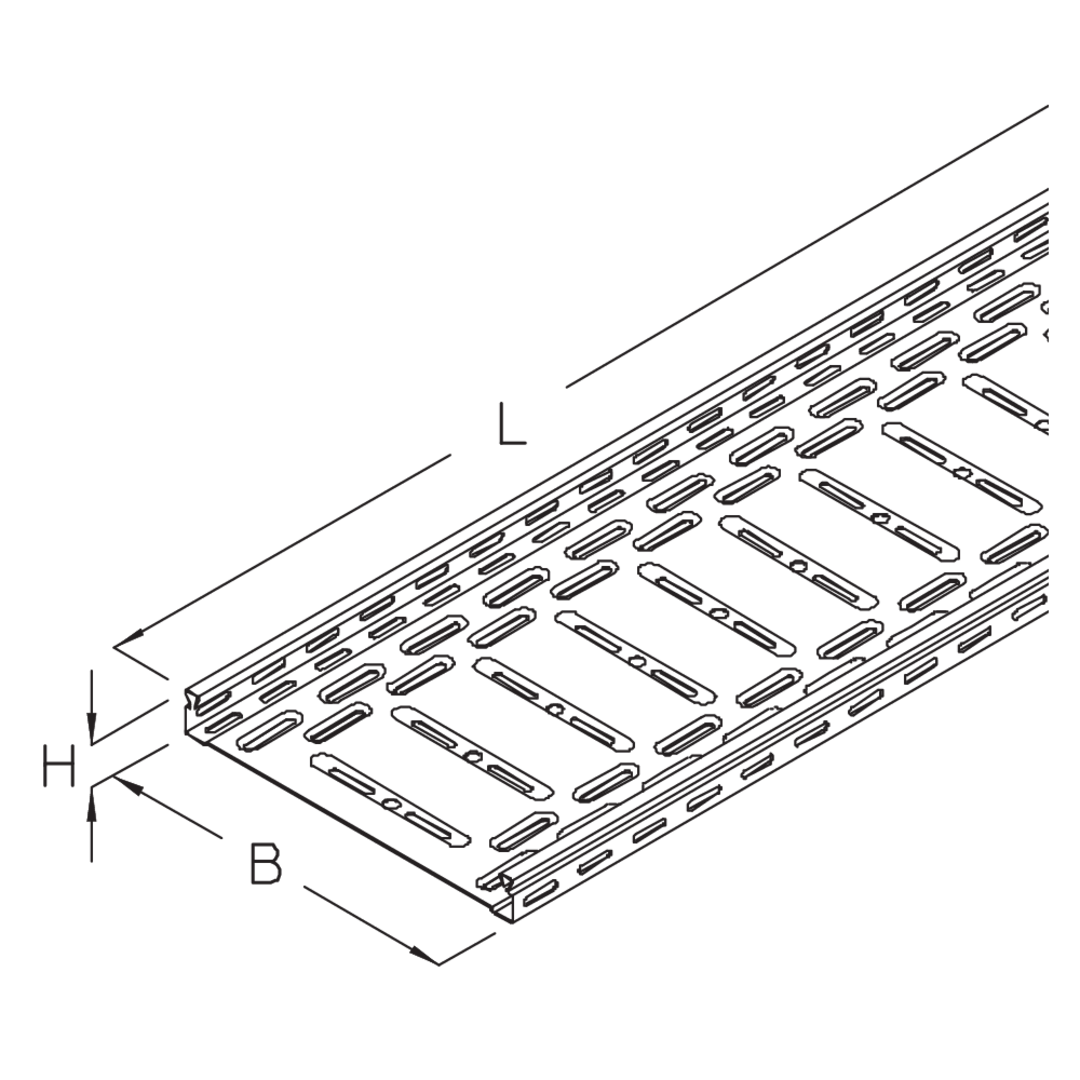

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit

  • RG 35-05F
    Cable tray
    height
    35 mm
    width
    50 mm
    length
    3000 mm
    material thickness
    0.75 mm
    distributed load control cable
    0.02 kN/m
    cross section area
    15 cm2
    Weight per storage unit
    2.937 kg
    More information
  • RG 35-10F
    Cable tray RG 35-10F
    height
    35 mm
    width
    100 mm
    length
    3000 mm
    material thickness
    0.75 mm
    distributed load control cable
    0.05 kN/m
    cross section area
    32 cm2
    Weight per storage unit
    3.820 kg
    More information
  • RG 35-20F
    Cable tray RG 35-20F
    height
    35 mm
    width
    200 mm
    length
    3000 mm
    material thickness
    0.75 mm
    distributed load control cable
    0.1 kN/m
    cross section area
    67 cm2
    Weight per storage unit
    5.600 kg
    More information
  • RG 35-30F
    Cable tray RG 35-30F
    height
    35 mm
    width
    300 mm
    length
    3000 mm
    material thickness
    0.75 mm
    distributed load control cable
    0.15 kN/m
    cross section area
    102 cm2
    Weight per storage unit
    7.600 kg
    More information

Details

  • No stepping
  • Electr. conductivity checked according to DIN EN 61537

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Accessories

Downloads

    Price list 2025 Building extension

    Valid from February 1st, 2025, updated version from 31/03/2025.

    • de

    • en

    Cable trays - Technical information

    Technical Information

    • de

    • en

    Cable support systems - Complete catalogue

    Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.

    • de

    • en

    Cable trays - Assembly instructions

    Assembly Instructions

    • de

    • en

    Cable Tray R 60, RG 60 - Compact overview

    Compact overview of cable trays and accessories: R, RG, RGV, VB, RTR, DB, DKSL, KDU, KHUSS, GBAR, KWF, MA, KWMS, RD, RKAB, RTRV, RBV, RVB, REB

    PDF, 1.12 MB

    • de

    Download

    Electrical conductivity (RG 35/60 and RI 60)

    Certificate, tested according to DIN EN 61537 Pt. 11.1

    • de

    • en

    Safe working load (RG 35)

    Certificate, tested in accordance to DIN EN 61537

    • de

    • en

BIM- und CAD-Data

    BIM for cable trays

    Bim data

    • de

    • en

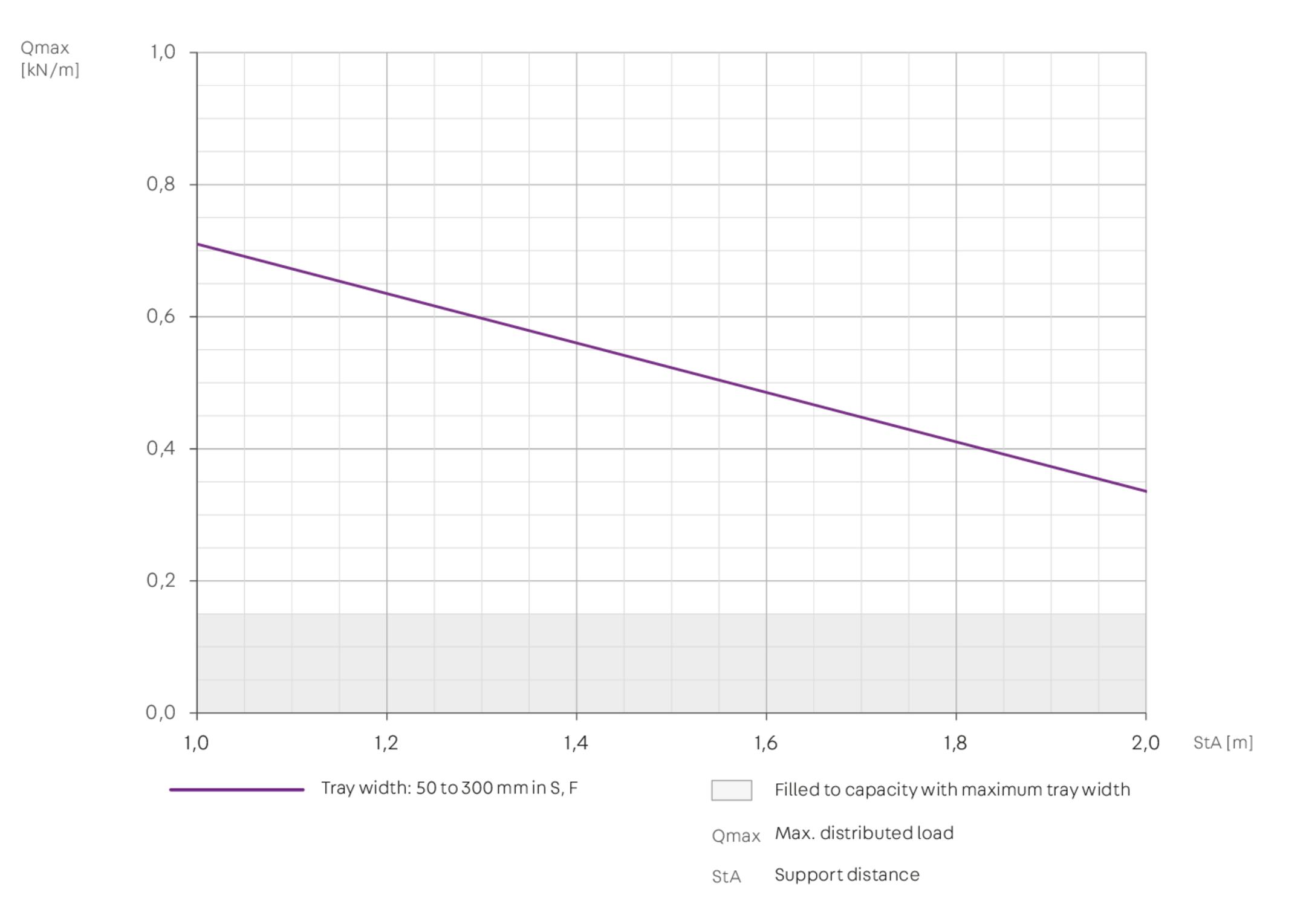

Load diagram
