RR 35

Cable tray reducer, height = 35 mm

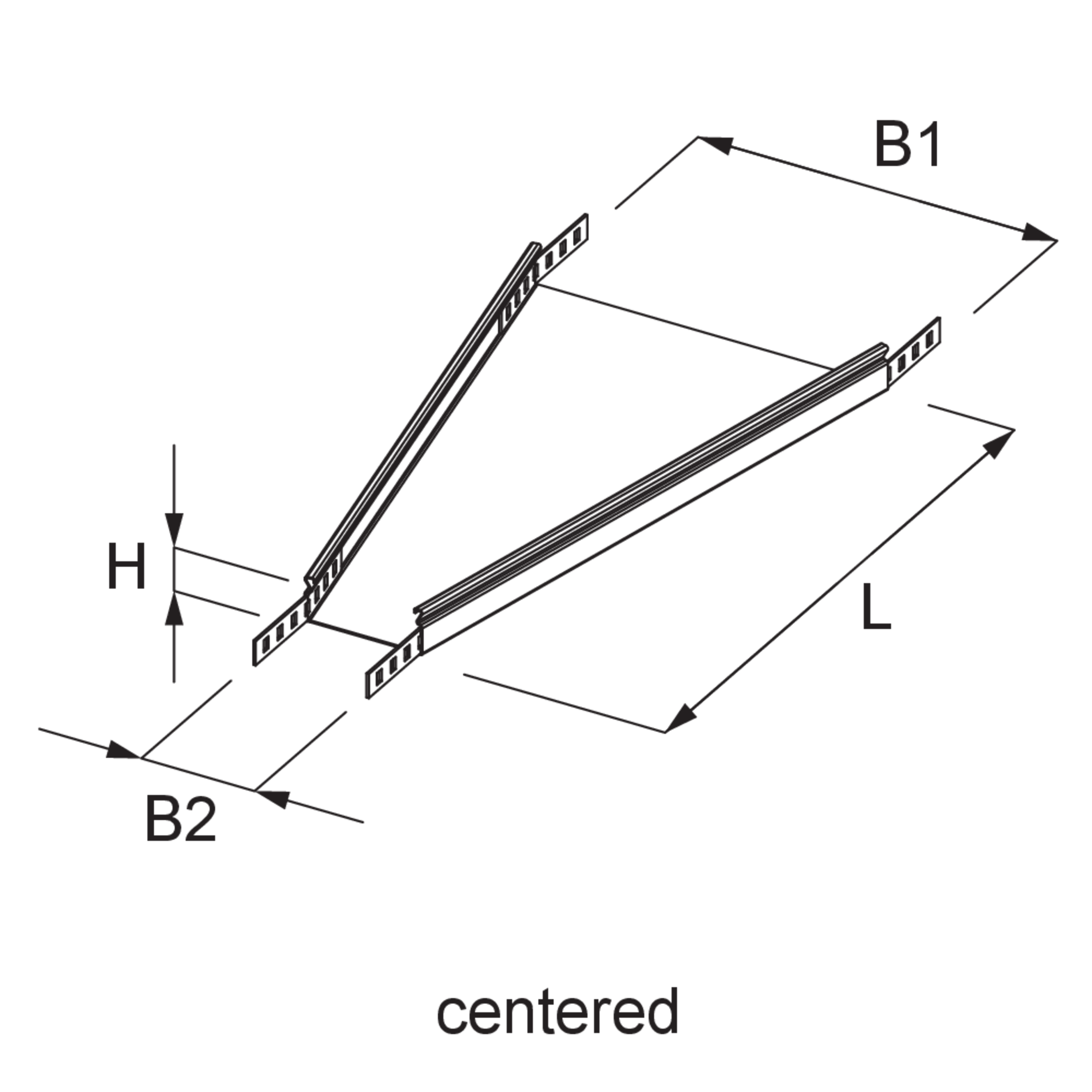

The cable tray reducer RR 35 with integrated side connectors enables the width of the cable tray to be reduced. It is available in three different designs: It can narrow towards the centre or on the left or right side. Specify the desired design (left, centre, right) and width when ordering. The entrance width is always reduced by 100 mm. The cable tray reducer has a standard length of 500 mm and is suitable for cable trays with sides 35 mm high. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Variants

Stahl, band-/sendzimirverzinkt

Article

H

Höhe

B1

Breite 1

B2

Breite 2

L

Länge

G

Gewicht je Lagermengeneinheit

  • RR 35-20S
    Kabelrinnen-Reduzierung
    Höhe
    35 mm
    Breite 1
    200 mm
    Breite 2
    100 mm
    Länge
    500 mm
    Gewicht je Lagermengeneinheit
    1.248 kg
    Included accessories
  • RR 35-30S
    Kabelrinnen-Reduzierung
    Höhe
    35 mm
    Breite 1
    300 mm
    Breite 2
    200 mm
    Länge
    500 mm
    Gewicht je Lagermengeneinheit
    1.638 kg
    Included accessories

Stahl, stück-/tauchfeuerverzinkt

Article

H

Höhe

B1

Breite 1

B2

Breite 2

L

Länge

G

Gewicht je Lagermengeneinheit

  • RR 35-20F
    Kabelrinnen-Reduzierung
    Höhe
    35 mm
    Breite 1
    200 mm
    Breite 2
    100 mm
    Länge
    500 mm
    Gewicht je Lagermengeneinheit
    1.372 kg
    Included accessories
  • RR 35-30F
    Kabelrinnen-Reduzierung
    Höhe
    35 mm
    Breite 1
    300 mm
    Breite 2
    200 mm
    Länge
    500 mm
    Gewicht je Lagermengeneinheit
    1.802 kg
    Included accessories

Details

  • Reduces the width of the cable tray
