AC-HW

Cable clamp for fastening to C profile rails

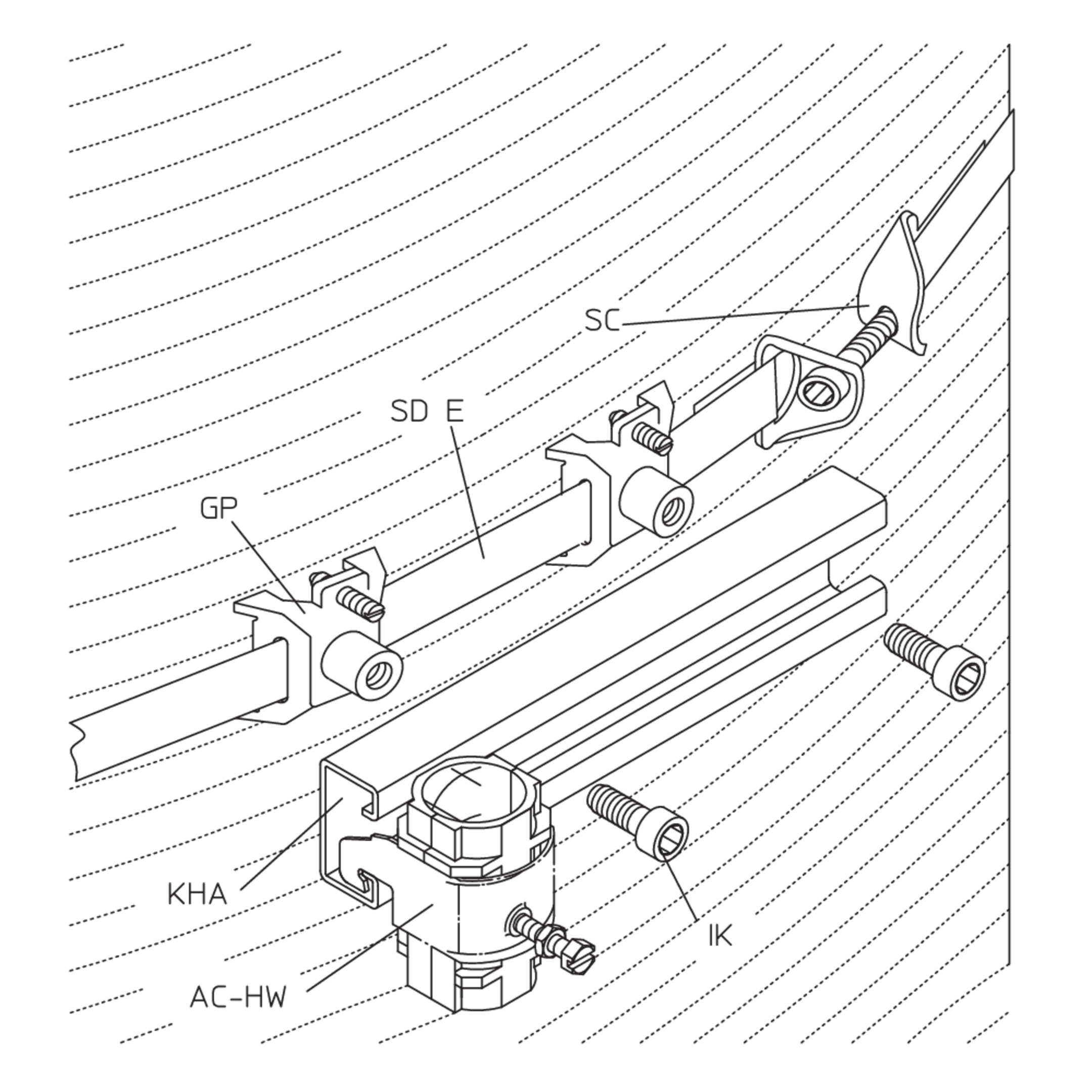

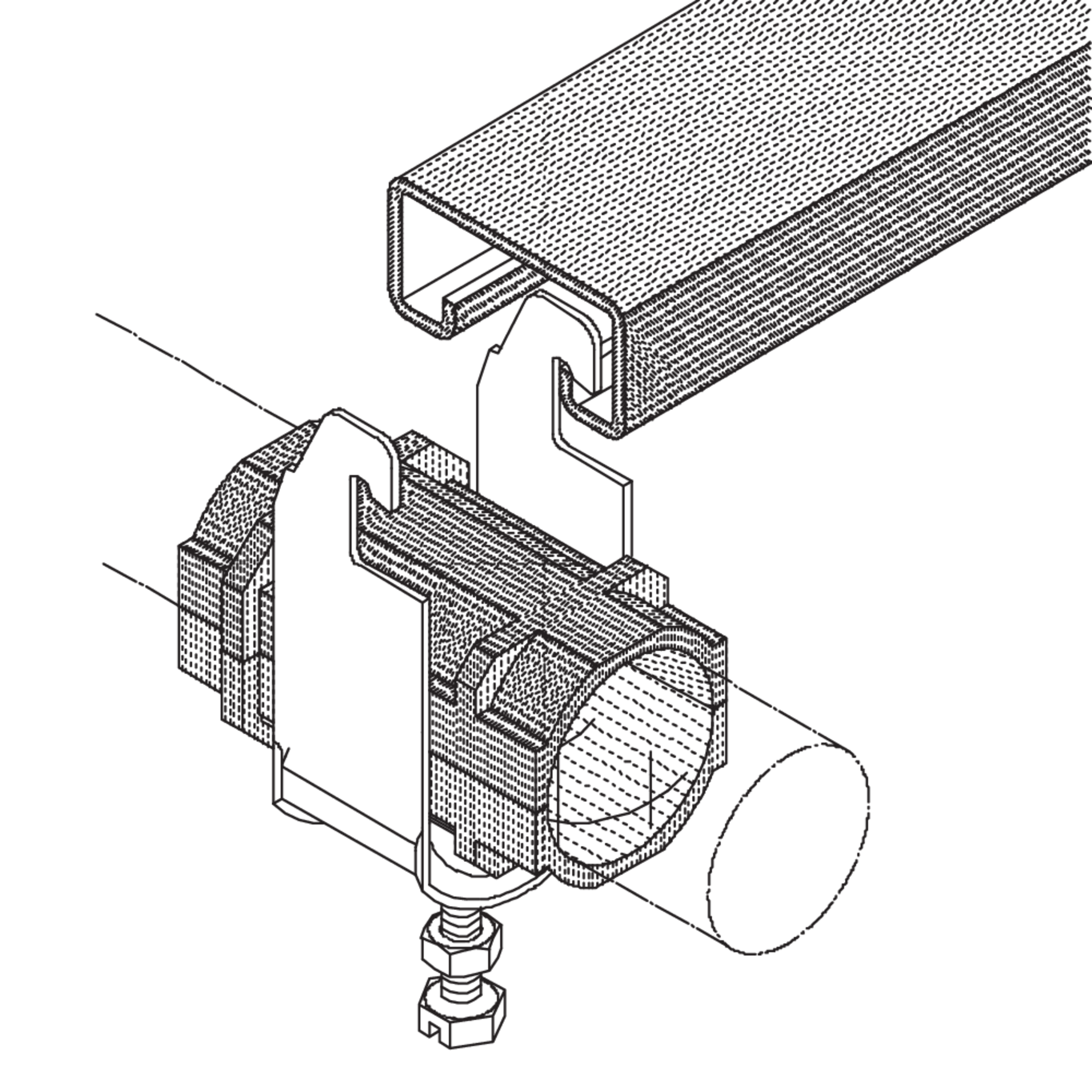

The HF cable clamp AC-HW with full-surface pressure trough made of galvanised steel and plastic half troughs made of polystyrene can route fibre-optic/high-frequency cables with a maximum diameter of 1 5/8 inches. It is suitable for attachment to profile rails C+ and C60° with a slot width of 18/22 mm. We provide components in various materials and surface finishes to ensure that various requirements for different areas of application are met.

Get in touch Download datasheet

Variants

steel, zinc plated

Article

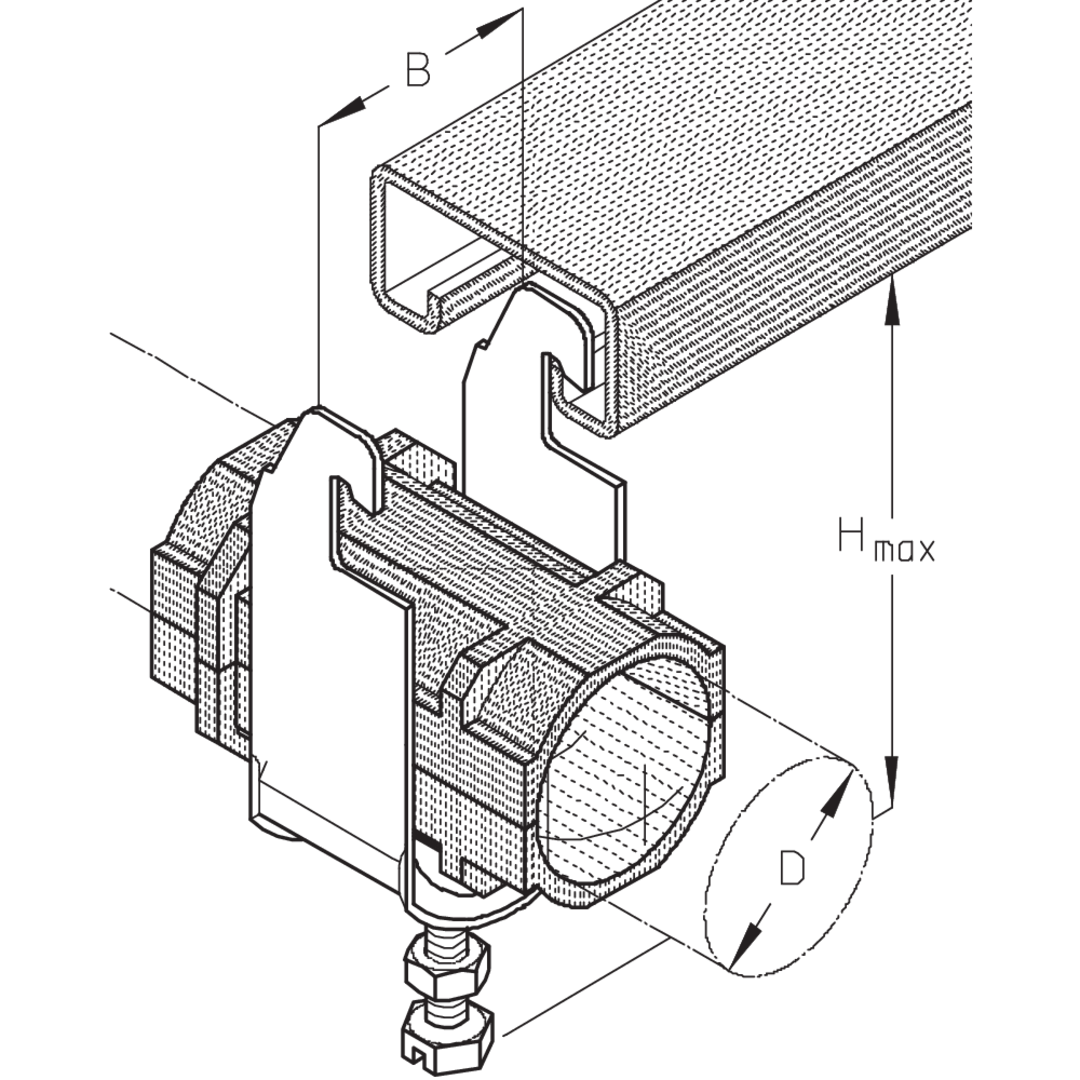

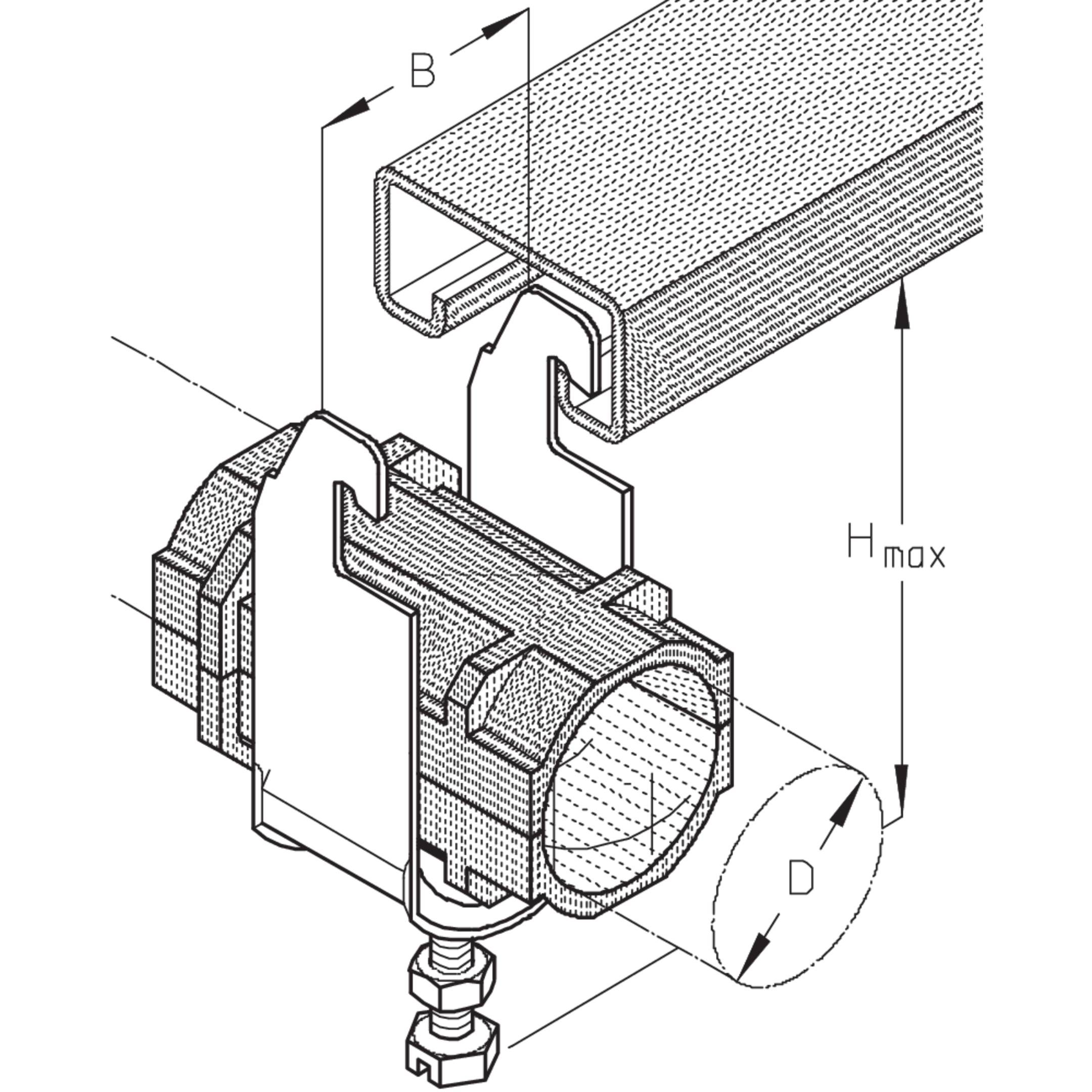

Hmax

maximum height

B

width

D

clamping range

D

diameter

cables

max. number of cables

G

Weight per storage unit
  • 20 AC-HW
    HF cable clamp 20 AC-HW
    maximum height
    53 mm
    width
    20 mm
    clamping range
    17 mm
    diameter
    1/2 inch
    max. number of cables
    1
    Weight per storage unit
    0.039 kg
    More information
  • 32 AC-HW
    HF cable clamp 32 AC-HW
    maximum height
    68 mm
    width
    32 mm
    clamping range
    29 mm
    diameter
    7/8 inch
    max. number of cables
    1
    Weight per storage unit
    0.062 kg
    More information
  • 44 AC-HW
    HF cable clamp 44 AC-HW
    maximum height
    83 mm
    width
    44 mm
    clamping range
    39 mm
    diameter
    1 1/4 inch
    max. number of cables
    1
    Weight per storage unit
    0.126 kg
    More information
  • 56 AC-HW
    HF cable clamp 56 AC-HW
    maximum height
    106 mm
    width
    56 mm
    clamping range
    51 mm
    diameter
    1 5/8 inch
    max. number of cables
    1
    Weight per storage unit
    0.159 kg
    More information
  • 20/2 AC-HW
    HF cable clamp 20/2 AC-HW
    maximum height
    73 mm
    width
    20 mm
    clamping range
    17 mm
    diameter
    1/2 inch
    max. number of cables
    2
    Weight per storage unit
    0.050 kg
    More information
  • 32/2 AC-HW
    HF cable clamp 32/2 AC-HW
    maximum height
    102 mm
    width
    32 mm
    clamping range
    29 mm
    diameter
    7/8 inch
    max. number of cables
    2
    Weight per storage unit
    0.079 kg
    More information
  • 44/2 AC-HW
    HF cable clamp 44/2 AC-HW
    maximum height
    129 mm
    width
    44 mm
    clamping range
    39 mm
    diameter
    1 1/4 inch
    max. number of cables
    2
    Weight per storage unit
    0.201 kg
    More information
  • 56/2 AC-HW
    HF cable clamp 56/2 AC-HW
    maximum height
    164 mm
    width
    56 mm
    clamping range
    51 mm
    diameter
    1 5/8 inch
    max. number of cables
    2
    Weight per storage unit
    0.252 kg
    More information
  • 20/3 AC-HW
    HF cable clamp 20/3 AC-HW
    maximum height
    93 mm
    width
    20 mm
    clamping range
    17 mm
    diameter
    1/2 inch
    max. number of cables
    3
    Weight per storage unit
    0.061 kg
    More information
  • 32/3 AC-HW
    HF cable clamp 32/3 AC-HW
    maximum height
    136 mm
    width
    32 mm
    clamping range
    29 mm
    diameter
    7/8 inch
    max. number of cables
    3
    Weight per storage unit
    0.096 kg
    More information
  • 44/3 AC-HW
    HF cable clamp 44/3 AC-HW
    maximum height
    176 mm
    width
    44 mm
    clamping range
    39 mm
    diameter
    1 1/4 inch
    max. number of cables
    3
    Weight per storage unit
    0.198 kg
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

Hmax

maximum height

B

width

D

clamping range

D

diameter

cables

max. number of cables

G

Weight per storage unit
  • 20 AC-HW-E
    HF cable clamp 20 AC-HW-VA
    maximum height
    53 mm
    width
    20 mm
    clamping range
    17 mm
    diameter
    1/2 inch
    max. number of cables
    1
    Weight per storage unit
    0.038 kg
    More information
  • 32 AC-HW-E
    HF cable clamp 32 AC-HW-VA
    maximum height
    68 mm
    width
    32 mm
    clamping range
    29 mm
    diameter
    7/8 inch
    max. number of cables
    1
    Weight per storage unit
    0.059 kg
    More information
  • 44 AC-HW-E
    HF cable clamp 44 AC-HW-VA
    maximum height
    83 mm
    width
    44 mm
    clamping range
    39 mm
    diameter
    1 1/4 inch
    max. number of cables
    1
    Weight per storage unit
    0.120 kg
    More information
  • 56 AC-HW-E
    HF cable clamp 56 AC-HW-VA
    maximum height
    106 mm
    width
    56 mm
    clamping range
    51 mm
    diameter
    1 5/8 inch
    max. number of cables
    1
    Weight per storage unit
    0.150 kg
    More information
  • 20/2 AC-HW-E
    HF cable clamp 20/2 AC-HW-VA
    maximum height
    73 mm
    width
    20 mm
    clamping range
    17 mm
    diameter
    1/2 inch
    max. number of cables
    2
    Weight per storage unit
    0.048 kg
    More information
  • 32/2 AC-HW-E
    HF cable clamp 32/2 AC-HW-VA
    maximum height
    102 mm
    width
    32 mm
    clamping range
    29 mm
    diameter
    7/8 inch
    max. number of cables
    2
    Weight per storage unit
    0.075 kg
    More information
  • 44/2 AC-HW-E
    HF cable clamp 44/2 AC-HW-VA
    maximum height
    129 mm
    width
    44 mm
    clamping range
    39 mm
    diameter
    1 1/4 inch
    max. number of cables
    2
    Weight per storage unit
    0.191 kg
    More information
  • 32/3 AC-HW-E
    HF cable clamp 32/3 AC-HW-VA
    maximum height
    136 mm
    width
    32 mm
    clamping range
    29 mm
    diameter
    7/8 inch
    max. number of cables
    3
    Weight per storage unit
    0.092 kg
    More information
  • 44/3 AC-HW-E
    HF cable clamp 44/3 AC-HW-VA
    maximum height
    176 mm
    width
    44 mm
    clamping range
    39 mm
    diameter
    1 1/4 inch
    max. number of cables
    3
    Weight per storage unit
    0.260 kg
    More information
