A 7

39.5x22 mm profile rail, unperforated

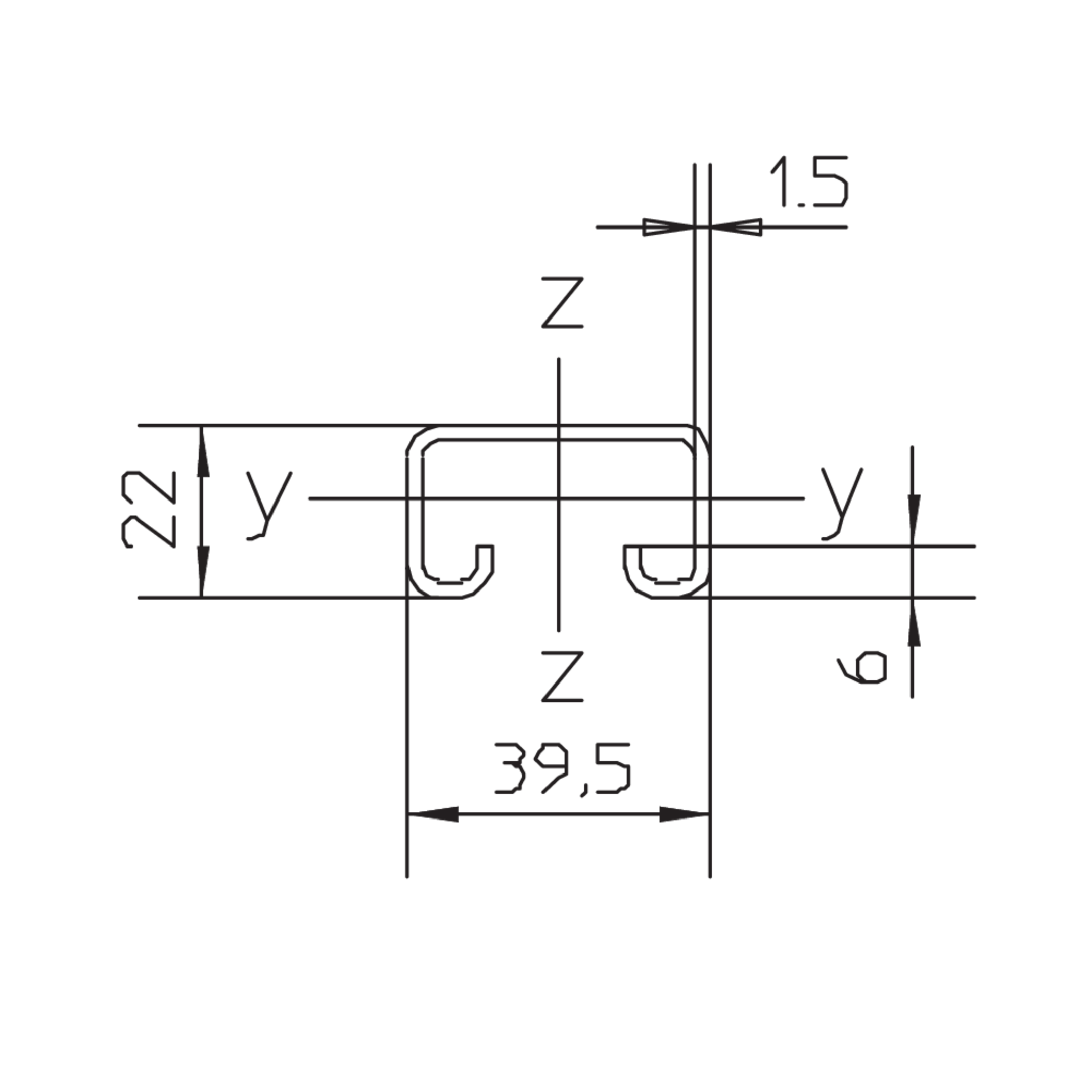

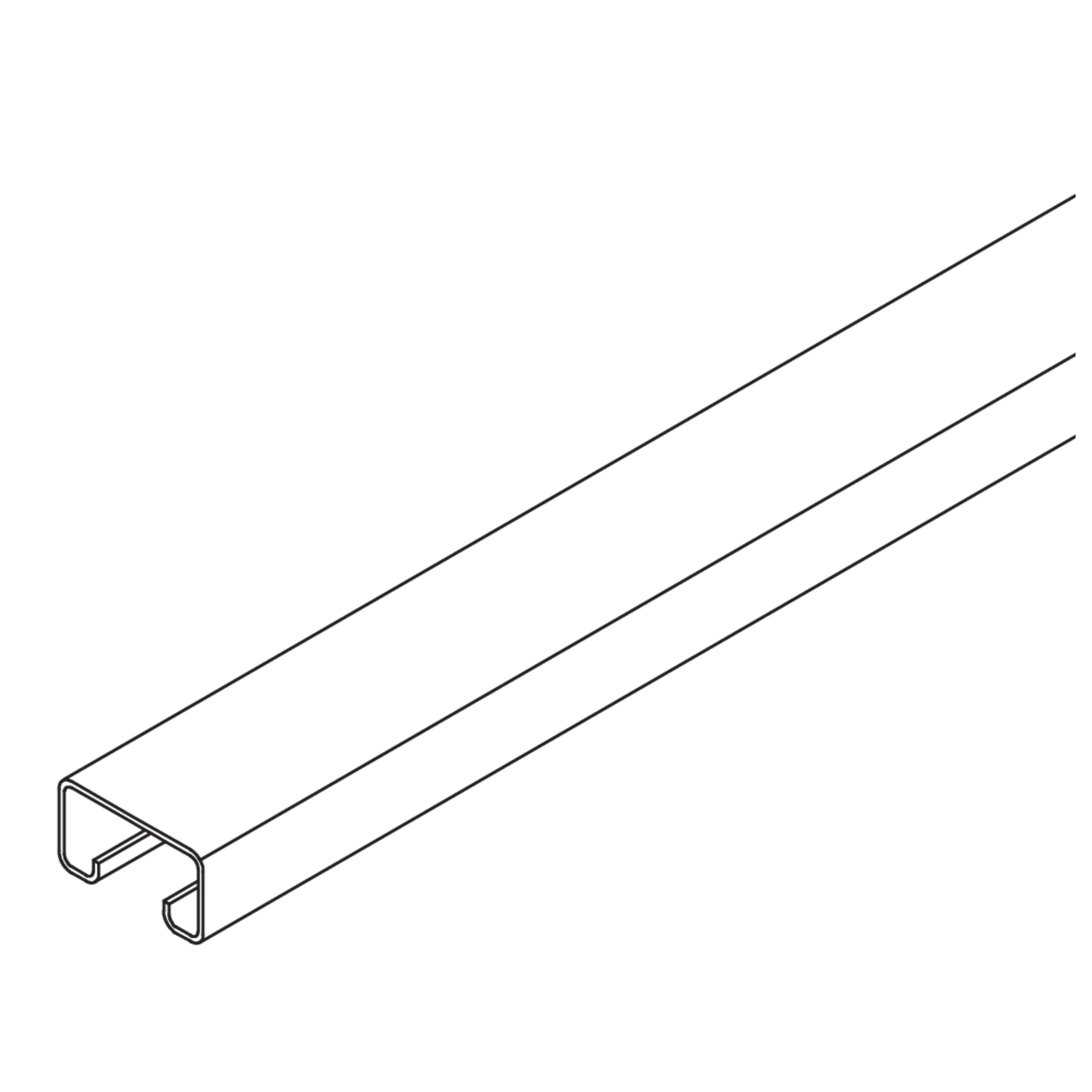

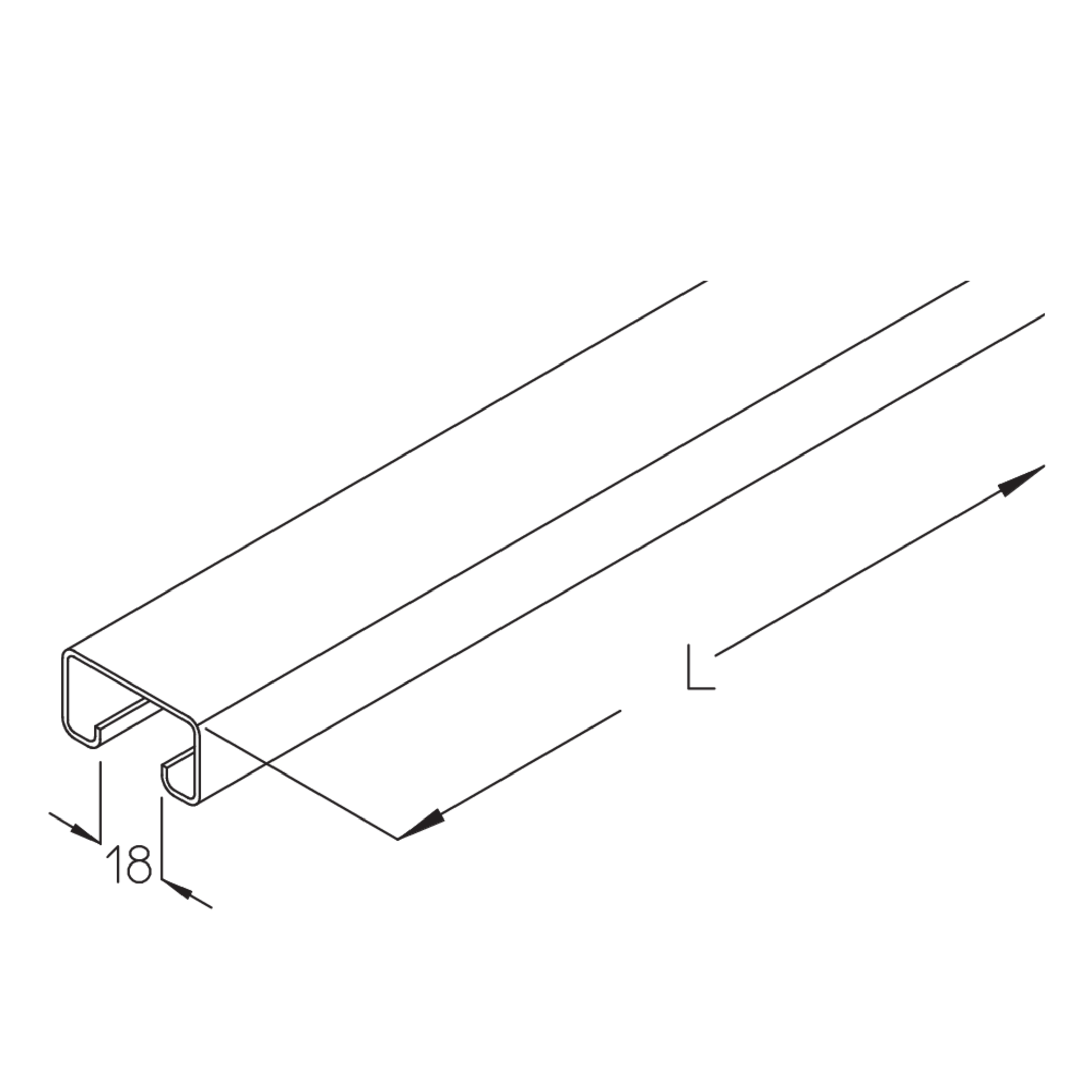

The profile rail A 7 is unperforated and consists of a C+ profile 39.5 x 22 mm with a slot width of 18 mm (material thickness = 1.5 mm). We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications. It is available in lengths of 3000 or 6000 mm.

Get in touch Download datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

HP

profile height

BP

profile width

L

length

t

material thickness

G

Weight per storage unit
  • A 7-30S
    Channel A 7-30S
    profile height
    22 mm
    profile width
    39.5 mm
    length
    3000 mm
    material thickness
    1.50 mm
    Weight per storage unit
    3.498 kg
    More information
  • A 7-60S
    Channel A 7-60S
    profile height
    22 mm
    profile width
    39.5 mm
    length
    6000 mm
    material thickness
    1.50 mm
    Weight per storage unit
    6.996 kg
    More information

Stainless steel, according to ASTM 304 / BS 304 S 3

Article

HP

profile height

BP

profile width

L

length

t

material thickness

G

Weight per storage unit
  • A 7-30E
    Channel A 7-30E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    3000 mm
    material thickness
    1.50 mm
    Weight per storage unit
    3.519 kg
    More information
  • A 7-60E
    Channel A 7-60E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    6000 mm
    material thickness
    1.50 mm
    Weight per storage unit
    7.038 kg
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Support systems Assembling instruction

    Montageanleitung

    PDF, 2 MB

    de en

  • Support systems - Technical information

    Technical information

    PDF, 19 MB

    de en
