A 41

41x41 mm profile rail, unperforated

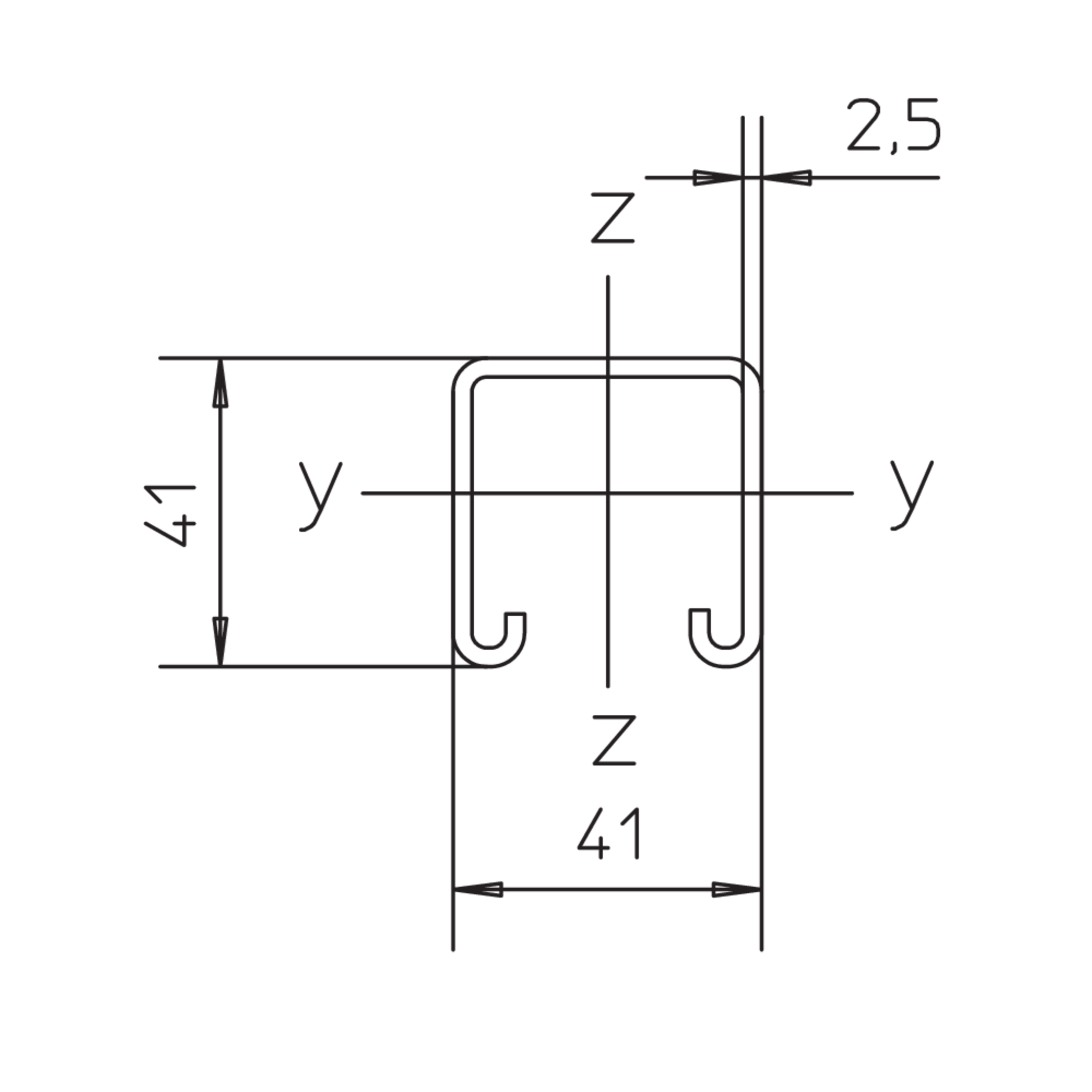

The profile rail A 41 is unperforated and consists of a C+ profile 41 x 41 mm with a slot width of 22 mm (material thickness = 2.5 mm). We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications. It is available in lengths of 3000 or 6000 mm.

Get in touch Download datasheet

Variants

Stahl, stück-/tauchfeuerverzinkt

Article

HP

Profilhöhe

BP

Profilbreite

L

Länge

t

Materialstärke

G

Gewicht je Lagermengeneinheit
  • A 41-30F
    Profilschiene ungelocht 41/41X2,5
    41 mm
    41 mm
    3000 mm
    2.50 mm
    8.300 kg
    More information
  • A 41-60F
    Profilschiene ungelocht 41/41X2,5
    41 mm
    41 mm
    6000 mm
    2.50 mm
    16.630 kg
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Support systems Assembling instruction

    Montageanleitung

    PDF, 2 MB

    de en

  • Support systems - Technical information

    Technical information

    PDF, 19 MB

    de en

Included accessories
