WPL 150

Wide-span cable ladder, height = 150 mm

The wide-span cable ladders WPL 150 have rails 150 mm high and are available in widths of 200 to 600 mm. The standard length is 6000 mm. The rungs consist of perforated profile rails. The wide-span spar supports are to be used for fastening to the substructure. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

The magnetic shielding attenuation is 15 dB without the cover and 21 dB with the cover.

No stepping
Get in touch Download datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

B

width

L

length

t

material thickness

QLK

Line load power cable

A

cross section area

G

Weight per storage unit
  • WPL 150-20S
    Wide-span cable ladder WPL 150-20S
    height
    150 mm
    width
    200 mm
    length
    6000 mm
    material thickness
    1.75 mm
    Line load power cable
    0.72 kN/m
    cross section area
    256 cm2
    Weight per storage unit
    35.840 kg
    More information
  • WPL 150-30S
    Wide-span cable ladder WPL 150-30S
    height
    150 mm
    width
    300 mm
    length
    6000 mm
    material thickness
    1.75 mm
    Line load power cable
    1.08 kN/m
    cross section area
    384 cm2
    Weight per storage unit
    37.100 kg
    More information
  • WPL 150-40S
    Wide-span cable ladder WPL 150-40S
    height
    150 mm
    width
    400 mm
    length
    6000 mm
    material thickness
    1.75 mm
    Line load power cable
    1.43 kN/m
    cross section area
    512 cm2
    Weight per storage unit
    38.370 kg
    More information
  • WPL 150-50S
    Wide-span cable ladder WPL 150-50S
    height
    150 mm
    width
    500 mm
    length
    6000 mm
    material thickness
    1.75 mm
    Line load power cable
    1.79 kN/m
    cross section area
    640 cm2
    Weight per storage unit
    39.630 kg
    More information
  • WPL 150-60S
    Wide-span cable ladder WPL 150-60S
    height
    150 mm
    width
    600 mm
    length
    6000 mm
    material thickness
    1.75 mm
    Line load power cable
    2.15 kN/m
    cross section area
    768 cm2
    Weight per storage unit
    40.890 kg
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

QLK

Line load power cable

A

cross section area

G

Weight per storage unit
  • WPL 150-20F
    Wide-span cable ladder WPL 150-20F
    height
    150 mm
    width
    200 mm
    length
    6000 mm
    material thickness
    1.75 mm
    Line load power cable
    0.72 kN/m
    cross section area
    256 cm2
    Weight per storage unit
    38.350 kg
    More information
  • WPL 150-30F
    Wide-span cable ladder WPL 150-30F
    height
    150 mm
    width
    300 mm
    length
    6000 mm
    material thickness
    1.75 mm
    Line load power cable
    1.08 kN/m
    cross section area
    384 cm2
    Weight per storage unit
    39.700 kg
    More information
  • WPL 150-40F
    Wide-span cable ladder WPL 150-40F
    height
    150 mm
    width
    400 mm
    length
    6000 mm
    material thickness
    1.75 mm
    Line load power cable
    1.43 kN/m
    cross section area
    512 cm2
    Weight per storage unit
    41.050 kg
    More information
  • WPL 150-50F
    Wide-span cable ladder WPL 150-50F
    height
    150 mm
    width
    500 mm
    length
    6000 mm
    material thickness
    1.75 mm
    Line load power cable
    1.79 kN/m
    cross section area
    640 cm2
    Weight per storage unit
    42.400 kg
    More information
  • WPL 150-60F
    Wide-span cable ladder WPL 150-60F
    height
    150 mm
    width
    600 mm
    length
    6000 mm
    material thickness
    1.75 mm
    Line load power cable
    2.15 kN/m
    cross section area
    768 cm2
    Weight per storage unit
    43.760 kg
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

L

length

t

material thickness

QLK

Line load power cable

A

cross section area

G

Weight per storage unit
  • WPL 150-20E
    Wide-span cable ladder WPL 150-20E
    height
    150 mm
    width
    200 mm
    length
    6000 mm
    material thickness
    1.8 mm
    Line load power cable
    0.72 kN/m
    cross section area
    256 cm2
    Weight per storage unit
    38.050 kg
    More information
  • WPL 150-30E
    Wide-span cable ladder WPL 150-30E
    height
    150 mm
    width
    300 mm
    length
    6000 mm
    material thickness
    1.8 mm
    Line load power cable
    1.08 kN/m
    cross section area
    384 cm2
    Weight per storage unit
    39.820 kg
    More information
  • WPL 150-40E
    Wide-span cable ladder WPL 150-40E
    height
    150 mm
    width
    400 mm
    length
    6000 mm
    material thickness
    1.8 mm
    Line load power cable
    1.43 kN/m
    cross section area
    512 cm2
    Weight per storage unit
    41.600 kg
    More information
  • WPL 150-50E
    Wide-span cable ladder WPL 150-50E
    height
    150 mm
    width
    500 mm
    length
    6000 mm
    material thickness
    1.8 mm
    Line load power cable
    1.79 kN/m
    cross section area
    640 cm2
    Weight per storage unit
    43.380 kg
    More information
  • WPL 150-60E
    Wide-span cable ladder WPL 150-60E
    height
    150 mm
    width
    600 mm
    length
    6000 mm
    material thickness
    1.8 mm
    Line load power cable
    2.15 kN/m
    cross section area
    768 cm2
    Weight per storage unit
    45.160 kg
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

H

height

B

width

L

length

t

material thickness

QLK

Line load power cable

A

cross section area

G

Weight per storage unit
  • WPL 150-20E4
    Wide-span cable ladder WPL 150-20E4
    height
    150 mm
    width
    200 mm
    length
    6000 mm
    material thickness
    1.8 mm
    Line load power cable
    0.72 kN/m
    cross section area
    256 cm2
    Weight per storage unit
    38.530 kg
    More information
  • WPL 150-30E4
    Wide-span cable ladder WPL 150-30E4
    height
    150 mm
    width
    300 mm
    length
    6000 mm
    material thickness
    1.8 mm
    Line load power cable
    1.08 kN/m
    cross section area
    384 cm2
    Weight per storage unit
    40.330 kg
    More information
  • WPL 150-40E4
    Wide-span cable ladder WPL 150-40E4
    height
    150 mm
    width
    400 mm
    length
    6000 mm
    material thickness
    1.8 mm
    Line load power cable
    1.43 kN/m
    cross section area
    512 cm2
    Weight per storage unit
    42.130 kg
    More information
  • WPL 150-50E4
    Wide-span cable ladder WPL 150-50E4
    height
    150 mm
    width
    500 mm
    length
    6000 mm
    material thickness
    1.8 mm
    Line load power cable
    1.79 kN/m
    cross section area
    640 cm2
    Weight per storage unit
    43.930 kg
    More information
  • WPL 150-60E4
    Wide-span cable ladder WPL 150-60E4
    height
    150 mm
    width
    600 mm
    length
    6000 mm
    material thickness
    1.8 mm
    Line load power cable
    2.15 kN/m
    cross section area
    768 cm2
    Weight per storage unit
    45.730 kg
    More information

Details

  • No stepping

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Accessories

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Cable trays - Complete catalogue

    Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders and more.

    PDF, 29 MB

    de
    Download

  • Wide-Span Cable Ladder WPL, Installation Guide

    Montageanleitung

    PDF, 2 MB

    de
    Download

  • Wide-Span Systems, Technical Information

    Technische Information

    PDF, 4 MB

    de en

  • Wide-Span Cable Ladder WPL 100, 120, 150

    Kompaktübersicht

    PDF, 1 MB

    de
    Download

  • Electrical conductivity (WP/WPL 100)

    Certificate, tested according to DIN EN 61537 Pt. 11.1

    PDF, 263 KB

    de en

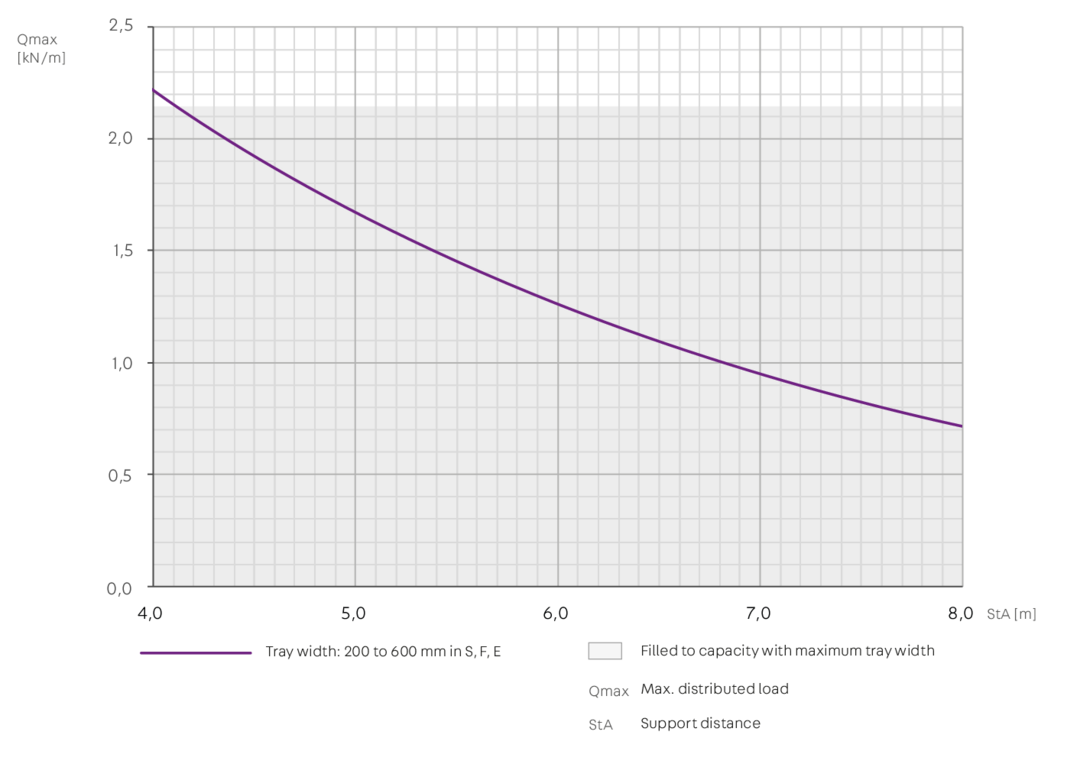

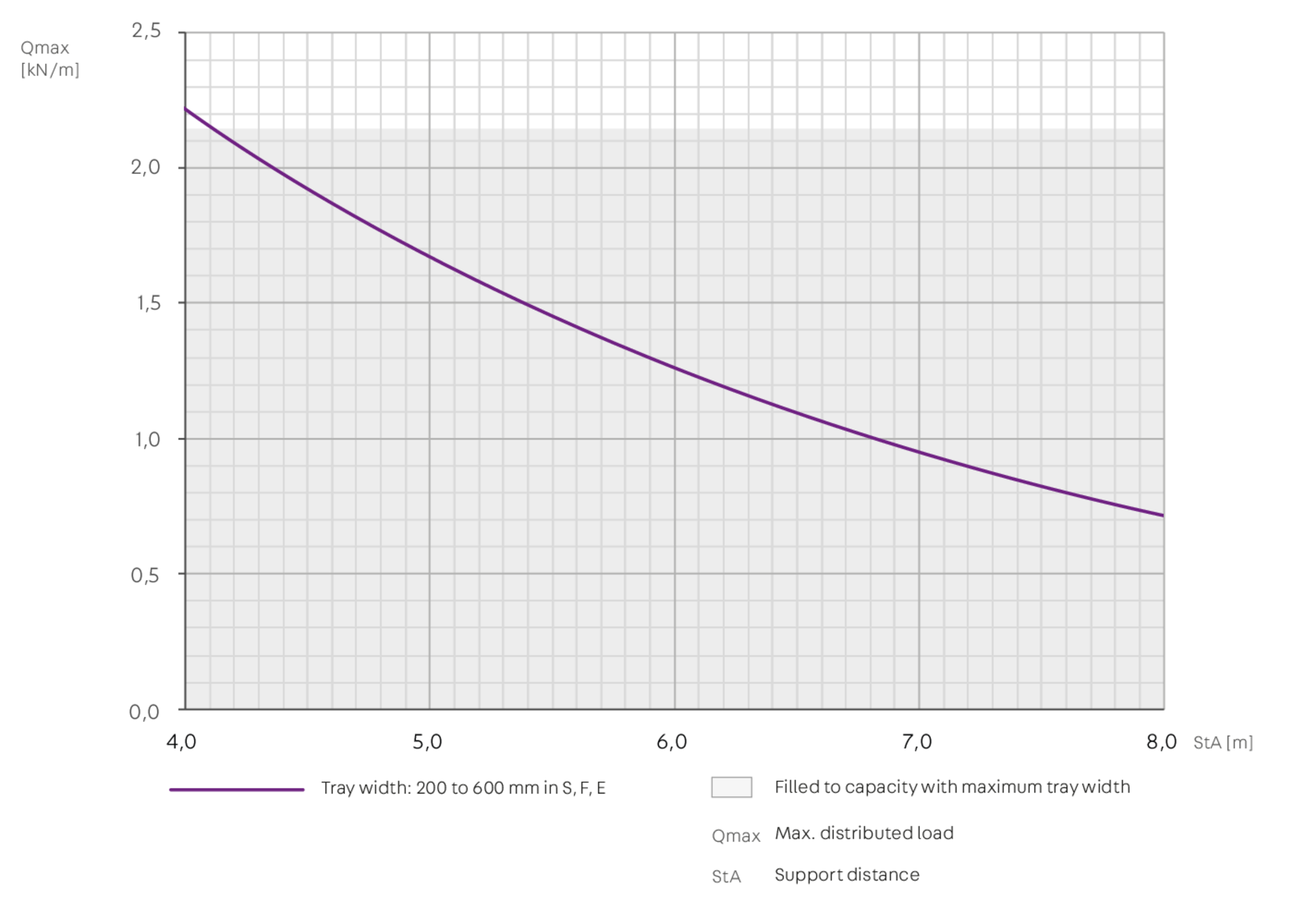

Load diagram
