UV

Distributor box, WAGO

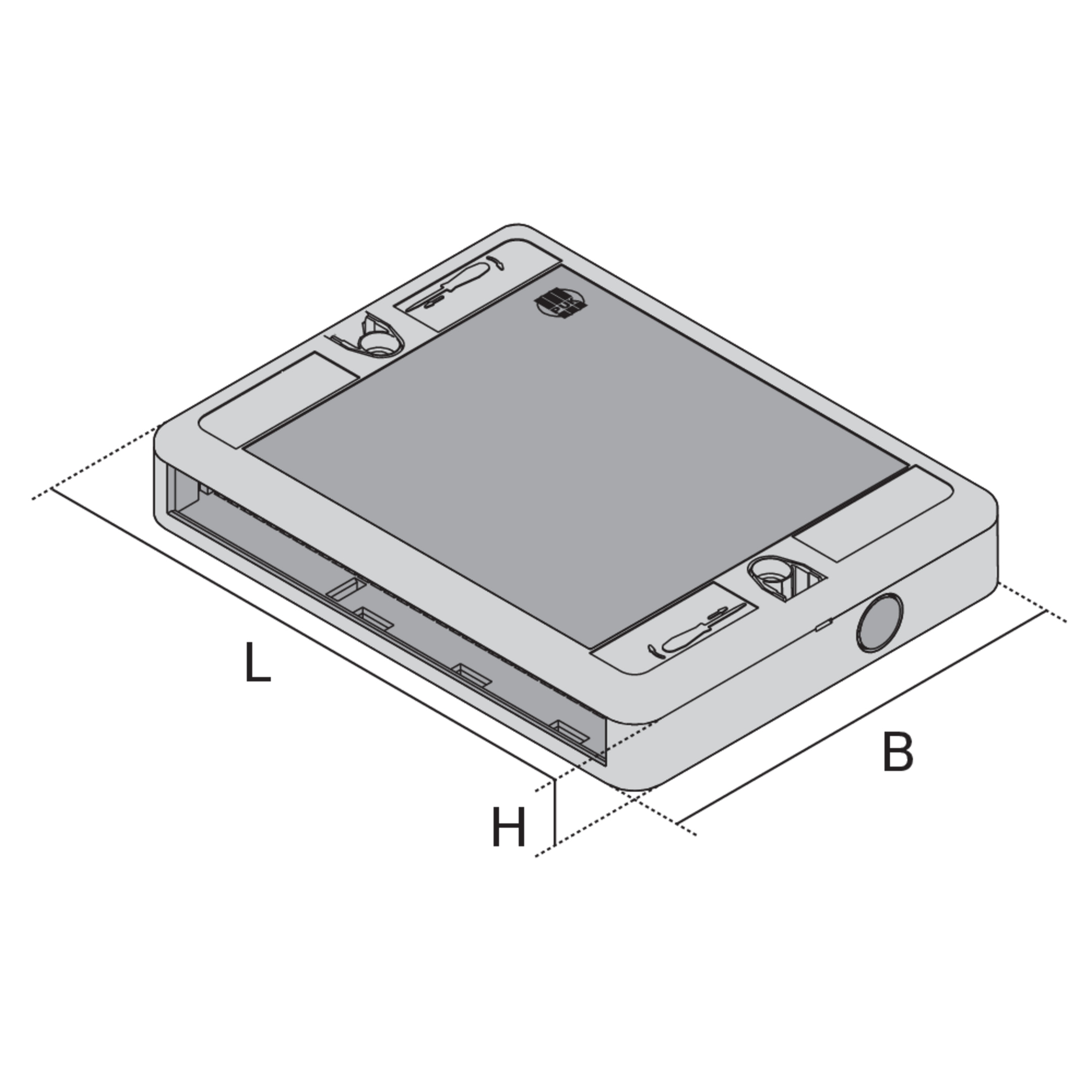

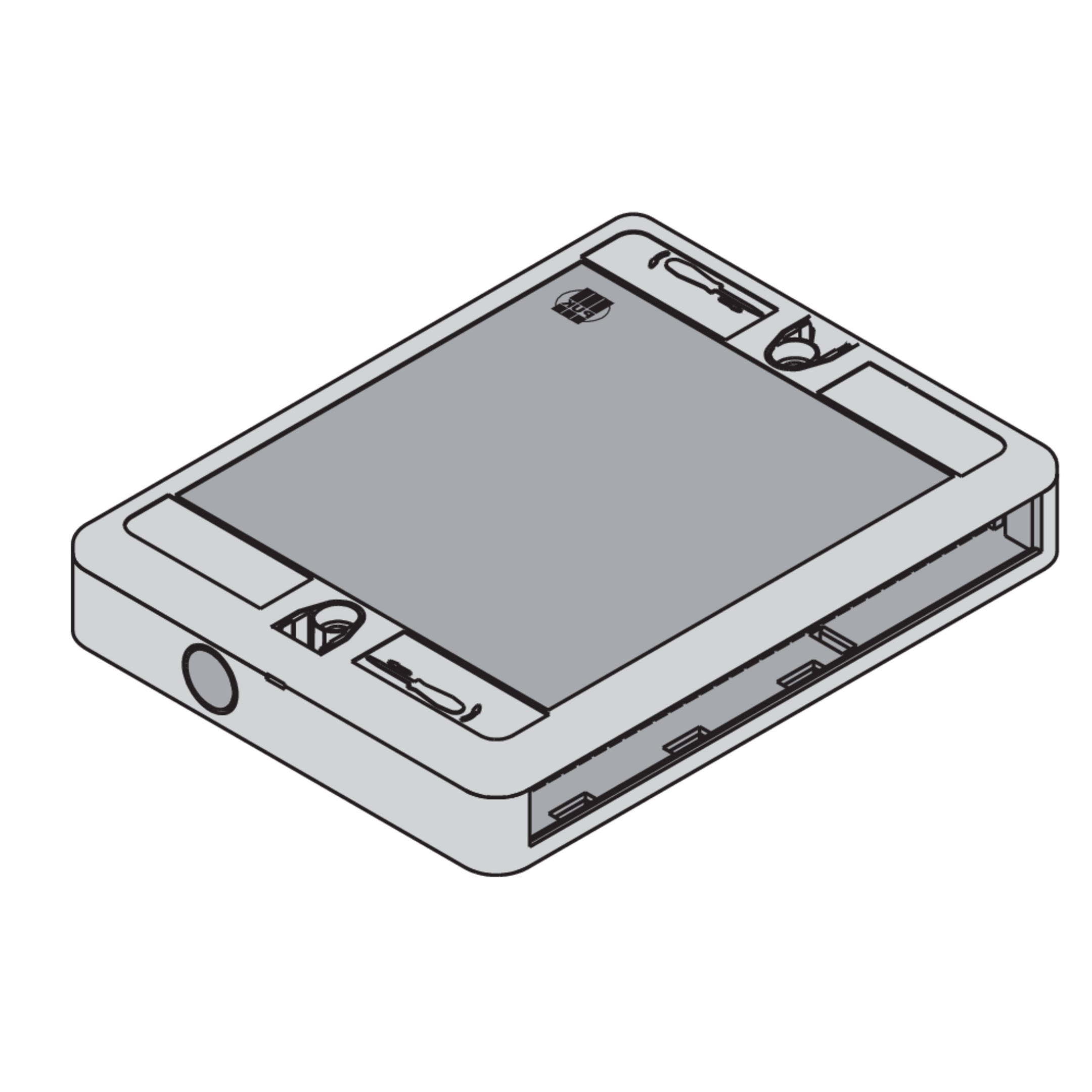

UV components are distribution boxes from the WAGO WINSTA MIDI system. The underfloor distributors are wired on a three-phase circuit and can be equipped with self-locking quick-assembly connectors and locking latches for connecting plug or socket parts. They are made of polyamide. The rated voltage/current corresponds to 250/400 V up to 16/25 A.

Get in touch Download datasheet

Variants

Article

H

B

L

Ausgang

Eingang

colour

W

  • UV-S 6K
    WAGO distributor box, inlet 1x5-pole,
    30 mm
    145 mm
    190 mm
    6x3-polig
    2x5-polig
    black
    0.474 kg
    More information
  • UV-S0 6K
    WAGO distributor box, inlet
    30 mm
    145 mm
    190 mm
    6x3-polig
    1x Klemme
    black
    0.446 kg
    More information
  • UV-W 6K
    WAGO distributor box, inlet 1x5-pole,
    30 mm
    145 mm
    190 mm
    6x3-polig
    2x5-polig
    white
    0.468 kg
    More information
  • UV-W0 6K
    WAGO distributor box, inlet
    30 mm
    145 mm
    190 mm
    6x3-polig
    1x Klemme
    white
    0.446 kg
    More information
