UVBU-3PK

Socket component, WAGO

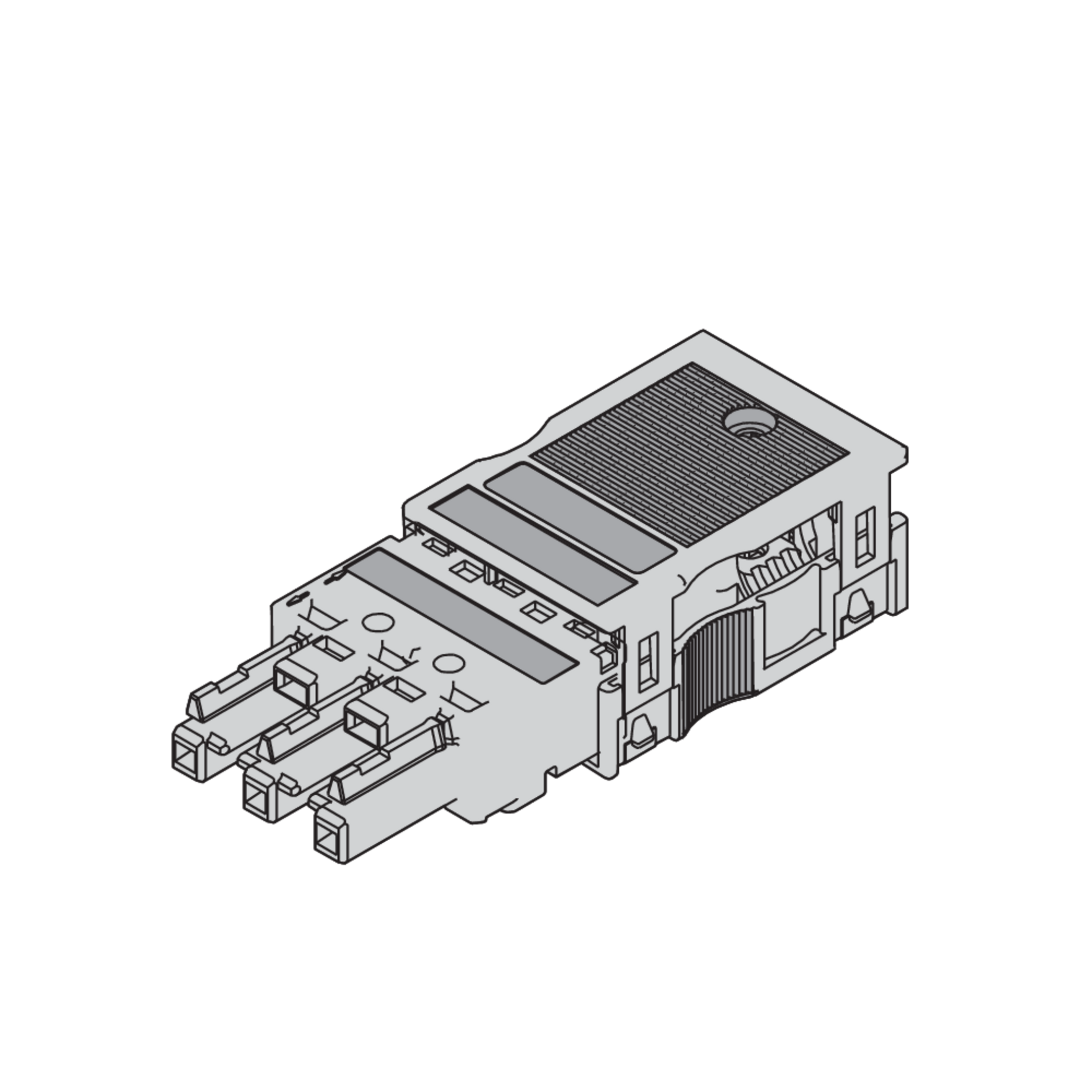

UVBU-3PK components are socket parts from the WAGO WINSTA MIDI system. The connectors are composed of a strain relief housing with a 3-pole output and a screwless plug-in connection. They are used to connect fine-stranded conductors with a connection cross-section of 0.5 to 4.0 mm² or multi-stranded conductors with a connection cross-section of 0.5 to 2.5 mm². Suitable for 250 V/4 kV/25 A.

Get in touch Download datasheet

Variants

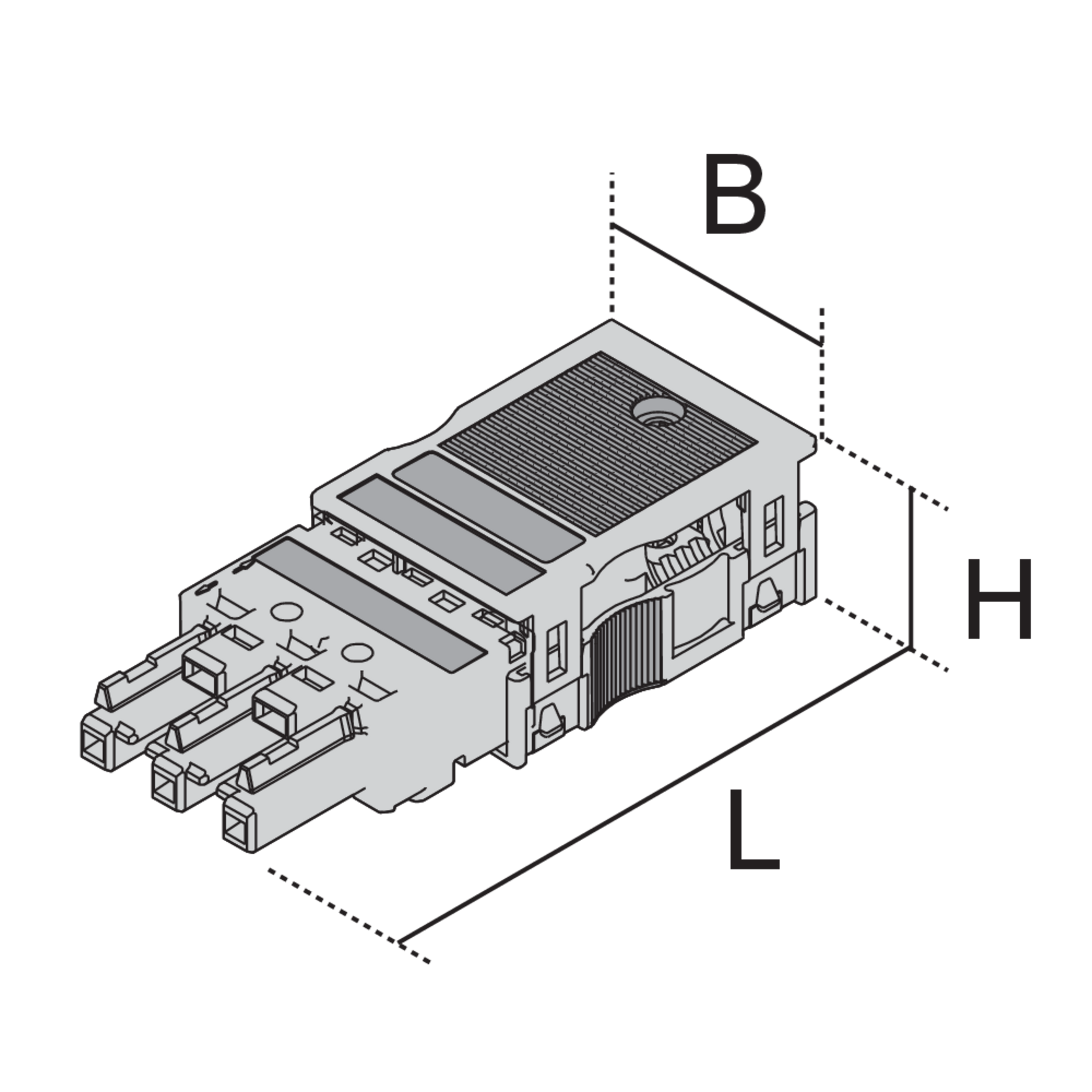

Article

H

height

B

width

L

length

AQ

Connection cross-section

Output

colour

color

G

Weight per storage unit
  • UVBU-S-3PK
    WAGO socket component
    height
    15 mm
    width
    35 mm
    length
    76 mm
    Connection cross-section
    4 mm2
    Output
    3-polig
    color
    black
    Weight per storage unit
    0.020 kg
    More information
  • UVBU-W-3PK
    WAGO socket component
    height
    15 mm
    width
    35 mm
    length
    76 mm
    Connection cross-section
    4 mm2
    Output
    3-polig
    color
    white
    Weight per storage unit
    0.020 kg
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Erklärung

    PDF, 106 KB

    de
    Download

  • EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    PDF, 59 KB

    de en

  • Underfloor Systems - Catalogue

    Catalogue

    PDF, 34 MB

    de en

  • Technical Information Device Sockets and Installation Devices

    Technische Information

    PDF, 14 MB

    de en

  • Assembly instruction for connector system for WAGO Device cup, pre-converted

    Montageanleitung

    PDF, 233 KB

    de en

  • Flyer Connector Systems

    Flyer

    PDF, 10 MB

    de
    Download

Included accessories
