UVBU-5PK

Socket component, WAGO

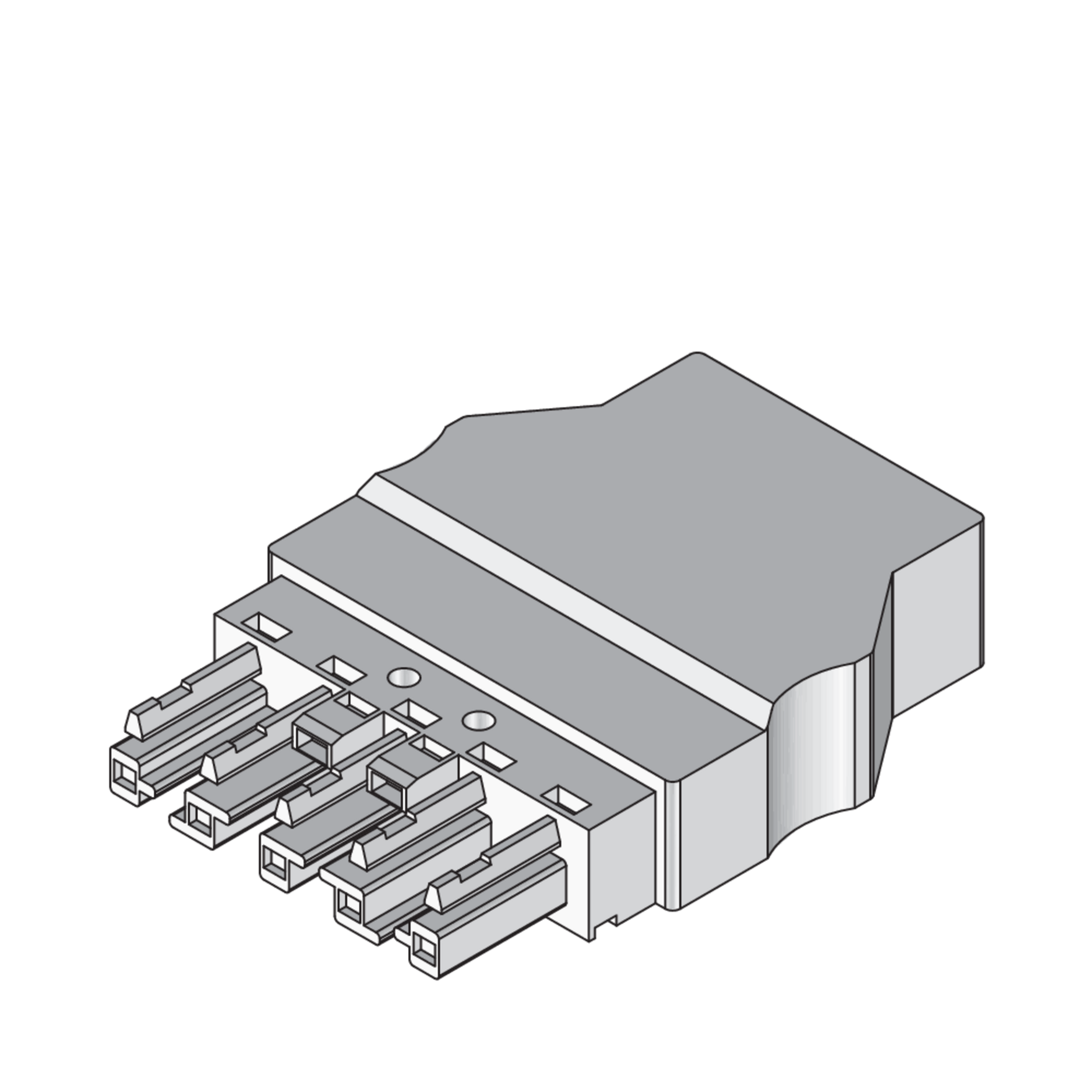

UVBU-5PK components are socket parts from the WAGO WINSTA MIDI system. The connectors are composed of a strain relief housing with a 5-pole output and a screwless plug-in connection. They are used to connect fine-stranded conductors with a connection cross-section of 0.5 to 4.0 mm² or multi-stranded conductors with a connection cross-section of 0.5 to 2.5 mm². Suitable for 400 V/6 kV/25 A.

Get in touch Download datasheet

Variants

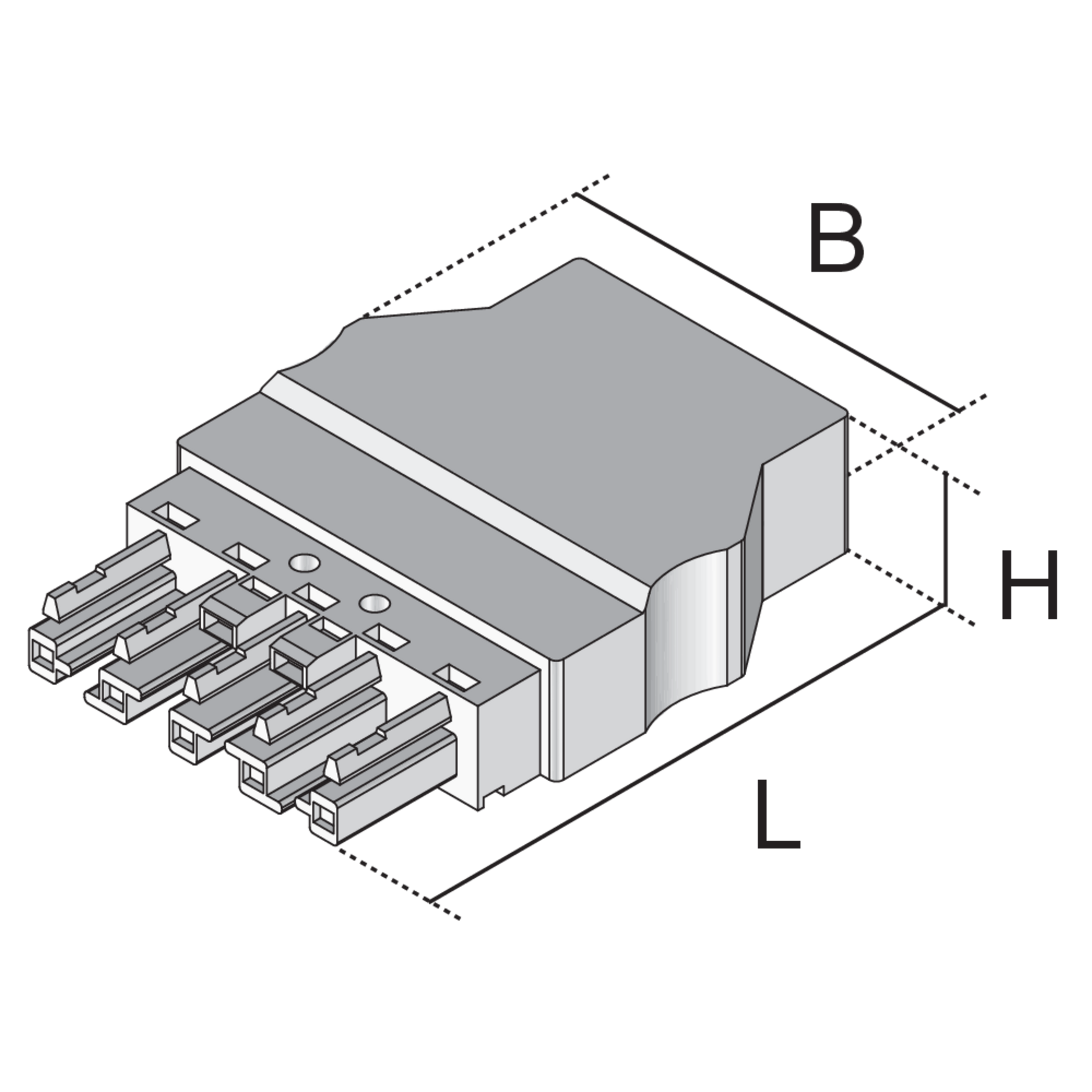

Article

H

height

B

width

L

length

AQ

Anschlussquerschnitt

Ausgang

colour

color

G

Weight per storage unit
  • UVBU-S-5PK
    WAGO socket component
    17 mm
    55 mm
    76 mm
    4 mm2
    5-polig
    black
    0.030 kg
    More information
  • UVBU-W-5PK
    WAGO socket component
    17 mm
    55 mm
    76 mm
    4 mm2
    5-polig
    white
    0.030 kg
    More information
