UG3

Mounting box, angular, lowered

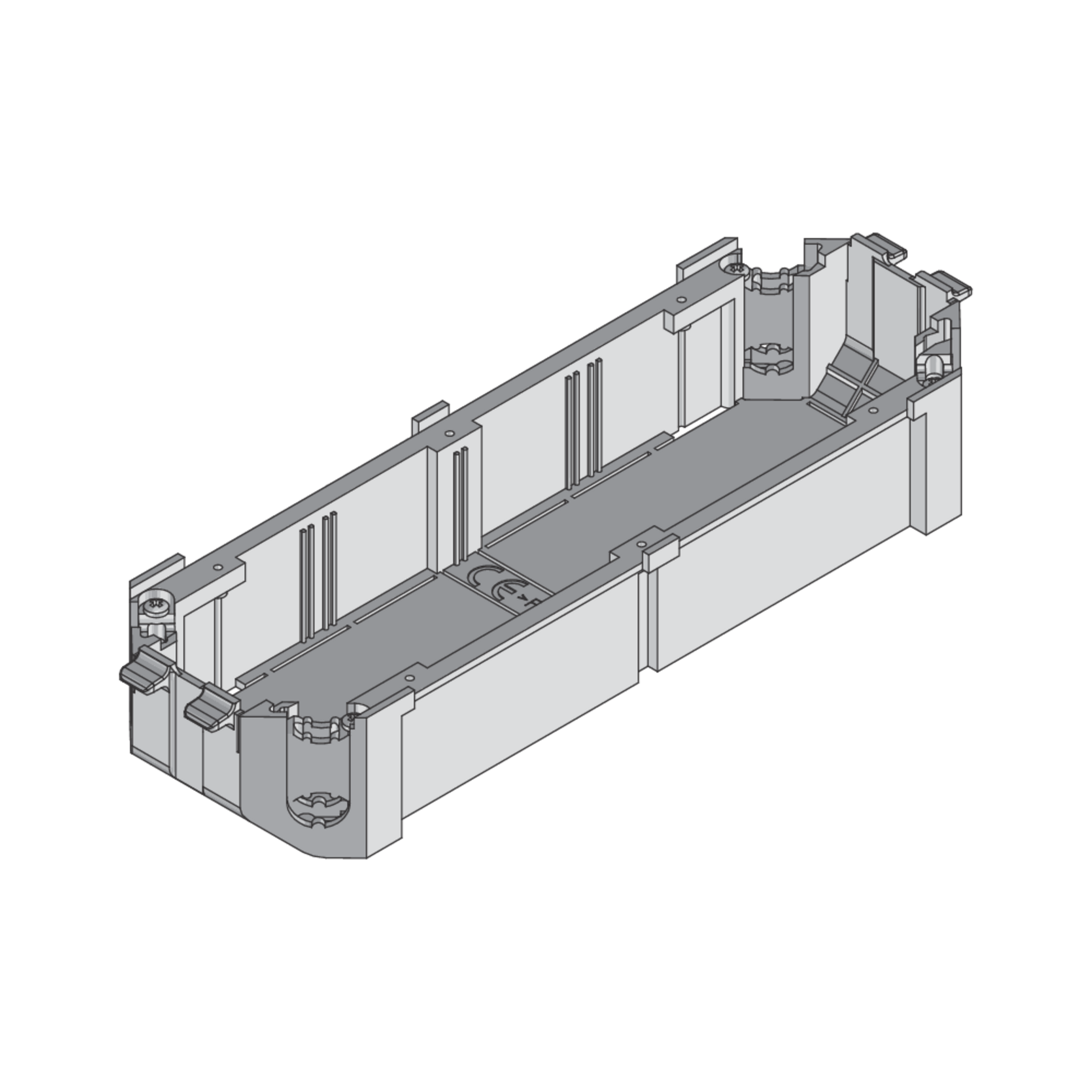

UG3 components are square, lowered mounting boxes consisting of a one-piece shell with a perforated base and a strain relief device for inserting the incoming cables. During assembly, the mounting boxes are snapped into installation units and can be equipped with up to four 45x45 mm installation units or three suspension bracket mounting devices. The mounting boxes are made of ABS copolymer in graphite black (RAL 9011).

Load requirements according to: DIN EN 50085

Variants

Article

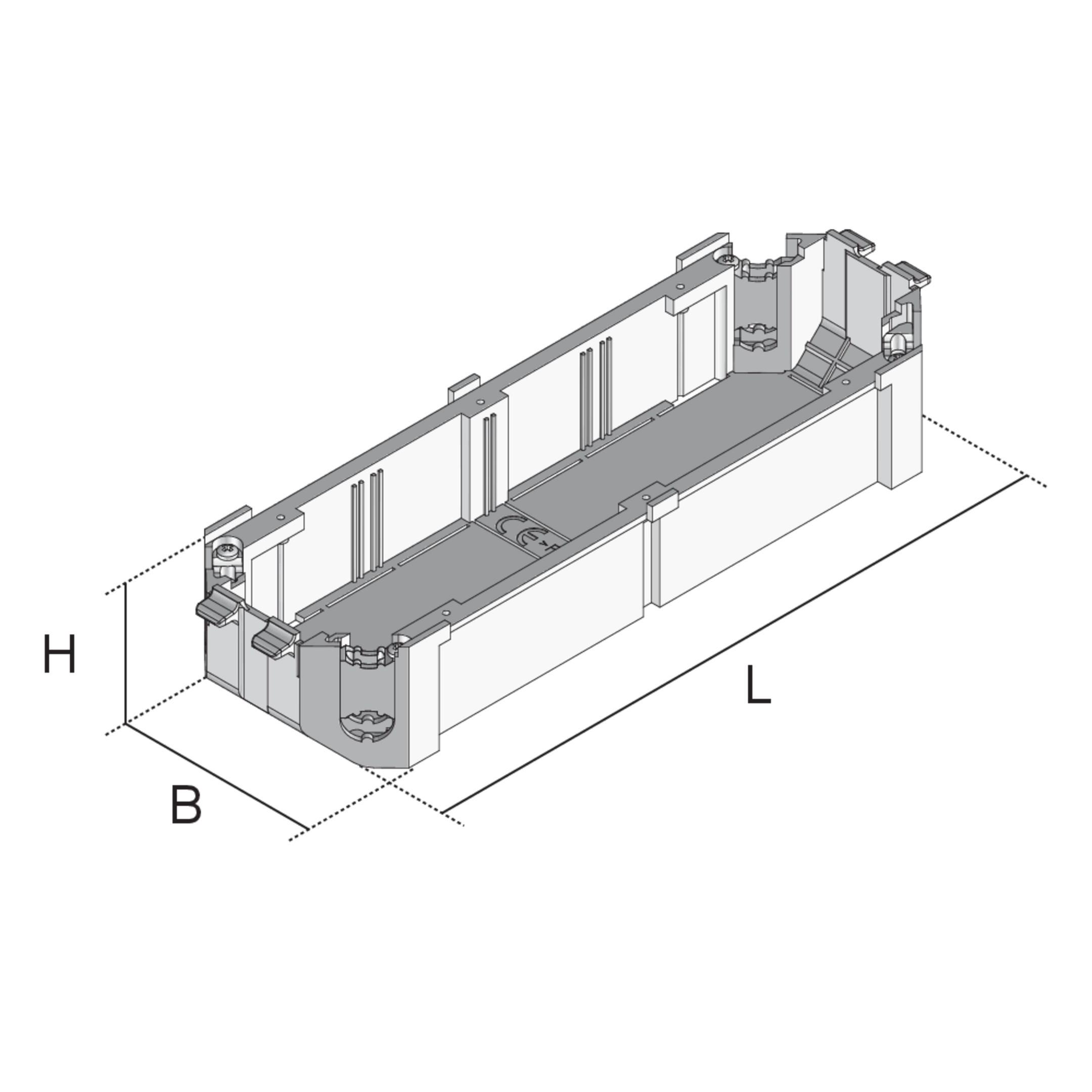

H

height

B

width

L

length

colour

color

G

Weight per storage unit

Strain relief

Installation devices

Max. number of installation devices

  • UG3
    device cup,
    38 mm
    74 mm
    225 mm
    RAL 9011 (graphite black)
    0.098 kg
    4x for cable Ø 6 to 12 mm
    3x hanging brackets or 4x 45x45 mm
    Included accessories

Details

  • Load requirements according to: DIN EN 50085
