UA 3

Cover plate for 3x UDAE

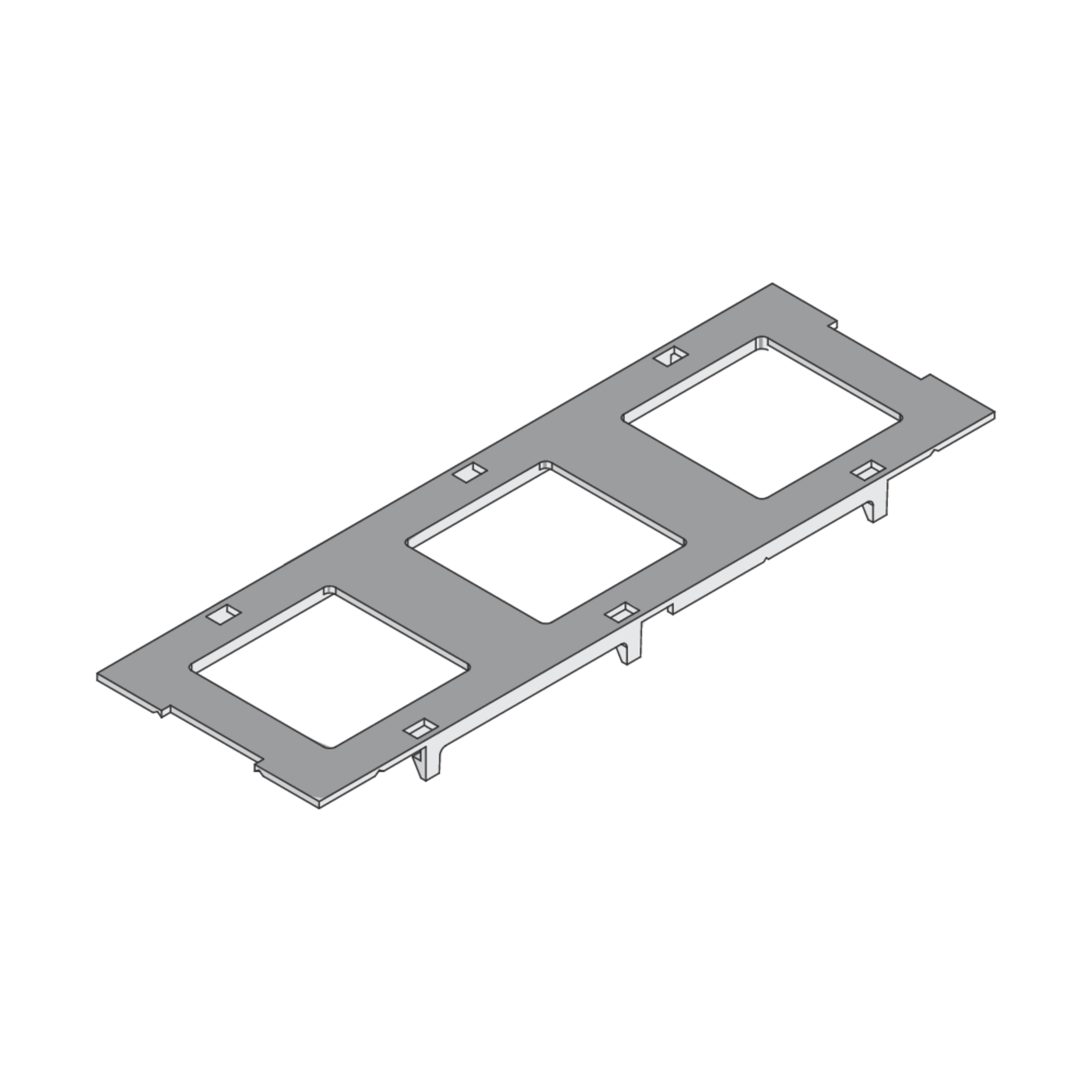

UA 3 components from the underfloor systems range are square cover plates with three square openings. As a system-related accessory, the one-piece plates can be snapped onto UG mounting boxes and are used to install up to three UDAE installation devices with suspension brackets. The installation boards are made of high-quality ABS copolymer (ABS) in graphite black (RAL 9011). They have a matt surface and an installation dimension of E 48 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

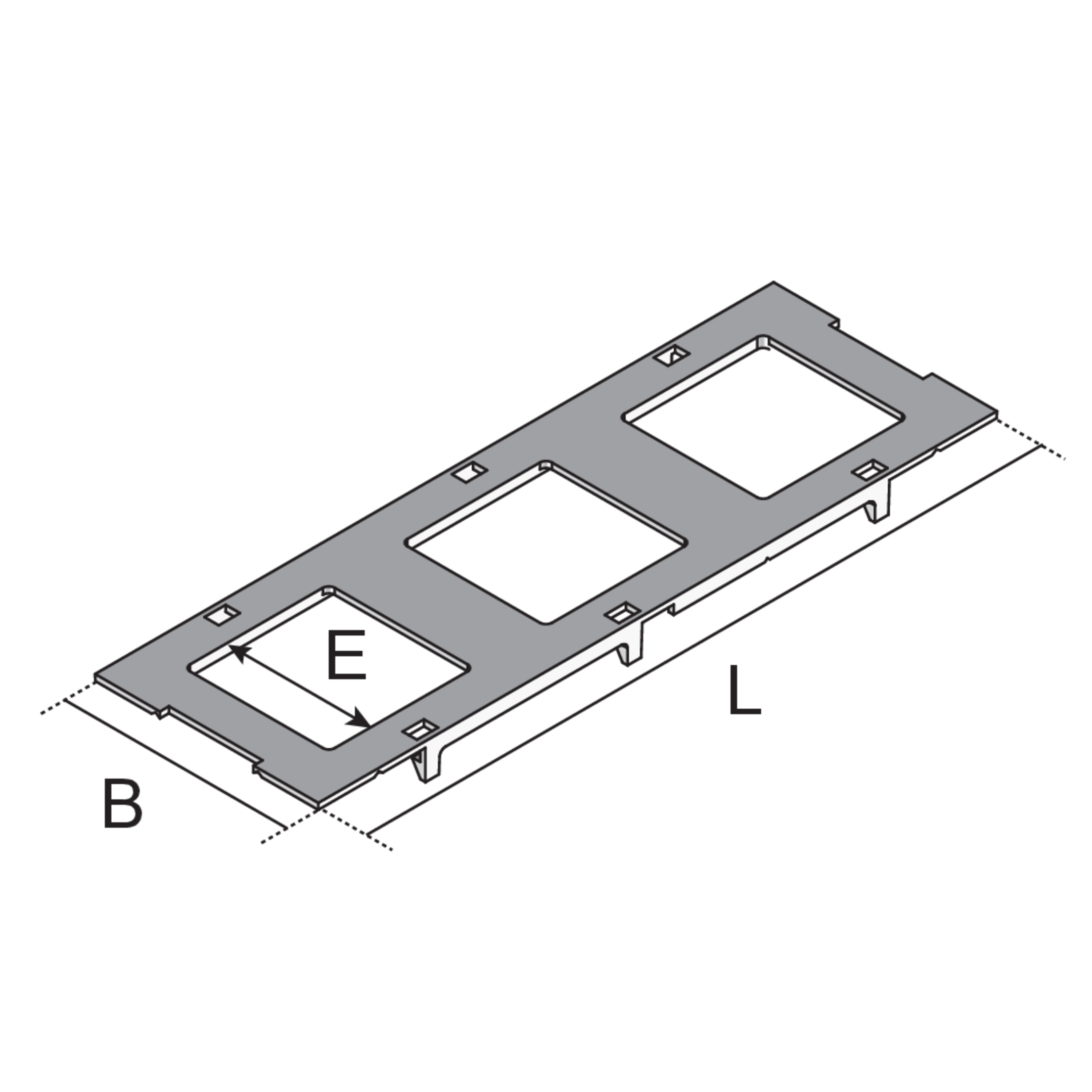

Variants

Article

B

L

E

Farbe

G

  • UA-3-1 226
    Abdeckplatte
    74 mm
    226 mm
    48 mm
    RAL 9011 (Graphitschwarz)
    0.028 kg
    More information

Details

  • Load requirements according to: DIN EN 50085

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Elektro- und Elektronikgeräte – Informationen von Herstellern für gewerbliche Nutzer

    Erklärung

    PDF, 106 KB

    de
    Download

  • EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    PDF, 59 KB

    de en

  • Underfloor Systems - Catalogue

    Catalogue

    PDF, 34 MB

    de en

  • Assembly instruction for device installation cups and installation devices

    Montageanleitung

    PDF, 562 KB

    de en

  • Technical Information Device Sockets and Installation Devices

    Technische Information

    PDF, 14 MB

    de en

Included accessories
