UAM 4

Cover plate for 4x UST45

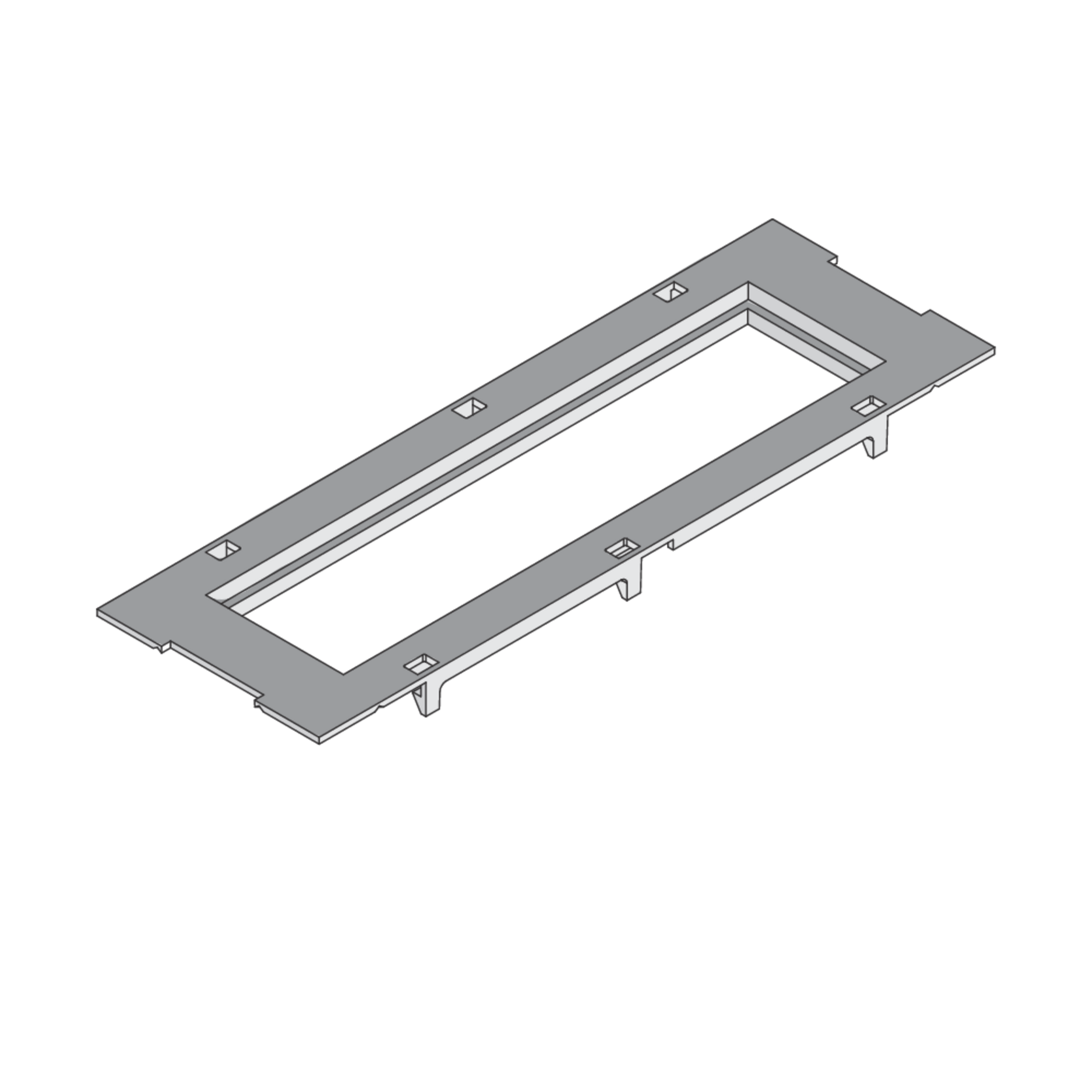

UAM 4 components from the underfloor system range are rectangular cover plates with a rectangular opening. As system-related accessories, the one-piece plates can be snapped onto UG mounting boxes and used for screwless installation of a 45x45 mm four-way installation device. The installation boards are made of high-quality ABS copolymer (ABS) in graphite black (RAL 9011). They have a matt surface and the installation dimensions of E1 175 mm and E2 41 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

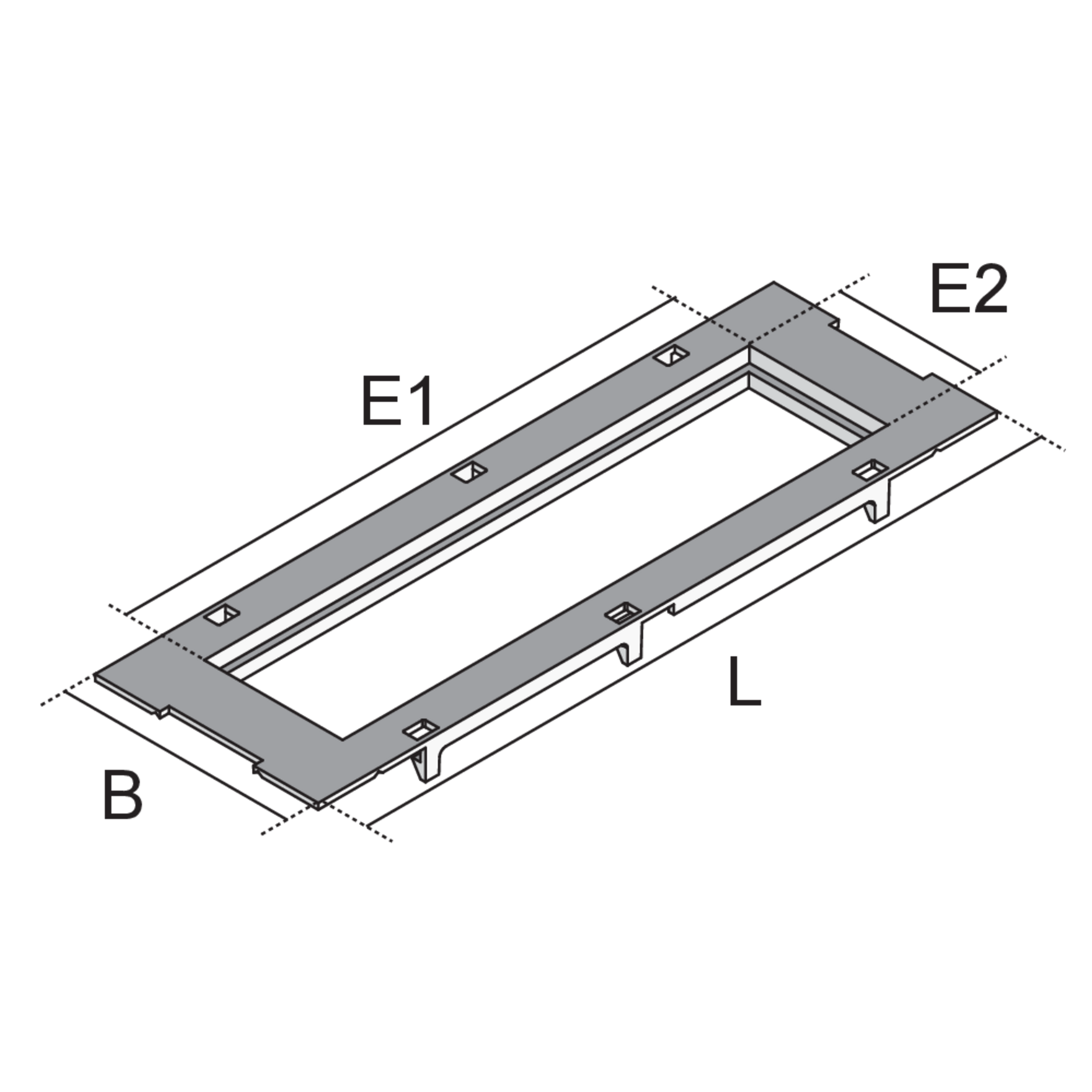

Variants

Article

B

Breite

L

Länge

E1

Einbaumaß E1

E2

Einbaumaß E2

Farbe

Farbe

G

Gewicht je Lagermengeneinheit
  • UAM-4-1 226
    Abdeckplatte,
    Breite
    74 mm
    Länge
    226 mm
    Einbaumaß E1
    175 mm
    Einbaumaß E2
    41 mm
    Farbe
    RAL 9011 (Graphitschwarz)
    Gewicht je Lagermengeneinheit
    0.030 kg
    More information
  • UAMF-4-1 226
    Abdeckplatte flach,
    Breite
    74 mm
    Länge
    226 mm
    Einbaumaß E1
    175 mm
    Einbaumaß E2
    41 mm
    Farbe
    RAL 9011 (Graphitschwarz)
    Gewicht je Lagermengeneinheit
    0.034 kg
    More information

Details

  • Load requirements according to: DIN EN 50085
