UAM 1

Cover plate for 1x UST45

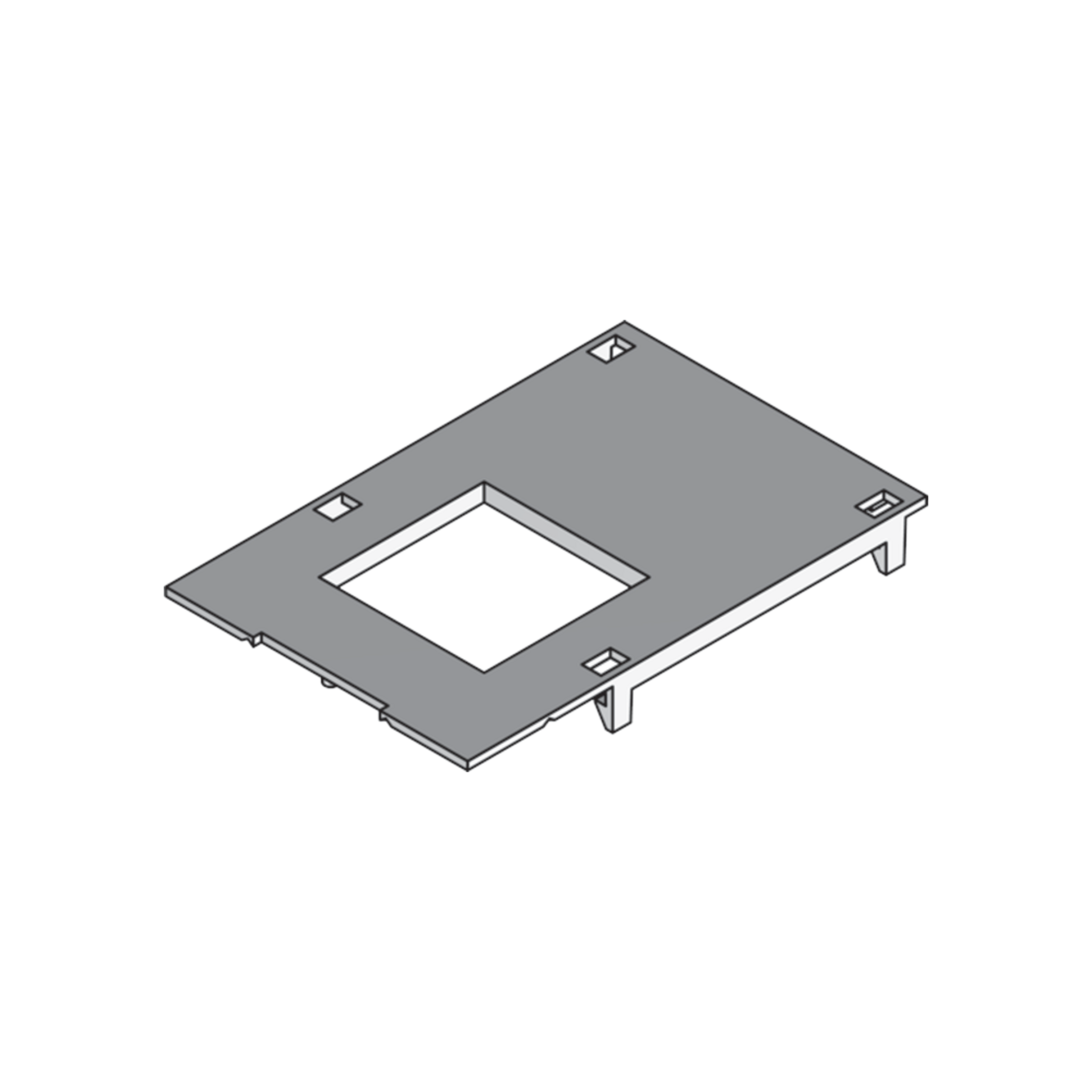

UAM 1 components from the underfloor systems range are rectangular cover plates with a square opening. As system-related accessories, the one-piece plates can be snapped onto UG mounting boxes and used for the screwless installation of a simple 45x45 mm installation device. The installation boards are made of high-quality ABS copolymer (ABS) in graphite black (RAL 9011). They have a matt surface and the installation dimensions of E 41 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Article

B

width

L

length

E

fitting dimension

colour

color

G

Weight per storage unit
  • UAM-1-1 113
    cover plate UAM-1-1 113,
    74 mm
    113 mm
    41 mm
    RAL 9011 (graphite black)
    0.020 kg
    More information
  • UAM-1-1 76
    cover plate UAM-4-1 226,
    74 mm
    76 mm
    41 mm
    RAL 9011 (graphite black)
    0.003 kg
    More information

Details

  • Load requirements according to: DIN EN 50085
