UAM 2

Cover plate for 2x UST45

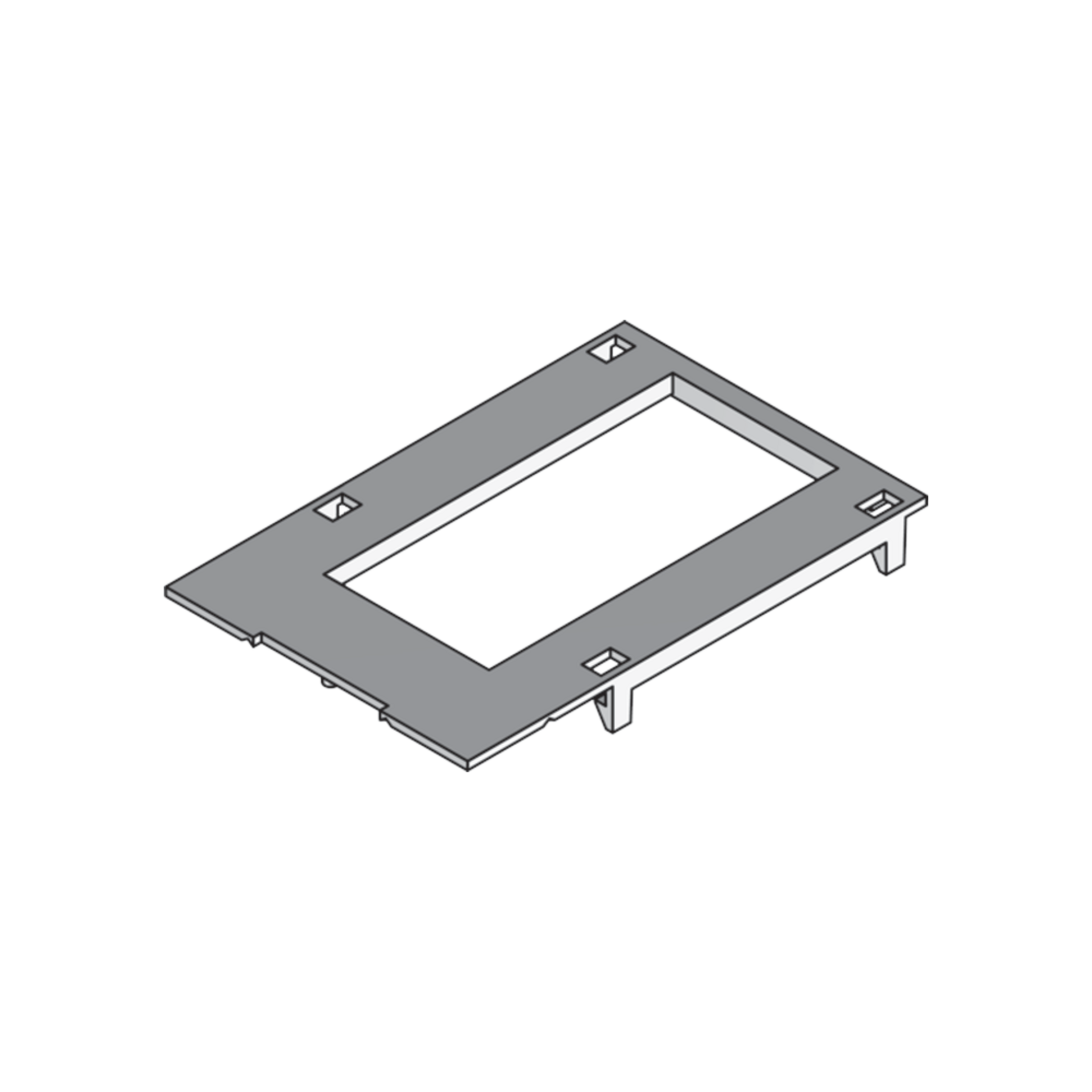

UAM 2 components from the underfloor system range are rectangular cover plates with a rectangular opening. As system-related accessories, the one-piece plates can be snapped onto UG mounting boxes and used for screwless installation of a 45x45 mm two-way installation device. The installation boards are made of high-quality ABS copolymer (ABS) in graphite black (RAL 9011). They have a matt surface and the installation dimensions of E 41 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Article

B

L

E

colour

W

  • UAM-2-1 113
    cover plate UAM-2-1 113,
    74 mm
    113 mm
    41 mm
    RAL 9011 (graphite black)
    0.016 kg
    More information

Details

  • Load requirements according to: DIN EN 50085
