UG

Mounting box, angular

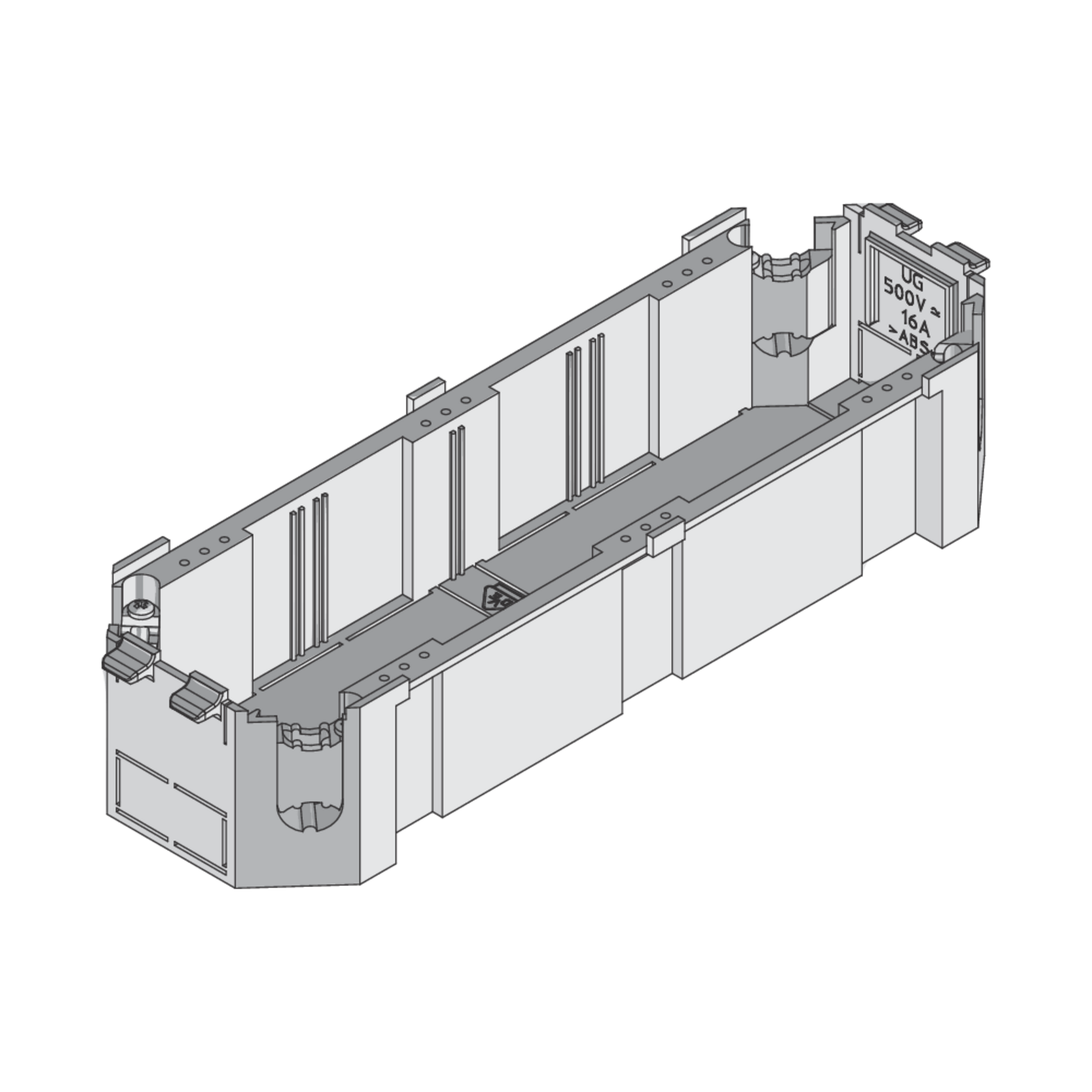

UG components are square mounting boxes consisting of a one-piece shell with a perforated base and a strain relief device for inserting the incoming cables. During assembly, the mounting boxes are snapped into installation units and can be equipped with three single or four snap-in modular installation units and two snap-in device connectors. The mounting boxes are made of acrylonitrile butadiene-styrene copolymer with a matt surface in graphite black (RAL 9011).

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Article

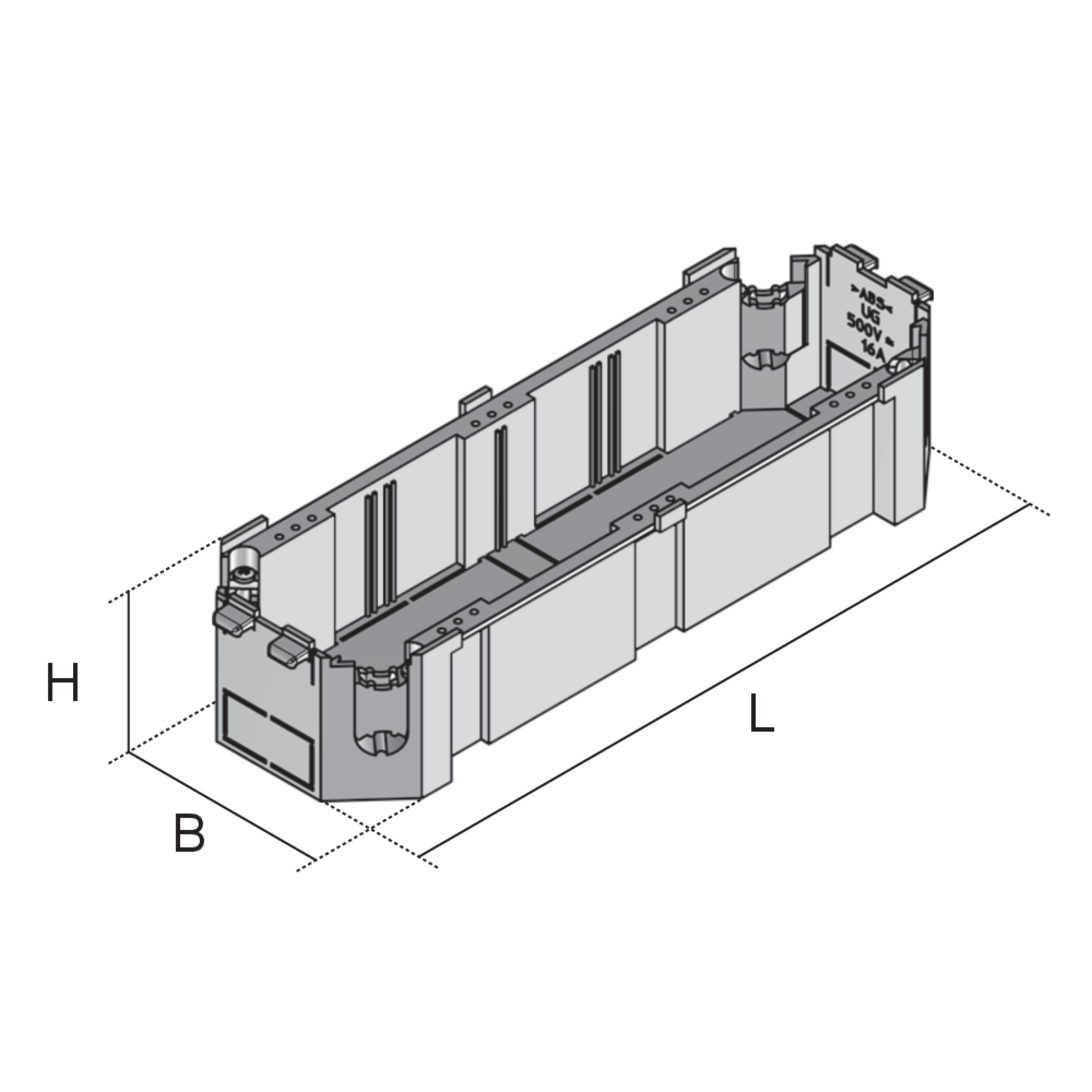

H

height

B

width

L

length

colour

color

G

Weight per storage unit

Strain relief

Installation devices

Max. number of installation devices
  • UG
    device cup,
    height
    46 mm
    width
    74 mm
    length
    225 mm
    color
    RAL 9011 (graphite black)
    Weight per storage unit
    0.114 kg
    Strain relief
    4x for cable Ø 6 to 12 mm
    Max. number of installation devices
    3x hanging brackets or 4x 45x45 mm
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
