UEKD V E

Stainless steel hinged cover unit, 3x, angular

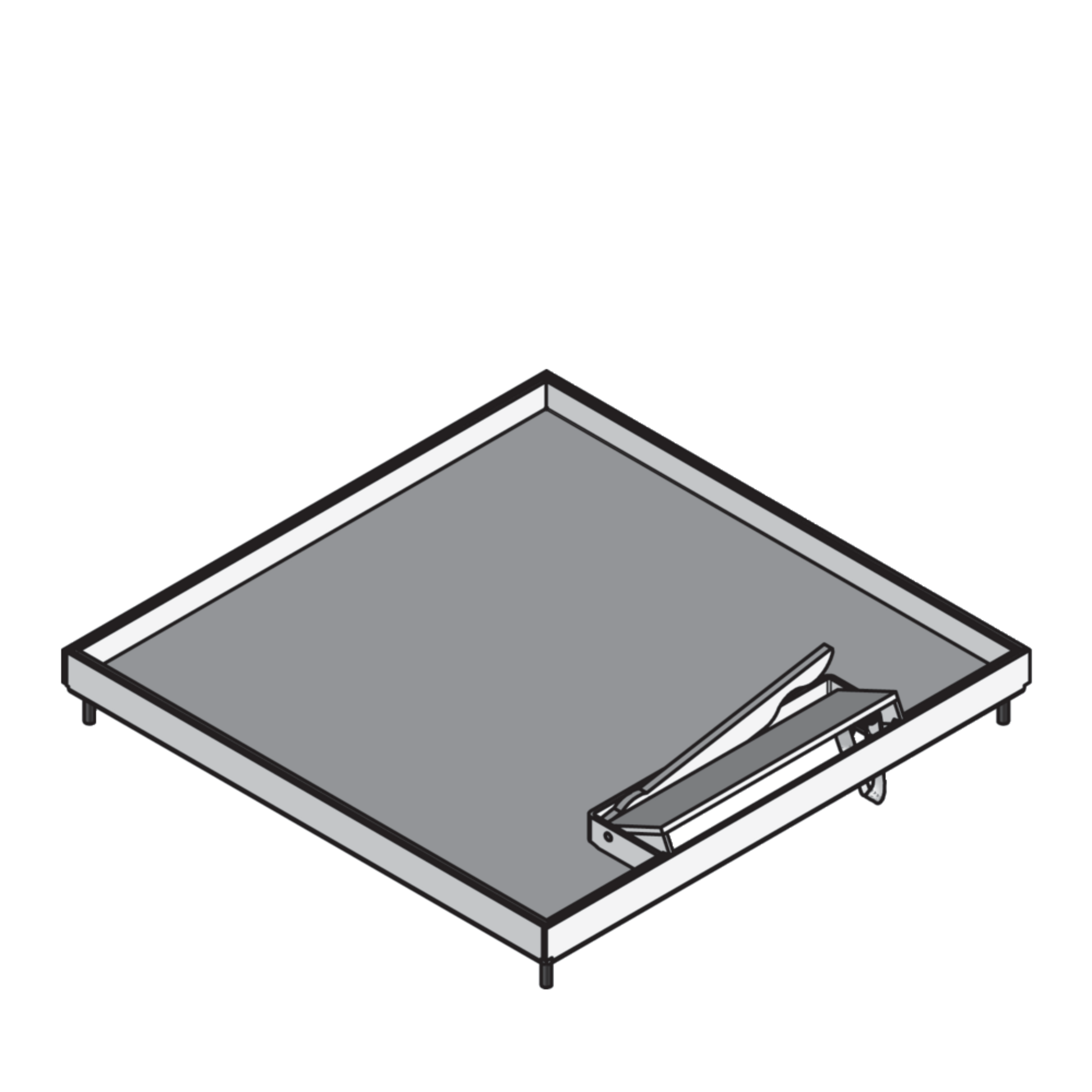

UEKD V E components are square hinged covers with abutting edges. They consist of a cartridge mounting frame with insert cartridge, cable outlet, floor-level cable outlet and rubber seal. They are suitable for floor sockets, assembly covers and raised or false floor openings in dry-cleaned and damp-cleaned rooms with office traffic loads. Installed on levelling units, they can accommodate max. 3 mounting boxes. The cover units are made of stainless steel V2A and have an IP protection class of IP 30 in an unused condition, an IP protection class of IP 20 when used, a max. load of 2 kN and installation dimensions of 261 x 261 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

brass

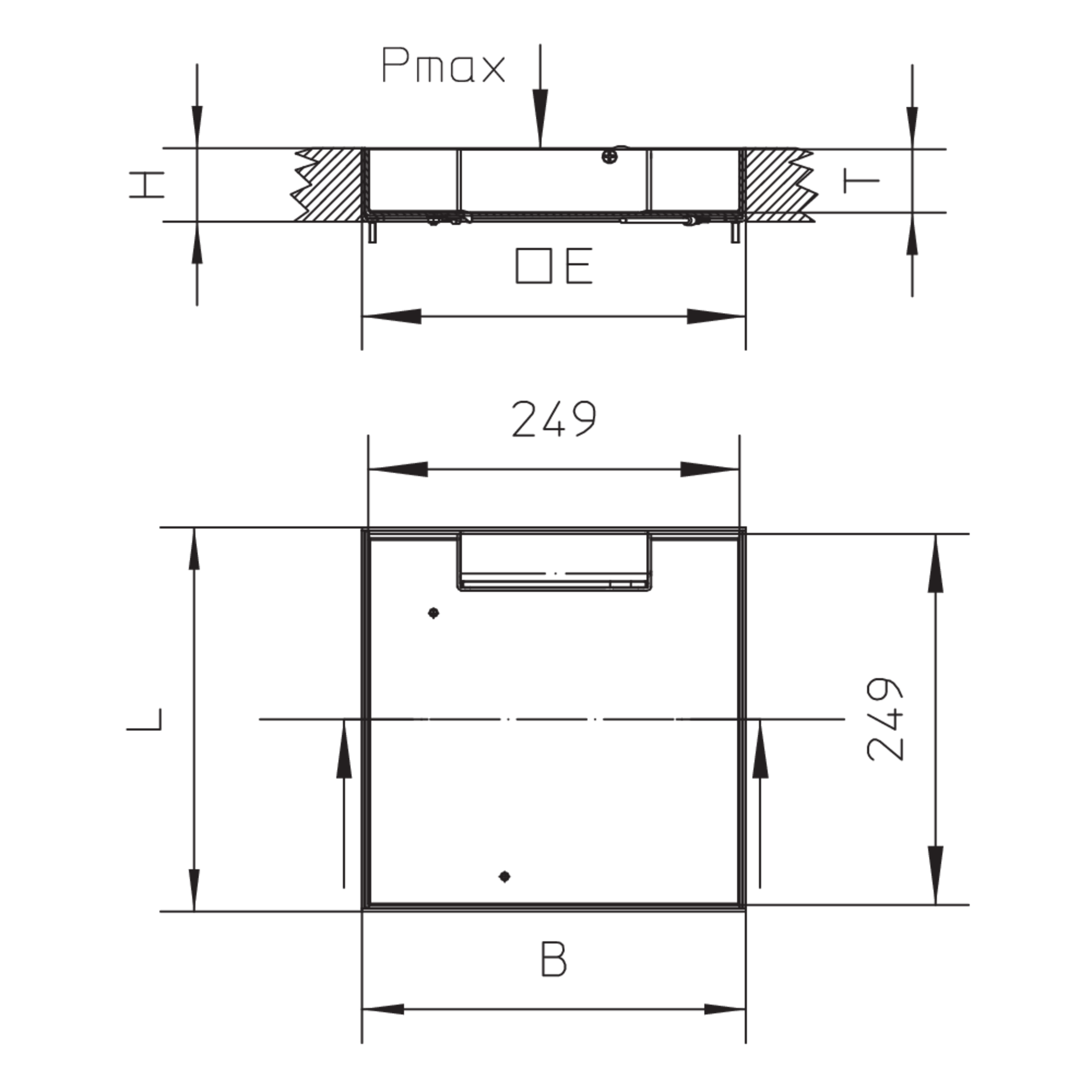

Article

H

height

Hmin

minimum installation height

B

width

L

length

Pmax

maximum load

mounting box

maximum number of installable device casings

E

fitting dimension

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

T

Depth of flooring recess

G

Weight per storage unit
  • UEKD 25-V MS
    cartridge unit,
    height
    29 mm
    minimum installation height
    95 mm
    width
    258 mm
    length
    258 mm
    maximum load
    2.00 kN
    maximum number of installable device casings
    3
    fitting dimension
    261 x 261 mm
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 30
    Depth of flooring recess
    16.5 mm
    Weight per storage unit
    4.867 kg
    Included accessories
    More information
  • UEKD 35-V MS
    cartridge unit,
    height
    29 mm
    minimum installation height
    105 mm
    width
    258 mm
    length
    258 mm
    maximum load
    2.00 kN
    maximum number of installable device casings
    3
    fitting dimension
    261 x 261 mm
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 30
    Depth of flooring recess
    26.5 mm
    Weight per storage unit
    5.479 kg
    Included accessories
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

Hmin

minimum installation height

B

width

L

length

Pmax

maximum load

mounting box

maximum number of installable device casings

E

fitting dimension

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

T

Depth of flooring recess

G

Weight per storage unit
  • UEKD 15-V E
    cartridge unit,
    height
    19 mm
    minimum installation height
    85 mm
    width
    258 mm
    length
    258 mm
    maximum load
    2.00 kN
    maximum number of installable device casings
    3
    fitting dimension
    261 x 261 mm
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 30
    Depth of flooring recess
    12.5 mm
    Weight per storage unit
    1.816 kg
    Included accessories
    More information
  • UEKD 25-V E
    cartridge unit,
    height
    29 mm
    minimum installation height
    95 mm
    width
    258 mm
    length
    258 mm
    maximum load
    2.00 kN
    maximum number of installable device casings
    3
    fitting dimension
    261 x 261 mm
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 30
    Depth of flooring recess
    22.5 mm
    Weight per storage unit
    2.172 kg
    Included accessories
    More information
  • UEKD 35-V E
    cartridge unit,
    height
    39 mm
    minimum installation height
    105 mm
    width
    258 mm
    length
    258 mm
    maximum load
    2.00 kN
    maximum number of installable device casings
    3
    fitting dimension
    261 x 261 mm
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 30
    Depth of flooring recess
    32.5 mm
    Weight per storage unit
    2.529 kg
    Included accessories
    More information
  • UEKD 45-V E
    cartridge unit,
    height
    49 mm
    minimum installation height
    115 mm
    width
    258 mm
    length
    258 mm
    maximum load
    2.00 kN
    maximum number of installable device casings
    3
    fitting dimension
    261 x 261 mm
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 30
    Depth of flooring recess
    42.5 mm
    Weight per storage unit
    2.887 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • VDE Certificate 40035723 Stainless Steel Units

    Zertifikat

    PDF, 316 KB

    de en

  • Usage Note for Stainless Steel Built-In Units

    Montageanleitung

    PDF, 123 KB

    de
    Download

  • Notice for types of protection and floor maintenance

    Notice for installation units

    PDF, 328 KB

    de en

  • Underfloor Systems - Catalogue

    Catalogue

    PDF, 34 MB

    de en

  • Units for screed and hollow floors - Technical information

    Technische Information

    PDF, 14 MB

    de en

  • EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    PDF, 59 KB

    de en

  • Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Erklärung

    PDF, 106 KB

    de
    Download

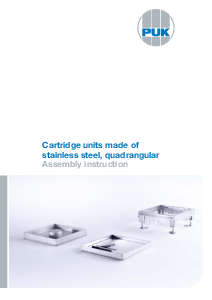

  • Installation Instructions UEKD-V E
