UNE

Levelling unit, dummy, 3x, angular

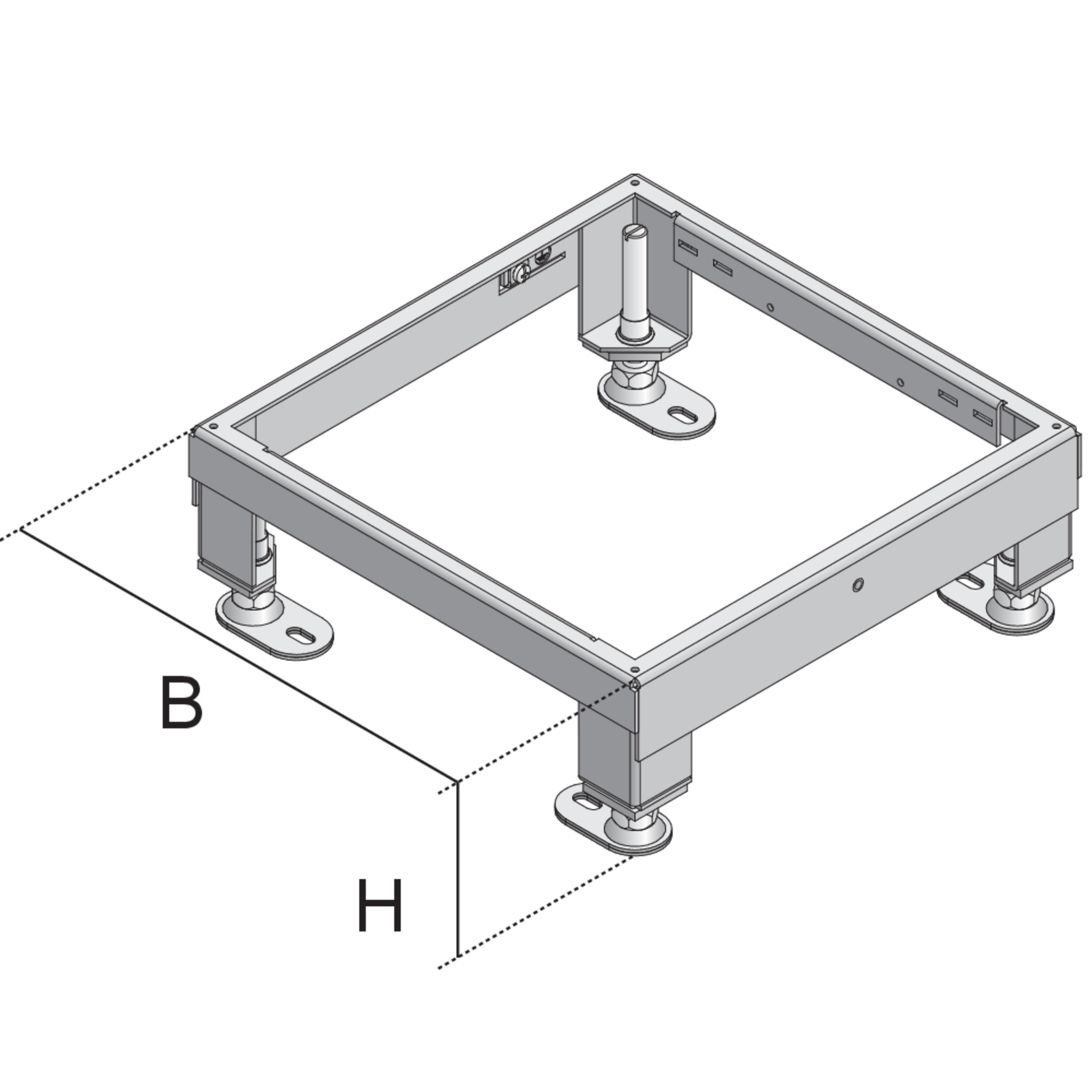

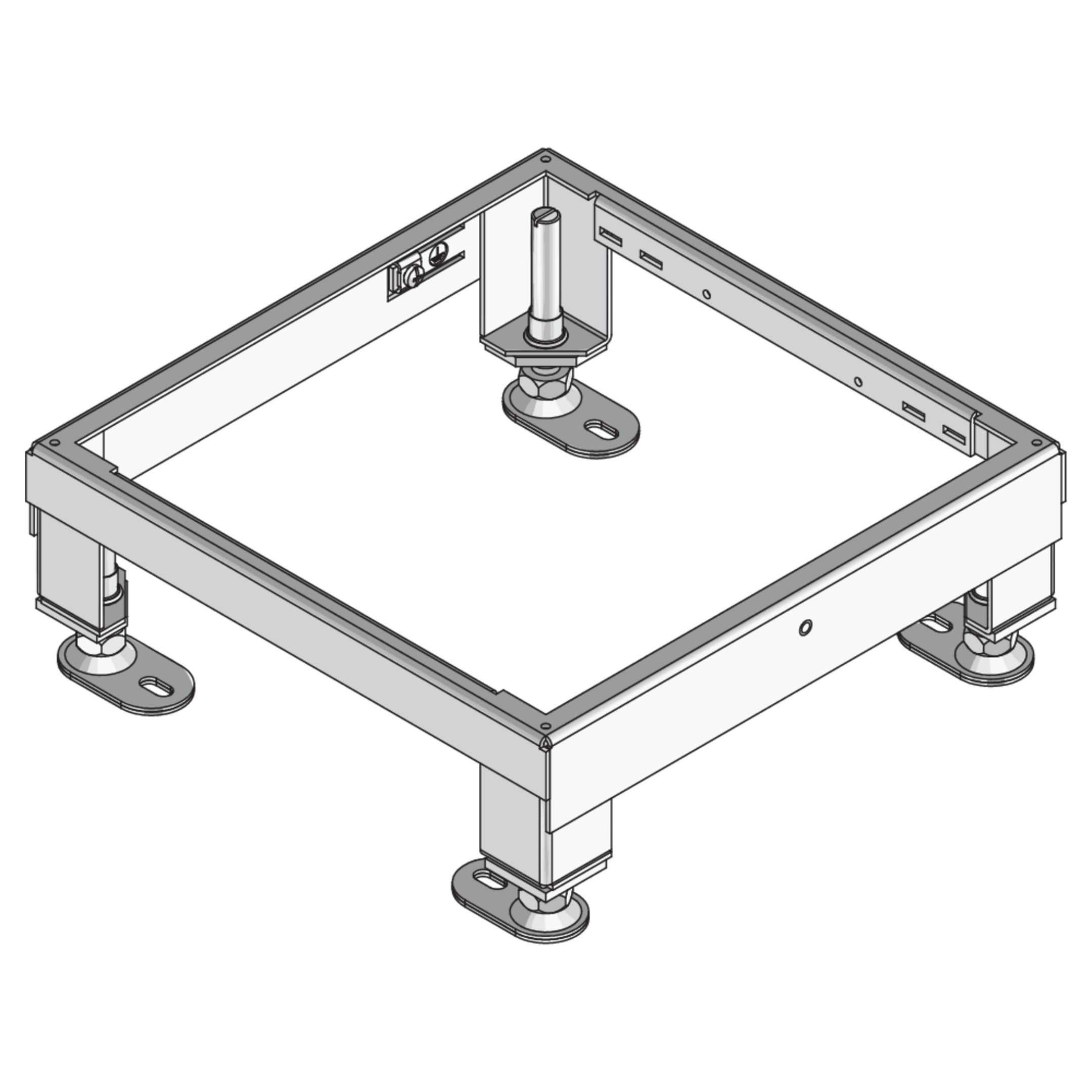

UNE components are square, dummy levelling units consisting of a sheet steel frame, internal level adjusters with levelling bases and earthing clamps. The units are mounted on stainless steel cartridges and used in floor sockets, assembly covers and raised or false floor openings in rooms with high traffic loads. They are made of sendzimir hot-dip galvanised steel (DIN EN 10346) and have installation dimensions of 261 x 261 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

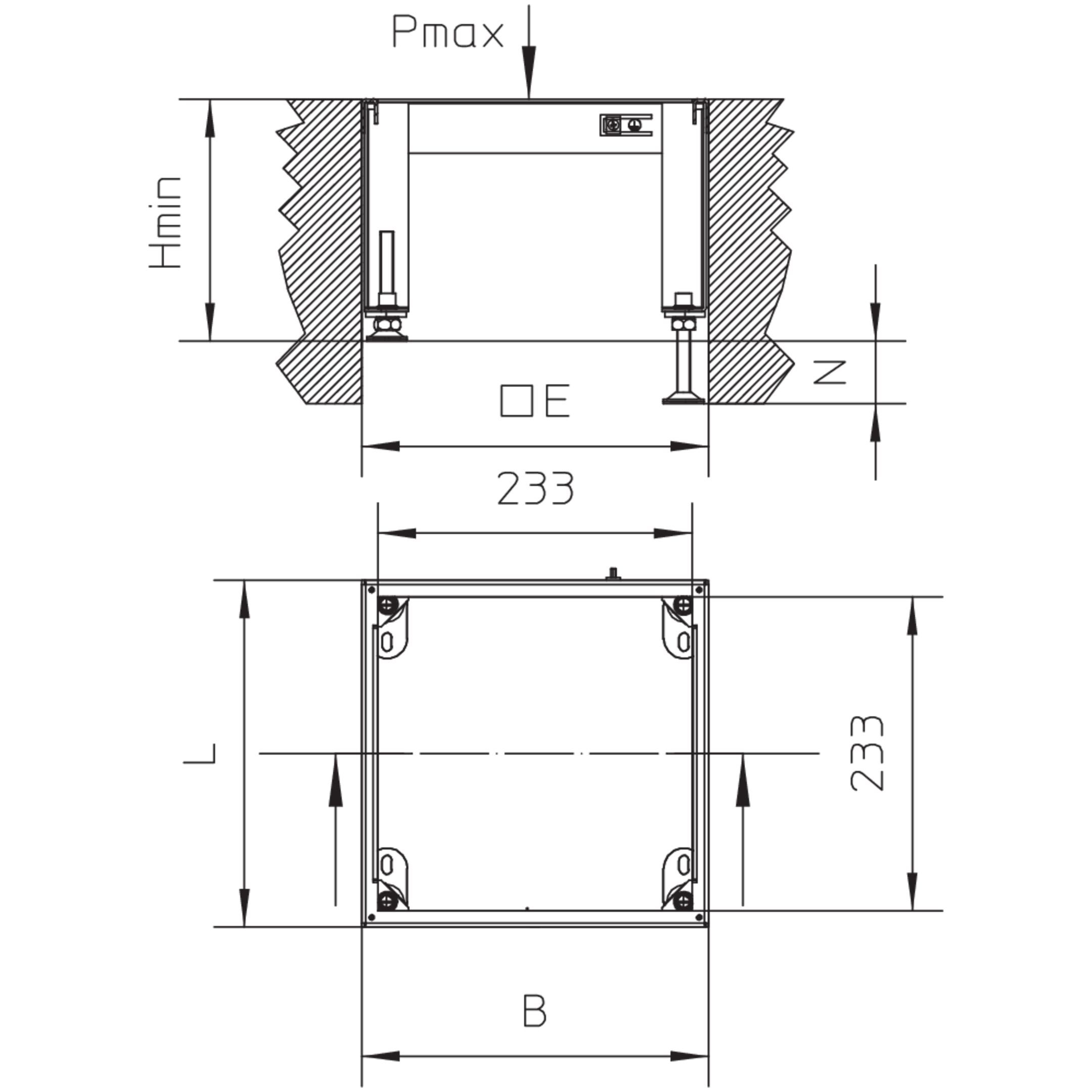

Article

Hmin

min. Einbauhöhe

B

Breite

L

Länge

N

Nivellierbereich

Pmax

max. Belastung

E

Einbaumaß

G

Gewicht je Lagermengeneinheit
  • UNE 260V-100S
    Nivelliereinheit,
    min. Einbauhöhe
    135 mm
    Breite
    258 mm
    Länge
    258 mm
    Nivellierbereich
    45 mm
    max. Belastung
    20.00 kN
    Einbaumaß
    261 x 261 mm
    Gewicht je Lagermengeneinheit
    1.648 kg
    More information
  • UNE 260V-155S
    Nivelliereinheit,
    min. Einbauhöhe
    155 mm
    Breite
    258 mm
    Länge
    258 mm
    Nivellierbereich
    95 mm
    max. Belastung
    10.00 kN
    Einbaumaß
    261 x 261 mm
    Gewicht je Lagermengeneinheit
    1.764 kg
    More information
  • UNE 260V-210S
    Nivelliereinheit,
    min. Einbauhöhe
    212 mm
    Breite
    258 mm
    Länge
    258 mm
    Nivellierbereich
    100 mm
    max. Belastung
    10.00 kN
    Einbaumaß
    261 x 261 mm
    Gewicht je Lagermengeneinheit
    2.036 kg
    More information
  • UNE 260V-30S
    Nivelliereinheit,
    min. Einbauhöhe
    65 mm
    Breite
    258 mm
    Länge
    258 mm
    Nivellierbereich
    25 mm
    max. Belastung
    20.00 kN
    Einbaumaß
    261 x 261 mm
    Gewicht je Lagermengeneinheit
    1.364 kg
    More information
  • UNE 260V-60S
    Nivelliereinheit,
    min. Einbauhöhe
    90 mm
    Breite
    258 mm
    Länge
    258 mm
    Nivellierbereich
    45 mm
    max. Belastung
    20.00 kN
    Einbaumaß
    261 x 261 mm
    Gewicht je Lagermengeneinheit
    1.472 kg
    More information

Details

  • Load requirements according to: DIN EN 50085
