LGG 60

Cable ladder, L profile, height = 60 mm

The perforated and welded cable ladders LGG 60 have rails 60 mm high and are available in widths of 200 to 600 mm and in lengths of 3000 and 6000 mm. The rungs consist of profile rails (30 x 15 mm). We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

The magnetic shielding attenuation is 13 dB without the cover and 26 dB with the cover.

No stepping
Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

B

width

L

length

QLK

Line load power cable

A

cross section area

G

Weight per storage unit

  • LGG 60-20-3S
    Cable ladder LGG 60-20-3S
    height
    60 mm
    width
    200 mm
    length
    3000 mm
    Line load power cable
    0.23 kN/m
    cross section area
    81 cm2
    Weight per storage unit
    7.920 kg
    More information
  • LGG 60-30-3S
    Cable ladder LGG 60-30-3S
    height
    60 mm
    width
    300 mm
    length
    3000 mm
    Line load power cable
    0.34 kN/m
    cross section area
    122 cm2
    Weight per storage unit
    8.610 kg
    More information
  • LGG 60-40-3S
    Cable ladder LGG 60-40-3S
    height
    60 mm
    width
    400 mm
    length
    3000 mm
    Line load power cable
    0.45 kN/m
    cross section area
    162 cm2
    Weight per storage unit
    9.300 kg
    More information
  • LGG 60-50-3S
    Cable ladder LGG 60-50-3S
    height
    60 mm
    width
    500 mm
    length
    3000 mm
    Line load power cable
    0.57 kN/m
    cross section area
    203 cm2
    Weight per storage unit
    9.980 kg
    More information
  • LGG 60-60-3S
    Cable ladder LGG 60-60-3S
    height
    60 mm
    width
    600 mm
    length
    3000 mm
    Line load power cable
    0.68 kN/m
    cross section area
    243 cm2
    Weight per storage unit
    10.670 kg
    More information
  • LGG 60-20S
    Cable ladder LGG 60-20S
    height
    60 mm
    width
    200 mm
    length
    6000 mm
    Line load power cable
    0.23 kN/m
    cross section area
    81 cm2
    Weight per storage unit
    15.840 kg
    More information
  • LGG 60-30S
    Cable ladder LGG 60-30S
    height
    60 mm
    width
    300 mm
    length
    6000 mm
    Line load power cable
    0.34 kN/m
    cross section area
    122 cm2
    Weight per storage unit
    17.200 kg
    More information
  • LGG 60-40S
    Cable ladder LGG 60-40S
    height
    60 mm
    width
    400 mm
    length
    6000 mm
    Line load power cable
    0.45 kN/m
    cross section area
    162 cm2
    Weight per storage unit
    18.570 kg
    More information
  • LGG 60-50S
    Cable ladder LGG 60-50S
    height
    60 mm
    width
    500 mm
    length
    6000 mm
    Line load power cable
    0.57 kN/m
    cross section area
    203 cm2
    Weight per storage unit
    19.940 kg
    More information
  • LGG 60-60S
    Cable ladder LGG 60-60S
    height
    60 mm
    width
    600 mm
    length
    6000 mm
    Line load power cable
    0.68 kN/m
    cross section area
    243 cm2
    Weight per storage unit
    21.310 kg
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

QLK

Line load power cable

A

cross section area

G

Weight per storage unit

  • LGG 60-20-3F
    cable ladder LGG 60-20-3F
    height
    60 mm
    width
    200 mm
    length
    3000 mm
    Line load power cable
    0.23 kN/m
    cross section area
    81 cm2
    Weight per storage unit
    8.480 kg
    More information
  • LGG 60-30-3F
    Cable ladder LGG 60-30-3F
    height
    60 mm
    width
    300 mm
    length
    3000 mm
    Line load power cable
    0.34 kN/m
    cross section area
    122 cm2
    Weight per storage unit
    9.210 kg
    More information
  • LGG 60-40-3F
    cable ladder LGG 60-40-3F
    height
    60 mm
    width
    400 mm
    length
    3000 mm
    Line load power cable
    0.45 kN/m
    cross section area
    162 cm2
    Weight per storage unit
    9.950 kg
    More information
  • LGG 60-50-3F
    cable ladder LGG 60-50-3F
    height
    60 mm
    width
    500 mm
    length
    3000 mm
    Line load power cable
    0.57 kN/m
    cross section area
    203 cm2
    Weight per storage unit
    10.680 kg
    More information
  • LGG 60-60-3F
    cable ladder LGG 60-60-3F
    height
    60 mm
    width
    600 mm
    length
    3000 mm
    Line load power cable
    0.68 kN/m
    cross section area
    243 cm2
    Weight per storage unit
    11.420 kg
    More information
  • LGG 60-20F
    cable ladder LGG 60-20F
    height
    60 mm
    width
    200 mm
    length
    6000 mm
    Line load power cable
    0.23 kN/m
    cross section area
    81 cm2
    Weight per storage unit
    16.950 kg
    More information
  • LGG 60-30F
    cable ladder LGG 60-30F
    height
    60 mm
    width
    300 mm
    length
    6000 mm
    Line load power cable
    0.34 kN/m
    cross section area
    122 cm2
    Weight per storage unit
    18.420 kg
    More information
  • LGG 60-40F
    cable ladder LGG 60-40F
    height
    60 mm
    width
    400 mm
    length
    6000 mm
    Line load power cable
    0.45 kN/m
    cross section area
    162 cm2
    Weight per storage unit
    19.890 kg
    More information
  • LGG 60-50F
    cable ladder LGG 60-50F
    height
    60 mm
    width
    500 mm
    length
    6000 mm
    Line load power cable
    0.57 kN/m
    cross section area
    203 cm2
    Weight per storage unit
    21.340 kg
    More information
  • LGG 60-60F
    cable ladder LGG 60-60F
    height
    60 mm
    width
    600 mm
    length
    6000 mm
    Line load power cable
    0.68 kN/m
    cross section area
    243 cm2
    Weight per storage unit
    22.800 kg
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

L

length

QLK

Line load power cable

A

cross section area

G

Weight per storage unit

  • LGG 60-20-3E
    cable ladder LGG 60-20-3E
    height
    60 mm
    width
    200 mm
    length
    3000 mm
    Line load power cable
    0.23 kN/m
    cross section area
    81 cm2
    Weight per storage unit
    7.897 kg
    More information
  • LGG 60-30-3E
    cable ladder LGG 60-30-3E
    height
    60 mm
    width
    300 mm
    length
    3000 mm
    Line load power cable
    0.34 kN/m
    cross section area
    122 cm2
    Weight per storage unit
    8.592 kg
    More information
  • LGG 60-40-3E
    cable ladder LGG 60-40-3E
    height
    60 mm
    width
    400 mm
    length
    3000 mm
    Line load power cable
    0.45 kN/m
    cross section area
    162 cm2
    Weight per storage unit
    9.277 kg
    More information
  • LGG 60-50-3E
    cable ladder LGG 60-50-3E
    height
    60 mm
    width
    500 mm
    length
    3000 mm
    Line load power cable
    0.57 kN/m
    cross section area
    203 cm2
    Weight per storage unit
    9.977 kg
    More information
  • LGG 60-60-3E
    cable ladder LGG 60-60-3E
    height
    60 mm
    width
    600 mm
    length
    3000 mm
    Line load power cable
    0.68 kN/m
    cross section area
    243 cm2
    Weight per storage unit
    10.632 kg
    More information
  • LGG 60-20E
    Cable ladder LGG 60-20E
    height
    60 mm
    width
    200 mm
    length
    6000 mm
    Line load power cable
    0.23 kN/m
    cross section area
    81 cm2
    Weight per storage unit
    15.950 kg
    More information
  • LGG 60-30E
    Cable ladder LGG 60-30E
    height
    60 mm
    width
    300 mm
    length
    6000 mm
    Line load power cable
    0.34 kN/m
    cross section area
    122 cm2
    Weight per storage unit
    17.330 kg
    More information
  • LGG 60-40E
    Cable ladder LGG 60-40E
    height
    60 mm
    width
    400 mm
    length
    6000 mm
    Line load power cable
    0.45 kN/m
    cross section area
    162 cm2
    Weight per storage unit
    18.710 kg
    More information
  • LGG 60-50E
    Cable ladder LGG 60-50E
    height
    60 mm
    width
    500 mm
    length
    6000 mm
    Line load power cable
    0.57 kN/m
    cross section area
    203 cm2
    Weight per storage unit
    20.090 kg
    More information
  • LGG 60-60E
    Cable ladder LGG 60-60E
    height
    60 mm
    width
    600 mm
    length
    6000 mm
    Line load power cable
    0.68 kN/m
    cross section area
    243 cm2
    Weight per storage unit
    21.470 kg
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

H

height

B

width

L

length

QLK

Line load power cable

A

cross section area

G

Weight per storage unit

  • LGG 60-20-3E4
    Welded cable ladders
    height
    60 mm
    width
    200 mm
    length
    3000 mm
    Line load power cable
    0.23 kN/m
    cross section area
    81 cm2
    Weight per storage unit
    7.970 kg
    More information
  • LGG 60-30-3E4
    Welded cable ladders
    height
    60 mm
    width
    300 mm
    length
    3000 mm
    Line load power cable
    0.34 kN/m
    cross section area
    122 cm2
    Weight per storage unit
    8.660 kg
    More information
  • LGG 60-40-3E4
    Welded cable ladders
    height
    60 mm
    width
    400 mm
    length
    3000 mm
    Line load power cable
    0.45 kN/m
    cross section area
    162 cm2
    Weight per storage unit
    9.340 kg
    More information
  • LGG 60-50-3E4
    Welded cable ladders
    height
    60 mm
    width
    500 mm
    length
    3000 mm
    Line load power cable
    0.57 kN/m
    cross section area
    203 cm2
    Weight per storage unit
    10.030 kg
    More information
  • LGG 60-60-3E4
    Welded cable ladders
    height
    60 mm
    width
    600 mm
    length
    3000 mm
    Line load power cable
    0.68 kN/m
    cross section area
    243 cm2
    Weight per storage unit
    10.720 kg
    More information
  • LGG 60-20E4
    Cable ladder LGG 60-20E4
    height
    60 mm
    width
    200 mm
    length
    6000 mm
    Line load power cable
    0.23 kN/m
    cross section area
    81 cm2
    Weight per storage unit
    15.950 kg
    More information
  • LGG 60-30E4
    Cable ladder
    height
    60 mm
    width
    300 mm
    length
    6000 mm
    Line load power cable
    0.34 kN/m
    cross section area
    122 cm2
    Weight per storage unit
    17.330 kg
    More information
  • LGG 60-40E4
    Cable ladder
    height
    60 mm
    width
    400 mm
    length
    6000 mm
    Line load power cable
    0.45 kN/m
    cross section area
    162 cm2
    Weight per storage unit
    18.710 kg
    More information
  • LGG 60-50E4
    Cable ladder
    height
    60 mm
    width
    500 mm
    length
    6000 mm
    Line load power cable
    0.57 kN/m
    cross section area
    203 cm2
    Weight per storage unit
    20.090 kg
    More information
  • LGG 60-60E4
    Cable ladder
    height
    60 mm
    width
    600 mm
    length
    6000 mm
    Line load power cable
    0.68 kN/m
    cross section area
    243 cm2
    Weight per storage unit
    21.470 kg
    More information

Details

  • No stepping
  • Electr. conductivity checked according to DIN EN 61537

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Accessories

Downloads

    Price list 2025 Building extension

    Valid from February 1st, 2025, updated version from 31/03/2025.

    • de

    • en

    Cable ladders - Assembly instructions

    Assembly Instructions

    • de

    • en

    Cable ladders - Technical information

    Technical information for LGG cable ladders

    • de

    • en

    Cable Ladder LGG, LGGS - Compact overview

    Compact overview of cable ladders and accessories: LGG, LGGS, LGTR, LGKAB, KLTL, LGIB, LGAB, LGA, LGVB, LGK, SL, LGV, LGBH, LGVHV, LGVV

    PDF, 1.51 MB

    • de

    Download

    Cable support systems - Complete catalogue

    Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.

    • de

    • en

    MPABS-2400428 - Fire protection statement

    DIN 4102-12
    Standardised load-bearing structure: Rising routes
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: ≤ 20 kg/m
    Fastening distance: ≤ 1.2 m
    Period of validity: 12.03.2030

    PDF, 1.09 MB

    • de

    Download

    Electrical conductivity (LGG 60)

    Certificate, according to DIN EN 61537 Pkt. 11.1

    • de

    • en

    GA-2024/011 - Expert statement

    DIN 4102-12
    Standard load-bearing structure: suspended risers 3.5m
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: ≤ 20 kg/m
    Fastening distance: ≤ 1.2 m
    Period of validity: 19.01.2029

    PDF, 1.76 MB

    • de

    Download

    VDE Certificate 329860-TL7-1 Cable management systems

    Certificate for Grid track G 50-30, G 50-40; Cable tray RG 60-30, RGS 60-30, R 60-30; Cable ladder LGG 60-30; Wide-span cable trays WPR 120-30; Wide-span cable ladders WLR 200-30, WPL 150-30

    • de

    • en

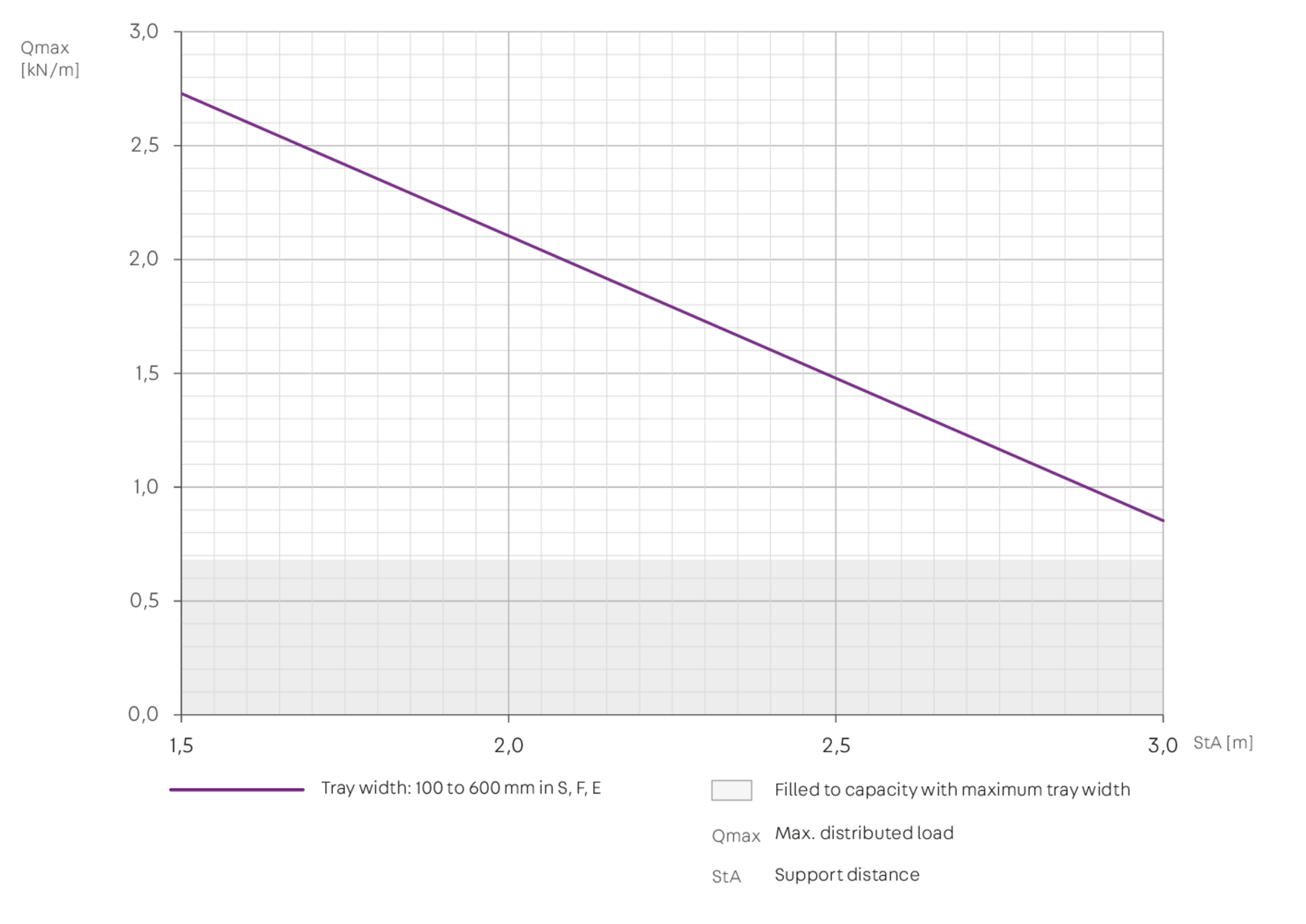

Load diagram

Included accessories

    Our finishing services

    Whether apartment blocks, office complexes or industrial plants: as your reliable partner for numerous applications and construction phases, we support you in every project with expert advice and support services. This allows you to concentrate fully on your core business.

    Consulting, planning, design

    Installation services

    Individualised solutions
