KLTSU

Universal rung support clamp fastening

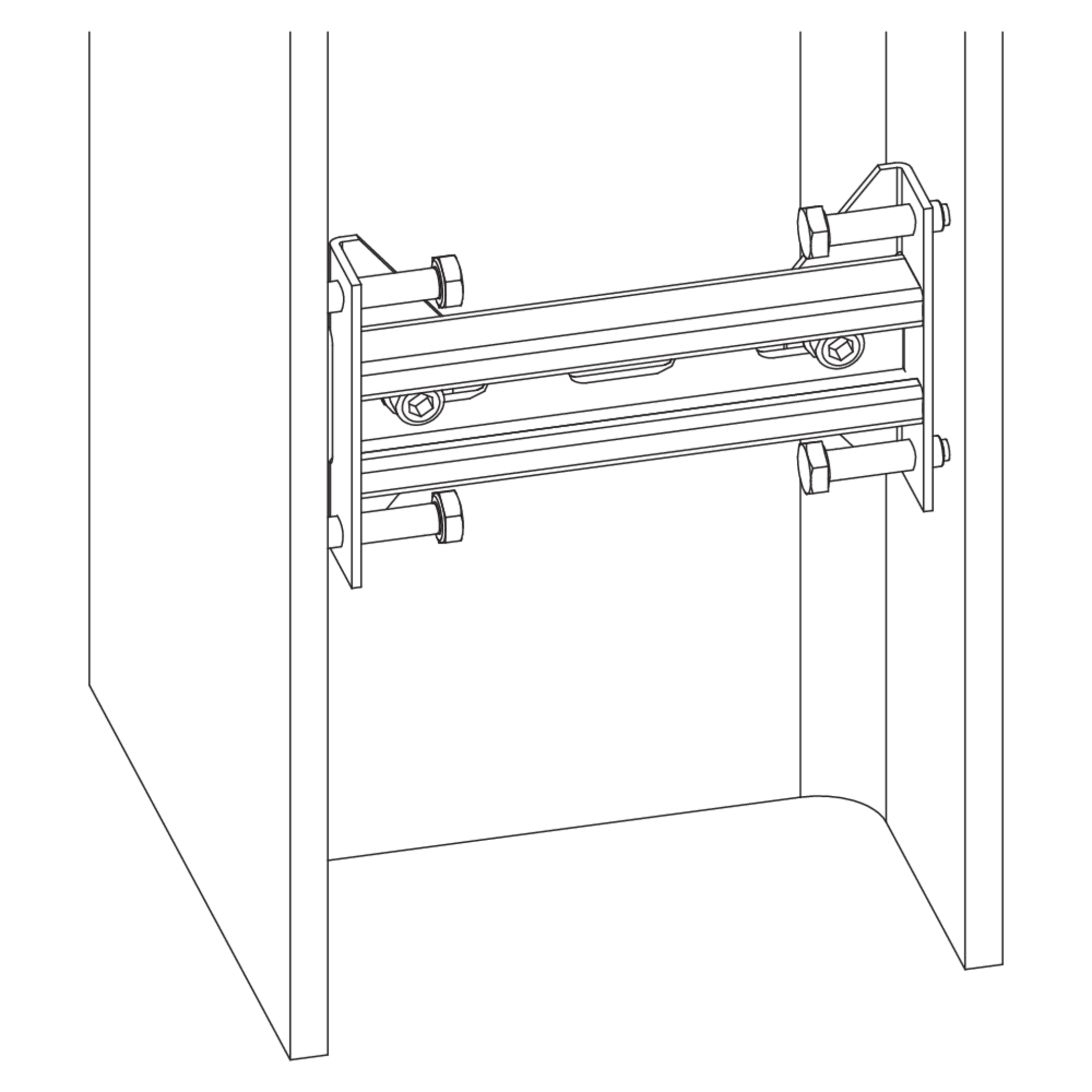

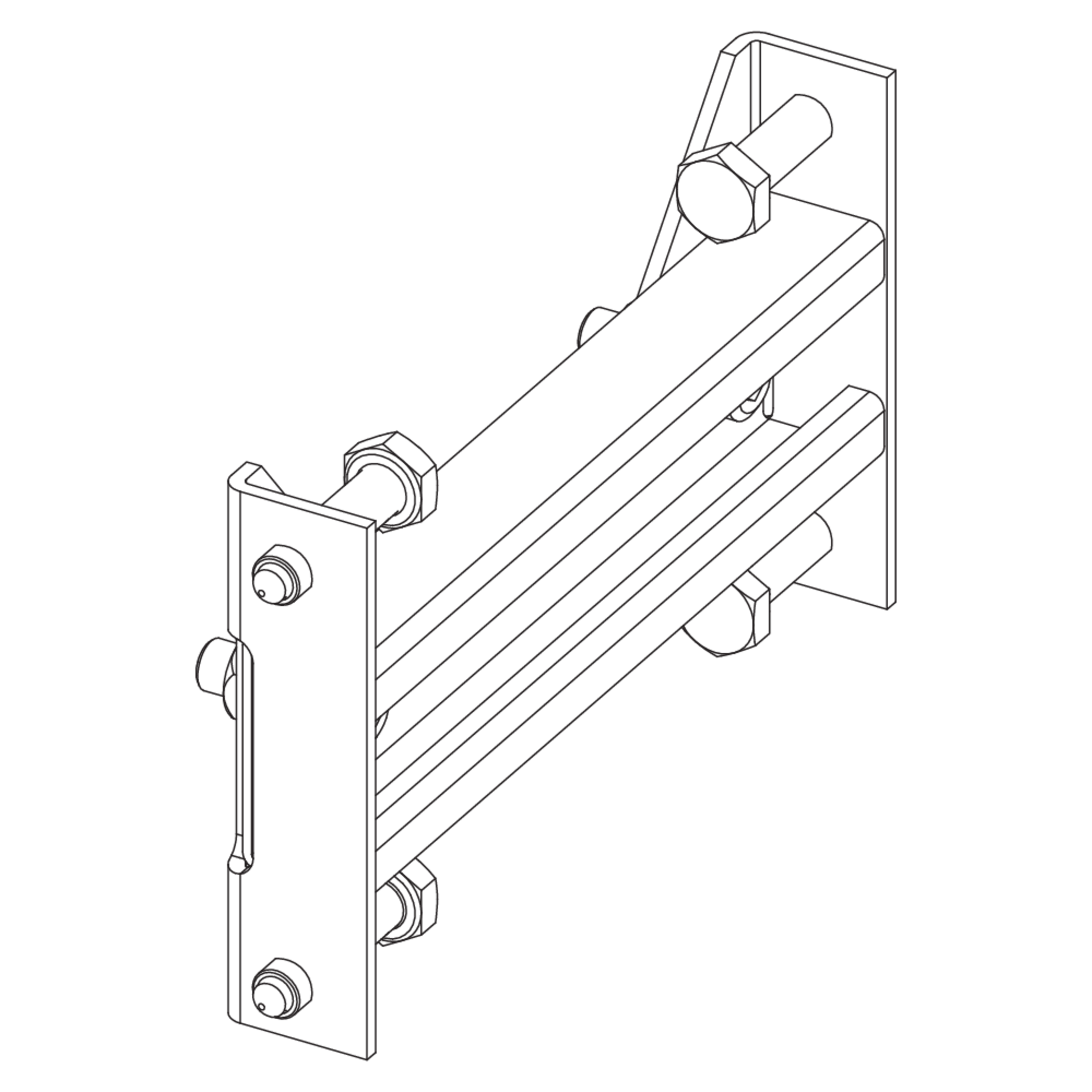

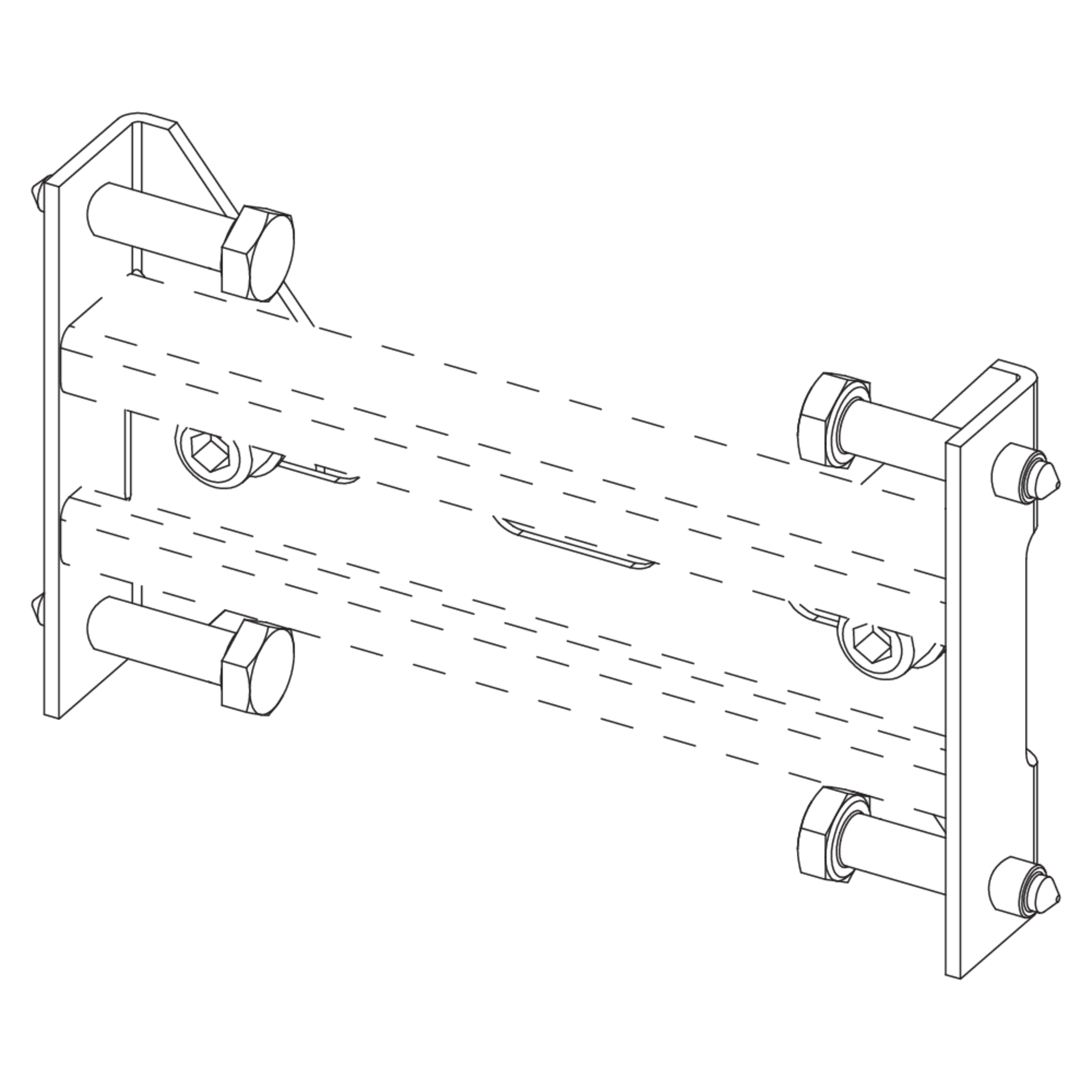

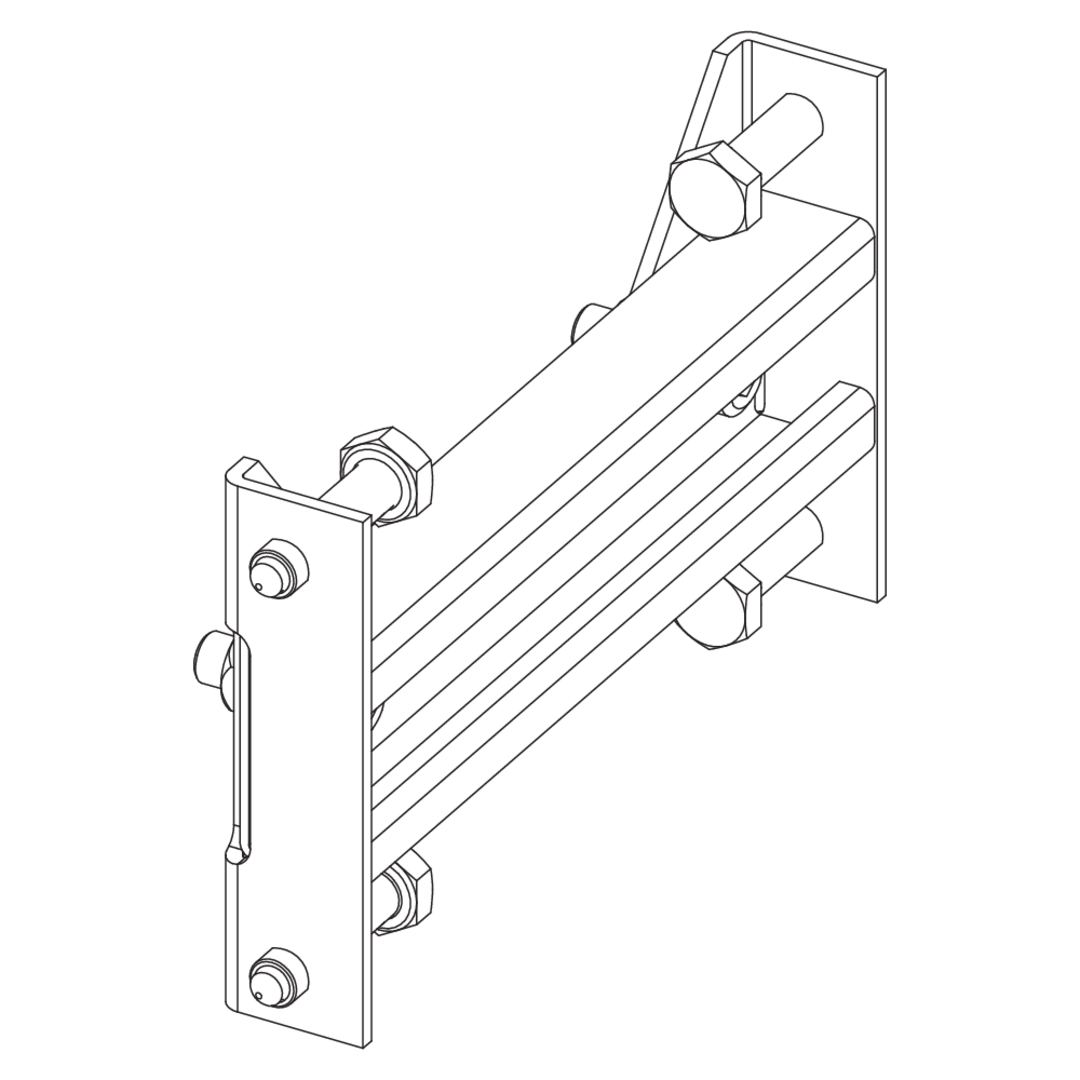

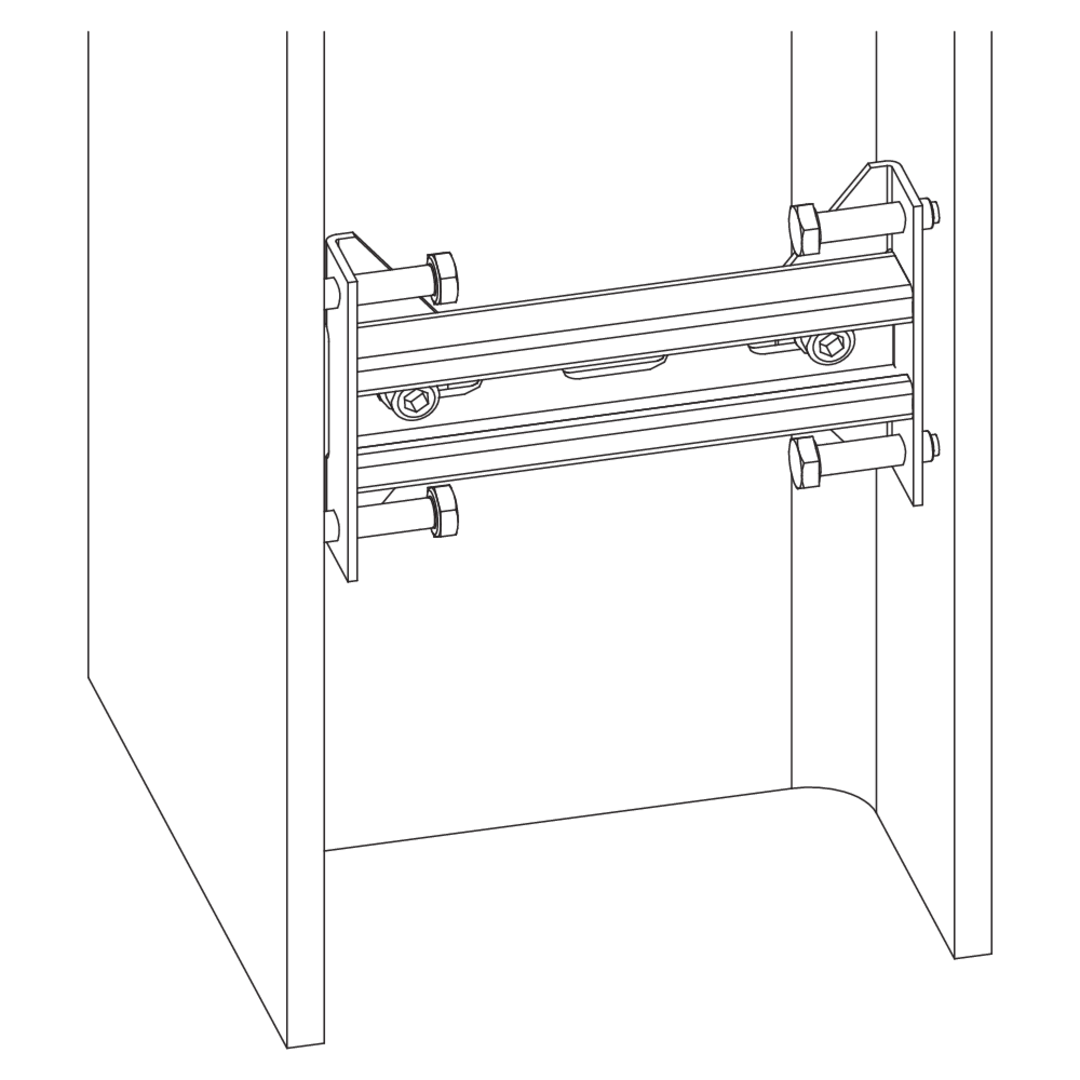

The KLTSU can be used to mount KHA 7, KHA 8 and KHB 7 rungs in flange supports.

Variants

Steel, pre-galvanised/Sendzimir process

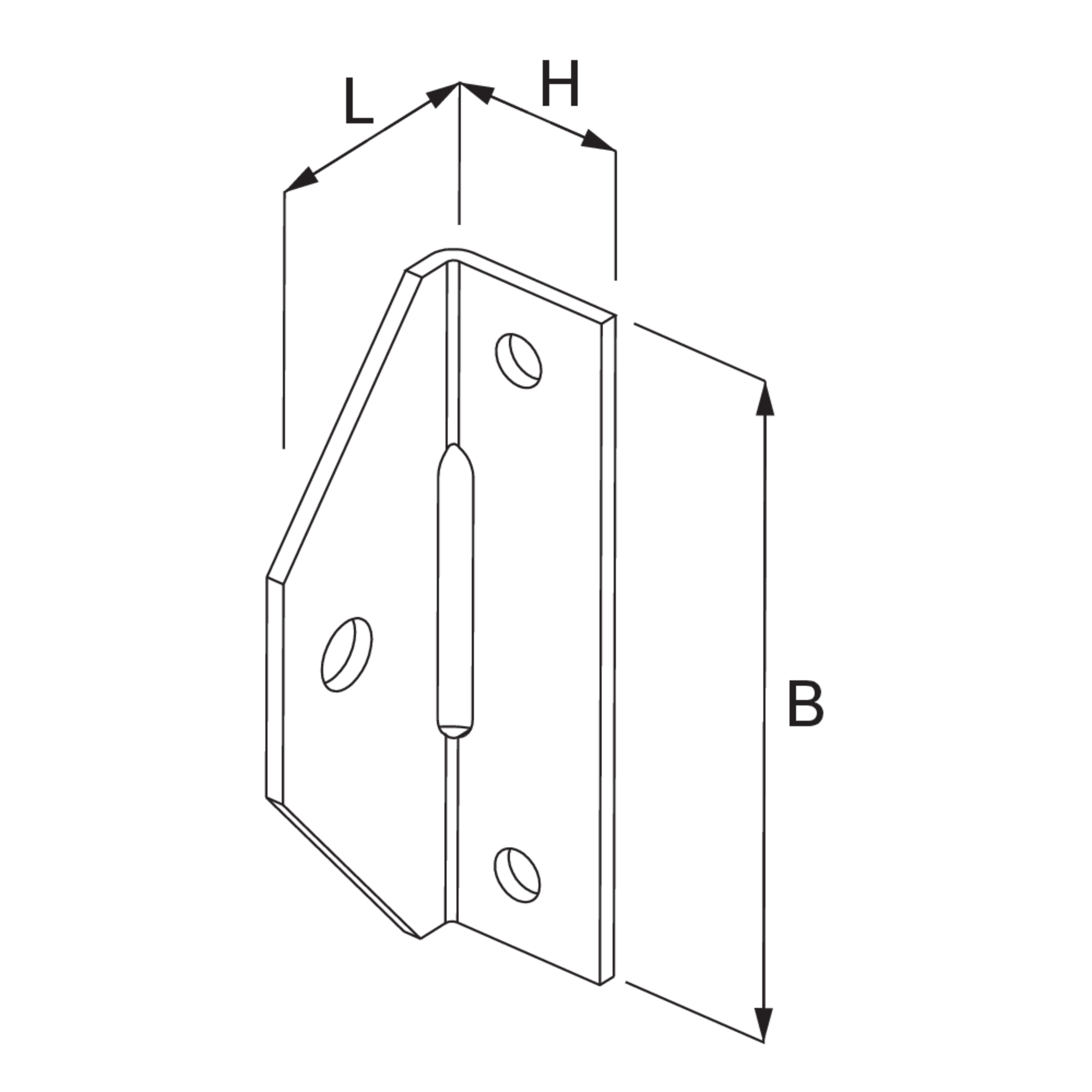

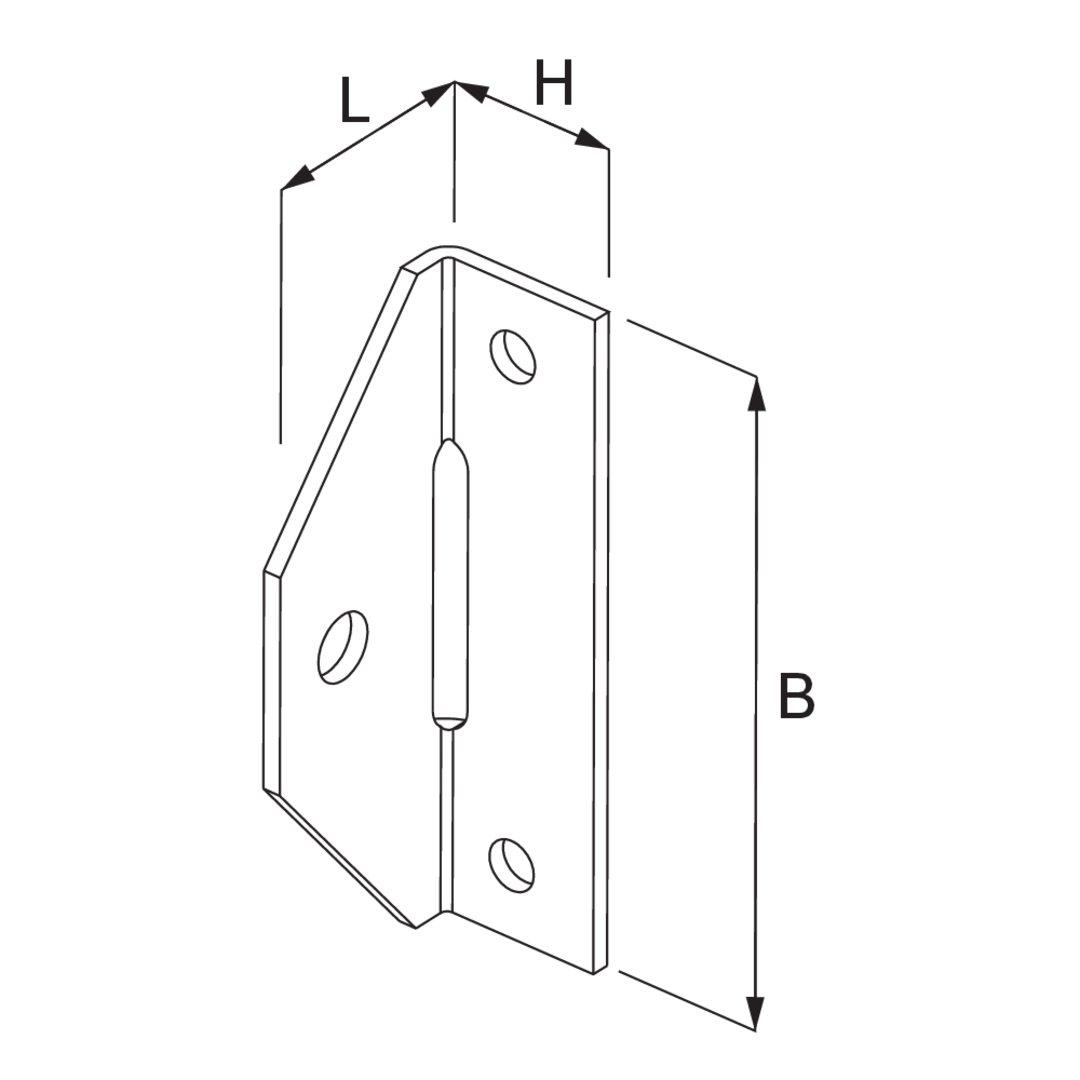

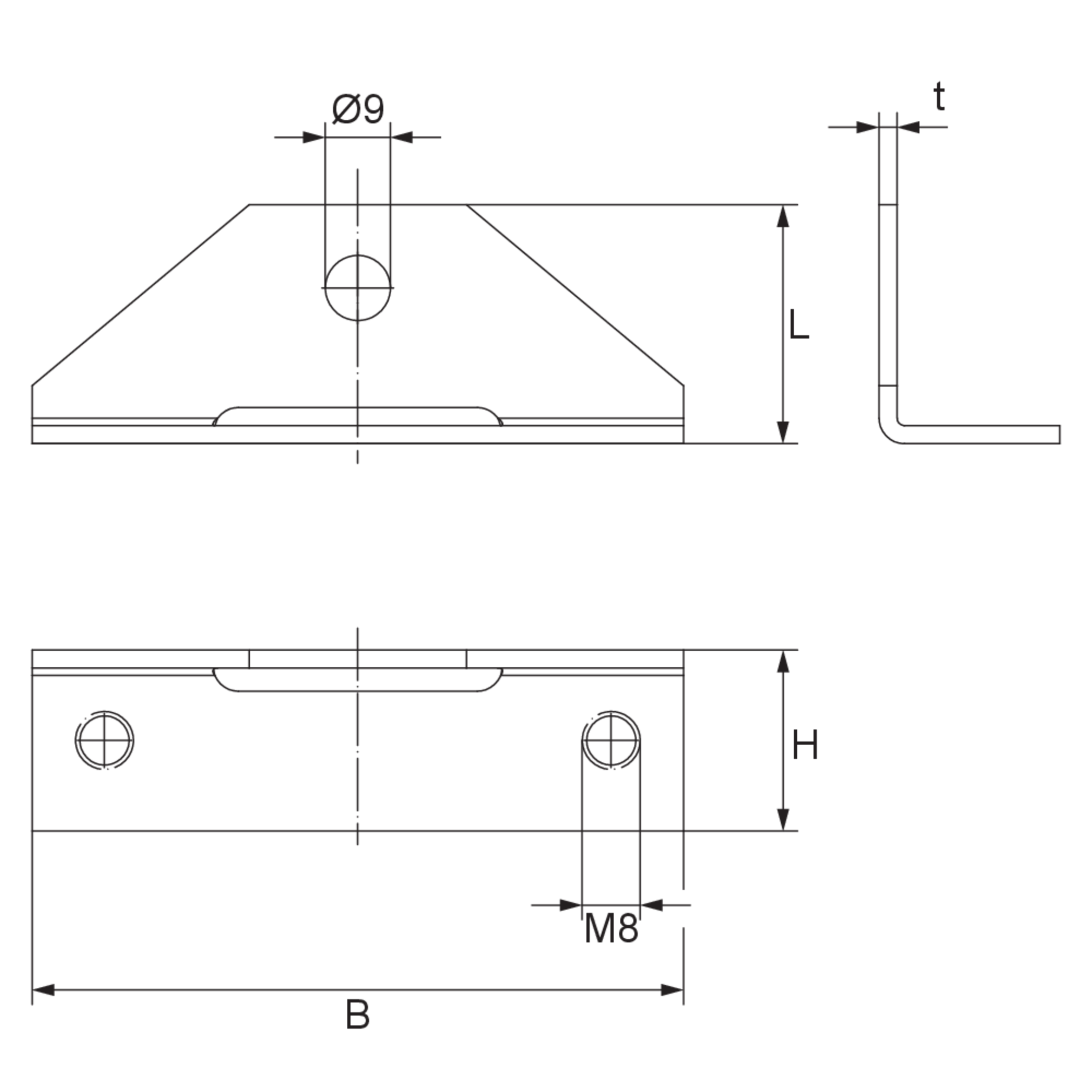

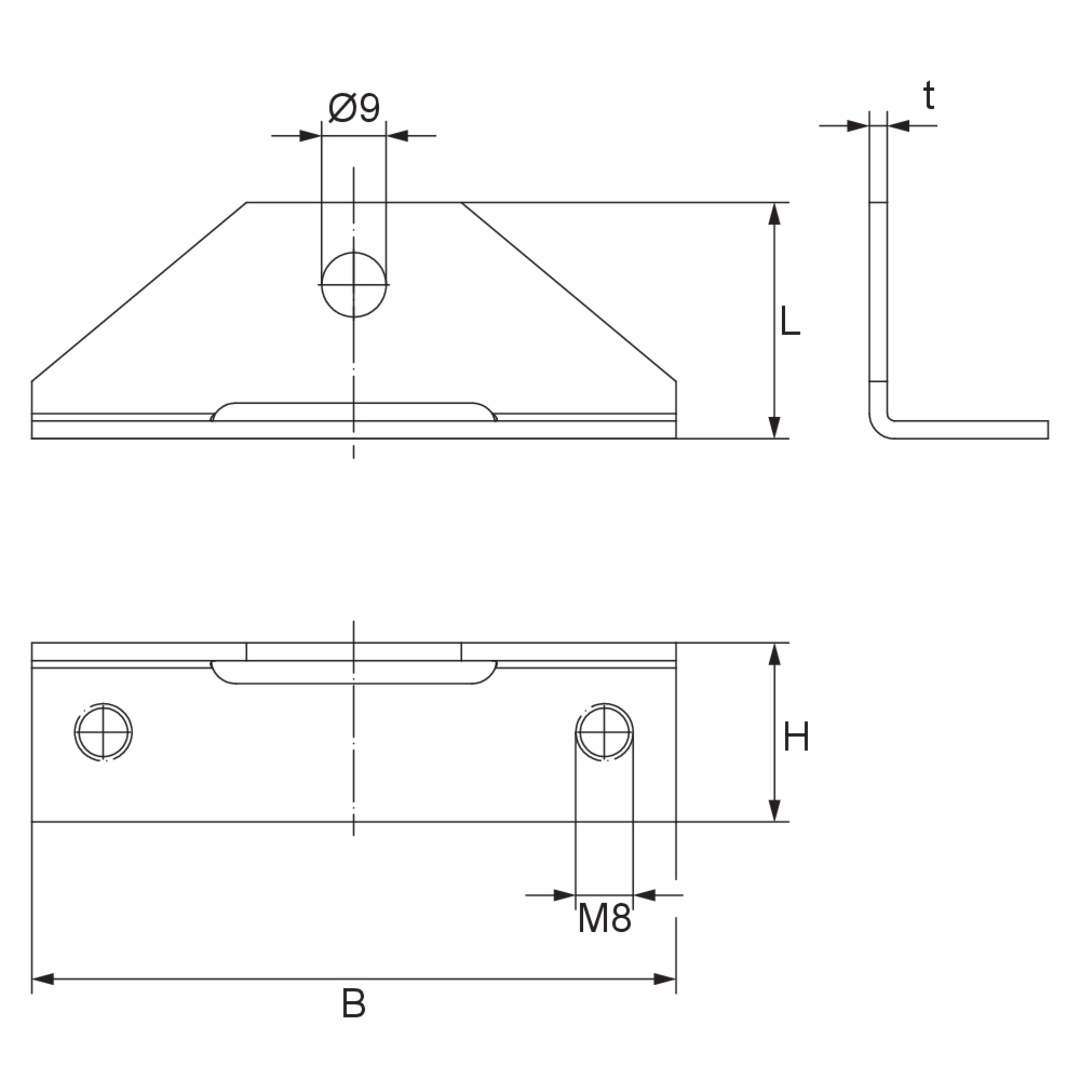

Article

H

height

B

width

L

length

G

Weight per storage unit

  • KLTSU S
    clamping bar
    height
    25 mm
    width
    90 mm
    length
    33 mm
    Weight per storage unit
    0.241 kg
    Included accessories

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

G

Weight per storage unit

  • KLTSU F
    clamping bar
    height
    25 mm
    width
    90 mm
    length
    33 mm
    Weight per storage unit
    0.253 kg
    Included accessories

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

L

length

G

Weight per storage unit

  • KLTSU E
    clamping bar
    height
    25 mm
    width
    90 mm
    length
    33 mm
    Weight per storage unit
    0.243 kg
    Included accessories

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

H

height

B

width

L

length

G

Weight per storage unit

  • KLTSU E4
    clamping bar
    height
    25 mm
    width
    90 mm
    length
    33 mm
    Weight per storage unit
    0.244 kg
    Included accessories
