KHA 8

40x22 mm profile rail, perforated

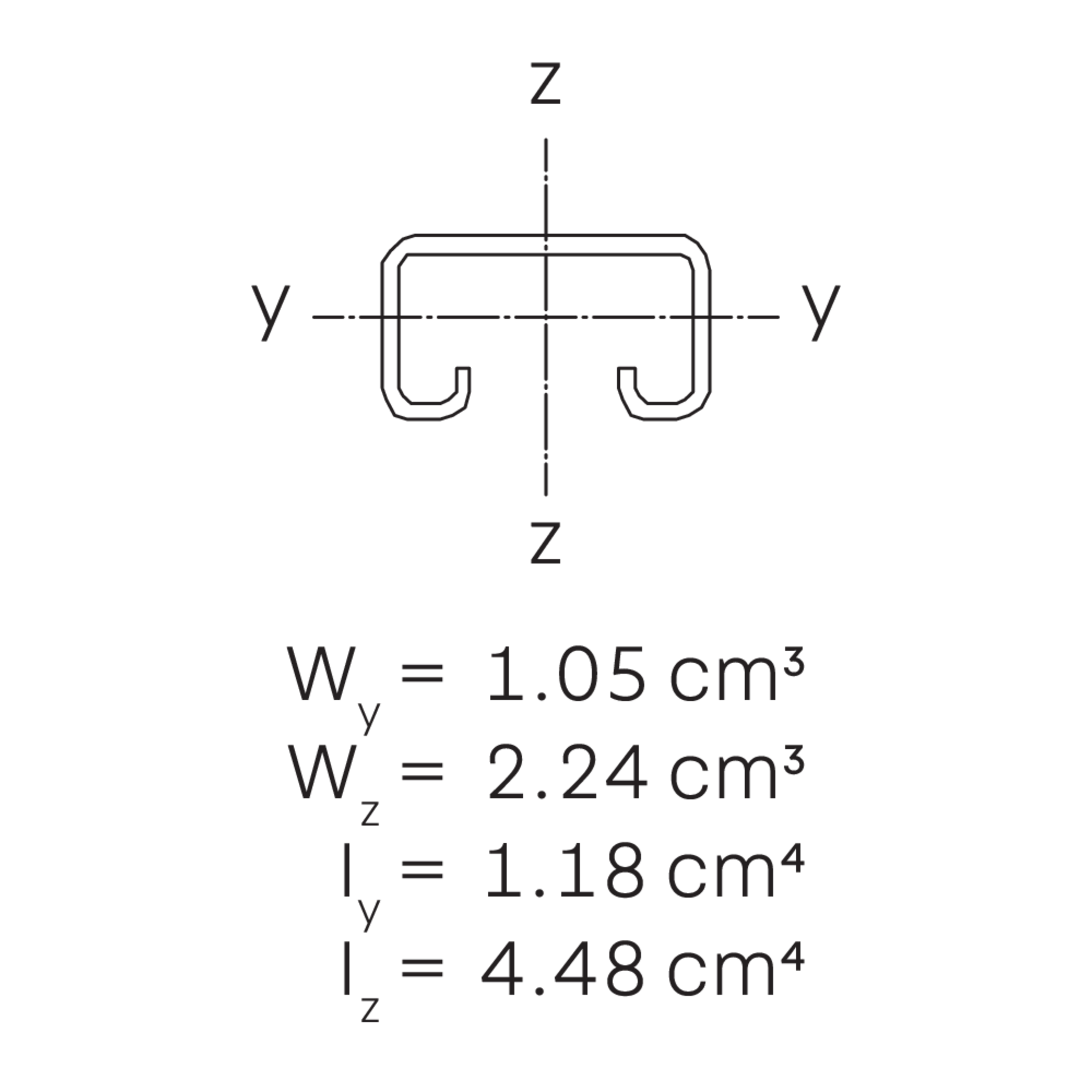

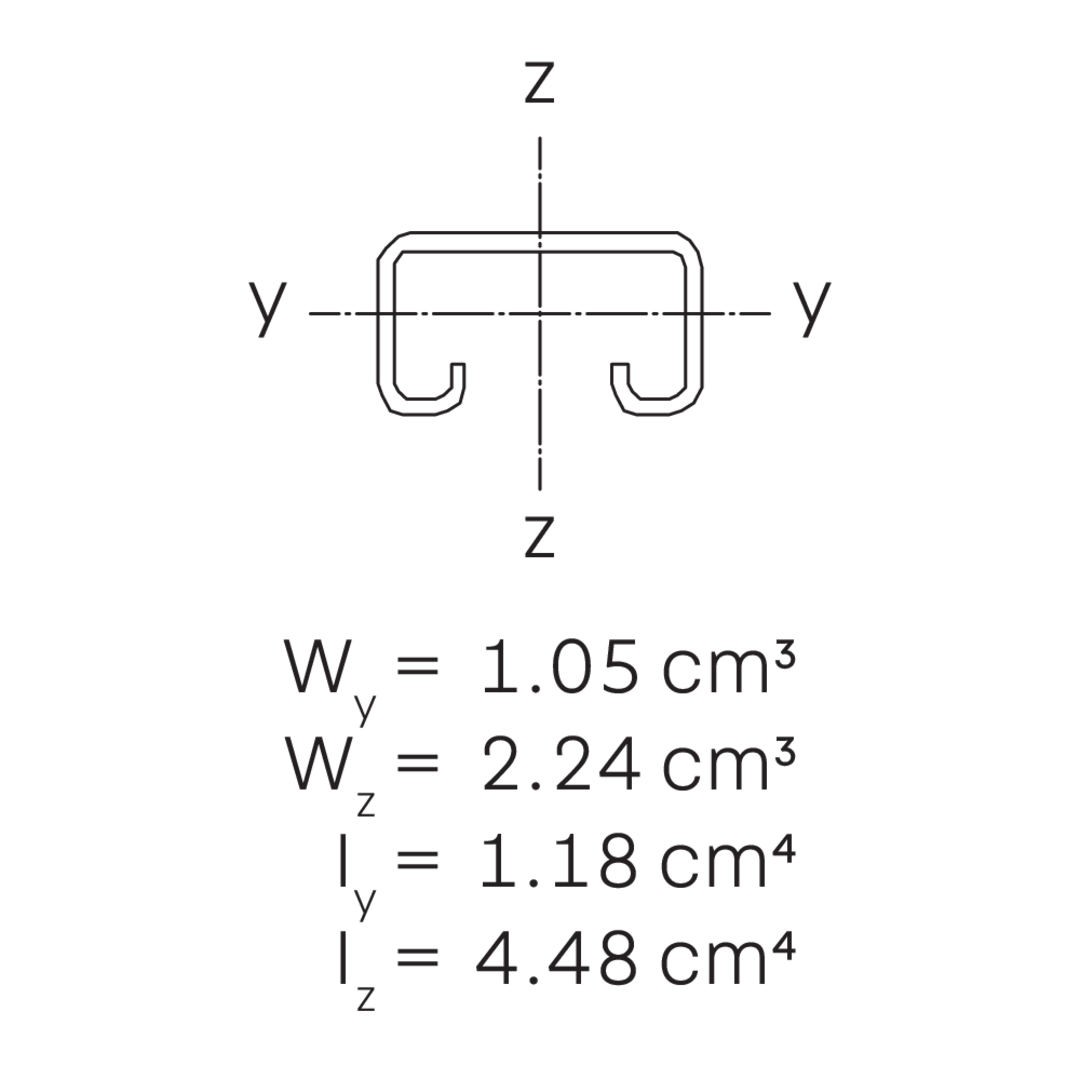

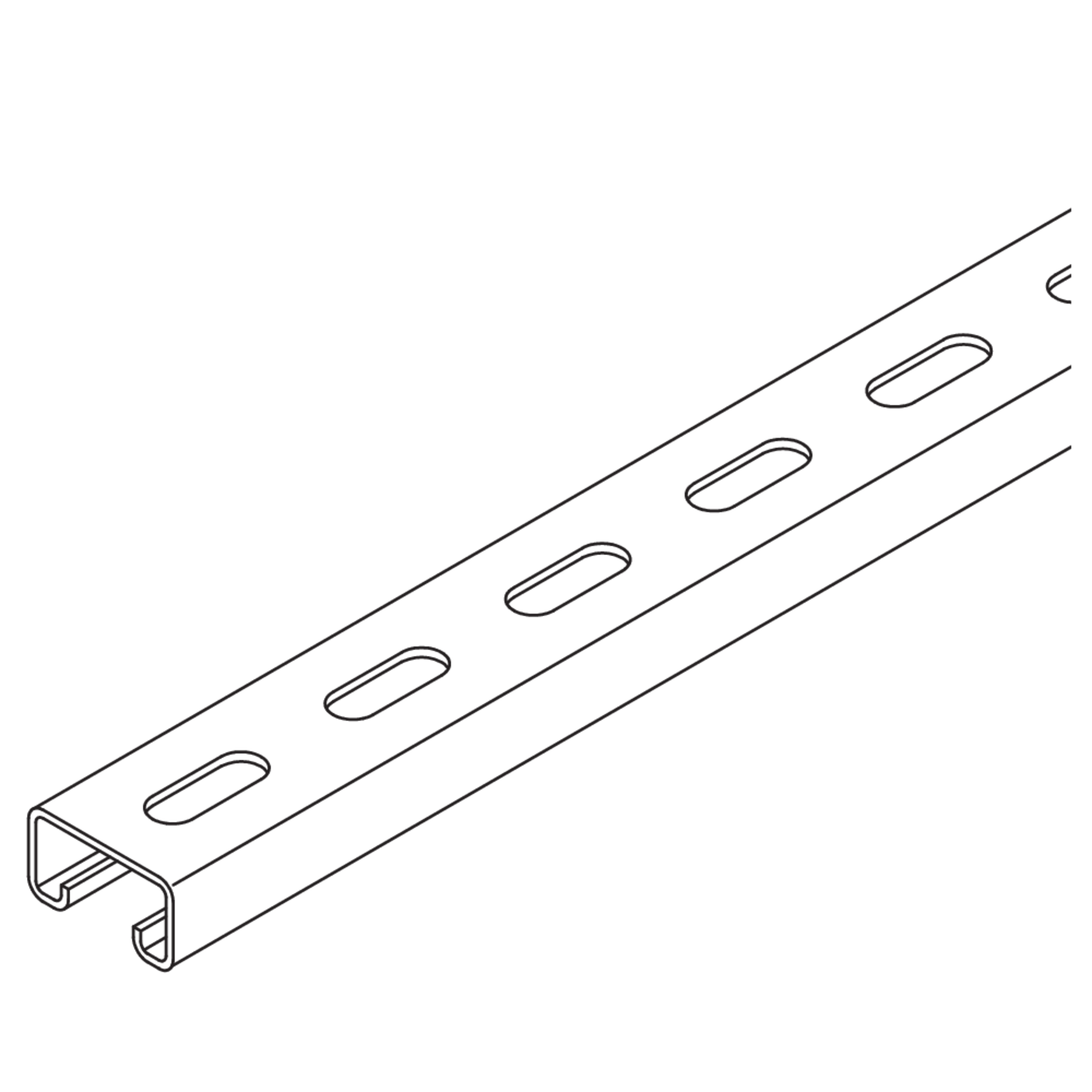

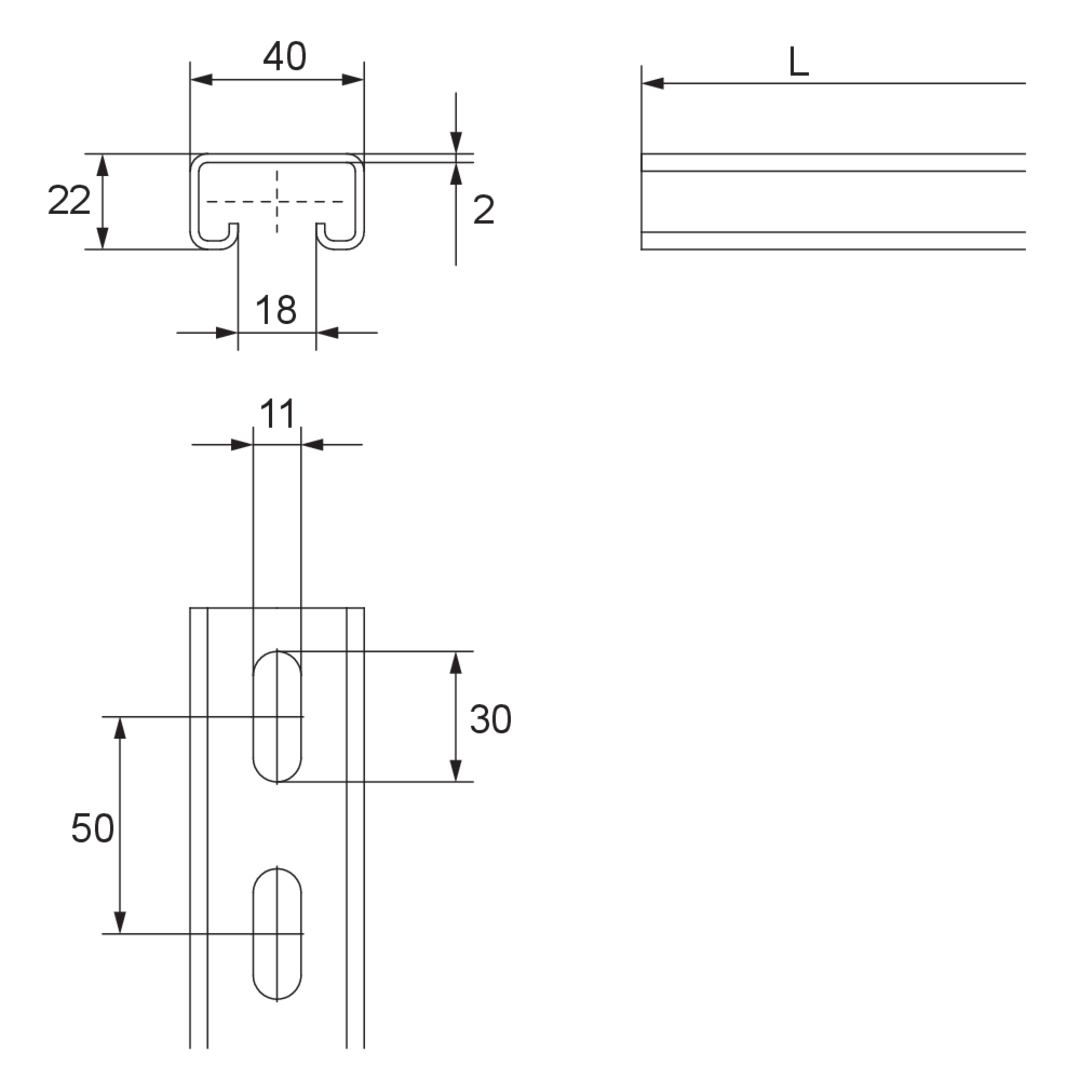

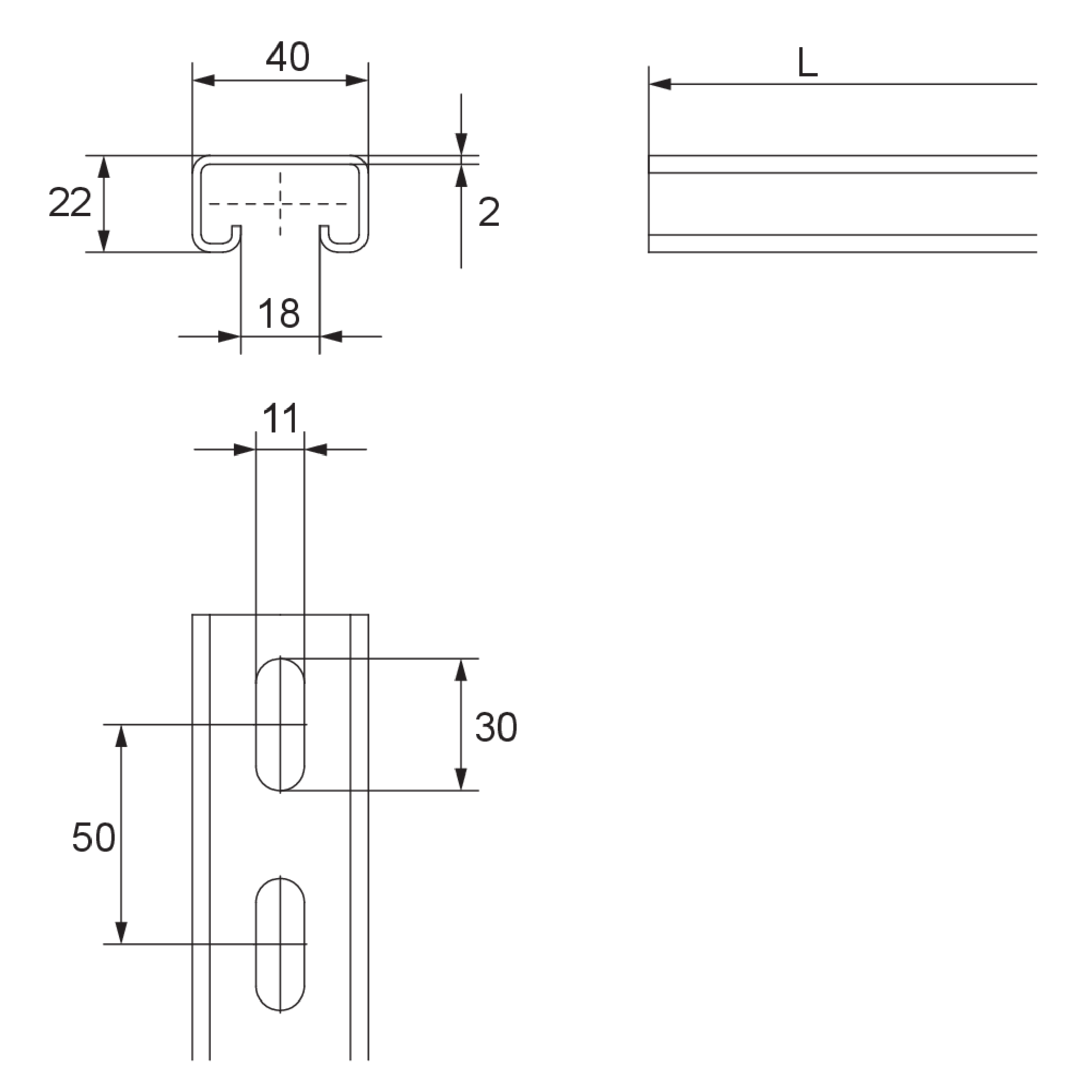

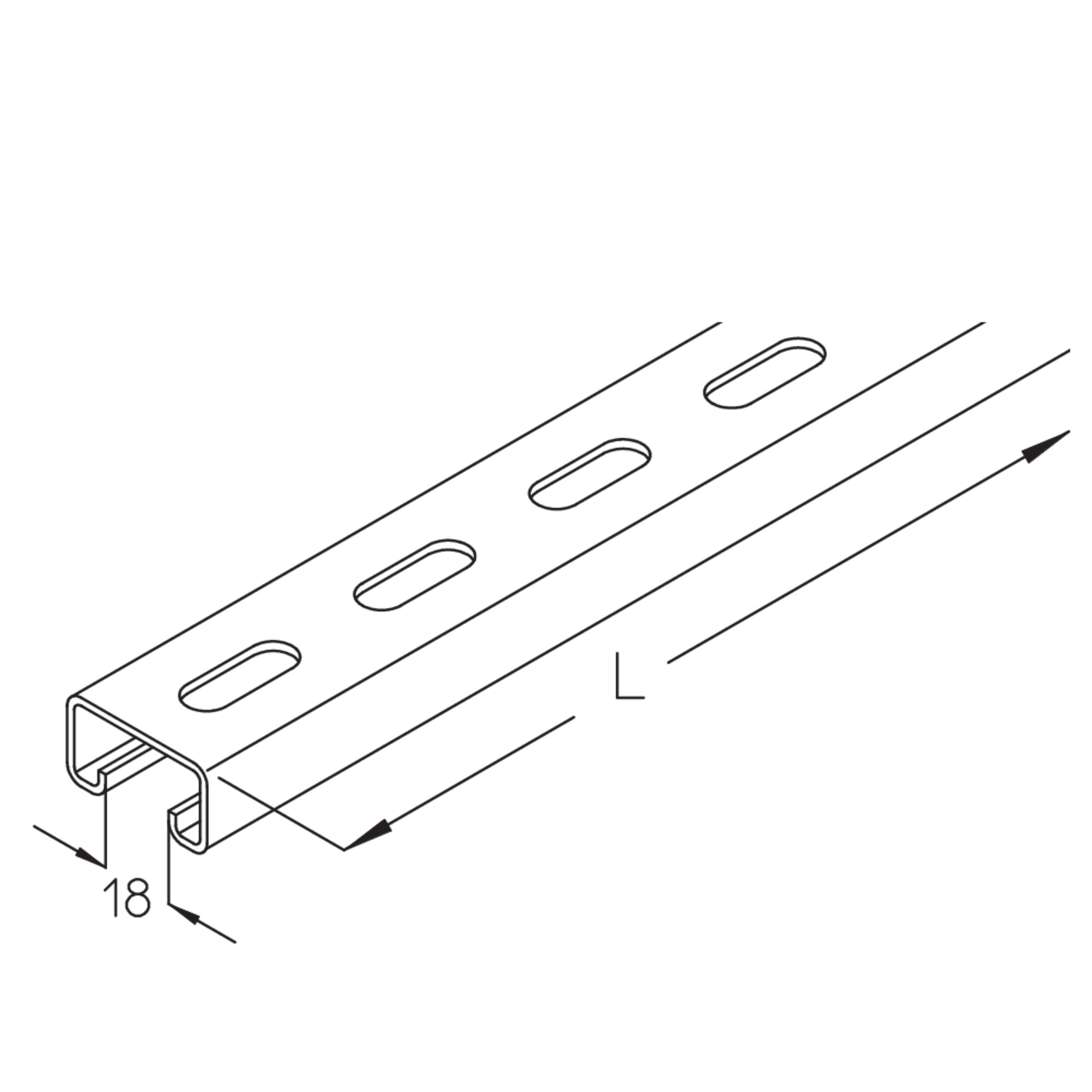

The profile rail KHA 8 consists of a C+ profile 40 x 22 mm with continuous perforation and a slot width of 18 mm (material thickness = 2 mm). We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications. It is available in lengths of 100 to 6000 mm.

Get in touch Download datasheet

Variants

Steel, hot-dip galvanised

Article

HP

profile height

BP

profile width

L

length

t

Material strength

G

Weight per storage unit
  • KHA 8-01F
    bracket support KHA 8-01F
    profile height
    22 mm
    profile width
    40 mm
    length
    100 mm
    Material strength
    2 mm
    Weight per storage unit
    0.154 kg
    More information
  • KHA 8-02F
    Bracket support KHA 8-02F
    profile height
    22 mm
    profile width
    40 mm
    length
    200 mm
    Material strength
    2 mm
    Weight per storage unit
    0.310 kg
    More information
  • KHA 8-03F
    Bracket support KHA 8-03F
    profile height
    22 mm
    profile width
    40 mm
    length
    300 mm
    Material strength
    2 mm
    Weight per storage unit
    0.460 kg
    More information
  • KHA 8-04F
    Bracket support KHA 8-04F
    profile height
    22 mm
    profile width
    40 mm
    length
    400 mm
    Material strength
    2 mm
    Weight per storage unit
    0.620 kg
    More information
  • KHA 8-05F
    Bracket support KHA 8-05F
    profile height
    22 mm
    profile width
    40 mm
    length
    500 mm
    Material strength
    2 mm
    Weight per storage unit
    0.770 kg
    More information
  • KHA 8-06F
    Bracket support KHA 8-06F
    profile height
    22 mm
    profile width
    40 mm
    length
    600 mm
    Material strength
    2 mm
    Weight per storage unit
    0.930 kg
    More information
  • KHA 8-07F
    Bracket support KHA 8-07F
    profile height
    22 mm
    profile width
    40 mm
    length
    700 mm
    Material strength
    2 mm
    Weight per storage unit
    1.080 kg
    More information
  • KHA 8-08F
    Bracket support KHA 8-08F
    profile height
    22 mm
    profile width
    40 mm
    length
    800 mm
    Material strength
    2 mm
    Weight per storage unit
    1.240 kg
    More information
  • KHA 8-09F
    Bracket support KHA 8-09F
    profile height
    22 mm
    profile width
    40 mm
    length
    900 mm
    Material strength
    2 mm
    Weight per storage unit
    1.390 kg
    More information
  • KHA 8-10F
    Bracket support KHA 8-10F
    profile height
    22 mm
    profile width
    40 mm
    length
    1000 mm
    Material strength
    2 mm
    Weight per storage unit
    1.540 kg
    More information
  • KHA 8-11F
    Bracket support KHA 8-11F
    profile height
    22 mm
    profile width
    40 mm
    length
    1100 mm
    Material strength
    2 mm
    Weight per storage unit
    1.700 kg
    More information
  • KHA 8-12F
    Bracket support KHA 8-12F
    profile height
    22 mm
    profile width
    40 mm
    length
    1200 mm
    Material strength
    2 mm
    Weight per storage unit
    1.850 kg
    More information
  • KHA 8-13F
    Bracket support KHA 8-13F
    profile height
    22 mm
    profile width
    40 mm
    length
    1300 mm
    Material strength
    2 mm
    Weight per storage unit
    2.010 kg
    More information
  • KHA 8-14F
    Bracket support KHA 8-14F
    profile height
    22 mm
    profile width
    40 mm
    length
    1400 mm
    Material strength
    2 mm
    Weight per storage unit
    2.160 kg
    More information
  • KHA 8-15F
    Bracket support KHA 8-15F
    profile height
    22 mm
    profile width
    40 mm
    length
    1500 mm
    Material strength
    2 mm
    Weight per storage unit
    2.320 kg
    More information
  • KHA 8-20F
    Bracket support KHA 8-20F
    profile height
    22 mm
    profile width
    40 mm
    length
    2000 mm
    Material strength
    2 mm
    Weight per storage unit
    3.090 kg
    More information
  • KHA 8-30F
    Bracket support KHA 8-30F
    profile height
    22 mm
    profile width
    40 mm
    length
    3000 mm
    Material strength
    2 mm
    Weight per storage unit
    4.630 kg
    More information
  • KHA 8-60F
    Bracket support KHA 8-60F
    profile height
    22 mm
    profile width
    40 mm
    length
    6000 mm
    Material strength
    2 mm
    Weight per storage unit
    8.270 kg
    More information

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

Article

HP

profile height

BP

profile width

L

length

t

Material strength

G

Weight per storage unit
  • KHA 8-02E4
    Perforated profile channel 40/22x20
    profile height
    22 mm
    profile width
    40 mm
    length
    200 mm
    Material strength
    2 mm
    Weight per storage unit
    0.290 kg
    More information
  • KHA 8-03E4
    Perforated profile channel 40/22x20
    profile height
    22 mm
    profile width
    40 mm
    length
    300 mm
    Material strength
    2 mm
    Weight per storage unit
    0.440 kg
    More information
  • KHA 8-04E4
    Perforated profile channel 40/22x20
    profile height
    22 mm
    profile width
    40 mm
    length
    400 mm
    Material strength
    2 mm
    Weight per storage unit
    0.590 kg
    More information
  • KHA 8-05E4
    Perforated profile channel 40/22x20
    profile height
    22 mm
    profile width
    40 mm
    length
    500 mm
    Material strength
    2 mm
    Weight per storage unit
    0.740 kg
    More information
  • KHA 8-06E4
    Perforated profile channel 40/22x20
    profile height
    22 mm
    profile width
    40 mm
    length
    600 mm
    Material strength
    2 mm
    Weight per storage unit
    0.880 kg
    More information
  • KHA 8-07E4
    Perforated profile channel 40/22x20
    profile height
    22 mm
    profile width
    40 mm
    length
    700 mm
    Material strength
    2 mm
    Weight per storage unit
    1.030 kg
    More information
  • KHA 8-08E4
    Perforated profile channel 40/22x20
    profile height
    22 mm
    profile width
    40 mm
    length
    800 mm
    Material strength
    2 mm
    Weight per storage unit
    1.180 kg
    More information
  • KHA 8-09E4
    Perforated profile channel 40/22x20
    profile height
    22 mm
    profile width
    40 mm
    length
    900 mm
    Material strength
    2 mm
    Weight per storage unit
    1.320 kg
    More information
  • KHA 8-10E4
    Perforated profile channel 40/22x20
    profile height
    22 mm
    profile width
    40 mm
    length
    1000 mm
    Material strength
    2 mm
    Weight per storage unit
    1.470 kg
    More information
  • KHA 8-11E4
    Perforated profile channel 40/22x20
    profile height
    22 mm
    profile width
    40 mm
    length
    1100 mm
    Material strength
    2 mm
    Weight per storage unit
    1.620 kg
    More information
  • KHA 8-12E4
    Perforated profile channel 40/22x20
    profile height
    22 mm
    profile width
    40 mm
    length
    1200 mm
    Material strength
    2 mm
    Weight per storage unit
    1.760 kg
    More information
  • KHA 8-30E4
    profile height
    22 mm
    profile width
    40 mm
    length
    3000 mm
    Material strength
    2 mm
    Weight per storage unit
    4.410 kg
    More information
  • KHA 8-60E4
    profile height
    22 mm
    profile width
    40 mm
    length
    6000 mm
    Material strength
    2 mm
    Weight per storage unit
    8.820 kg
    More information

steel, galvanic zinc plated

Article

HP

profile height

BP

profile width

L

length

t

Material strength

G

Weight per storage unit
  • KHA 8-03GV
    Bracket support KHA 8-03F
    profile height
    22 mm
    profile width
    40 mm
    length
    300 mm
    Material strength
    2 mm
    Weight per storage unit
    0.433 kg
    More information
  • KHA 8-06GV
    Bracket support KHA 8-06F
    profile height
    22 mm
    profile width
    40 mm
    length
    600 mm
    Material strength
    2 mm
    Weight per storage unit
    0.866 kg
    More information
  • KHA 8-30GV
    Bracket support KHA 8-30F
    profile height
    22 mm
    profile width
    40 mm
    length
    3000 mm
    Material strength
    2 mm
    Weight per storage unit
    4.330 kg
    More information
