KHB 7

KHB 7

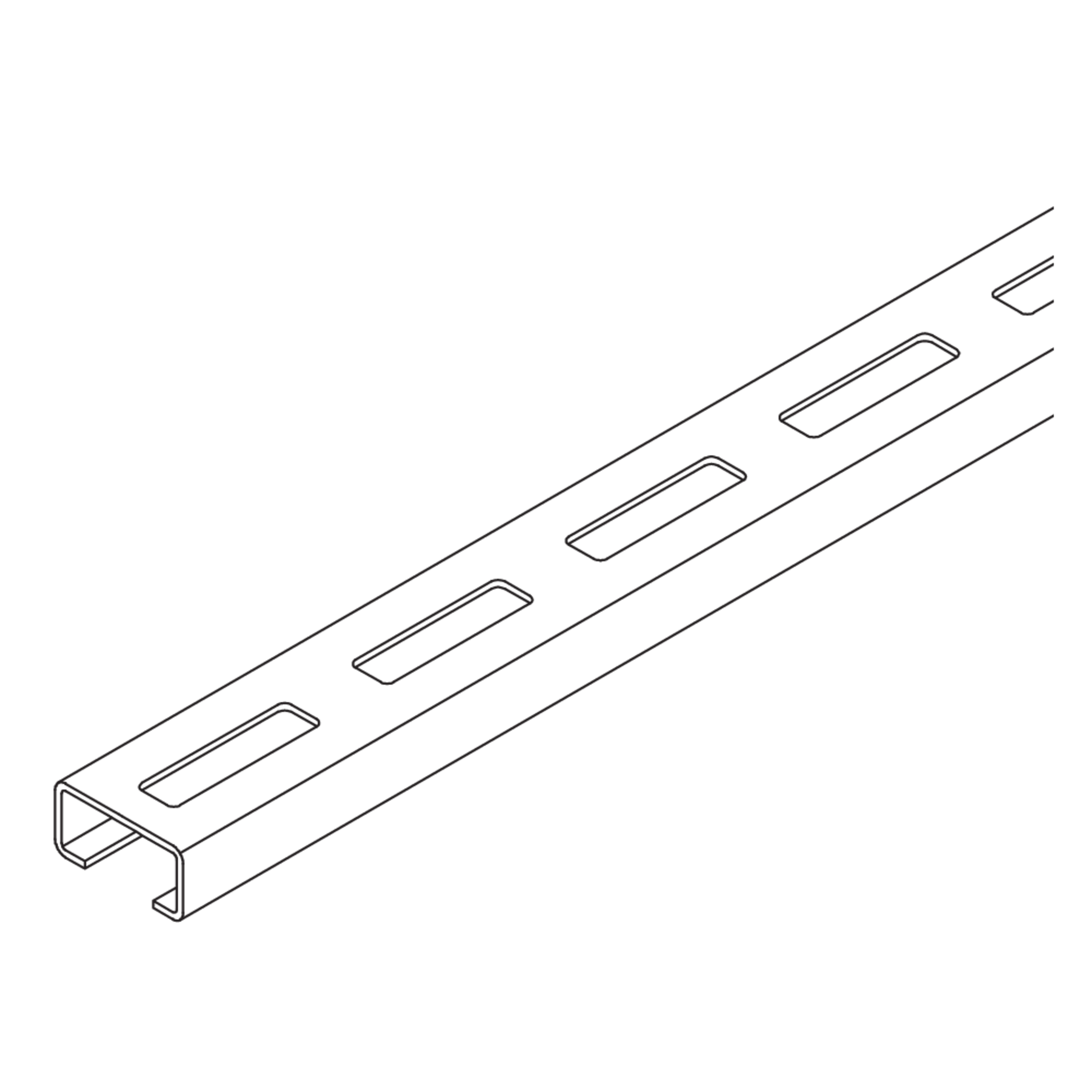

30x15 mm profile rail, perforated

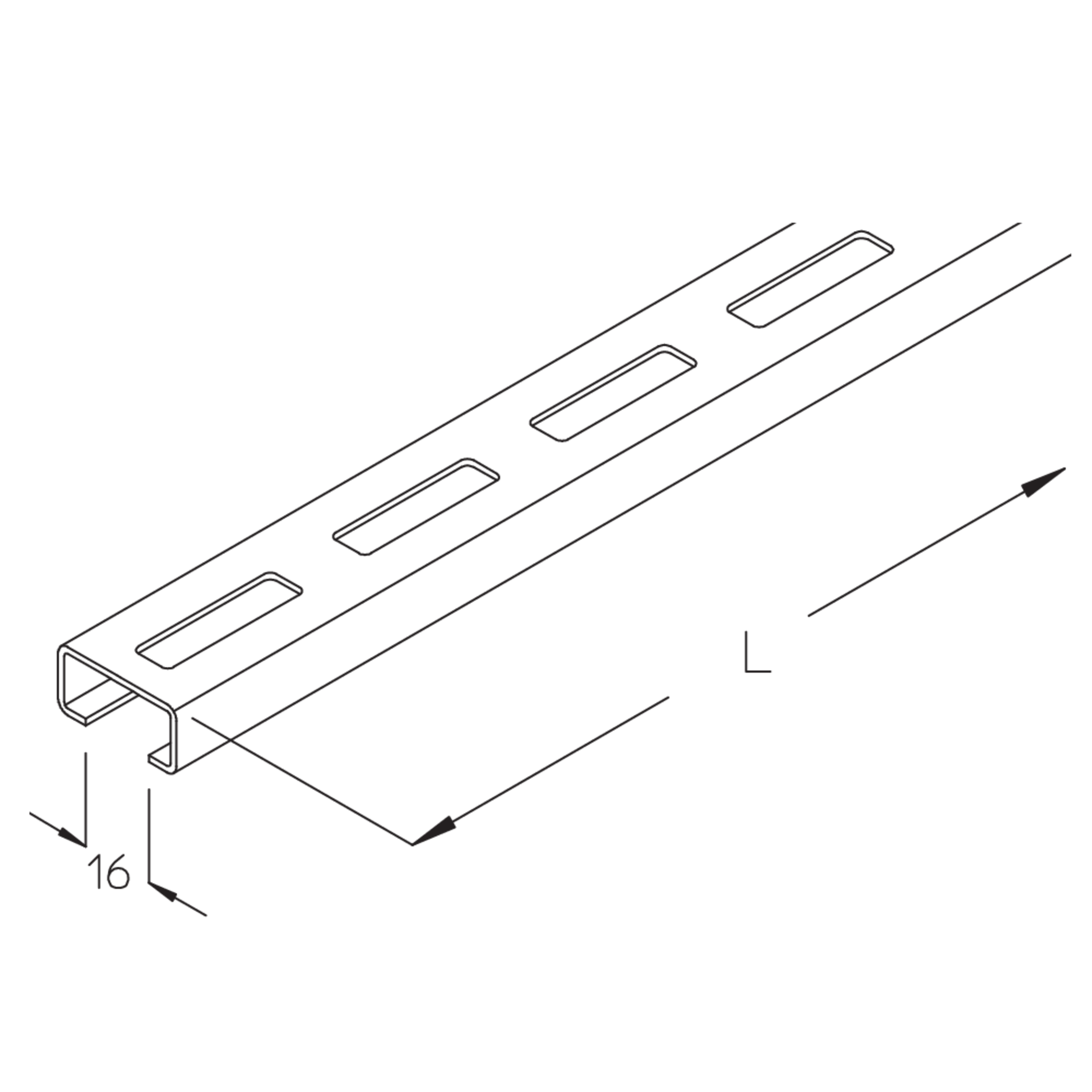

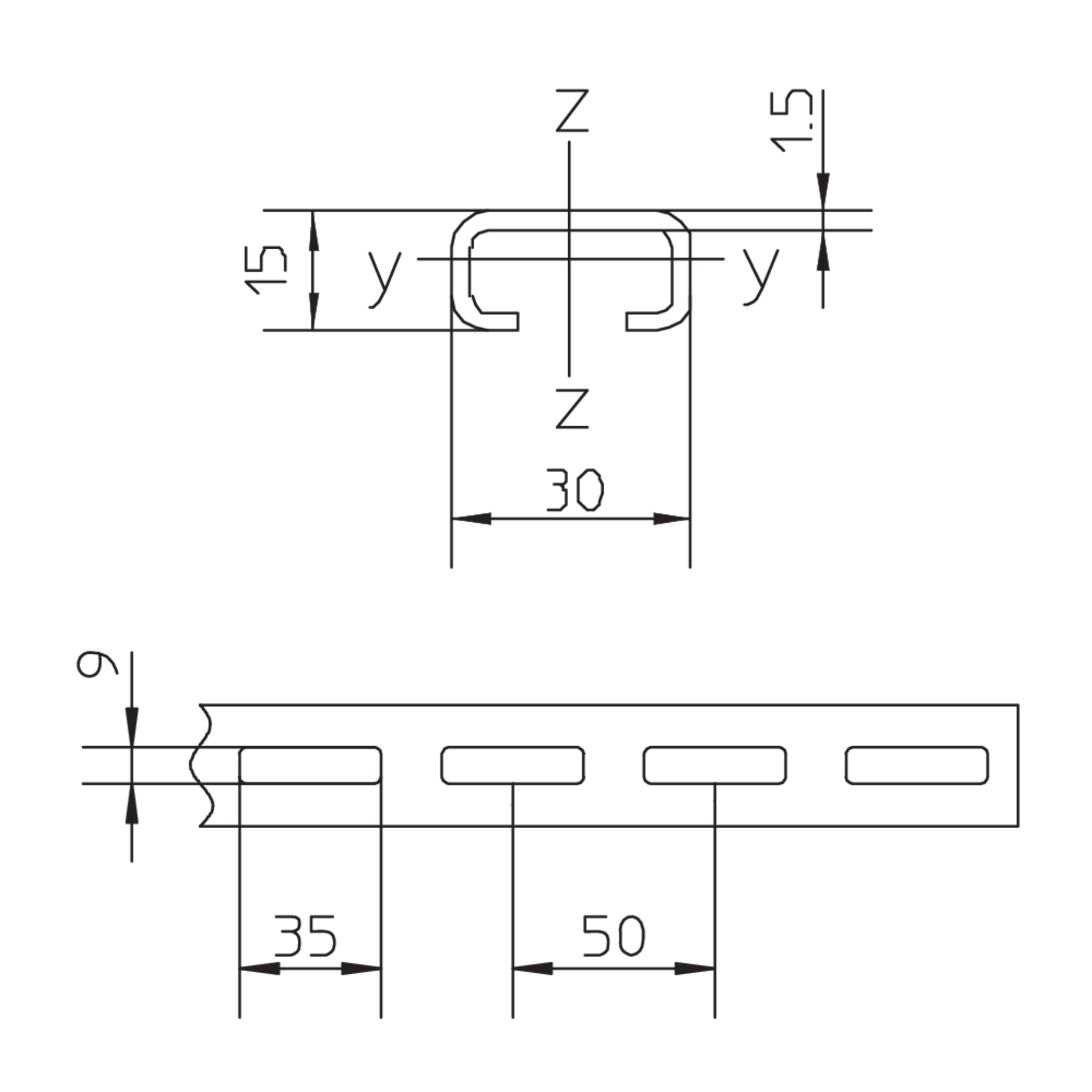

The perforated profile rail KHB 7 consists of a C profile 30 x 15 mm with a slot width of 16 mm (material thickness = 1.5 mm). We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications. It is available in lengths of 2000, 3000 or 6000 mm.

Get in touch Download datasheet

Variants

steel, continously hot galvanized/Sendzimir process

KHB 7-02S

15 mm

30 mm

200 mm

1.50 mm

0.134 kg

More information
KHB 7-03S
C-rail, perforated, 30/15x1,5

15 mm

30 mm

300 mm

1.50 mm

0.200 kg

More information
KHB 7-04S

15 mm

30 mm

400 mm

1.50 mm

0.267 kg

More information
KHB 7-05S

15 mm

30 mm

500 mm

1.50 mm

0.334 kg

More information
KHB 7-06S

15 mm

30 mm

600 mm

1.50 mm

0.401 kg

More information
KHB 7-07S

15 mm

30 mm

700 mm

1.50 mm

0.467 kg

More information
KHB 7-08S

15 mm

30 mm

800 mm

1.50 mm

0.534 kg

More information
KHB 7-09S

15 mm

30 mm

900 mm

1.50 mm

0.601 kg

More information
KHB 7-10S

15 mm

30 mm

1000 mm

1.50 mm

0.668 kg

More information
KHB 7-30S
Bracket support KHB 7-30S

15 mm

30 mm

3000 mm

1.50 mm

2.003 kg

More information
KHB 7-60S
Bracket support KHB 7-60S

15 mm

30 mm

6000 mm

1.50 mm

4.006 kg

More information

steel, batch/hot-dip galvanized

KHB 7-02F
C-rail, perforated, 30/15x1,5

15 mm

30 mm

200 mm

1.50 mm

0.143 kg

More information
KHB 7-03F
C-rail, perforated, 30/15x1,5

15 mm

30 mm

300 mm

1.50 mm

0.214 kg

More information
KHB 7-04F
C-rail, perforated, 30/15x1,5

15 mm

30 mm

400 mm

1.50 mm

0.286 kg

More information
KHB 7-05F
C-rail, perforated, 30/15x1,5

15 mm

30 mm

500 mm

1.50 mm

0.357 kg

More information
KHB 7-06F
C-rail, perforated, 30/15x1,5

15 mm

30 mm

600 mm

1.50 mm

0.429 kg

More information
KHB 7-07F

15 mm

30 mm

700 mm

1.50 mm

0.500 kg

More information
KHB 7-08F
C-rail, perforated, 30/15x1,5

15 mm

30 mm

800 mm

1.50 mm

0.572 kg

More information
KHB 7-09F

15 mm

30 mm

900 mm

1.50 mm

0.643 kg

More information
KHB 7-10F

15 mm

30 mm

1000 mm

1.50 mm

0.714 kg

More information
KHB 7-30F
Bracket support KHB 7-30F

15 mm

30 mm

3000 mm

1.50 mm

2.143 kg

More information
KHB 7-60F
Bracket support KHB 7-60F

15 mm

30 mm

6000 mm

1.50 mm

4.286 kg

More information

Stainless steel, according to ASTM 304 / BS 304 S 3

KHB 7-02E

15 mm

30 mm

200 mm

1.50 mm

0.134 kg

More information
KHB 7-03E
C-rail, perforated, 30/15x1,5

15 mm

30 mm

300 mm

1.50 mm

0.202 kg

More information
KHB 7-04E

15 mm

30 mm

400 mm

1.50 mm

0.269 kg

More information
KHB 7-05E

15 mm

30 mm

500 mm

1.50 mm

0.336 kg

More information
KHB 7-06E

15 mm

30 mm

600 mm

1.50 mm

0.403 kg

More information
KHB 7-20E
Bracket support KHB 7-20E

15 mm

30 mm

2000 mm

1.50 mm

1.344 kg

More information
KHB 7-30E
Bracket support KHB 7-30E

15 mm

30 mm

3000 mm

1.50 mm

2.016 kg

More information
KHB 7-60E
Bracket support KHB 7-60E

15 mm

30 mm

6000 mm

1.50 mm

4.031 kg

More information

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

KHB 7-02E4
profile rail perforated 30/15x1,5

15 mm

30 mm

200 mm

1.50 mm

0.136 kg

More information
KHB 7-03E4
profile rail perforated 30/15x1,6

15 mm

30 mm

300 mm

1.50 mm

0.204 kg

More information
KHB 7-04E4
profile rail perforated 30/15x1,7

15 mm

30 mm

400 mm

1.50 mm

0.272 kg

More information
KHB 7-05E4
profile rail perforated 30/15x1,9

15 mm

30 mm

600 mm

1.50 mm

0.340 kg

More information
KHB 7-06E4
profile rail perforated 30/15x1,8

15 mm

30 mm

500 mm

1.50 mm

0.408 kg

More information
KHB 7-30E4

15 mm

30 mm

3000 mm

1.50 mm

2.041 kg

More information
KHB 7-60E4

15 mm

30 mm

6000 mm

1.50 mm

4.082 kg

More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link

Heinze.de

Tender text for this product

Open Link

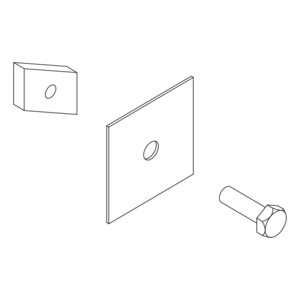

Accessories
