KHA 7

39.5x22 mm profile rail, perforated

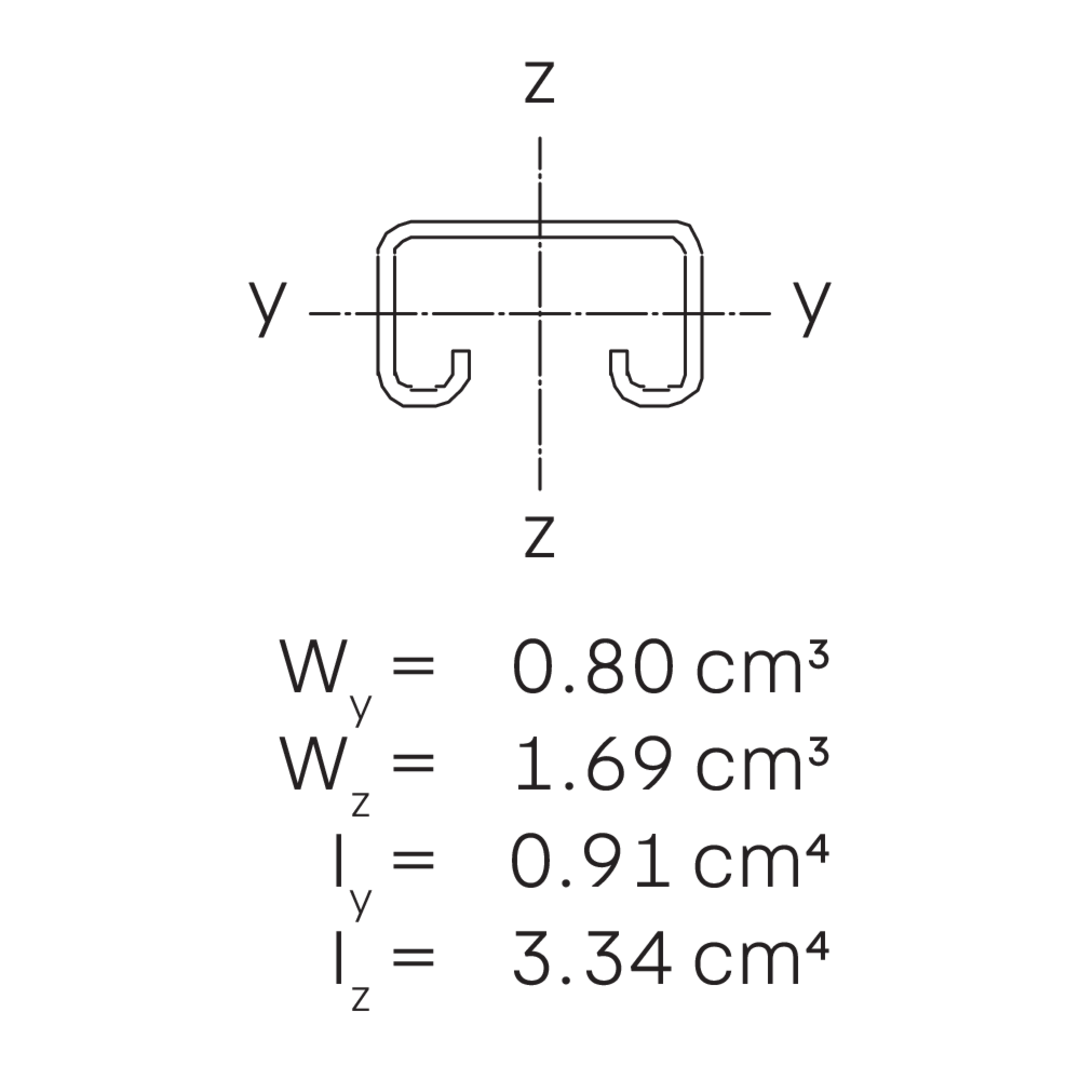

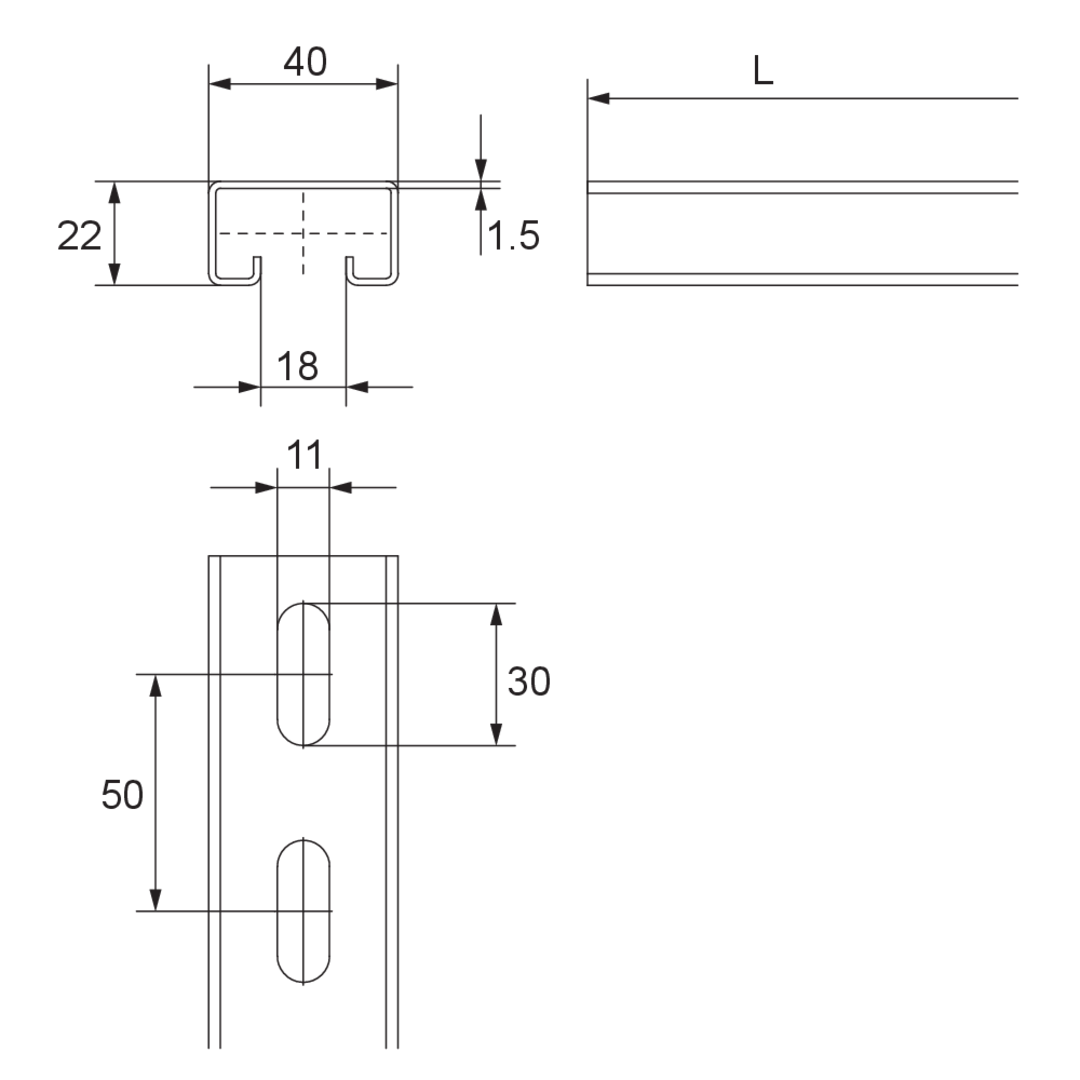

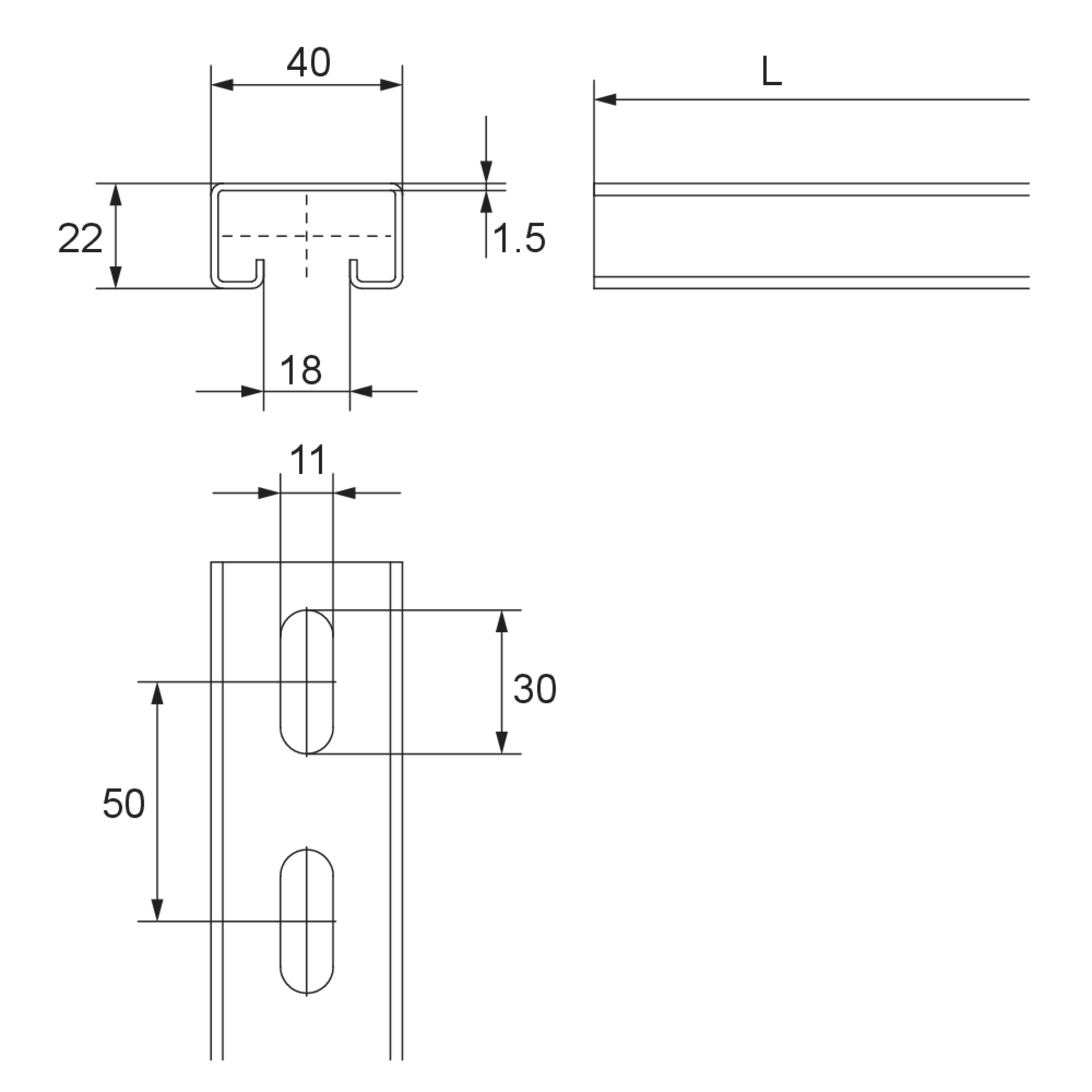

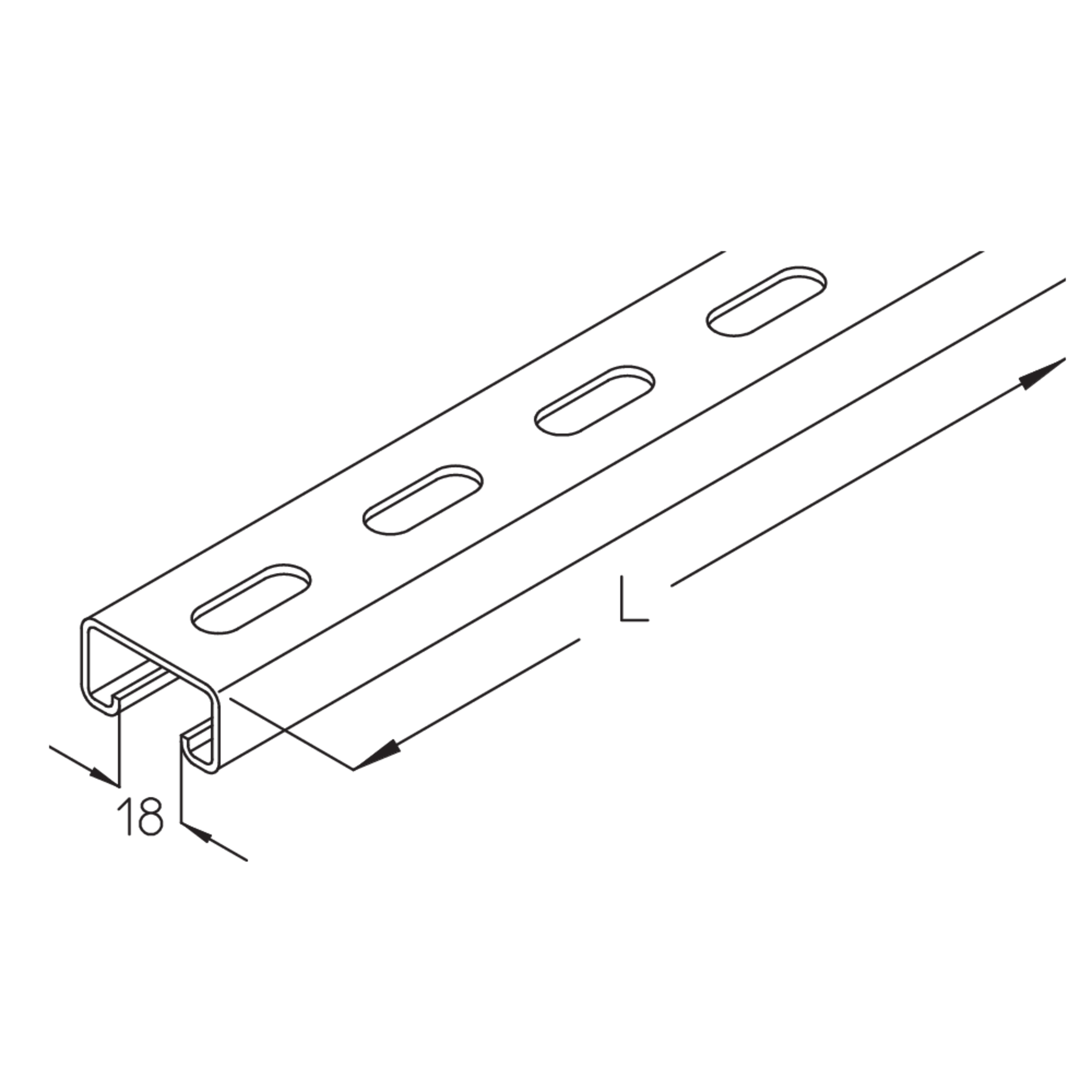

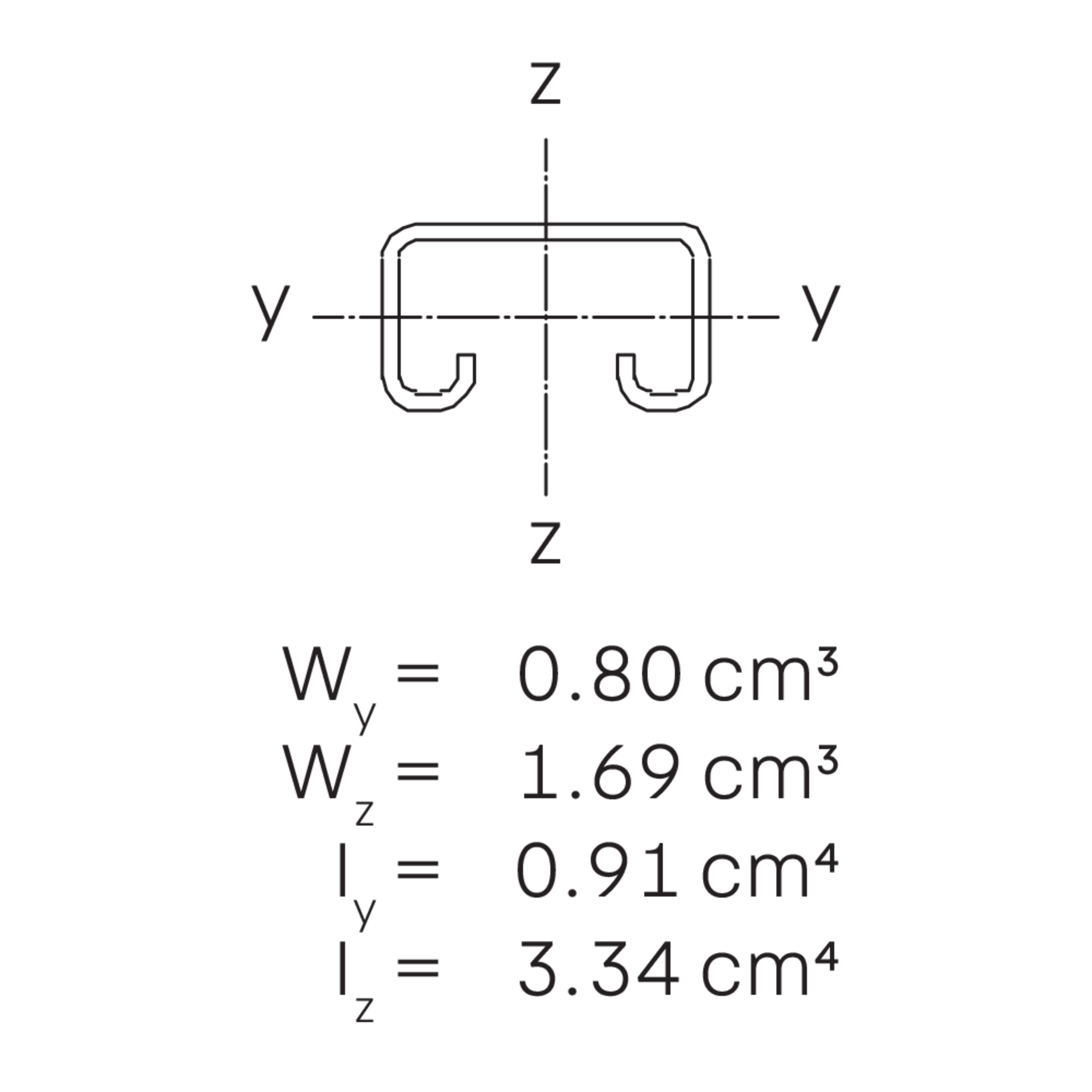

The profile rail KHA 7 consists of a C+ profile 39.5 x 22 mm with continuous perforation and a slot width of 18 mm (material thickness = 1.5 mm). We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications. It is available in lengths of 100 to 6000 mm.

Get in touch Download datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

HP

profile height

BP

profile width

L

length

t

material thickness

G

Weight per storage unit
  • KHA 7-02S
    Bracket support KHA 7-02S
    profile height
    22 mm
    profile width
    39.5 mm
    length
    200 mm
    material thickness
    1.50 mm
    Weight per storage unit
    0.210 kg
    More information
  • KHA 7-03S
    Bracket support KHA 7-03S
    profile height
    22 mm
    profile width
    39.5 mm
    length
    300 mm
    material thickness
    1.50 mm
    Weight per storage unit
    0.310 kg
    More information
  • KHA 7-04S
    Bracket support KHA 7-04S
    profile height
    22 mm
    profile width
    39.5 mm
    length
    400 mm
    material thickness
    1.50 mm
    Weight per storage unit
    0.410 kg
    More information
  • KHA 7-05S
    Bracket support KHA 7-05S
    profile height
    22 mm
    profile width
    39.5 mm
    length
    500 mm
    material thickness
    1.50 mm
    Weight per storage unit
    0.510 kg
    More information
  • KHA 7-06S
    Bracket support KHA 7-06S
    profile height
    22 mm
    profile width
    39.5 mm
    length
    600 mm
    material thickness
    1.50 mm
    Weight per storage unit
    0.610 kg
    More information
  • KHA 7-07S
    Bracket support KHA 7-07S
    profile height
    22 mm
    profile width
    39.5 mm
    length
    700 mm
    material thickness
    1.50 mm
    Weight per storage unit
    0.780 kg
    More information
  • KHA 7-08S
    Bracket support KHA 7-08S
    profile height
    22 mm
    profile width
    39.5 mm
    length
    800 mm
    material thickness
    1.50 mm
    Weight per storage unit
    0.834 kg
    More information
  • KHA 7-09S
    Bracket support KHA 7-09S
    profile height
    22 mm
    profile width
    39.5 mm
    length
    900 mm
    material thickness
    1.50 mm
    Weight per storage unit
    1.000 kg
    More information
  • KHA 7-10S
    Bracket support KHA 7-10S
    profile height
    22 mm
    profile width
    39.5 mm
    length
    1000 mm
    material thickness
    1.50 mm
    Weight per storage unit
    1.050 kg
    More information
  • KHA 7-11S
    Bracket support KHA 7-11S
    profile height
    22 mm
    profile width
    39.5 mm
    length
    1100 mm
    material thickness
    1.50 mm
    Weight per storage unit
    1.150 kg
    More information
  • KHA 7-12S
    Bracket support KHA 7-12S
    profile height
    22 mm
    profile width
    39.5 mm
    length
    1200 mm
    material thickness
    1.50 mm
    Weight per storage unit
    1.260 kg
    More information
  • KHA 7-13S
    Bracket support KHA 7-13S
    profile height
    22 mm
    profile width
    39.5 mm
    length
    1300 mm
    material thickness
    1.50 mm
    Weight per storage unit
    1.360 kg
    More information
  • KHA 7-14S
    Bracket support KHA 7-14S
    profile height
    22 mm
    profile width
    39.5 mm
    length
    1400 mm
    material thickness
    1.50 mm
    Weight per storage unit
    1.470 kg
    More information
  • KHA 7-15S
    Bracket support KHA 7-15S
    profile height
    22 mm
    profile width
    39.5 mm
    length
    1500 mm
    material thickness
    1.50 mm
    Weight per storage unit
    1.570 kg
    More information
  • KHA 7-20S
    Bracket support KHA 7-20S
    profile height
    22 mm
    profile width
    39.5 mm
    length
    2000 mm
    material thickness
    1.50 mm
    Weight per storage unit
    2.200 kg
    More information
  • KHA 7-30S
    Bracket support KHA 7-30S
    profile height
    22 mm
    profile width
    39.5 mm
    length
    3000 mm
    material thickness
    1.50 mm
    Weight per storage unit
    3.200 kg
    More information
  • KHA 7-60S
    Bracket support KHA 7-60S
    profile height
    22 mm
    profile width
    39.5 mm
    length
    6000 mm
    material thickness
    1.50 mm
    Weight per storage unit
    6.300 kg
    More information

Stainless steel, according to ASTM 304 / BS 304 S 3

Article

HP

profile height

BP

profile width

L

length

t

material thickness

G

Weight per storage unit
  • KHA 7-01E
    bracket support KHA 7-01E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    100 mm
    material thickness
    1.50 mm
    Weight per storage unit
    0.110 kg
    More information
  • KHA 7-02E
    Bracket support KHA 7-02E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    200 mm
    material thickness
    1.50 mm
    Weight per storage unit
    0.220 kg
    More information
  • KHA 7-03E
    Bracket support KHA 7-03E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    300 mm
    material thickness
    1.50 mm
    Weight per storage unit
    0.330 kg
    More information
  • KHA 7-04E
    Bracket support KHA 7-04E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    400 mm
    material thickness
    1.50 mm
    Weight per storage unit
    0.440 kg
    More information
  • KHA 7-05E
    Bracket support KHA 7-05E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    500 mm
    material thickness
    1.50 mm
    Weight per storage unit
    0.550 kg
    More information
  • KHA 7-06E
    Bracket support KHA 7-06E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    600 mm
    material thickness
    1.50 mm
    Weight per storage unit
    0.660 kg
    More information
  • KHA 7-07E
    Bracket support KHA 7-07E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    700 mm
    material thickness
    1.50 mm
    Weight per storage unit
    0.770 kg
    More information
  • KHA 7-08E
    Bracket support KHA 7-08E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    800 mm
    material thickness
    1.50 mm
    Weight per storage unit
    0.880 kg
    More information
  • KHA 7-09E
    Bracket support KHA 7-09E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    900 mm
    material thickness
    1.50 mm
    Weight per storage unit
    0.990 kg
    More information
  • KHA 7-10E
    Bracket support KHA 7-10E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    1000 mm
    material thickness
    1.50 mm
    Weight per storage unit
    1.100 kg
    More information
  • KHA 7-11E
    Bracket support KHA 7-11E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    1100 mm
    material thickness
    1.50 mm
    Weight per storage unit
    1.210 kg
    More information
  • KHA 7-12E
    Bracket support KHA 7-12E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    1200 mm
    material thickness
    1.50 mm
    Weight per storage unit
    1.320 kg
    More information
  • KHA 7-13E
    Bracket support KHA 7-13E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    1300 mm
    material thickness
    1.50 mm
    Weight per storage unit
    1.430 kg
    More information
  • KHA 7-14E
    Bracket support KHA 7-14E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    1400 mm
    material thickness
    1.50 mm
    Weight per storage unit
    1.540 kg
    More information
  • KHA 7-15E
    Bracket support KHA 7-15E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    1500 mm
    material thickness
    1.50 mm
    Weight per storage unit
    1.650 kg
    More information
  • KHA 7-20E
    Bracket support KHA 7-20E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    2000 mm
    material thickness
    1.50 mm
    Weight per storage unit
    2.200 kg
    More information
  • KHA 7-30E
    Bracket support KHA 7-30E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    3000 mm
    material thickness
    1.50 mm
    Weight per storage unit
    3.600 kg
    More information
  • KHA 7-60E
    Bracket support KHA 7-60E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    6000 mm
    material thickness
    1.50 mm
    Weight per storage unit
    6.600 kg
    More information

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

Article

HP

profile height

BP

profile width

L

length

t

material thickness

G

Weight per storage unit
  • KHA 7-01E4
    bracket support KHA 7-01E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    100 mm
    material thickness
    1.50 mm
    Weight per storage unit
    0.110 kg
    More information
  • KHA 7-02E4
    Bracket support KHA 7-02E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    200 mm
    material thickness
    1.50 mm
    Weight per storage unit
    0.220 kg
    More information
  • KHA 7-03E4
    Bracket support KHA 7-03E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    300 mm
    material thickness
    1.50 mm
    Weight per storage unit
    0.330 kg
    More information
  • KHA 7-04E4
    Bracket support KHA 7-04E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    400 mm
    material thickness
    1.50 mm
    Weight per storage unit
    0.440 kg
    More information
  • KHA 7-05E4
    Bracket support KHA 7-05E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    500 mm
    material thickness
    1.50 mm
    Weight per storage unit
    0.550 kg
    More information
  • KHA 7-06E4
    Bracket support KHA 7-06E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    600 mm
    material thickness
    1.50 mm
    Weight per storage unit
    0.670 kg
    More information
  • KHA 7-07E4
    Bracket support KHA 7-07E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    700 mm
    material thickness
    1.50 mm
    Weight per storage unit
    0.780 kg
    More information
  • KHA 7-08E4
    Bracket support KHA 7-08E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    800 mm
    material thickness
    1.50 mm
    Weight per storage unit
    0.890 kg
    More information
  • KHA 7-09E4
    Bracket support KHA 7-09E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    900 mm
    material thickness
    1.50 mm
    Weight per storage unit
    1.000 kg
    More information
  • KHA 7-10E4
    Bracket support KHA 7-10E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    1000 mm
    material thickness
    1.50 mm
    Weight per storage unit
    1.110 kg
    More information
  • KHA 7-11E4
    Bracket support KHA 7-11E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    1100 mm
    material thickness
    1.50 mm
    Weight per storage unit
    1.220 kg
    More information
  • KHA 7-12E4
    Bracket support KHA 7-12E
    profile height
    22 mm
    profile width
    39.5 mm
    length
    1200 mm
    material thickness
    1.50 mm
    Weight per storage unit
    1.330 kg
    More information
  • KHA 7-15E4
    profile rail 40/22X1,5
    profile height
    22 mm
    profile width
    39.5 mm
    length
    1500 mm
    material thickness
    1.50 mm
    Weight per storage unit
    1.673 kg
    More information
  • KHA 7-20E4
    profile rail 40/22X1,5
    profile height
    22 mm
    profile width
    39.5 mm
    length
    2000 mm
    material thickness
    1.50 mm
    Weight per storage unit
    2.230 kg
    More information
  • KHA 7-30E4
    Perforated profile channel 40/22x15
    profile height
    22 mm
    profile width
    39.5 mm
    length
    3000 mm
    material thickness
    1.50 mm
    Weight per storage unit
    3.600 kg
    More information
  • KHA 7-60E4
    Perforated profile channel 40/22x15
    profile height
    22 mm
    profile width
    39.5 mm
    length
    6000 mm
    material thickness
    1.50 mm
    Weight per storage unit
    6.600 kg
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Support systems Assembling instruction

    Montageanleitung

    PDF, 2 MB

    de en

  • Support systems - Technical information

    Technical information

    PDF, 19 MB

    de en

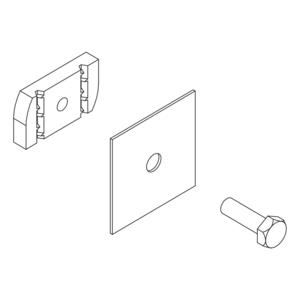

Included accessories

Our finishing services

Whether apartment blocks, office complexes or industrial plants: as your reliable partner for numerous applications and construction phases, we support you in every project with expert advice and support services. This allows you to concentrate fully on your core business.

Consulting, planning, design

Installation services

Individualised solutions
