JTA W 50+

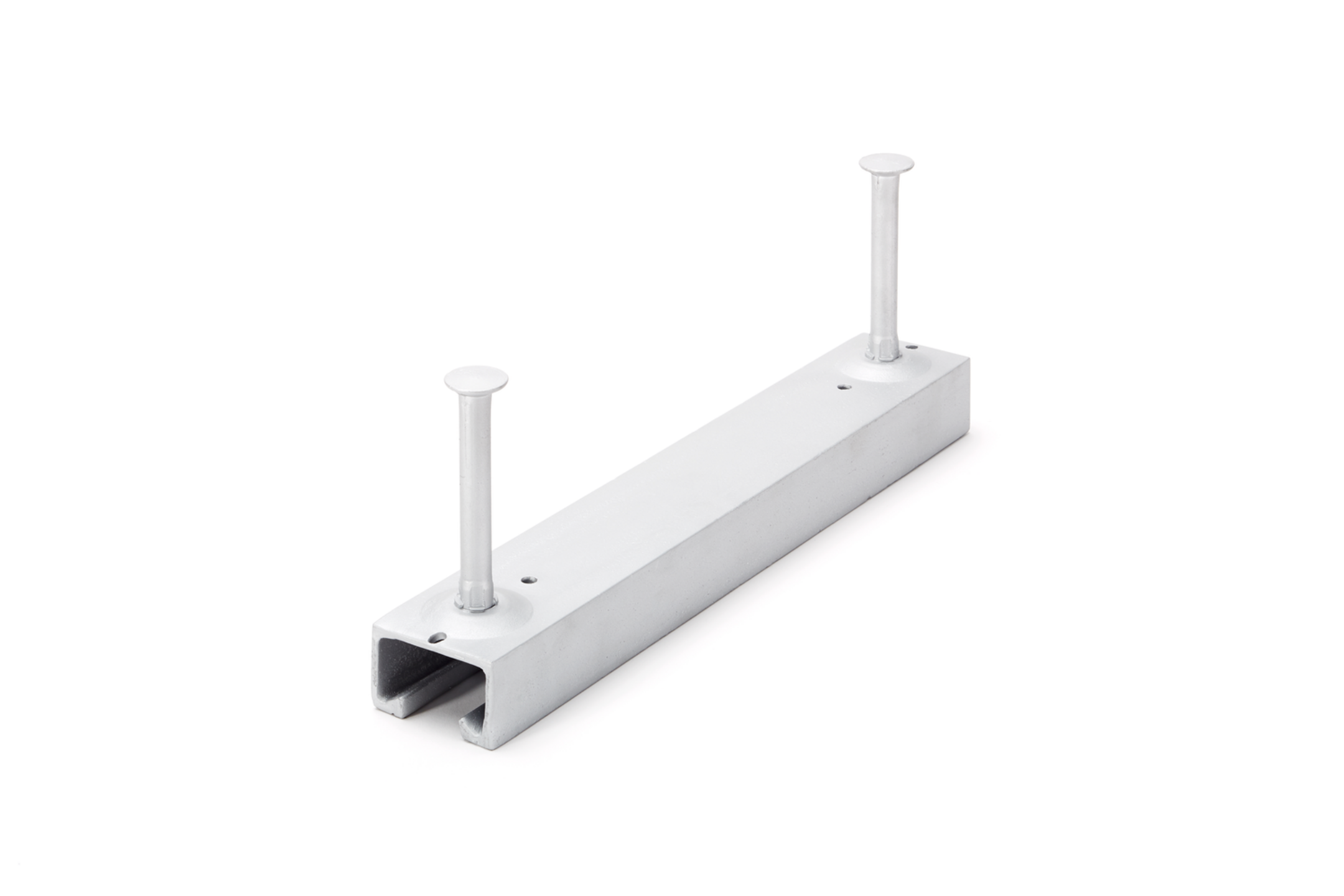

Anchor channel, hot-rolled, with round or I anchor

The anchor channel JTA W 50+ is approved throughout Europe by ETA-09/0338 and almost worldwide by ICC-ES ESR‐2854. It also has environmental product declaration EPD-JDL-20200260-IBB1-DE. It is made of hot-dip galvanised steel (fv) or stainless steel (A4). It can be supplied in any desired length up to a maximum of 6 m and is paired with the bolts JB M10 - JB M20. The profile is 50 mm wide and 30 mm high. The filling is made of polyethylene (PE).

Brandschutz
Umweltproduktdeklaration (EPD): EPD-JDL-20200260-IBB1-DE
Europäische Technische Bewertung: ETA-09/0338
Get in touch Download datasheet

Variants

steel, batch/hot-dip galvanized

Article

H

HP

BP

L

t

Anzahl der Anker

W

  • JTAW50+0150-FVKCE
    JORDAHL anchor channel W50+
    115 mm
    30 mm
    50 mm
    150 mm
    2.75 mm
    2 pcs
    0.688 kg
    More information
  • JTAW50+0200-FVKCE
    JORDAHL anchor channel W50+
    115 mm
    30 mm
    50 mm
    200 mm
    2.75 mm
    2 pcs
    0.866 kg
    More information
  • JTAW50+0250-FVKCE
    JORDAHL anchor channel W50+
    115 mm
    30 mm
    50 mm
    250 mm
    2.75 mm
    2 pcs
    1.044 kg
    More information
  • JTAW50+0300-FVKCE
    JORDAHL anchor channel W50+
    115 mm
    30 mm
    50 mm
    300 mm
    2.75 mm
    2 pcs
    1.232 kg
    More information
  • JTAW50+0350-FVKCE
    JORDAHL anchor channel W50+
    115 mm
    30 mm
    50 mm
    350 mm
    2.75 mm
    3 pcs
    1.489 kg
    More information
  • JTAW50+0400-FVKCE
    JORDAHL anchor channel W50+
    115 mm
    30 mm
    50 mm
    400 mm
    2.75 mm
    3 pcs
    1.655 kg
    More information
  • JTAW50+0550-FVKCE
    JORDAHL anchor channel W50+
    115 mm
    30 mm
    50 mm
    550 mm
    2.75 mm
    3 pcs
    2.188 kg
    More information
  • JTAW50+0800-FVKCE
    JORDAHL anchor channel W50+
    115 mm
    30 mm
    50 mm
    800 mm
    2.75 mm
    4 pcs
    3.154 kg
    More information
  • JTAW50+1050-FVKCE
    JORDAHL anchor channel W50+
    115 mm
    30 mm
    50 mm
    1050 mm
    2.75 mm
    5 pcs
    4.121 kg
    More information
  • JTAW50+3000-FVKCE
    JORDAHL anchor channel W50+
    115 mm
    30 mm
    50 mm
    3000 mm
    2.75 mm
    13 pcs
    11.675 kg
    More information
  • JTAW50+6000-FVKCE
    JORDAHL anchor channel W50+
    115 mm
    30 mm
    50 mm
    6000 mm
    2.75 mm
    25 pcs
    3.914 kg
