JSV50

Clamp connection for tension-resistant and pressure-resistant connection of concrete components

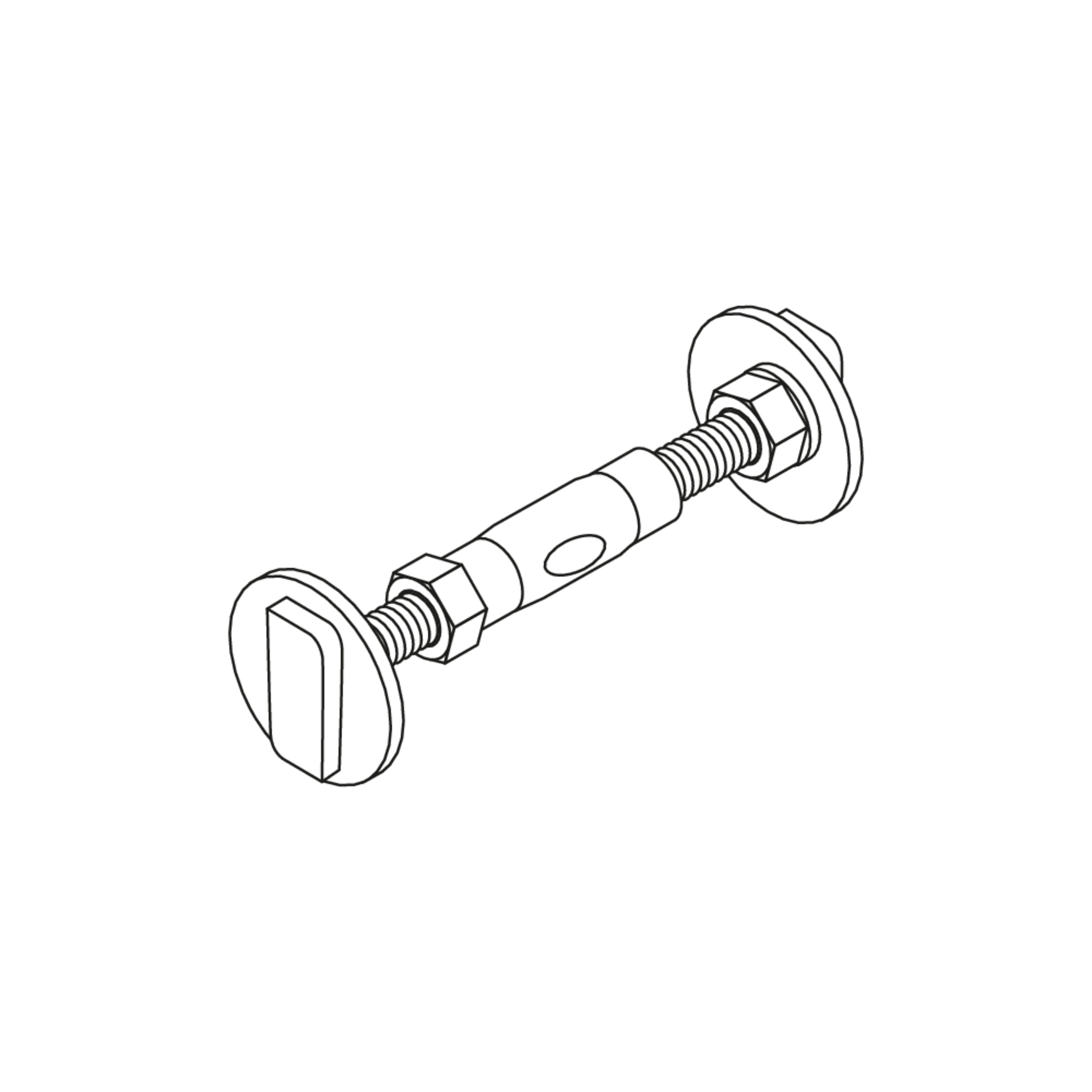

JSV50 stainless steel (A4) clamp connections create play-free, tension-resistant and compression-resistant connections between two components. The connection is made between a vertical and a horizontal anchor channel with a minimum length of 150 mm. This arrangement ensures an exact, continuously variable, three-dimensional alignment of the fastening. The JSV50 clamp connection consists of a clamp sleeve, bolts and nuts with left-hand and right-hand threads, a nut for countering the clamp sleeve and washers.

Get in touch Download datasheet

Variants

Article

H

height

B

width

L

length

G

Weight per storage unit
  • SV501680 A4
    JORDAHL clamp connection M16 JSV-50-1
    22 mm
    33 mm
    165 mm
    0.669 kg
    More information
  • SV501680100 A4
    JORDAHL clamp connection M16 JSV-50-2
    22 mm
    33 mm
    195 mm
    0.716 kg
    More information
  • SV50168080 A4
    JORDAHL clamp connection M16 JSV-50-2
    22 mm
    33 mm
    215 mm
    0.709 kg
    More information
