HF-EAC 5-6

HF cable clamp for fastening to profile rails

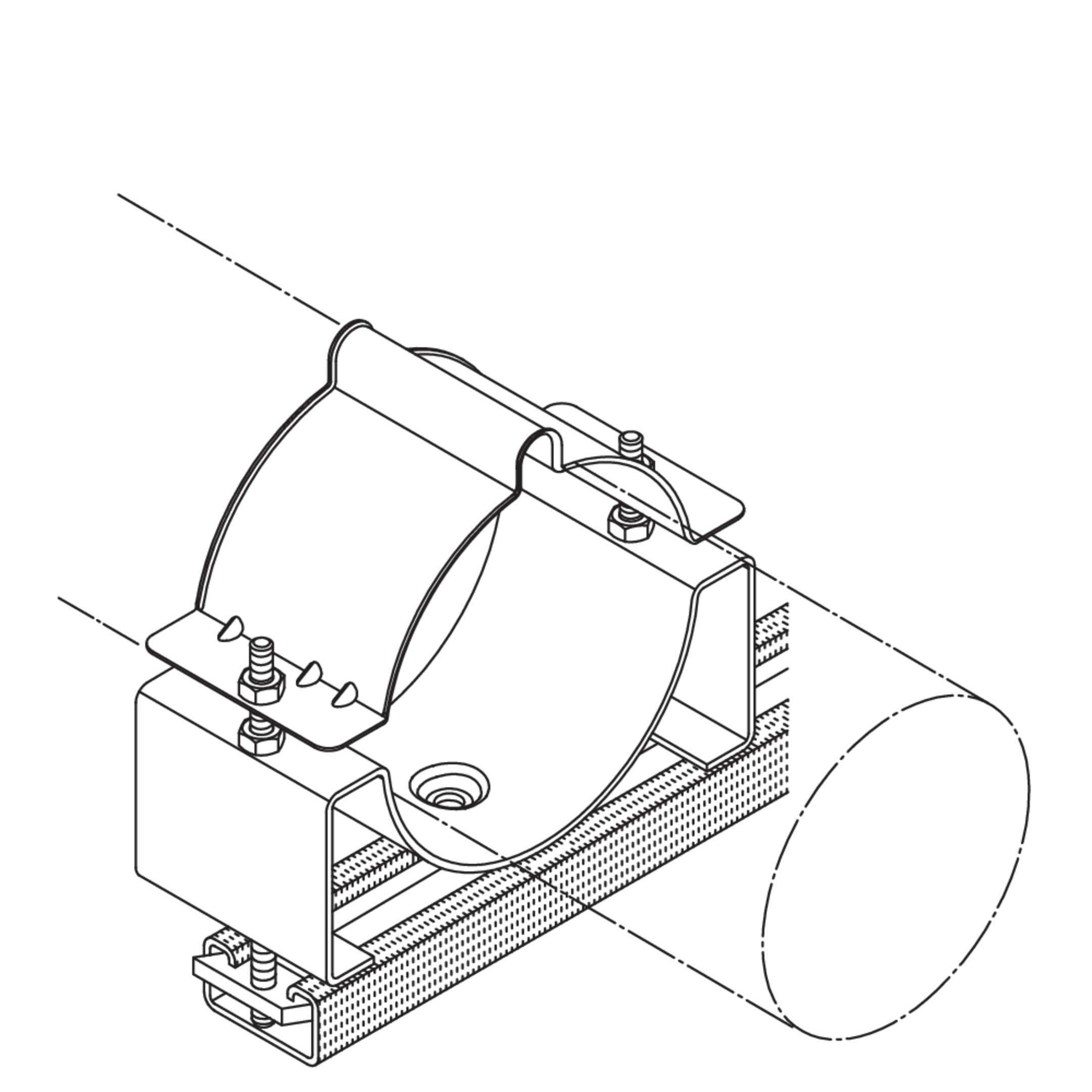

The HF cable clamps HF-EAC 5-6 can be used to route fibre-optic/high-frequency cables with a maximum diameter of 160 mm. They are suitable for attachment to profile rails C+ and C60° with slots 18/22 mm wide. They are made of galvanised steel. Use HF-EE clamp inserts to accommodate various elliptical cables.

Get in touch Download datasheet

Variants

Stahl, stück-/tauchfeuerverzinkt

HF-EAC 5
HF-Schellen E 26-30

Durchmesser

128 mm

Kabeltyp

E 26-30

Gewicht je Lagermengeneinheit

0.966 kg

More information
HF-EAC 6
HF-Schellen E 20

Durchmesser

160 mm

Kabeltyp

E 20

Gewicht je Lagermengeneinheit

1.126 kg

More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link

Heinze.de

Tender text for this product

Open Link

Accessories

Downloads

Price list Building extension 2025

Valid from February 1st, 2025, updated version from 27/01/2025.

PDF, 46 MB

de en
EC Declaration of Conformity Cable clamps

Installation equipment for electric cables and circuits

PDF, 59 KB

de en
3335-772-11-3 - Expert statement

DIN 4102-12
Standardised supporting structure: Cable clamps
Fire resistance duration: F30; F60; F90
Functional maintenance classes: E30; E60; F90
Fastening distance: ≤ 0.3 m; ≤ 0.4 m
Period of validity: 06.07.2027

PDF, 834 KB

de
Download
Cable Clamps Catalogue

Katalog

PDF, 5 MB

de en

Included accessories
